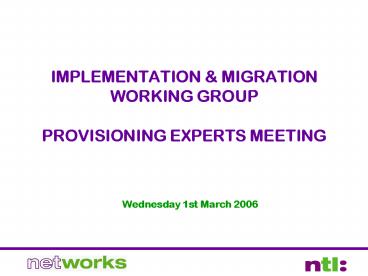

IMPLEMENTATION MIGRATION WORKING
GROUPPROVISIONING EXPERTS MEETING
Wednesday 1st March 2006
2
Health Warning

• The information in this presentation relates to
  plans currently under development and subject to
  consultation and may be subject to radical change
  at any time without notice.
• The information in this presentation is without
  prejudice to commercial and contractual
  discussions. It does not imply acceptance of the
  Virtual Interconnect Circuit product, System
  Alteration Notice process nor its associated
  contractual clauses agreed or otherwise or indeed
  anything remotely connected with 21CN.
• This information is not suitable for children or
  those of a nervous disposition.
• This information may contain nuts.
• This information is suitable for vegetarians.

3
New ACO - Segregated Route Option

• Objective of session is to
• Show current example of route to BT DLE
• Explain how VIC circuits will be shown on ACO
• Show result of Cardiff (Pathfinder) changes
• Summarise results of the exercise

4
BT ACO v. ntl version of BT ACO

• ntl's version of BT ACO has
• Extra columns with exchange 'real names'
• Extra column with transmission identity in ntl
  terminology
• Transmission Verifier sheet for easy checking
  of Sneids
• IEC check system (BT switch against Point of
  Connection)

5
Migration Cardiff DLE Unit E (CF/UE)
2 E1s on Sneid A 2 E1s on Sneid B 4 E1s on Sneid
C 2 E1s on Sneid D
Note NTS connection not shown
Cardiff DLE E (CF/UE)
Cardiff (CF/REX/1)
Egress/IDA route (total 10 E1s)
Cardiff Iolite NGS (CF/ILT)
Existing Egress, IDA, Ingress etc routes on six
Sneids
Today
6
Migration Cardiff DLE Unit E (CF/UE)
2 E1s on Sneid A 2 E1s on Sneid B 4 E1s on Sneid
C 2 E1s on Sneid D
Note NTS connection not shown
Cardiff DLE E (CF/UE)
Cardiff (CF/REX/1)
Egress/IDA route (total 10 E1s)
Cardiff Iolite NGS (CF/ILT)
Existing Egress, IDA, Ingress etc routes on six
Sneids
Traffic removed from DLE route segregated
route(s) built
7
Migration Cardiff DLE Unit E (CF/UE)
2 E1s on Sneid A 2 E1s on Sneid B 4 E1s on Sneid
C 2 E1s on Sneid D
Note NTS connection not shown
Cardiff DLE E (CF/UE)
Cardiff (CF/REX/1)
Egress/IDA route (total 10 E1s)
Cardiff Iolite NGS (CF/ILT)
Existing Egress, IDA, Ingress etc routes on six
Sneids
New route jumpered on existing transmission
8
Migration Cardiff DLE Unit E (CF/UE)
2 E1s on Sneid A 2 E1s on Sneid B 4 E1s on Sneid
C 2 E1s on Sneid D
Note NTS connection not shown
Cardiff DLE E (CF/UE)
Cardiff (CF/REX/1)
Egress/IDA route (total 10 E1s)
Cardiff Iolite NGS (CF/ILT)
Existing Egress, IDA, Ingress etc routes on six
Sneids
Traffic re-instated old route data recovered
9
Todays ACO connections to CF/UE
10
ACO showing CF/UE virtual connections
11
Amended ACO (part) for Cardiff
12
SUMMARY

• New ACO format is manageable
• May be thousand or more additional rows...
• Open to errors - no easy checking mechanism
• Excel not user friendly - need Access to
  manipulate data
• Poor data integrity using Excel
• - no history log
• - no audit trail for changes
