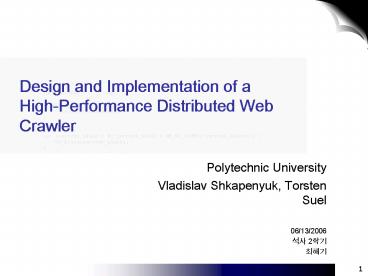

Design and Implementation of a HighPerformance Distributed Web Crawler

1
Design and Implementation of a High-Performance
Distributed Web Crawler

• Polytechnic University
• Vladislav Shkapenyuk, Torsten Suel
• 06/13/2006
• ?? 2??
• ???

2
Contents

• 3. Implementation Details and Algorithmic
  Techniques
• 3.4 Crawl Manager Data Structure
• 3.5 Scheduling Policy and Manager Performance
• 4. Experimental Results and Experiences
• 4.1 Results of a Large Crawl
• 4.2 Network Limits and Speed Control
• 4.3 System Performance and Configuration
• 4.4 Other Experiences
• 5. Comparison with Other Systems
• 6. Conclusions and Future Work

3
Manager Data Structures
4
3.4 Crawl Manager Data Structure

• The crawl manager maintains a number of data
  structures for scheduling the requests on the
  downloaders
• FIFO request queue
• A list of request files
• Contains a few hundred or thousand URLs
• Be located on a disk
• Not immediately loaded
• Stay on disk as long as possible

5
3.4 Crawl Manager Data Structure (2)

• There are a number of FIFO host queues containing
  URLs, organized by hostname
• Berkeley DB using a single B-Tree (hostname
  key)
• Once a host has been selected for download
• we take the first entry in the corresponding host
  queue
• send it to a downloader

6
3.4 Crawl Manager Data Structure (3)

• Three different host structures
• Host dictionary
• An entry for each host
• A pointer to the corresponding host queue
• Ready queue
• A pointer to those hosts that are ready for
  download
• Waiting queue
• A pointer to those hosts that have recently been
  accessed and are now waiting for 30 seconds

7
3.4 Crawl Manager Data Structure (4)

• Each host pointer in the ready queue has as its
  key value the request number of the first URL in
  the corresponding host queue
• Select the URL with the lowest request number
  among all URLs that are ready to be downloaded,
  and it to the downloader
• After the page has been downloaded, a pointer to
  the host is inserted into the waiting queue with
  waiting time
• If its waiting time has passed, transfer hosts
  back into the ready queue

8
3.4 Crawl Manager Data Structure (5)

• When a new host is encountered
• Create a host structure
• Put it into the host dictionary
• Insert a pointer to the host into the ready queue
• When all URLs in a queue have been downloaded
• The host is deleted from the structures
• Certain information in the robots files is kept
• If a host is not responding
• Put the host into the waiting queue for some time

9
3.5 Scheduling Policy and Manager Performance

• If we immediately insert all the URLs into the
  Berkeley DB B-tree structure
• Quickly grow beyond main memory size
• Result in bad I/O behavior
• Thus, we would like to delay inserting the URLs
  into the structures as long as possible

10
3.5 Scheduling Policy and Manager Performance (2)

• Goal significantly decrease the size of the
  structures
• We have enough hosts to keep the crawl running at
  the given speed
• The total number of host structures and
  corresponding URL queues at any time is about
• xstndnt
• x the number of hosts in the ready queue
• st an estimate of the number of currently
  waiting
• nd the number of hosts that are waiting because
  they were down
• nt the number of hosts in the dictionary
  (ignoring)
• The number of host structures will usually be
  less than 2x
• Exgt x 10000, which for a speed of 120 pages per
  second resulted in at most 16000 hosts in the
  manager

11
3.5 Scheduling Policy and Manager Performance (3)

• The ordering is in fact the same as if we
  immediately insert all request URLs into the
  manager
• Assume that when the number of hosts in the ready
  queue drops below x, the manager will be able to
  increase this number again to at least x before
  the downloaders actually run out of work

12
4.1 Results of a Large Crawl

• 120 million web pages on about 5 million hosts
  (18 days)
• In the last 4days, the crawler was running at
  very low speed to download URLs from a few
  hundred very large host queues that remained
• During operation, the speed of the crawler was
  limited by us to a certain rate, depending on
  time of day, other users on campus were not
  inconvenienced

13
4.1 Results of a Large Crawl (2)

• Network errors
• A server down
• Dows not exist
• Behaves incorrectly
• Extremely slow
• Some robots files were downloaded many times

14
4.2 Network Limits and Speed Control

• We had to control the speed of our crawler so
  that impact on other campus users is minimized
• Usually limited rates to about 80 pages per
  second(1MB/s) during peak times
• Up to 180pages per second during the late night
  and early morning
• Limits can be changed and displayed via a
  web-based Java interface
• Connected to the Internet by a T3 link, with
  Cisco 3620 as main campus router

15
4.2 Network Limits and Speed Control (2)

• This data includes all traffic going in and out
  of the poly.edu domain over the 24 hours of May
  28, 2001.
• At high speed, relatively little other traffic
• Perform a check point every 4 hours
• Does not exist in the outgoing bytes, since the
  crawler only sends out small requests
• Clearly visible in the number of outgoing frames,
  partly due to HTTP requests and the DNS system

Incoming bytes
outgoing bytes
outgoing frames
16
4.3 System Performance and Configuration

• Sun Ultra10 workstations and a dual-processor Sun
  E250
• Downloader
• Most of the CPU, little memory
• Manager
• Little CPU time
• Reasonable amount (100MB) of buffer space for
  Berkeley DB
• Downloader and the manager on one machine, and
  all other components on the other

17
5. Comparison with Other Systems

• Mercator
• Flexibility through pluggable components
• Centralized crawler
• Data can be directly parsed in memory and does
  not have to be written from disk
• Uses caching to catch most of the random I/O and
  fast disk system
• Good I/O performance by hashing hostnames

18
5. Comparison with Other Systems (2)

• Atrax
• A recent distributed version of Mercator
• Ties several Mercator systems together
• Not yet familiar with many details of Atrax
• Uses a disk-efficient merge
• Very similar approach for scaling
• Uses Mecator as its basic unit of replication

19
6. Conclusions and Future Work

• We have
• Described the architecture and implementation
  details of our crawling system
• Presented some preliminary experiments
• There are obviously many improvements to the
  system
• Future work
• A detailed study of the scalability of the system
  and the behavior of its components
