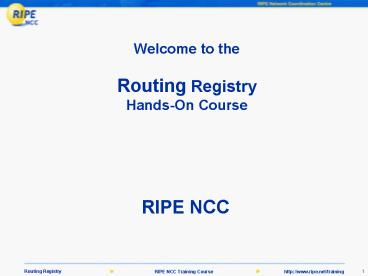

Welcome to the Routing Registry HandsOn Course

1
Welcome to the Routing RegistryHands-On Course

• RIPE NCC

2
Schedule

• RIPE and RIPE NCC
• RIS
• Documenting policy
• RIPE Whois Database
• RPSL Introduction
• Specifying routing policies
• RPSL in practice
• Case study 1
• AS-sets, grouping peers
• Case study 2

• RPSL in practice
• AS-path filters, MEDs, route sets
• Case study 3
• Communities
• Case study 4
• Bogon filtering
• RtConfig
• Day to day usage
• IRRToolSet
• RRCC

3
RIPE and RIPE NCC

• Réseaux IP Européens (1989)
• Collaborative, open community for Internet
  operators, administration and development
• RIPE Network Coordination Centre (1992)
• Independent not-for-profit membership
  organisation
• One of 5 Regional Internet Registries
• Member services
• Public services

4
RIPE NCC Services

• Member services
• Registration services
• IPv4, IPv6
• AS numbers
• Training Courses
• Test Traffic Measurements

• Public Services
• Giving Information
• Reverse DNS
• DISI
• ENUM (e164.arpa)
• K-root nameserver
• RIPE Whois DB
• RIS
• RRCC

5
Summary

• RIPE open community
• RIPE NCC membership organisation
• 5 RIR regions

Questions?
6
Routing Information Service (RIS)
7
Looking-glass with History

• Database with info about routes
• over time
• Route Collectors at several major IXes
• Amsterdam, London, Paris, Geneva, Vienna, Tokio,
  Stockholm, San Jose, Zurich, Milan, New York
• 370 peers (37 also IPv6)
• Peering requests rispeering_at_ripe.net
• Similar to routeviews
• http//www.routeviews.org/

8
RIS Applications

• Debugging
• e.g. Checking why customer route was not
  available
• Verify local policies vs router setup gt correct
  errors
• Prefix distribution aggregation, correct filters
• Analysis
• Routing table convergence times route flaps
• Comparing RR policies with actual announcements
• More http//www.ripe.net/ris/analysis.html

9
Existing Tools

• ASInUse / PrefixInUse
• Last appearance of ASN/prefix in global routing
  table
• Search by AS / prefix
• ASN / prefix activity during a particular time
  interval
• Looking Glass (also for IPv6)
• RISreport
• BGP Traffic Hot Spots
• prefixes with high activity
• RIS Martians
• Raw data available on request

10
RISWhois

• Quick summarised view of prefix visibility
• Lists which route collectors see the prefix
• Maps prefix to originating ASN
• riswhois.ripe.net
• route 212.3.64.0/19
• origin AS8900
• descr Global One Hungary Internet
• upd-first 2003-11-29 2215Z 164.128.32.11_at_rrc09

• upd-last 2003-12-04 1709Z 193.203.0.52_at_rrc05
• seen-at rrc05,rrc09
• source RISWHOIS

11
MyASn

• Notification system for BGP
• Monitors route propagation
• Generates alerts based on user settings
• GUI ( integration in LIRPortal)
• User Accounts Super User, Administrator, User
• Configuration Hold-down Time, Hold-down Event,
  Time To Live
• Alarm Events trigger alarm messages
• Sign up http//www.ris.ripe.net/myasn.html

12
Summary

• Looking glass with history
• Global views of your prefixes
• http//www.ripe.net/ris/

Questions?
13
Documenting Policy
14
Why Document Routing Policy?

• Recreate your policy in case of loss of
  hardware/administrators
• Less downtime
• Scaling
• Troubleshooting

Q How do you document your routing policy?
15
Why Document in RPSL?

• Abstract
• Not vendor specific
• Global view, not router specific
• Well known
• Tools available
• router configuration
• expertise built into tools

16
Why Document in IRR?

• Required by some Transit Providers
• Required by some Exchange Points
• Allows peers to automatically update filters
• For your announcements
• Consistent information between neighbours
• Good housekeeping

17
Why Document in RIPE DB?

• Convenience
• inetnums already there
• aut-num already there
• maintainer already there
• person objects already there
• Strong security
• Its free!!!
• Database most likely used by your peers

18
Summary

• Document routing policy
• Use RPSL
• Use IRR

Questions?
19
RIPE Whois Database
20
RIPE Database the IRR

• Public Network Management Database
• Routing Registry - a subset of the RIPE DB
• contains routing information
• RIPE RR is part of the Internet Routing Registry
• http//www.irr.net/
• Distributed databases

21
DB Object Syntax
Attribute name
Attribute value
Comment (after )
person John Smith address Singel
258 Amsterdam phone [phone]
9-17 CET nic-hdl JS1-RIPE changed
john_at_example.net 20030306 source RIPE
Continuation (line starts with white character)
22
Querying whois DB

• Object types
• Resource info
• Contact info
• Protection
• Command-line client
• Web interface
• https//www.ripe.net/whois
• Glimpse full text search
• http//www.ripe.net/db/whois-free.html

23
Updating Objects

• Updating creating, modifying, deleting
• Web, sync, email
• Mind the primary key!
• Use new for creating objects
• Add changed line
• Ack, error warning messages returned

24
Protection of DB objects

• mnt-by attribute refers to mntner object
• Checked at every update
• Password
• CRYPT-PW, MD5-PW,
• https//www.ripe.net/cgi-bin/cgicrypt.pl.cgi
• Private key/Public key
• PGPKEY-ltidgt key-cert object
• X.509-ltidgt key-cert object
• Multiple auth / mnt-by / mntner-s are OR-ed

25
Multiple Protection Illustrated
aut-num AS3003 mnt-by ONE-MNT mnt-by TWO-MNT
mntner TWO-MNT
mntner ONE-MNT
auth MD5-PW bla34bla.
auth CRYPT-PW bla34
auth PGPKEY-AE6FBBF7

• In order to update the object AS3003, need to
  have
• Either the (crypt) password
• Or the MD5 password
• Or the PGP key
• If you forget pwd write to ltripe-dbm_at_ripe.netgt

26
Hierarchical Authorisation
inetnum 10.0.0.0 - 10.255.255.255 mnt-lower
MNT1 mnt-by MNT2
inetnum 10.10.0.0 - 10.10.255.255 mnt-by MNT3
aut-num AS1234 mnt-by MNT1 mnt-by
MNT4 mnt-routes MNT3
27
TEST Database

• Playground Database source TEST
• whois h test-whois.ripe.net
• mailto lttest-dbm_at_ripe.netgt
• http//www.ripe.net/db/syncupdates/syncupdate-test
  -minimal.html
• http//www.ripe.net/webupdates-test
• Differences from RIPE DB
• Can create ASN objects automatically
• Does not contain same info as operational RIPE DB

28
Summary

• RIPE DB
• Maintainers
• Hierarchical authorisation

Questions?
29
Creating Contact Info Objects

• Aut-Num object requires
• Person object (contact details)
• Maintainer (protection)
• Exercises
• Task 1 - Create unprotected person object
• Task 2 - Create mntner Object
• Task 3 - Protect your person object
• Time 30

Exercises
30
RPSL Introduction
31
Routing Policy Specification Language

• Object-oriented language
• Structured whois DB objects
• Describes routing policy
• Routes, AS numbers
• Relations between BGP peers
• Established standard
• Routing Policy Specification Language (RFC-2622)
• Routing Policy System Security (RFC-2725)
• Using RPSL in Practice (RFC-2650)

32
RPSLng

• Adds IPv6 and multicast to RPSL
• RFC 4012
• new object ROUTE6
• new attributes like "mp-import" and "mp-export"

• RPSLng compliant
• Ripe Whois DB
• some IRRToolset tools (from 4.8.1)
• peval
• rpslcheck
• RtConfig
• This course does not cover RPSLng

33
Policy Expression

• Aut-num
• Lists neighbors (in import / export lines)
• Defines filter rules for each neighbour
• Defines route parameters modifications per prefix
• Route object
• Represents address range originating by ASN
• Set objects
• Grouping objects with similar policy / usage

34
aut-num Admin Details

• aut-num AS9000
• as-name John-Smith-Company-AS
• descr Very Basic Object
• import Policy Empty, for now
• export Policy Empty, for now
• default Policy Empty, for now
• admin-c JS2-RRTEST
• tech-c JS2-RRTEST
• mnt-by john-smith-MNT
• mnt-routes john-s-customer-mnt
• changed j.smith_at_example.net 20050101
• source RRTEST

35
Creating Route Objects

• Route object primary key
• Address range and origin ASN
• Must pass multiple authentications
• Originating ASN
• AND the address space
• AND the mntner of the route object itself

36
Creating Route Objects
inetnum 80.1.0.0 - 80.1.255.255 mnt-by
RIPE-NCC-HM-MNT mnt-routes LIR2-MNT
allocation
aut-num AS2 mnt-by LIR2-MNT
mntner LIR2-MNT auth MD5-PW bla
route 80.1.0.0/16 origin AS2 mnt-by LIR2-MNT
37
Summary

• RPSL introduction
• Aut-num object
• Route object

Questions?
38
Creating RPSL Objects

• To create a routing policy in RPSL you need
• Aut-num object (place to put the policy)
• Route object (prefix to announce)
• Exercises
• Task 1 - Create aut-num object (without policy)
• Task 2 - Create route object
• Time 15 mins

Exercises
39
Specifying Routing Policies Using RPSL
40
aut-num Policy Syntax
import from ltpeeringgt action ltactiongt
accept ltfiltergt export to ltpeeringgt
action ltactiongt announce ltfiltergt

• ltpeeringgt ASN (or AS-set)
• ltfiltergt set of prefixes (for example AS)
• ltactiongt med, communities, pref

41
Controlling Outbound Traffic

• import line determines outbound traffic
• You decide who and how (filters)
• RPSL pref different from local pref
• lower pref more preferred
• higher local pref more preferred
• import from AS3
• action pref100
• accept ANY

42
Controlling Inbound Traffic

• export line determines inbound traffic
• You have less control
• Control by make certain paths less interesting
• Choose, then put filters in
• AS path prepending
• export to AS3
• action aspath.prepend (AS1, AS1)
• announce AS1

43
Filters

• Prefix filters
• Prefixes
• Route sets lists of prefixes
• AS all prefixes in DB with that origin AS
• AS sets multiple ASs
• AS-path filters
• Regular expressions
• Keywords ANY, PeerAS
• Logical operators AND, OR, NOT

44
Building an Aut-num object
action aspath.prepend (AS1, AS1) announce AS1
import from AS2 action pref20 accept AS2
export to AS1 announce AS2
ANY
import from AS2 action pref200
accept ANY
45
Summary

• Inbound traffic policy syntax
• Outbound traffic policy syntax
• Filters

Questions?
46
RPSL in Practice
47
RPSL in Practice

• Case 1 - Multihoming
• RPSL AS-sets, grouping peers
• Case 2 - Simplifying policy
• RPSL AS-path filters, MEDs, route sets
• Case 3 - Multiple links, same peer
• RPSL Communities
• Case 4 - Communities
• RPSL Bogon filtering

48
Case 1 - Multihoming
AS2001
AS1001
AS9001
Exercises
49
Scenario A

• AS1001 is your upstream provider
• AS2001 is a private peer
• Exercise
• Create RPSL policy reflecting this scenario
• Put this policy in your aut-num object
• Time 15 mins

50
Scenario B

• AS1001 is your preferred upstream provider
• AS2001 is your backup upstream provider
• Exercise
• Create RPSL policy reflecting this scenario
• Put this policy in your aut-num object
• Time 15 mins

51
Scenario C

• AS1001 is your upstream provider
• AS2001 is your upstream provider
• Exercise
• Create RPSL policy reflecting this scenario
• Put this policy in your aut-num object
• Time 15 mins

52
Scenario D

• AS1001 is your upstream provider
• AS2001 gives you transit
• AND you give AS2001 transit
• Exercise
• Create RPSL policy reflecting this scenario
• Put this policy in your aut-num object
• Time 15 mins

53
Summary
Solutions in AS9001
Questions?
54
RPSL in Practice

• AS-sets, grouping peers

55
Grouping peers

• for multiple peers with same policy as-sets
• as-sets can be used for
• filters (from AS3 accept AS-BGP-PEERS)
• grouping peers (to AS-CUSTOMERS announce ANY)
• Special filter keyword PeerAS
• makes simple import lines possible

56
as-set Objects

• as-set objects for groups of aut-num-s
• name starts with as- (as-customers)
• or indicating origin (as1as-customers)
• members ASN(s), or as-set(s)
• direct
• mbrs-by-ref mntner or ANY
• indirect, any AS qualifying can put member-of
  to include itself in the as-set

57
PeerAS
as-set AS4AS-CUSTOMERS members AS7, AS5, AS8
aut-num AS4 import from AS4AS-CUSTOMERS
accept PeerAS export to AS4AS-CUSTOMERS
announce ANY

• PeerAS means
• from AS7 accept AS7
• from AS5 accept AS5
• from AS8 accept AS8

58
Summary

• As-sets
• mbrs-by-ref, members
• PeerAS

Questions?
59
Case 2 Simplifying Policy
AS1002
AS2002
AS9002
AS3002
AS4002
AS5002
AS7002
AS6002
Exercises
60
Scenario A

• You have private peerings with
• AS3002, AS4002, AS5002, AS6002, AS7002
• Exercise
• Create an AS-set for your peers
• Create RPSL policy for this AS-set
• Put this policy in your aut-num object
• Time 15 mins

61
Scenario B

• You have customers that prefer you as upstream
  provider
• AS3012, AS4012, AS5012, AS6012, AS7012
• Exercise
• Create an AS-set for your peers
• Create RPSL policy for this AS-set
• Put this policy in your aut-num object
• Time 15 mins

62
Scenario C

• You have multiple upstream providers
• AS1002, AS2002
• Exercise
• Create an AS-set for your peers
• Create RPSL policy for this AS-set
• Put this policy in your aut-num object
• Time 15 mins

63
Scenario D

• You have customers that use you as backup
  provider
• AS3022, AS4022, AS5022, AS6022, AS7022
• Exercise
• Create an AS-set for your peers
• Create RPSL policy for this AS-set
• Put this policy in your aut-num object
• Time 15 mins

64
Summary

• Solutions in AS9002

Questions?
65
RPSL in Practice

• AS-path filters, MEDs, Route-sets

66
Using AS Path Filters

• To create AS-path filters, use regular
  expressions in the filter rules in aut-num
• Examples
• import from AS4 accept ltAS4gt
• paths starting with AS4
• import from AS4 accept ltAS4gt
• prefixes are originated in AS4 and
• have paths composed of only AS4's

67
Regular Expression Elements
lt gt the beginning and the end of the regular
expression definition AS1 AS1 as-foo any AS
in as-foo X 0 or more occurrences of X X 1
or more occurrences of X X? 0 or 1 occurrence
of X beginning of path end of
path XY X or Y XY X followed by Y
68
Action MED

• Multiple Exit Discriminator
• differentiates between connections to same peer
• doesnt go beyond immediate neighbour
• local pref has precedence over MED
• neighbour must honour your MED
• so must not set pref

export to AS4 10.0.0.4 at
10.0.0.1 action med1000 announce AS1
69
route-set Objects

• route-set objects for groups of prefixes
• name starts with rs- rs-france
• or indicating origin as1rs-france
• members prefixes or route-sets
• direct
• mbrs-by-ref mntner or ANY
• indirect, any route qualifying can put
  member-of to include itself in the route-set

70
Summary

• AS path filters
• MED
• Route-set

Questions?
71
Case 3 Multiple Links, Same Peer
AS1003
192.168.3.129
10.3.3.2
F
ES
10.3.3.3
AS9003
192.168.3.130
Exercises
72
Scenario A

• You peer with AS1003 in Spain and France
• AS1003 has route-sets differentiated per country
• as1003rs-france
• as1003rs-spain
• Exercise
• Create RPSL import policy for these peerings
• Using the IP addresses of the routers
• Using your peers route-sets
• Honouring your peers MEDs
• Put this policy in your aut-num object
• Time 15 mins

73
Scenario B

• You peer with AS1003 in Spain and France
• AS1003 has route-sets differentiated per country
• as1003rs-france
• as1003rs-spain
• Exercise
• Create RPSL import policy for these peerings
• Using the IP addresses of the routers
• Using your peers route-sets
• Not honouring your peers MEDs
• Put this policy in your aut-num object
• Time 15 mins

74
Scenario C

• You peer with AS1003 in Spain and France
• You have route-sets differentiated per country
• rs-course-france
• rs-course-spain
• Exercise
• Create RPSL export policy for these peerings
• Using the IP addresses of the routers
• Using your route-sets
• Setting different MEDs for local and global
  prefixes
• Put this policy in your aut-num object
• Time 15 mins

75
Summary

• Solutions in AS9003

Questions?
76
RPSL in Practice

• Communities

77
Communities

• RFC-1997
• BGP Communities Attribute
• RFC-1998
• An application of the BGP Community Attribute in
  Multi-home Routing
• Communities are optional tags
• can go through many peers
• Can be used for advanced filtering
• Not a routing parameter!
• (like as-path length, pref, MED, origin,
  weight....)

78
Communities You

• Enable customers to control their own policy
• publish accepted communities
• and what you do with them!
• Filter incoming route announcements to match
• Adds flexibility for your customer
• Eases your workload
• Doesnt interfere with other solutions

79
Example communities

• Communities are set by ISP
• random numbers
• National prefixes 50
• Customer prefixes 175
• Premium customer prefixes 1111
• Prefixes from a US peer 11
• Will give high pref 19

80
Action Communities

• To set a community

import from AS6 action community 1111
accept AS6

• To append a community

import from AS2 action community.append(175)
accept AS2
import from AS8 action community . 11
accept ANY
81
Communities for filtering
import from AS2 accept AS2 AND community.co
ntains (21)
import from AS-ANY accept community(50)
import from AS-CUSTOMERS accept PeerAS
AND community.contains (19)
82
Communities for filtering

• export to AS3
• announce AS1AS-CUST AND
• community 1111

export to AS1AS-PEERS announce
community.contains (175)
83
Summary

• Communities
• Using communities on import
• Using communities on export

Questions?
84
Case 4 Communities
AS1004
AS2004
AS9004
AS3004
AS4004
AS5004
AS7004
AS6004
Exercises
85
Scenario A

• You want to give your customers the option to
  indicate to you that you are their preferred
  upstream
• You want to do this with communities
• Exercise
• Create RPSL import and export policy for these
  peerings
• Using communities to filter
• Put this policy in your aut-num object
• Time 15 mins

86
Scenario B

• You want to give your customers the option to
  indicate to you that you are their backup
  upstream
• You want to do this with communities
• Exercise
• Create RPSL import and export policy for these
  peerings
• Using communities to filter
• Put this policy in your aut-num object
• Time 15 mins

87
Scenario C

• Upstreams AS1004 tags their routes with a
  community so that you can distinguish between
  routes from their EU and US upstreams
• They also allow you to tag your routes with a
  community that they will use to prepend 2 times
  to either their EU or US upstreams
• Exercise
• Create RPSL import and export policy for peer
  AS1004
• prefer EU traffic
• Put this policy in your aut-num object
• Time 15 mins

88
Scenario D

• Upstreams AS2004 tags their routes with a
  community so that you can distinguish between
  routes from their EU and US upstreams
• They also allow you to tag your routes with a
  community that they will use to prepend 2 times
  to either their EU or US upstreams
• Exercise
• Create RPSL import and export policy for peer
  AS2004
• prefer US traffic
• Put this policy in your aut-num object
• Time 15 mins

89
Summary

• Solutions in AS9004

Questions?
90
RPSL in Practice

• Bogon Filtering

91
Security

• Problems
• Bogon address space used as source for spamming,
  DDoS, probes
• Leaking martians bogons due to
  mis-configuration
• Definitions
• Martians reserved ranges (rfc-1918)
• http//www.isi.edu/bmanning/dsua.html
• Bogons un-allocated (reserved) address ranges
• Secure BGP Template
• www.cymru.com/Documents/secure-bgp-template.html

92
Applying bogon Filters

• Q Do you filter out bogons? How?
• RPSL add AND NOT fltr-bogons to all your
  import and export attribute filter rules
• aut-num AS1
• import from AS1AS-CUSTOMERS accept
• PeerAS AND NOT fltr-bogons
• import from AS1AS-UPSTREAMS accept
• ANY AND NOT fltr-bogons
• export to AS1AS-CUSTOMERS announce
• ANY AND NOT fltr-bogons
• export to AS1AS-UPSTREAMS announce
• AS1 AS1AS-CUSTOMERS AND NOT fltr-bogons

93
Example filter-set fltr-bogons

• filter-set fltr-bogons
• descr All bogon IPv4 prefixes.
• filter fltr-unallocated OR fltr-martian
• tech-c RTH32-ARIN
• admin-c RTH32-ARIN
• mnt-by MAINT-BOGON-FILTERS
• changed radb_at_cymru.com 20040420
• source RIPE
• filter-set fltr-unallocated
• filter 1.0.0.0/8, 2.0.0.0/8,

94
Outdated Bogon Filters

• Bogon filters in place, but not kept up-to-date
• Consequence new networks unreachable
• Solutions
• Use fltr-bogons
• Check for RIR announcements of new /8 blocks
• Use a bogon route server

95
Summary

• Keep your bogon filters up-to-date!
• Use filter-set objects
• Add AND NOT fltr-bogons

Questions?
96
RtConfig
97
Router Configuration

• RtConfig reads policy from the IRR
• Generates parts of the router configuration file
• Creates access list, route-map and AS path
  filters
• Vendor specific
• You need to use other scripts (built around it)!
• One of the tools in the IRRToolSet

98
RtConfig RR Integration
RPSL DB Objects (routing policy)
Commands in the Template/Input File
RtConfig
Flags, Env_Var
(Partial) Router Configuration
99
Environment Variables

• IRR_HOST
• Whois server to connect to
• IRR_PORT
• Whois server port number
• IRR_SOURCES
• List of DBs to search
• Used by all IRRToolset tools
• Command line options take precedence
• some are needed!

100
Command Line Options

• config ltconfig-formatgt
• cisco, junos, bcc, gated, rsd
• -protocol ltprotocolgt
• irrd(rawhoisd), ripe(bird), and ripe_perl
• default does not work with the RIPE Whois DB!
• -T whois_query whois_response input all
• Trace useful for debugging
• -ignore_errors
• useful when sending output to router

101
Martian Filtering

• -supress_martian
• only for cisco config
• will deny the following routes
• host 0.0.0.0 any
• 127.0.0.0 0.255.255.255 255.0.0.0
  0.255.255.255
• 10.0.0.0 0.255.255.255 255.0.0.0
  0.255.255.255
• 172.16.0.0 0.15.255.255 255.240.0.0
  0.15.255.255
• 192.168.0.0 0.0.255.255 255.255.0.0
  0.0.255.255
• 192.0.2.0 0.0.0.255 255.255.255.0
  0.0.0.255
• 128.0.0.0 0.0.255.255 255.255.0.0
  0.0.255.255
• 191.255.0.0 0.0.255.255 255.255.0.0
  0.0.255.255
• 192.0.0.0 0.0.0.255 255.255.255.0
  0.0.0.255
• 223.255.255.0 0.0.0.255 255.255.255.0
  0.0.0.255
• 224.0.0.0 31.255.255.255 224.0.0.0
  31.255.255.255
• any 255.255.255.128 0.0.0.127

102
Command Line Options

• There are many more!
• check man page
• Easiest option make an alias
• On server
• rt'RtConfig -h localhost -p 43 -s RRTEST
  -protocol ripe -cisco_use_prefix_lists

103
RtConfig commands

• All commands start with _at_RtConfig
• man page lists all commands
• _at_RtConfig access_list filter AS2
• no ip prefix-list pl100
• ip prefix-list pl100 permit 10.20.0.0/20
• ip prefix-list pl100 deny 0.0.0.0/0 le 32
• _at_RtConfig set cisco_map_name "ASd-EXPORT-d
• First d replaced by peers ASN
• Second d incremented
• _at_RtConfig set junos_policy_name
  "ASd-EXPORT-d
• Juniper version of same

104
Template Files

• Template files make scripting easy
• Use separate template for each router
• Template file contents
• import/export commands
• comments
• extra settings
• map names/max pref/etc...

105
Example Template File

• ! setting up the Max_Preference to 100
• _at_RtConfig set cisco_max_preference 100
• send community
• !
• ! Peering with OTHERCOMPANY (AS2)
• _at_RtConfig set cisco_map_name "ASd-IMPORT-d"
• _at_RtConfig import AS1 10.0.0.1 AS2 10.0.0.2
• !
• _at_RtConfig set cisco_map_name "ASd-EXPORT-d"
• _at_RtConfig export AS1 10.0.0.1 AS2 10.0.0.2

106
Summary

• Command line options
• RtConfig commands
• Template file

Questions?
107
Using RtConfig

• To use RtConfig conveniently you need
• Template files
• Scripts
• Exercises
• Task 1 - Create RtConfig template file
• Task 2 - Run RtConfig with this template file
• easiest to use rt alias
• Time 15 mins

Exercises
108
Day-to-day Usage
109
Preliminary Work

• Create person and maintainer objects
• Create route objects in the database
• Create various as-set objects, to group different
  categories of neighbours
• Describe policy in your aut-num object
• Create RtConfig template file(s)
• Run RtConfig / scripts periodically

110
Adding a New Neighbour

• Your neighbour needs to
• Obtain and register an ASN
• Create route objects for the new AS
• You need to
• Add the new AS to one of your as-set objects
• Create RtConfig template for the peering
• Run your scripts

111
Testing Policy Change

• Copy your aut-num object into a txt file
• Modify the file to reflect the desired change
• Run RtConfig with the flag -f filename
• E.g. rt f changed_asn.txt lt rt-template gt
  new_config
• Other values will be read from the RR
• Compare new router config output with the old
• check if the result describes desired behaviour

112
Summary

• Preliminary work
• Adding a neighbour
• Testing policy changes

Questions?
113
IRRToolSet
114
Intro

• Started as RAToolSet
• Changed to IRRToolset
• first maintained by RIPE NCC
• Now maintained by ISC
• http//www.isc.org/index.pl?/sw/IRRToolSet/
• Download ftp//ftp.isc.org/isc/IRRToolSet/
• Installation needs lex, yacc and C compiler

115
AOE Aut-num Object Editor

• Eases Aut-num editing
• Takes input from
• Your Aut-num object
• Your peer's Aut-num object
• BGP
• Templates
• Sends mail with updated Aut-num object
• Does not sign

116
ROE Route Object Editor

• Lists the routes dependencies
• can add / delete specified routes
• Displays and compares routes registered
• by an AS in the IRR
• in a BGP routing table
• NotRtd (not routed) and NotReg (not registered)
• Creates the route object for you, based on
• BGP dump (local to your ASN)
• Buggy ?

117
The Other Tools

• prtraceroute prints the route packets take
• with the policy information
• peval lightweight policy evaluation tool
• prpath shows possible paths between ASes
• as registered in RR
• CIDRAdvisor suggests safe aggregates
• rpslcheck checks RPSL syntax

118
Summary

• Maintained by ISC
• Community controlled
• Source and binaries available

Questions?
119
Routing Registry Consistency Check
120
RRCC

• The goal making RR more accurate
• Comparing real routing data (via RIS) with the
  RR
• Spotting inconsistencies suggest corrections
• Data output
• Web interface for interactive lookups
• Reports per mntner (requests to
  ltauto-rrcc_at_ripe.netgt)
• Published on the web, reported to the routing-wg
• Scripts available
• http//www.ripe.net/rrcc/ , ltrrcc_at_ripe.netgt

121
Summary

• Routing Registry Consistency Check
• Check your routes
• Check your peerings

Questions?
122
Homework

• Subscribe to mailing lists
• db-wg, routing-wg, irrtools
• Use RRCC to find possible errors
• Create route objects for your allocations
• Update your aut-num with the latest policy
• Add mnt-routes to your allocation
• use the LIR Portal!

123
The End!
Finis
?????
K???
Sfârsit
Ki????
Konec
Ende
Kraj
The End
Son!
Fine
Lõpp
Kpaj
Vége
Fund
Fin
Einde
?????
Baigti
The End
Slutt
???????
Fim
Koniec
Loppu
