INNOVATIVE DEVELOPMENTS IN PVC PRESSURE PIPE SYSTEMS AND UNCONVENTIONAL APPLICATIONS

1

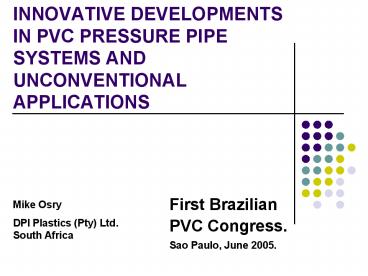

INNOVATIVE DEVELOPMENTS IN PVC PRESSURE PIPE
SYSTEMS AND UNCONVENTIONAL APPLICATIONS

First Brazilian PVC Congress. Sao Paulo, June
2005.
Mike Osry DPI Plastics (Pty)
Ltd. South Africa
2
Objectives

• Advantages of PVC which have made it the
  preferred material for pressure pipes
  for mains water supply and irrigation in
  most Countries of the world.
• Innovative developments in PVC pipe technology
  and unconventional applications which
  demonstrates the materials
• - Versatility
• - Cost effectiveness
• - Long-term durability

3
What is PVC?

• Polyvinyl Chloride Unplasticised PVC
• or PVC-U.
• Polymerisation of Vinyl Chloride
• manufactured from oil and salt.
• Only 43 of PVC made from non-renewable
• Petroleum feed-stock and 57 from
• salt.
• Supplied in powder form to Pipe
• Manufacturers.

4
What is PVC?/Cont.

• Mixed in high-speed mixers with

  stabilisers and other additives.
• Dryblend suitable for extrusion into

  PVC pipes.
• PVC is very versatile and formulations

  can be made to give special properties
• - High strength PVC-U pressure pipes.
• - Impact modified PVC pressure pipes

  (PVC-M) with greater toughness.
• - Sewer and drainage pipes with filler for

  greater stiffness and cost benefits.
• - Products with high resistance to sunlight
  (e.g. rainwater
  gutters).


5
Extrusion of PVC Pressure Pipes

• Twin Screw Extruders designed to provide the
  right combination of shear and heat.
• Gellation, the melting of the PVC polymer
  particles through heat (185oC) and shear the
  key to the development of PVCs excellent
  properties.
• Outside diameter and wall thickness is
  accurately controlled to close tolerances.

6
Extrusion of PVC Pressure Pipes/Cont.

• Socketed in-line to standard 6m
  lengths.
• Sealing rings inserted.
• Pipe now ready to use.




7
PVC-U Historical Overview

• Worlds leading plastic pipe resin over
  two-thirds of
• global demand (by weight).
• Proven durability over approximately 60 years
  WHY?
• Continuous Improvements
• - PVC Polymer
• - Raw Material Formulations
• - Extrusion equipment
• - Properties and quality of PVC-U pipes.
• - Quality testing and quality management systems

• (ISO 9001-2000)

8
Development of Tough PVC Pipes

• Motivation

9
Example of a harsh environment!
10
Impact Modified PVC Pipes in Mining

• Extreme conditions of temperature, transport,
  handling and installation.
• Gold mines now down to 5 000m underground.
• Major requirement is safety.
• - Rock face temperature underground 50oC.
• - Ambient temperature gt40oC, humidity 90.
• - To cool environment pipes with chilled water
  at 5oC.
• - Pipes made to SANS 1283.

11
Impact Modified PVC in Mining/Cont.
20 metre high energy impact test
Impact Test Samples of PVC Mine Pipe Showing
Toughness Properties (20kg mass from 20m height)
12
Mine pipe Jointing - Minelok

• Pipes are suspended along haulage ways (not
  burried).
• Therefore pipes require a positive locking joint
  to resist end thrust.
• Victaulic steel flanged joint especially
  developed for PVC mine pipes.
• Steel Minelok ends pressed onto PVC pipes
  interference fit.
• PVC pipes fully compatible with steel pipes used
  in mines.

13
Minelok Steel End Coupling
14
PVC Mine Pipe Coupling System
15
Mineflo Pipes Conveying Chilled Water (5oC)
Installation with Bent Pipes! (2500m)
16
Mineflo Pipes for Chilled Water
Note suspension of pipes underground
17
Chilled Water PVC Pipe Installation in Mine
Haulage Way
18
Backflo Pipes in Mining

• High pressure return of slurries and slimes back
  underground.
• Work on existing mine dumps to extract gold and
  return underground.
• Prevents the Johannesburg Mine Dump Skyline!

19
Airflo PVC Pipes

• 7 bar compressed air in mines (rock drilling,
  pipe installation, etc.)
• Pipes must be fail-safe under all conditions
  stored energy effects.
• High toughness and ductility high speed
  detonation tests.

20
Drainflo PVC Pipes

• Used for draining water back out of mines.

21
Hi-Impact Pipes Johannesburg City Council

• These tough pipes used extensively by
  Johannesburg City.
• Ease of handling and installation vs. steel
  pipes.
• End-thrust resistant joints reduce need for
  thrust blocks in installations.
• Made to SANS 1283.

22
Material and Energy Efficient Pressure Pipes

• Motivation
• Limited capital resources.
• Critical need for potable water in developing
  countries.
• Reduce poverty and disease.
• Improve quality of life.

23
Ultraflo PVC-M Pressure Pipes

• Successful history and proven durability with
  modified PVC pressure pipes in mining
  environment.
• Toughness as important a property as strength.
• PVC-M pressure pipes made to SANS 966-Part 2.
• Also made in UK, Australia and New Zealand to
  local standards.
• Pipes in 6m lengths with integral socket and
  rubber seal.

24
Ultraflo PVC-M Pressure Pipes/Cont.

• Ease of manufacture, especially in large
  diameters up to 630mm or greater.
• Larger pipe bore and increased hydraulic
  capacity.
• Working pressures of 6, 10, 16, 20 and 25 bar.
• Ease of transport, handling and installation.
• Over 40 000 km installed in Southern Africa over
  10 years (one manufacturer).

25
Biaxially Oriented PVC (PVC-O)

• In-line process with high output rates per
  meter.
• High strength and toughness.
• Cost effective higher pressures up to 20 and
  25 bar.
• Material efficient product with excellent
  handling and installation.
• Increased hydraulic capacity.
• Resistance to pressure surges and fatigue caused
  by pressure cycling.
• Made to SANS 1808-85 2004.

26
A construction site illustration of the toughness
properties of PVC-O Pipes
27
Worldwide Use of PVC Pressure Pipes

• PVC Pressure pipes used for almost 60 years.
• Advances in
• - PVC polymer raw material
• - Pipe extrusion technology
• - Quality management systems and testing
  procedures
• - Pipe Quality
• - Pipeline design
• - Ease of installation

28
Worldwide Use of PVC Pressure Pipes/cont.

• All ensure long lifetime and low operation
  costs.
• Current Life Cycle Assessment now assumes a
  Lifetime of 100 years.
• In the USA, the use of PVC is more than three
  times that of HDPE and double that of ductile
  iron.
• PVC is the worlds leading plastic-pipe material
  (over 66 of global usage).

29
