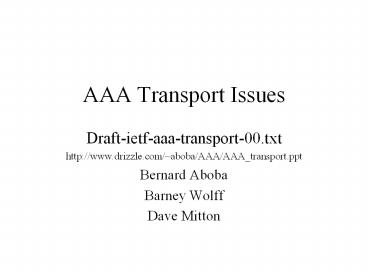

AAA Transport Issues

1
AAA Transport Issues

• Draft-ietf-aaa-transport-00.txt
• http//www.drizzle.com/aboba/AAA/AAA_transport.pp
  t
• Bernard Aboba
• Barney Wolff
• Dave Mitton

2
Outline

• Goals and objectives
• Introduction
• AAA proxy bestiary
• Congestion control principles
• Summary

3
Goals and Objectives

• To understand how AAA protocols interact with the
  transport layer
• To understand the transport behavior of AAA
  protocols running over UDP, TCP and SCTP
• Useful to understand behavior of existing
  protocols (RADIUS, TACACS) as well as DIAMETER
• To understand the transport behavior of proxy
  systems
• Transport layer proxies, Store Forward proxies,
  Routing proxies, Re-direct proxies exhibit
  different transport behavior
• Implications for other proxied protocols (SIP,
  DNS) as well as AAA

4
Introduction

• AAA protocol exchanges
• Transport connection usage
• Firewall issues
• The Mice problem
• Application driven vs. Network driven
• Reliable versus unreliable transport traces

5
AAA Protocol Exchanges

• Single request/response
• Simple authentication/authorization exchanges
  (NAS initiated)
• Accounting exchanges (NAS initiated)
• Multiple request/response
• EAP exchanges (NAS initiated)
• Unsolicited server messages
• Request/response initiated by server

6
Transport Connection Usage

• Implementation experience (RADIUS)
• Some implementations use a single socket for
  NAS-AAA server communication
• Some implementations use a socket per port!
• Implications
• Possible for AAA to use congestion-friendly
  transport in a non-congestion-friendly way
• Pipelining desirable
• No need for NAS to wait for a Response before
  sending another Request
• May make use of a single connection more
  palatable
• Congestion Manager support desirable
• Enables separate connections to share information
  with each other and with application layer

7
Firewall Issues

• Designing firewall for AAA server is not hard
• Only allow DNS, AAA traffic to/from NASen to AAA
  server on AAA port
• Typically dont need layer 7 filtering
• What about denial of service attacks?
• RADIUS vulnerable to DoS attacks
• Bogus client can send large number of Requests
• Server must validate User-Password or
  CHAP-Password attribute, Message-Authenticator
  attribute if present
• Strong crytography support increases DoS
  vulnerability
• Solution
• Need port-specific rate limiting on router or
  built-in TCP/SCTP DoS protection

8
The Mice Problem

• Many NASes (000s) can converse with a single AAA
  server or proxy
• Traffic from a single NAS may be light, but
  traffic close to the server/proxy may be
  substantial
• Result can be packet loss in router near server,
  or buffer overflow within the server itself
• Data traffic can also compete with AAA traffic
  near the NAS

9
The Proxy Congestion Problem

• Bottleneck may be between AAA proxy and a
  particular AAA server
• DinkyLink.org AAA server has trans-oceanic 56
  Kbps Internet connection
• Proxy may be overloaded at the application layer
  (many NAS requests)
• NAS cant sense proxy-AAA server bottleneck since
  it has no transport layer connection to the AAA
  server
• Result NAS sends more requests than proxy can
  forward, proxy send buffer fills up
• NAS cant differentiate reasons for poor
  application-layer response experienced with the
  proxy
• Result NAS switches to another proxy
  inappropriately, re-transmits request at the
  application layer, etc.
• Proxy needs a way to communicate status to the
  NAS (Unable to forward, No Response, Busy)

56 Kbps
10 Mbps
10 Mbps
10 Mbps
10
Application Driven Vs. Networking Driven

• AAA protocol exchanges typically application
  driven
• Definition time between exchanges larger than
  RTT
• Examples
• 48 port NAS, session time of 20 minutes
• Authentication Accounting Request every 25
  seconds
• Traffic assuming 1500 octet packets 480 bps
• Total traffic, assuming 4Kbps per port 192 Kbps
• 2048 port NAS, session time of 10 minutes
• Authentication Accounting Request every 293 ms
• Traffic assuming 1500 octet packets 41 kbps
• Total traffic, assuming 4Kbps per port 8.2 Mbps
• AAA exchanges can also be network driven
• Employees come to work in the morning, logon to
  the network
• NAS reboots, users logon again
• After network partition, NAS sends stored
  accounting records

11
Transport Parameter Validation Issues

• CWND, RTT/RTONAS-proxy, RTT/RTOproxy-AAA server
  estimates not valid for application-driven
  scenarios typical of AAA
• Multiple RTTs may elapse between packets
• 48 port NAS 200 RTT
• 2048 port NAS 2 RTT
• CWND can open without being fully utilized
• CWND validation
• RFC 2581 recommends slow-start after an interval
  larger than the RTO
• RFC 2861 recommends only increasing the
  congestion window only if it was full when the
  ACK arrived congestion window reduced by half
  once per RTO
• Ssthresh not reduced
• Remaining issue RTT/RTO validation

12
Reliable Transport Protocol Trace
AAA Server
NAS

Auth Request

• Notes
• 8 packets if same port used for auth and
  accounting, 9 otherwise
• Server typically piggybacks ACK with Auth
  Response unless its really overloaded
• ACK of Auth Response cant piggyback on
  Accounting Start if Accounting uses a different
  port
• Long delay between auths means that previous
  RTT/CWND estimates not valid between transactions
• Long delay between Accounting Start/Stop means
  RTT/CWND typically no longer valid within a
  single transaction
• Since Responses are ACKd at the transport layer,
  an app layer Response ACK would not add
  additional packets due to piggybacking

Auth
Response/ACK

ACK
Accounting Start
Response/ACK
Actng
ACK
Accounting Stop
Response/ACK
ACK
13
Reliable Transport Protocol Trace (Routing Proxy)
Routing Proxy
NAS

Auth Request

• Notes
• Proxy may send delayed ACK if home server is
  sufficiently far away (gt100 ms RTTproxy-server)
• 11 packets in worst case if same port used for
  auth and accounting, 12 otherwise

ACK
Auth
Response/ACK

ACK
Accounting Start
ACK
Response/ACK
Actng
ACK
Accounting Stop
ACK
Response/ACK
ACK
14
UDP (RADIUS) Protocol Trace
AAA Server/Routing Proxy
NAS

Auth Request

• Notes
• 6 packets in worst case
• Retransmission behavior undefined (no RTT/RTO
  measurement)
• Failover/failback behavior undefined
• Transport doesnt self clock hop-by-hop OR
  end-to-end
• Accounting response represents a transport layer,
  not app layer ACK (no error messages)

Response
Auth

Accounting Start
Accounting Response
Actng
Accounting Stop
Accounting Response
15
AAA Proxy Bestiary

• Routing proxies
• Re-direct proxies
• Store and Forward proxies
• Transport layer proxies

16
Routing Proxy (Auth Only)
Routing Proxy
NAS
AAA Server
Auth Request

• Notes
• Routing proxy means that transport dynamics are
  hop-by-hop
• Transport self-clocks hop-by-hop but not
  necessarily End-to-end
• End-to-end transport dynamics depends on details
  of proxy buffer management (back pressure)
• AAA server can often piggyback ACK with Response
  if it is not overloaded
• Proxy may send delayed ACK to Auth Request if AAA
  server is sufficiently far away

ACK
Auth Request
Response/ACK
ACK
Response/ACK
ACK
17
Store Forward Proxy (Actng Only)
SF Proxy
NAS
Actng Server
Actng. Start

• Notes
• Store and Forward proxies only used for
  accounting
• SF proxy means that transport dynamics are
  completely hop-by-hop
• No issues with end-to-end self clocking
• Store and Forward proxy can often piggyback ACK
  with Response if it is not overloaded, since no
  forwarding need occur before responding
• Store and Forward proxies are a bad idea since
  the NAS is fooled into believing that it has
  received an App layer ACK when this is not the
  case NAS may delete accounting record from
  non-volatile storage.
• If Store and Forward proxy stores accounting
  messages in memory or has moving parts while NAS
  does not, result can be lower reliability

Response/ACK
Actng. Start
ACK
Response/ACK
ACK
18
Re-Direct Proxy (Auth Only)
Re-Direct
NAS
AAA Server
Auth Request

• Notes
• Redirect means that transport dynamics are
  end-to-end
• Implication TCP/SCTP transport self-clocks both
  hop-by-hop and end-to-end
• Redirect proxy can typically piggyback ACK with
  Redirect if Redirect table kept in memory
• Redirect ACK cannot be piggybacked with second
  Auth Request since they go to different
  destinations
• AAA server can often piggyback ACK with Response
  if not overloaded
• Since the Response will be ACKd anyway, an
  application layer ACK of the Response will not
  add to the packet count.

Redirect/ACK
ACK
Auth Request
Response/ACK
ACK
19
Transport Layer Proxy (Auth Only)
Transport Proxy
NAS
AAA Server
Request
Request

• Notes
• NAS has separate transport connection for each
  realm, must know about realms
• Several types of transport proxy type shown is
  transparent
• With transparent Transport layer proxy,
  transport layer dynamics are end-to-end
• Result End-to-end self-clocking
• If AAA server sends piggybackd Response/ACK, so
  will proxy (no proxy-originated delayed ACKs)
• Resembles behavior of RADIUS proxies (minus the
  final ACK)!

Response/ACK
Response/ACK
ACK
ACK
20
Congestion Control Principles

• Conservation of packets
• Failover and failback
• Self-clocking

21
Conservation of Packets

• Once youve reached the end of the window, dont
  send more packets until you have evidence that
  original packets are no longer transiting the
  network
• Packets received by destination (ACK)
• Packets lost (Timeout, triplicate ACK)
• Self-clocking occurs when sending rate is limited
  to rate at which ACKs are received

22
Conservation of Packets Applied to
AAAFailover/Failback
Control Volume

• Notes
• NAS should not re-transmit to Proxy 1 until
  RTONAS-proxy1 has elapsed, or triplicate ACKs
  received
• NAS should not failover to Proxy 2 until
  nRTONAS-proxy1 has elapsed
• NAS cannot handle failover from AAA server 1 to 2
  because it does not estimate RTONAS-AAAserver1
• AAA proxy 1 should not failover to AAA Server 2
  until nRTOproxy1-server1 has elapsed
• Not easy to implement failover/failback with TCP

23
Self-Clocking
Source V. Jacobson, Congestion Avoidance and
Control, ACM SIGCOMM 88 Vol 18 No. 4, August 1988
24
Self-Clocking w/Proxies
Proxy
AAA Server
NAS
Receive buffer
Send buffer
Receive buffer
Send buffer
Goal NAS cant advance window until it receives
an application layer ACK from the AAA server
Unless send and receive buffers are coupled, no
self-clocking!
25
Hop-by-Hop vs. End-to-End Self Clocking

• Proxy systems consist of two transport
  connections
• NAS-proxy transport connection
• Proxy-server transport connection
• TCP/SCTP provides hop-by-hop self-clocking
• NAS will only advance the window as it receives
  ACKs from proxy
• Proxy will only advance the window as it receives
  ACKs from the AAA Server
• Only transport, re-direct proxy types guarantee
  end-to-end self-clocking
• Transport proxies splice together two hop-by-hop
  connections to simulate end-to-end transport
  dynamics
• Re-direct proxies connection is end-to-end after
  initial re-direct

26
Hop-by-Hop vs. End-to-End (contd)

• Hop-by-hop congestion avoidance does not prevent
  proxy congestion in other proxy types
• Store Forward proxies completely decouple the
  NAS-Proxy connection from the Proxy-Server
  connection (BAD!)
• Routing proxies do not automatically propagate
  congestion signals between receive and send
  buffers
• Micro level self-clocking not possible
• Macro level coupling via back pressure requires
  multiple NAS-proxy connections for proper
  granularity
• Uber-macro level application-layer error
  messages
• Conclusion
• Transport dynamics with proxies at best equal to
  end-to-end case
• TCP/SCTP transport not sufficient for end-to-end
  self-clocking with routing or store forward
  proxies

27
Solutions

• Dont use proxies
• Can we ban SF proxies altogether?
• Use re-directs
• Use transport proxies
• Looks like a single transport connection with
  micro scale coupling (individual ACKs)
• Requires extensive application/transport
  integration
• Routing proxies
• Application layer error messages
• Simplest solution
• Does this completely address the proxy congestion
  issue?
• Macro scale coupling (window) between receive and
  send buffers (backpressure)
• Only empty receive buffer as fast as send buffer
  empties
• Requires separate connections/streams for each
  realm
• Without individual connections/streams, no way to
  enable self-clocking on a per-path basis
• Problem with n connections, initial slow-start
  window is effectively n or 2n
• Too complex to implement?

28
Application Layer Error Messages

• Busy Proxy/Server too busy to handle
  additional requests, NAS should failover requests
  to another proxy/server
• Forwarding Proxy has located AAA server, but
  timely response is not forthcoming NAS should
  wait for final response
• Cant Locate Proxy cant locate the AAA server
  for the indicated realm NAS should reject access
• Failover Proxy has tried primary server, is
  failing over to secondary server NAS should
  reset app layer timers, not attempt failover to
  secondary proxy
• Cant Forward Proxy has tried both primary and
  secondary AAA servers with no response NAS
  should reject access
• Processing Server cannot provide an immediate
  response to the request NAS should wait for
  final response

29
AAA Reliable Transport Profile

• What is a transport profile? A recommendation on
  how to use transport within AAA
• Efficiency
• Persistent connections/pipelining
• Nagle algorithm enabled
• AAA packets often smaller than MSS
• Useful for transport layer batching when packet
  spaced close together, but
• Typically no additional packets for NAS to send
  in response to AAA server/proxy ACK
• CWND validation
• RFC 2861
• With high inter-packet spacings, RTT measurements
  made so infrequently that network conditions may
  change between measurements
• Dont let CWND build as a result of (now) invalid
  measurements, decay it instead
• Result CWND1 or 2 most of the time, AAA
  operates in perpetual slow start
• Congestion Manager
• Draft-ietf-ecm-cm-03.txt
• Enables multiple AAA connections to share state
  with each other, and possibly with the
  application as well
• May be helpful for failover/failback

30
Preliminary Recommendations

• TCP Feasible
• Recommended practice Nagle algorithm enabled,
  Congestion window validation, Congestion Manager
• More work needed on failover/failback
• SCTP Feasible
• Recommended practice Nagle algorithm enabled,
  Congestion window validation, Congestion Manager
• Failover features, built-in support for multiple
  streams
• More work needed on failback
• UDP More investigation needed
• Only marginally fewer packets than TCP/SCTP,
  except where RTTproxy-server gt delayed ACK timer
• Probably can only offer simple windowing (CWND1,
  2) without heading down slipper slope
• Would require per-realm RTT, RTO logic for
  failover/failback (congestion manager)

31
Summary

• TCP/SCTP feasible for use with AAA
• More work needed on failover/failback
• Which transport(s) should be mandatory?
• Reliable Transport profile recommended
• Persistent connections/pipelining
• Nagle algorithm enabled
• Congestion window validation
• RTO validation
• Congestion Manager
• UDP transport needs more investigation
• Proxies complicate analysis of AAA transport
  behavior
• End-to-end congestion avoidance not guaranteed in
  proxy environments, even when reliable transport
  is utilized
• Microscopic self-clocking difficult in routing
  proxies
• Application layer error messages recommended
• Use of re-direct proxies encouraged
