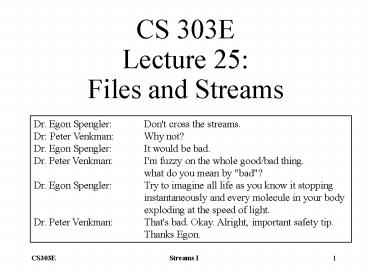

CS 303E Lecture 25: Files and Streams

1
CS 303ELecture 25Files and Streams
Dr. Egon Spengler Don't cross the streams. Dr
Peter Venkman Why not? Dr. Egon Spengler It
would be bad. Dr. Peter Venkman I'm fuzzy on the
whole good/bad thing. what do you mean by
"bad"? Dr. Egon Spengler Try to imagine all life
as you know it stopping instantaneously and
every molecule in your body exploding at the
speed of light. Dr. Peter Venkman That's bad.
Okay. Alright, important safety tip. Thanks
Egon.
2
Files

• A file is
• 1. The basic structure for data stored on
  secondary storage, such as disk, diskette, tape,
  CD, etc.
• Permanent data survives indefinitely.
• 2. A software object to model the transfer of
  data between the secondary storage and memory.

3
Input and Output (I/O)

• Input (reading) The process of transferring
  data from a device (e.g., keyboard) or an
  existing file to memory.
• Output (writing) The reverse from memory to a
  device (e.g., screen) or new file.
• I/O is often done sequentially from the
  beginning of a file to end.
• Can also be done randomly jumping around.
• cassette tape vs. cd. Benefits of either?

4
Streams

• Files may contain much more data than the program
  can conveniently process at once.
• A stream (object) is a flow of data between a
  program and an external device (e.g., keyboard or
  screen) or secondary storage.
• A stream typically transfers one data element at
  a time. What is an element??

5
I/O through Streams
Input
Disk
Input Stream
Processing
Output
Disk
Output Stream
Processing
What is processing??
6
File Output

• General process (pseudocode)
• Open an output connection to a file, creating an
  output stream
• Process data to be written
• Write data to the stream
• . . .
• Close the stream (the output connection to the
  file).
• Many variations depending on what you want to
  output.

7
File Input

• General process (pseudocode)
• Open an input connection to a file, creating an
  input stream
• Read the next piece of data from the stream
• Process it
• . . .
• Close the stream (the input connection to the
  file).
• Many variations depending on what you want to
  input.

8
A Portion of Javas File Classes
Object
InputStream
OutputStream
File
FileInputStream
FileOutputStream
ObjectInputStream
ObjectOutputStream
DataInputStream
DataOutputStream
PrintStream
Numerous Streams with minor, but important
differences.
9
A Portion of Javas File Classes
Object
StreamTokenizer
Reader
Writer
InputStreamReader
PrintWriter
BufferedReader
FileReader
Used to read data from and write it to Streams.
10
Text vs. Binary Files

• Text files contain data encoded in characters.
• E.g., Java source files.
• Can be created, viewed, or edited with a text
  editor.
• Binary files contain data in the same form as it
  appears in the machines memory.
• E.g., executable files.
• I/O is handled differently for each.

11
Exceptions

• When Java detects an error at run time, an
  exception is thrown.
• For example, when a program attempts to divide by
  zero, Java throws an ArithmeticException.

12
try-catch Format
try code that might throw an
exception catch (exception_type_1 e) code
to handle exception of type 1 . . catch
(exception_type_n e) code to handle exception
of type n
13
Example A Generic Exception
int a 10, 0, 30 try System.out.println(
a0 / a1) catch (Exception e)
System.out.println ("Error\n"
e.toString()) Exceptions may be checked or
unchecked. Divide by zero, null pointer
exception, and array out of bounds exceptions are
unchecked. The compiler does not expect you to
do anything about these exceptions, because you
should prevent them from ever happening in the
first place. Checked exceptions must be caught.
14
Files and Exceptions

• Java requires the programmer to catch file
  exceptions.
• For example, an IOException can be thrown during
  at attempt to open a file.
• A FileNotFoundException may occur

15
Reading from a Text File

• Class InputStreamReader -- one character at a
  time.
• Class BufferedReader -- one line at a time.
• Class StreamTokenizer -- one word at a time, like
  StringTokenizer.
• Words are separated or delimited by white space
  characters.
• The regular white space characters are space,
  newline, tab, and carriage return.
• Other white space characters may be added

16
Ways to Read Text

• InputStreamReader -- character by character
  (chars, as ints).
• BufferedReader -- line by line (Strings).
• StreamTokenizer -- word by word (Strings,
  numbers, etc.).

17
Reading Characters

• Connect an InputStreamReader to a FileInputStream
  .
• Use the method read() to read a character
• Returns -1 if at end of file
• Returns the characters Unicode value (an int)
  otherwise.

Disk
FileInputStream
InputStreamReader
18
Read Characters and Convert to Uppercase
try FileInputStream stream new
FileInputStream ("myfile") InputStreamReader
reader new InputStreamReader (stream)
output.setText ("") // TextArea int data
reader.read() while (data ! -1) char
ch (char) data ch Character.toUpperCase
(ch) output.append (ch "") data
reader.read() catch (IOException e)
messageBox ("Error in file input\n"
e.toString())
