Title: RealPOS 7460

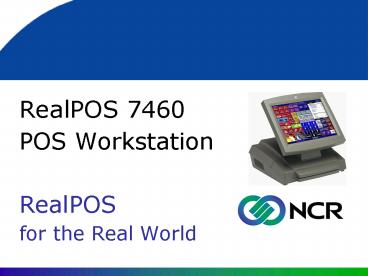

1
  • RealPOS 7460
  • POS Workstation
  • RealPOS
  • for the Real World

2
Note to Presenter
  • Presentation is designed as a generic sales tool
    and should be customized for the specific target
    audience.
  • Check out slides in the Backup section and move
    into the main presentation to meet your
    customers needs.
  • View or print script in Notes Page format script
    is written for the presenter, not the target
    audience. Edit or delete script before printing
    or sending an electronic copy to any prospect.
  • Last revision 3/28/02. Check The Knowledge Center
    for any updates. Comments/questions should be
    addressed to Mark.Siedschlag_at_NCR.com

3
NCR Asked Our Customers . . .
  • What is Your
  • Greatest Concern
  • Regarding Your
  • Next Generation
  • POS Purchase?

4
We Listened. We Acted.We Designed the NCR
RealPOS 7460
  • Reliable
  • Affordable
  • Supportable

A Powerful Solution . . . An Exceptional Value
5
RealPOS 7460 Highlights
  • Value Priced Touchscreen Offer
  • Intuitive Touchscreen Interface
  • 12.1 SVGA LCD Operator Display
  • Field replaceable, dual bulb
  • Intel Celeron 566 MHz CPU
  • Low Profile, narrow cabinet
  • Integrated and Modular Configurations
  • Six Supported Microsoft Operating Systems

6
The RealPOS 7460 is Reliable
  • Industry Hardened
  • Stress Testing
  • Temperature 41-113 F 5-45 C
  • Relative Humidity up to 90
  • Vibration
  • Static
  • Spills
  • Contaminants
  • No Exposed Cables
  • U.S. Intl Government Certifications
  • Results in Maximum Uptime!

7
The RealPOS 7460 is Affordable
  • PC Based Technology
  • Open Architecture
  • Internet Ready
  • Low Total Cost of Ownership
  • Investment Protection Over Time
  • Industry Hardened
  • Upgradable
  • ZIF Socketed Processor-New Generation
  • Dual Memory Slots
  • OPOS Peripheral Controls
  • NCR Lifecycle Management
  • Strict Supply Line Management
  • Durable Components
  • Migration Protection

8
The RealPOS 7460 is Supportable
  • Worldwide Customer Services
  • On Site Service
  • Depot Plan
  • NCR Service and Maintenance Commitment
  • Parts Availability 7 Years after Discontinuation
  • Self Diagnostic Tools
  • Crisis Recovery Tools
  • Systems and Network Management Tools
  • Remote Management Tools

9
7460 Multiple Configurations
  • Integrated Terminal
  • Tilt/Locking Touchscreen
  • Counter Top or Wallmount
  • Modular Terminal
  • Touchscreen Detaches from Base Unit with Four
    Meter Cable
  • Wall Mount Remote Touchscreen
  • Wall Mount Option for Base Unit

10
RealPOS 7460 Standard Features
  • 12.1 Super VGA LCD Display
  • TFT Active LCD
  • 800x600 SVGA Resolution
  • Field replaceable, dual bulb, LCD
  • Five-Wire Resistive Touchscreen
  • Intel Celeron 566 MHz CPU (minimum)
  • ZIF Socket
  • 32 MB Memory (upgradeable to 512)
  • Two DIMM Sockets
  • Shared Video Memory
  • Internal Power Supply
  • Spill Resistant Cabinet

11
RealPOS 7460 Connectivity
  • (4) RS232 (2 Powered)
  • (2) USB Ports
  • PS/2 Keyboard Port
  • Parallel Port
  • MSR Port
  • 10/100 MB Ethernet LAN
  • Cash Drawer Port (Optional Y cable for second
    drawer)

12
RealPOS 7460 Optional Features
  • Additional Memory to 512 MB
  • Internal Hard Disk (20 GB minimum)
  • Integrated MSR (3 track)
  • Integrated 2x20 LCD Customer Display
  • Flash Disk (32 or 64 MB)
  • Integrated 56Kb Modem

13
RealPOS 7460 Certified Peripherals
  • NCR Printers
  • NCR Cash Drawers
  • Remote 2x20 VFD
  • Customer Post Display
  • NCR 2757 Kitchen Display System
  • NCR Presentation Scanner - 7892
  • Electronic Payment Terminals
  • Coin Dispensers
  • External Bootable CD-ROM
  • Read only
  • External Bootable Flex Disk
  • Read/Write

14
7194 Thermal Receipt Printer
  • High Performance Thermal Receipt
  • Up to 42 lines per second (130 mm/sec)
  • High Resolution 203 dpi (8 dpmm)
  • Receipt Knife Standard
  • High Reliability
  • 1.5M knife cuts / 150 km TPH
  • Streamlined user interface
  • Drop Go paper loading
  • Left- or right-hand top cover access
  • Single-button programmability
  • Improved cable management
  • Strain relief and recessed connector panel
  • Dual RS-2S2 and USB Interface
  • Optional Wall Mount
  • Choice of Colors

15
7158 Thermal Receipt Printer w/ Slip
  • High Performance Thermal Receipt
  • Up to 42 lines per second (130 mm/sec)
  • Higher 203 dpi (8 dpmm)
  • Receipt Knife Standard
  • High reliability
  • 1.5M knife cuts / 150 km TPH
  • Enhanced spill resistance
  • Impact Slip Station
  • Up to 80 columns
  • Check Handling Features
  • MICR Reader option
  • Single-pass check handling option
  • Streamlined user interface
  • Single button programmability
  • Hidden reset switch
  • Printer-resident information and tallies
  • Asset tracking and diagnostics / load balancing
  • Dual RS-2S2 and USB Interface

16
7197 Thermal Receipt Printer
  • One-station
  • Thermal Receipt w/ knife
  • High reliability
  • 32 faster than 7194
  • 50 LPS vs. 38 LPS
  • Two-color print
  • Requires special thermal paper
  • Auto-Sensing interface
  • RS-232
  • USB
  • Epson compatible for easy application porting
  • Cabinet Colors
  • Beige or NEW Graphite Black
  • General Availability May 30, 2002

17
7167 Thermal Receipt Printer with Slip
  • Two-station
  • Thermal Receipt w/ knife
  • Impact Slip w/ flat slip table
  • High Reliability
  • Two-Color Print
  • Multi-Function Features
  • MICR
  • Check Flip
  • Auto-Sensing Interface
  • RS-232
  • USB
  • General Availability
  • May 30, 2002

18
Cash Drawers
  • 2189 Full Size Cash Drawer
  • NCRs premium cash drawer
  • Two slip slots and extra large coin roll storage
  • Lock and manual release options
  • Mid-Range Cash Drawer
  • Stainless steel construction
  • Reduced footprint
  • Slip Slots
  • Lock and manual release standard
  • 7460 Supports Up to Two Drawers Via Y Cable
  • Direct Connect to Port on Terminal
  • OR
  • Connect to Port on External Printer

19
NCR Kitchen Display System

Ethernet, or RS232C,
20
NCR KDS
  • Oasys Controller is a
    Miniature PC
  • 32 Bit Processing
  • Win 9x and DOS O/S
  • Serial or Ethernet Connection
  • Supports
  • 4 SVGA Monitors Bump Bars
  • OR 4 Touchscreens
  • OR 8 Printers
  • OR Combinations
  • Full Color Text Graphics

21
18 Key Micromotion Key Matrix
The IPad offers the same high-powered features as
Oasys in a distributed architecture.
Horizontal or Vertical Positioning
1/16 inch Stainless Steel Enclosure
90 db Audio Enunciator
iPAD Does NOT Replace the Oasys--NCR Offers Both
22
Operating System Strategy
  • DOS 6.22
  • Windows CE 3.0
  • Windows 95
  • Windows 98
  • Windows NT Workstation 4.0
  • Windows 2000

23
Open Standards
  • Actively driving retail industry technologies
    standards
  • Application protection
  • Peripheral independence
  • NCR OPOS value add
  • Graphical Installation
  • Diagnostics
  • Error Logs Tallies
  • Remote Management

24
7460 Crisis Recovery Options
  • External Flexible Disk Drive
  • External CD-ROM Drive
  • NCR Fit Client Manager Store Edition Software
  • Terminal Can Boot From LAN if Local Hard Disk is
    Corrupted
  • Downloads Operating System Recovery Image
  • Manual or Automatic
  • Requires WinNT on PC
  • Norton Ghost Software
  • Using Ghost, Customer May Build a Custom Recovery
    Image That Includes
  • Operating System
  • Platform Software
  • Application Files

25
Whats New in Release 1.1
  • New Peripheral Certifications
  • Printers
  • 7158 Thermal receipt printer with slip
  • 7196 Intl Thermal receipt (double byte
    characters)
  • Epson TMU-200 and 230 Impact Receipt
  • 2214 Fiscal printer for Italy
  • Customer Display
  • 5973 VFD International remote customer display
  • Electronic Payment Terminals
  • 5945 MSR/PIN Pad terminal
  • 5992 Signature Capture terminal
  • Coin Dispensers
  • NCR 2010
  • Telequip Transact 2
  • Cash Drawer
  • 2113 modular compact cash drawer (International)

26
Whats New in Release 1.2
  • Intel Celeron 566 MHz processor
  • Field replaceable, dual bulb, active, LCD
  • 300 NITS
  • 256 MB RAM certification
  • 2 slots x 256 chip 512 MB Maximum
  • Full sound
  • Headphone port standard on every unit
  • Can be used for employee training
  • Hard disk refresh to 20 GB
  • General Availability May 2002

27
RealPOS 7460 Training and Support
  • Web-Based Training
  • Classroom Training
  • Online Documentation
  • NCR Professional Services
  • NCR Service Options

28
We Listened. We Acted.We Delivered the NCR
RealPOS 7460
  • Reliable
  • Affordable
  • Supportable

A Powerful Solution . . . An Exceptional Value
29
Discussion.
30
  • Back Up Slides

31
Market Positioning
  • Yesterdays NCR RSD
  • Predictable
  • Reliable
  • Slow, Big
  • Been Around Forever
  • Know Retail
  • Unmatched Retail Experience
  • Todays NCR RSD
  • Unmatched Retail Experience
  • The Real Thing in Retail
  • Know-How Solving Real Problems
  • Global Coverage, Market by Market
  • Nimble and Reliable

NCR Real World Retail
Retailers Want a Vendor Who Understands Their
World NCR is It
32
NCR Offer
Real World Retail
Hardware
Services
Software
With the broadest portfolio of products and
services, NCR is best positioned to solve
retailers real world issues worldwide.
33
NCR Hospitality RealPOS Workstations
Peripherals
7454
7460
7448
POS Printers
KDS
34
RealPOS 7454
Multimedia Touchscreen POS Active LCD 600 MHz
Processor Passive Cooling Capacitive or Resistive
Touchscreen Wireless LAN Option
RealPOS 7460
Value-based Touchscreen POS Active LCD 566 MHz
Processor Low Profile Cabinet Integrated or
Modular Configurations Can Coexist with NCR 7454
RealPOS 7448
Compact Integrated POS Flexible Open
Architecture Micromotion or Conventional
Keyboard Color or Mono LCD 300 MHz
Processor Microsoft CE Based Application-
NCR Advanced Store_at_NeighborhoodPOS
35
RealPOS 7460 Strengths
  • CPU roadmap ( up to 850 MHz )
  • -- PIII motheboard design and CPU socket
  • Size--low profile
  • Modular configuration
  • Wall mounts
  • Soundblaster compatible sound
  • --Headphone jack
  • Four serial ports
  • --Standard serial ports (9-pin)
  • --No need for extra converter plug
  • --Reduced connections increases reliability
  • Temperature rating ( 113 F )
  • Humidity rating ( 90 )
  • Tilt screen with lock
  • CD-ROM option
  • Flex disk option
  • Field replaceable, dual bulb LCD
  • --300 NITS
  • Six certified operating systems

36
Product Positioning7454 and 7460
  • 7454 Rel 2
  • Multimedia Touchscreen Terminal
  • Full Multimedia/Integ. Stereo Speakers
  • Wireless LAN Option
  • Capacitive OR Resistive Touch
  • 4 Line Integrated Cust. Display-VFD
  • Passive Cooling
  • Motion Sensor
  • Side Mount MSR
  • Mobile Technology
  • Medium Profile
  • Intel Celeron 600 MHz
  • 2 Serial Ports Standard-4 Total Avail.
  • 1 Memory Slot
  • No Flex Disk Option
  • Unified Configuration Only
  • 7460 Rel 1
  • Value-based Touchscreen Terminal
  • Headphone Port/No Integ. Speakers
  • No Wireless Capability
  • Resistive Only
  • 2 Line Integrated Cust. Display-LCD
  • Fan Cooled
  • No Motion Sensor
  • Front Mount MSR
  • Desktop Technology
  • Low Profile
  • Intel Celeron 566 MHz
  • 4 Serial Ports Standard
  • 2 Memory Slots
  • Optional External Flex Disk Drive
  • Modular Option for Remote Touchscreen

37
Hospitality Success Stories2001
  • AAFES - 7454, Compris, NCR Services - 20 million
  • Applebees - 900-7454s installed in 2001
    600/year new stores
  • BP Amoco - 7454, Compris, 500 Terminals now, 6000
    potential
  • Checkers Drive-In - 600 -7454s installed with
    Aloha
  • Dunkin Donuts - Baskin Robins - 7454 and 7460,
    NCR Services, Aloha
  • Fuddruckers - 340 -7460s, NCR Services,
    Compris,
  • Grupo Pie - EMEA VAR - 3,000 - 7460s - Shipped
    1,300 units in 2001

38
Hospitality Success Stories2001
  • In n Out Burgers - 7454, Compris, 2 million
  • Jack-in-the-Box - 2,000 - 7454s installed in
    00/01, Progressive
  • Long John Silver - 7454, Peripherals, NCR
    Services, 12 million
  • McDonalds EMEA - 6000 - 7454s, 7460s, Compris,
    NCR Services
  • Paragon Steakhouse - 320 - 7460s, Aloha,
  • Ruby Tuesdays - 1,150 - 7454s installed in
    00/01, Micros software
  • Tricon Global - 1,850 - 7454s installed in 2001,
    Compris

39
NCR Hospitality Partners
  • Certified on RealPOS 7454
  • and RealPOS 7460
  • Aloha
  • Compris
  • Digital Dining
  • Positouch
  • Progressive

40
New Hospitality PartnersCertifications in
Progress
  • Breakaway
  • 1 in delivery software
  • Won Dominos
  • SIVA
  • Thin client--browser based
  • POS.com
  • Thin client--ASP model
  • Wand
  • Installed in Wendys and KFC franchisees
  • Exit 41
  • Leading edge Java based application
  • Installed in McDonalds franchisees

41
NCR Strategic POS DirectionRealPOS Workstation
Family
  • Worldwide Product Offering for POS
  • Scalable POS Workstations
  • Advanced Retail Peripherals
  • Open Operating Systems
  • Enabling Platform Software
  • Platform Strategy
  • Leverage Standard PC Technology
  • Retail Enhancements
  • Enhanced Human Interfaces
  • Complete POS Solution

42
Supportability Ease WithFit Client Manager
  • Web-Based Approach to Systems Management
  • Available at 3 Levels
  • Terminal, Store, Enterprise
  • Provides the Following Functionality
  • Crisis Recovery
  • BIOS Updates
  • Client Software Installation
  • Web-Based Management
  • Asset Management
  • Configuration
  • State Management
  • Diagnostics

43
FitClient Manager
  • FitClient Manager LE (Local Edition)
  • Client-based, runs locally on client through
    Internet Explorer
  • Manages retail peripherals (e.g. OPOS profiles)
    and platform components and parameters
  • Diagnostics for peripherals and platform
  • FitClient Manager SE (Store Edition)
  • Server-based web-site management of peripherals,
    platform and software for each client
  • Client software distribution
  • Update Flash BIOS via network
  • Group Management of POS clients via FitGroups
  • Network based crises recovery

44
Norton Ghost Software
  • Facilitates crisis recovery and helps reduce
    support costs
  • Creates an exact image of a hard drive
  • Operating System
  • Applications
  • Configuration Settings
  • Image is stored on a CD-ROM, server hard drive,
    etc.
  • In case of disk failure, image is restored to new
    drive
  • Can also recover individual files from image file

45
USB
  • Drawbacks
  • Limited peripheral choices today
  • Limited native O/S support
  • Benefits
  • Faster data transmission
  • Plug and Play
  • Hot Plug
  • Cable can deliver power and data
  • Growing number of peripheral
  • choices
  • NCR Strategy
  • Meet retailers needs
  • Support existing RS232 peripherals for maximum
    investment protection
  • Adopt new USB without worrying with migration
    issues. The 7460 provides extensive OS support.
  • Combine RS232 and USB peripherals
About PowerShow.com
