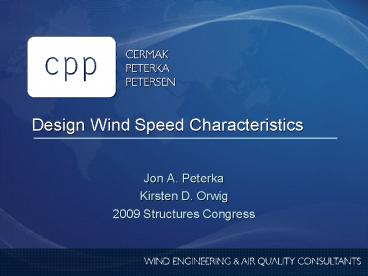

Design Wind Speed Characteristics

1
Design Wind Speed Characteristics

• Jon A. Peterka
• Kirsten D. Orwig
• 2009 Structures Congress

2
Introduction

• Wind load provisions differ worldwide.
• How do they differ?
• What do they have in common?
• What are some unresolved issues?

3
Key Differences

• Averaging schemes
• Design speed definitions
• Load multipliers

4
Key Differences Contd
5
Key Similarity

• Assume Neutrally Stable Boundary Layer.
• Dominated by mechanically generated turbulence.
• Represented by Power Law or Log Law relationships.

where for neutral stability
6
Straight Line Wind

• Durst Chart Gust Factor for Straight Line Wind
  from ASCE 7.

ASCE 7
7
Unresolved Issues

• Non-neutral boundary layers
• Thunderstorm downbursts
• Tornados

8
Non-neutral BL

• Buoyancy and mechanically driven turbulence.
• term ? 0
• Example affects efficiency and durability of
  wind turbines

Stull, R.B., 1988.
9
Downbursts

• Transient
• Averaging difficult and event-dependent
• Unique events (depend on storm translation speed,
  angle of descent, etc.)
• Gust factors (3s/1hr) much greater than 1.53 used
  in ASCE

10
Downburst Contd

• Simulated downburst profiles.

Chay, M.T., et. al., 2006
11
Downburst Contd

• Averaging of full-scale downburst.

Orwig, K.D
12
Downburst Contd

• Angle of descent example.

13
Tornado

• Transient
• Complex wind flow (vertically and horizontally)
• Unique events (single vortex, multiple vortex,
  translation speed, size, etc.)
• 3s gust not 1.53 times 60min mean and Durst gust
  chart doesnt apply.

14
Tornado Contd

• Profiles change in time and space.

Bluestein, H.B., et. al., 2007
15
Tornado Contd

• Complex wind flow in and around tornado.

T
Fujita, 1971
Wurman, J., et. al., 2007
16
Tornado Contd

• Each tornado is unique.

Single vortex grew in size and intensity over a
few minutes
Courtesy Kirsten Orwig
Courtesy Kirsten Orwig
17
Conclusions

• Wind provisions differ worldwide.
• Similarities include straight-line wind and
  neutral BL assumptions
• Each is suitable due to associated multipliers.
• Averaging times are critical for regions where
  other wind types dominate.
• Downbursts and tornados may generate greater
  loads due to transience and complexity and remain
  to be addressed.

18
References

• Stull, R.B., An Introduction to Boundary Layer
  Meteorology, Kluwer Academic Publishers, 1988.
• Sumner, J., Masson, C., Influence of Atmospheric
  Stability on Wind Turbine Power Performance
  Curves, J. Sol. Energy Eng., 128, 2006, 531-539.
• Sathe, A., Bierbooms, W., Influence of different
  wind profiles due to varying atmospheric
  stability on the fatigue life of wind turbines,
  J. Physics Conf. Series, 75, 2007, 1-7.
• Chay, M.T., Albermani, F., Wilson, R., Numerical
  and analytical simulation of downburst winds,
  Eng. Structures, 28, 2006, 240-254.
• Kareem, A., Kijewski, T., Time-frequency
  analysis of wind effects on structures, J. Wind
  Eng. Ind. Aerodyn., 90, 2002, 1435-1452.
• Orwig, K.D., Schroeder, J.L., Near-surface wind
  characteristics of extreme thunderstorm
  outflows, J. Wind Eng. Ind. Aerodyn., 95, 2007,
  565-584.
• Holmes, J.D., Hangan, H.M., Schroeder, J.L,
  Orwig, K.D., Letchford, C.W., A forensic study
  of the Lubbock-Reese downdraft of 2002, Wind and
  Structures, 11, 2008.
• Orwig, K.D, Examination of strong winds from a
  time-varying perspective, PhD Dissertation,
  Texas Tech University, in progress.
• NOAA http//www.photolib.noaa.gov/nssl/images/big
  /nssl0106.jpg.
• Vesilind, P. J., The hard science, dumb luck,
  and cowboy nerve of chasing tornados, National.
  Geographic, 205, 2004, 2-37.
• Burgess, D.W., Magsig, M.A., Wurman, J., Dowell,
  D.C., Richardson, Y., Radar observations of the
  3 May 1999 Oklahoma City tornado, Wea. and
  Forecasting, 17, 2002, 456-471.
• Bluestein, H.B., French, M.M., Tanamachi, R.L.,
  Frasier, S., Hardwick, K., Junyent, F., Pazmany,
  A.L., Close-range observations of tornadoes in
  supercells made with a dual-polarization X-band,
  mobile Doppler radar, Mon. Wea. Rev., 135, 2007,
  1522-1543.

19
References Contd

• Wurman, J., Richardson, Y., Alexander, C.,
  Weygandt, S., Zhang, P.F., Notes and
  Correspondence Dual-Doppler analysis of winds
  and vorticity budget terms near a tornado, Mon.
  Wea. Rev., 135, 2007, 2392-2405.
• Wurman, J., Richardson, Y., Alexander, C.,
  Weygandt, S., Zhang, P.F., Dual-Doppler and
  single-Doppler analysis of a tornadic storm
  undergoing mergers and repeated tornadogenesis,
  Mon. Wea. Rev., 135, 2007, 736-758.
• Wurman, J., The multiple-vortex structure of a
  tornado, Wea. and Forecasting, 17, 2002,
  474-505.
• Bluestein, H.B., Weiss, C.C., French, M.M.,
  Holthaus, E.M., Tanamachi, R.L., Frasier, S.,
  Pazmany, A.L.,
• The structure of tornadoes near Attica, Kansas,
  on 12 May 2004 High-resolution, mobile, Doppler
  radar observations, Mon. Wea. Rev., 135, 2007,
  475-506.
• Hirth, B.D., Schroeder, J.L., Weiss, C.C.,
  Surface analysis of the Rear-Flank Downdraft
  outflow in two tornadic supercells, Mon. Wea.
  Rev., 136, 2008, 2344-2363.
• Markowski, P.M., Mobile mesonet observations on
  3 May 1999, Wea. and Forecasting, 17, 2002,
  430-444.
• Markowski, P.M., Hook echoes and Rear-Flank
  Downdrafts A review, Mon. Wea. Rev., 130, 2002,
  852-876.
• Rasmussen, E.N., Straka, J.M., Davies-Jones,
  R.P., Doswell, C.A., Carr, F.H., Eilts, M.D.,
  MacGorman, D.R., Verification of the Origins of
  Rotation in Tornados Experiment VORTEX, Bull.
  Amer. Meteor. Soc., 75, 1994, 995-1006.
• Markowski, P.M., Straka, J.M., Rasmussen, E.N.,
  Direct surface thermodynamic observations within
  the Rear-Flank Downdrafts of nontornadic and
  tornadic supercells, Mon. Wea. Rev., 130, 2002,
  1692-1721
• Sengupta, A., Haan, F.L., Sarkar, P.P.,
  Balaramudu, V., Transient loads on buildings in
  microburst and tornado winds, J. Wind Eng. Ind.
  Aerodyn., 96, 2008, 2173-2187.
• International Code Council, International
  Building Codes, 2009.
• American Society of Civil Engineers, Minimum
  Design Loads for Buildings and Other Structures
  (ASCE 705), 2006.
• National Research Council Canada, National
  Building Codes of Canada, 2005.
• The Government of the Hong Kong Special
  Administrative Program, Code of Practice on Wind
  Effects in Hong Kong, 2004.
• Hollister, S.C., The engineering interpretation
  of Weather Bureau records for wind loading on
  structures, Building Science Series, National
  Bureau of Standards, 1970.
• Vickery, P.J, Skerlj, P.F., Hurricane gust
  factors revisited, J. Struct. Eng., 131, 2005,
  825-832.

20
References Contd

• Durst, C.S., Wind speeds over short periods of
  time, Meteor. Mag., 89, 1960, 181187.
• Standards Australia and Standards New Zealand,
  Australian/New Zealand Standard, Structural
  Design Actions, Part 2 Wind Actions, 2002
  (AS/NZS 1170.22002).
• British Standards Institution, Eurocode 1
  Actions on structuresGeneral actionsPart 1-4
  Wind, 2004 (prEN 1991-1-42004).
• Bureau of Indian Standards, Indian Standard, Code
  of practice for design loads (other than
  earthquake) for buildings and structures, Part 3
  Wind loads, Second Revision, 1998 (IS875 (Part
  3) 1987).
• Texas Tech University, A Recommendation for an
  Enhanced Fujita Scale (EF-Scale), Revision 2,
  Wind Science and Engineering Center, Texas Tech
  University, Lubbock, Texas, 2004.
