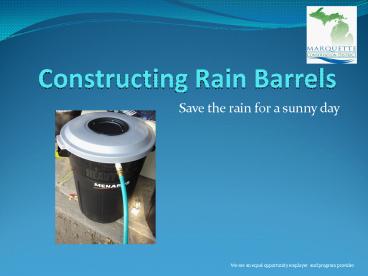

Constructing Rain Barrels

1
Constructing Rain Barrels

• Save the rain for a sunny day

We are an equal opportunity employer and program
provider.
2
What is a rain barrel?

• A rain barrel is a system that collects and
  stores rainwater from your roof that would
  otherwise be lost to runoff and diverted to storm
  drains and streams.
• - Environmental Protection Agency (2009)

We are an equal opportunity employer and program
provider.
3
Benefits of a rain barrel

• Provides soft water free of chlorine and other
  harmful minerals for plants
• Could save as much as 1,300 gallons a month of
  water during peak water usage times
• A 1,000 square foot roof can collect 310 gallons
  of water in a half-inch rainfall.
• FREE source of water!
• Reduces the impact of runoff to streams
• Environmentally friendly

We are an equal opportunity employer and program
provider.
4
Tools needed

• Electric drill w/ Phillips head bit
• 7/8 paddle drill bit
• Tape measure
• Utility knife
• Pen or marker
• Scissors
• Crescent wrench

We are an equal opportunity employer and program
provider.
5
Supplies needed

• Large plastic garbage can w/ lid (must be heavy
  duty!!)
• 2- ¾ hose bibbs
• ½ Riser Extender
• 2- 15 rubber o-rings
• 1 x ¾ x 1/8
• 2- ½ brass locknuts
• Brass hose adapter
• Size ¾ MH x ½ MIP

• Short piece of hose- female end needed
• Brass pipe nipple
• 1/2 MIP x 1 ½
• Fiberglass screening
• 10x 10
• 4- Self Drilling Sheet metal screws
• 8 x ¾
• 6 Chimney pipe trim collar

We are an equal opportunity employer and program
provider.
6
We are an equal opportunity employer and program
provider.
7
How to build your rain barrel

• Step 1 Measure 5 up the side of the barrel
  starting from the bottom and make a mark
• Using the mark as a center point, drill a hole
  through the side of the barrel using the 7/8
  paddle bit

We are an equal opportunity employer and program
provider.
8

• Step 2 Screw a locknut onto one side of the
  threaded brass nipple
• Place a 15 rubber o-ring on the same side as the
  locknut

We are an equal opportunity employer and program
provider.
9

• Step 3 Place the brass nipple with locknut and
  o-ring on the inside of the newly drilled hole in
  the barrel pushing the o-ring up against the side
  of the barrel
• Hold the hose bibb on the outside of the barrel
  over the hole and thread the two pieces together
  until snug

We are an equal opportunity employer and program
provider.
10

• Step 4 Using the 7/8 paddle bit, drill another
  hole about an inch below the top lip of the barrel

We are an equal opportunity employer and program
provider.
11

• Step 5 Thread the hose adapter into the riser
  extender and insert into the hole drilled in the
  barrel
• Place a rubber O-ring on the riser extender and
  thread on a brass locknut
• Using a crescent wrench, snug up the locknut
• Attach the short piece of hose to the hose adapter

We are an equal opportunity employer and program
provider.
12

• Step 6 Place the chimney pipe trim collar on
  the center of the lid and trace the inner part of
  the ring
• Using the utility knife, carefully cut along the
  line you just traced

We are an equal opportunity employer and program
provider.
13

• Step 7 Hold the piece of fiberglass screening
  over the chimney pipe trim collar
• Using the scissors, trim the screening to the
  same size as the chimney pipe trim collar

We are an equal opportunity employer and program
provider.
14

• Step 8 Line up the hole in the lid, the piece
  of screen and the hole in the chimney pipe trim
  collar
• Using the drill with the phillips head bit, drill
  the four self tapping screws into the chimney
  pipe trim collar
• The screws should be evenly spaced around the
  trim collar

We are an equal opportunity employer and program
provider.
15
Congratulations!!

• You have just made your very own rain barrel.

We are an equal opportunity employer and program
provider.
16
Helpful Hints

• Placing the barrel up on bricks will allow you to
  screw a hose onto the hose bibb and not have an
  extreme angle that would restrict flow through
  the hose.
• The bricks used to elevate the barrel should be
  sturdy!
• Full barrels can weigh 400 pounds.
• You may want to drill a small hole in each of the
  handles of the lid so that you can tie the lid
  onto the barrel.
• Doing so will keep the lid secure and keep
  unwanted guests (including small children and
  animals) out of your rain barrel.

We are an equal opportunity employer and program
provider.
17
Sources

• http//www.epa.gov/Region3/p2/what-is-rainbarrel.p
  df
• http//www.raingardens.org/Rain_Barrels.php
• http//www.cityofbremerton.com/content/sw_rainbarr
  elfacts.html
• http//egov.cityofchicago.org/city/webportal/porta
  lContentItemAction.do?contentOID536925772contenT
  ypeNameCOC_EDITORIALtopChannelNameDeptblockNam
  eEnvironment2FIWantTocontextdeptchannelId0
  programId0entityNameEnvironmentdeptMainCatego
  ryOID
