Title: Sequencing

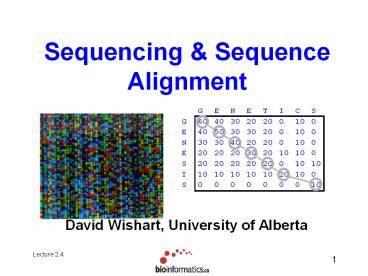

1
Sequencing Sequence Alignment
David Wishart, University of Alberta
2
Objectives
  • Understand how DNA sequence data is collected and
    prepared
  • Be aware of the importance of sequence searching
    and sequence alignment in biology and medicine
  • Be familiar with the different algorithms and
    scoring schemes used in sequence searching and
    sequence alignment

3
High Throughput DNA Sequencing
4
30,000
5
Shotgun Sequencing
Isolate Chromosome
ShearDNA into Fragments
Clone into Seq. Vectors
Sequence
6
Principles of DNA Sequencing
Primer
DNA fragment
Amp
PBR322
Tet
Ori
Denature with heat to produce ssDNA
Klenow ddNTP dNTP primers
7
The Secret to Sanger Sequencing
8
Principles of DNA Sequencing
3 Template
G C A T G C
5
5 Primer
GddC
GCddA
GCAddT
ddG
GCATGddC
GCATddG
9
Principles of DNA Sequencing
G
T
_
_
C
A
G C A T G C


10
Capillary Electrophoresis
Separation by Electro-osmotic Flow
11
Multiplexed CE with Fluorescent detection
ABI 3700
96x700 bases
12
Shotgun Sequencing
Assembled Sequence
Sequence Chromatogram
Send to Computer
13
Shotgun Sequencing
  • Very efficient process for small-scale (10 kb)
    sequencing (preferred method)
  • First applied to whole genome sequencing in 1995
    (H. influenzae)
  • Now standard for all prokaryotic genome
    sequencing projects
  • Successfully applied to D. melanogaster
  • Moderately successful for H. sapiens

14
The Finished Product
GATTACAGATTACAGATTACAGATTACAGATTACAG ATTACAGATTACA
GATTACAGATTACAGATTACAGA TTACAGATTACAGATTACAGATTACA
GATTACAGAT TACAGATTAGAGATTACAGATTACAGATTACAGATT AC
AGATTACAGATTACAGATTACAGATTACAGATTA CAGATTACAGATTAC
AGATTACAGATTACAGATTAC AGATTACAGATTACAGATTACAGATTAC
AGATTACA GATTACAGATTACAGATTACAGATTACAGATTACAG ATTA
CAGATTACAGATTACAGATTACAGATTACAGA TTACAGATTACAGATTA
CAGATTACAGATTACAGAT
15
Sequencing Successes
T7 bacteriophage completed in 1983 39,937 bp, 59
coded proteins Escherichia coli completed in
1998 4,639,221 bp, 4293 ORFs Sacchoromyces
cerevisae completed in 1996 12,069,252 bp, 5800
genes
16
Sequencing Successes
Caenorhabditis elegans completed in
1998 95,078,296 bp, 19,099 genes Drosophila
melanogaster completed in 2000 116,117,226 bp,
13,601 genes Homo sapiens 1st draft completed in
2001 3,160,079,000 bp, 31,780 genes
17
So what do we do with all this sequence data?
18
Sequence Alignment
19
Alignments tell us about...
  • Function or activity of a new gene/protein
  • Structure or shape of a new protein
  • Location or preferred location of a protein
  • Stability of a gene or protein
  • Origin of a gene or protein
  • Origin or phylogeny of an organelle
  • Origin or phylogeny of an organism

20
Factoid
Sequence comparisons lie at the heart of
all bioinformatics
21
Similarity versus Homology
  • Similarity refers to the likeness or identity
    between 2 sequences
  • Similarity means sharing a statistically
    significant number of bases or amino acids
  • Similarity does not imply homology
  • Homology refers to shared ancestry
  • Two sequences are homologous is they are derived
    from a common ancestral sequence
  • Homology usually implies similarity

22
Similarity versus Homology
  • Similarity can be quantified
  • It is correct to say that two sequences are X
    identical
  • It is correct to say that two sequences have a
    similarity score of Z
  • It is generally incorrect to say that two
    sequences are X similar

23
Similarity versus Homology
  • Homology cannot be quantified
  • If two sequences have a high identity it is OK
    to say they are homologous
  • It is incorrect to say two sequences have a
    homology score of Z
  • It is incorrect to say two sequences are X
    homologous

24
Sequence Complexity
MCDEFGHIKLAN. High Complexity
ACTGTCACTGAT. Mid Complexity
NNNNTTTTTNNN. Low Complexity
Translate those DNA sequences!!!
25
Assessing Sequence Similarity
THESTORYOFGENESIS THISBOOKONGENETICS THESTORYOFGE
NESI-S THISBOOKONGENETICS THE STORY OF
GENESIS THIS BOOK ON GENETICS
Two Character Strings
Character Comparison


Context Comparison
26
Assessing Sequence Similarity
is this alignment significant?
27
Is This Alignment Significant?
28
Some Simple Rules
  • If two sequence are gt 100 residues and gt
    25 identical, they are likely related
  • If two sequences are 15-25 identical they may be
    related, but more tests are needed
  • If two sequences are lt 15 identical they are
    probably not related
  • If you need more than 1 gap for every 20 residues
    the alignment is suspicious

29
Doolittles Rules of Thumb
30
Sequence Alignment - Methods
  • Dot Plots
  • Dynamic Programming
  • Heuristic (Fast) Local Alignment
  • Multiple Sequence Alignment
  • Contig Assembly

31
Dot Plots
32
Dot Plots
  • Invented in 1970 by Gibbs McIntyre
  • Good for quick graphical overview
  • Simplest method for sequence comparison
  • Inter-sequence comparison
  • Intra-sequence comparison
  • Identifies internal repeats
  • Identifies domains or modules

33
Dot Plots Internal Repeats
34
Dot Plot Algorithm
  • Take two sequences (A B), write sequence A out
    as a row (lengthm) and sequence B as a column
    (length n)
  • Create a table or matrix of m columns and n
    rows
  • Compare each letter of sequence A with every
    letter in sequence B. If theres a match mark it
    with a dot, if not, leave blank

35
Dot Plot Algorithm
A C D E F G H G
A C D E F G H G
36
Dot Plots
  • Most commercial programs offer pretty good dot
    plot programs including
  • GCG/Omiga (Pharmacopeia)
  • PepTool (BioTools Inc.)
  • LaserGene (DNAStar)
  • Popular freeware package is Dotter
    www.cgr.ki.se/cgr/groups/sonnhammer/Dotter.html
  • Dotlet http//www.isrec.isb-sib.ch/java/dotlet/Dot
    let.html
  • JDotter http//athena.bioc.uvic.ca/sars/jdotter/ma
    in.php

37
Dynamic Programming
38
Dynamic Programming
  • Developed by Needleman Wunsch (1970)
  • Refined by Smith Waterman (1981)
  • Ideal for quantitative assessment
  • Guaranteed to be mathematically optimal
  • Slow N2 algorithm
  • Performed in 2 stages
  • Prepare a scoring matrix using recursive function
  • Scan matrix diagonally using traceback protocol

39
The Recursive Function
Si-1,j-1 or max Si-x,j-1 wx-1
or max Si-1,j-y wy-1
Sij sij max
2ltxlti
2ltyltj
W gap penalty S alignment score
40
Identity Scoring Matrix (Sij)
41
A Simple Example...
A A T V D A 1 V V D
A A T V D A 1 1 V V D
A A T V D A 1 1 0 0 0 V V D
A A T V D A 1 1 0 0 0 V 0 V D
A A T V D A 1 1 0 0 0 V 0 1 1 V D
A A T V D A 1 1 0 0 0 V 0 1 1 2 V D
42
A Simple Example...
A A T V D A 1 1 0 0 0 V 0 1 1 2 1 V D
A A T V D A 1 1 0 0 0 V 0 1 1 2 1 V 0 1
1 2 2 D 0 1 1 1 3
A A T V D A 1 1 0 0 0 V 0 1 1 2 1 V 0 1
1 2 2 D 0 1 1 1 3
A A T V D A - V V D
A A T V D A V V D
A A T V D A V - V D
43
Could We Do Better?
  • Key to the performance of Dynamic Programming is
    the scoring function
  • Dynamic Programming always gives the
    mathematically correct answer
  • Dynamic Programming does not always give the
    biologically correct answer
  • The weakest link -- The Scoring Matrix

44
Scoring Matrices
  • An empirical model of evolution, biology and
    chemistry all wrapped up in a 20 X 20 table of
    integers
  • Structurally or chemically similar residues
    should ideally have high diagonal or off-diagonal
    numbers
  • Structurally or chemically dissimilar residues
    should ideally have low diagonal or off-diagonal
    numbers

45
A Better Matrix - PAM250
46
Using PAM250...
A T V D A 2 T 1 3 V 0 0 4 D 0 0-2 4
Gap Penalty -1
A A T V D A 2 V V D
A A T V D A 2 1 V V D
A A T V D A 2 1 0 -1 -1 V V D
A A T V D A 2 1 0 -1 -1 V -1 2 V D
A A T V D A 2 1 0 -1 -1 V -1 2 1
V D
A A T V D A 2 1 0 -1 -1 V -1 2 1 5 V D
47
Using PAM250...
A T V D A 2 T 1 3 V 0 0 4 D 0 0-2 4
Gap Penalty -1
A A T V D A 2 1 0 -1 -1 V -1 2 1 5
-1 V D
A A T V D A 2 1 0 -1 -1 V -1 2 1 5 -1 V
-1 1 2 5 3 D -1 1 1 0 9
A A T V D A 2 1 0 -1 -1 V -1 2 1 5 -1 V
-1 1 2 5 3 D -1 1 1 0 9
A A T V D A V - V D
48
PAM Matrices
  • Developed by M.O. Dayhoff (1978)
  • PAM Point Accepted Mutation
  • Matrix assembled by looking at patterns of
    substitutions in closely related proteins
  • 1 PAM corresponds to 1 amino acid change per 100
    residues
  • 1 PAM 1 divergence or 1 million years in
    evolutionary history

49
Dynamic Programming
  • Great for doing pairwise global alignments
  • Produces a quantitative alignment score
  • Problems if one tries to do alignments with very
    large sequences (memory requirement grows as N2
    or as N x M)
  • Serious problems if one tries to align one
    sequence against a database (10s of hours)
  • Need an alternative..

50
Fast Local Alignment Methods
ACDEAGHNKLM...
KKDEFGHPKLM...
SCDEFCHLKLM...
MCDEFGHNKLV...
ACDEFGHIKLM...
QCDEFGHAKLM...
AQQQFGHIKLPI...
WCDEFGHLKLM...
SMDEFAHVKLM...
ACDEFGFKKLM...
51
Fast Local Alignment Methods
  • Developed by Lipman Pearson (1985/88)
  • Refined by Altschul et al. (1990/97)
  • Ideal for large database comparisons
  • Uses heuristics statistical simplification
  • Fast N-type algorithm (similar to Dot Plot)
  • Cuts sequences into short words (k-tuples)
  • Uses Hash Tables to speed comparison

52
Fast Alignment Algorithm
53
Fast Alignment Algorithm
54
Fast Alignment Algorithm
A C D E F G D E F...
L M R G CD D Y G
55
Fast Alignment Algorithm
56
FASTA
  • Developed in 1985 and 1988 (W. Pearson)
  • Looks for clusters of nearby or locally dense
    identical k-tuples
  • init1 score score for first set of k-tuples
  • initn score score for gapped k-tuples
  • opt score optimized alignment score
  • Z-score number of S.D. above random
  • expect expected of random matches

57
FASTA
58
Multiple Sequence Alignment
Multiple alignment of Calcitonins
59
Multiple Alignment Algorithm
  • Take all n sequences and perform all possible
    pairwise (n/2(n-1)) alignments
  • Identify highest scoring pair, perform an
    alignment create a consensus sequence
  • Select next most similar sequence and align it to
    the initial consensus, regenerate a second
    consensus
  • Repeat step 3 until finished

60
Multiple Sequence Alignment
  • Developed and refined by many (Doolittle, Barton,
    Corpet) through the 1980s
  • Used extensively for extracting hidden
    phylogenetic relationships and identifying
    sequence families
  • Powerful tool for extracting new sequence motifs
    and signature sequences

61
Multiple Alignment
  • Most commercial vendors offer good multiple
    alignment programs including
  • GCG (Accelerys)
  • PepTool/GeneTool (BioTools Inc.)
  • LaserGene (DNAStar)
  • Popular web servers include T-COFFEE, MULTALIN
    and CLUSTALW
  • Popular freeware includes PHYLIP PAUP

62
Mutli-Align Websites
  • Match-Box http//www.fundp.ac.be/sciences/biologie
    /bms/matchbox_submit.shtml
  • MUSCA http//cbcsrv.watson.ibm.com/Tmsa.html
  • T-Coffee http//www.ch.embnet.org/software/TCoffee
    .html
  • MULTALIN http//www.toulouse.inra.fr/multalin.html
  • CLUSTALW http//www.ebi.ac.uk/clustalw/

63
Multi-alignment Contig Assembly
ATCGATGCGTAGCAGACTACCGTTACGATGCCTT TAGCTACGCATCGT
CTGATGGCAATGCTACGGAA..
TAGCTACGCATCGT
TAGCAGACTACCGTT
ATCGATGCGTAGC
GTTACGATGCCTT
64
Contig Assembly
  • Read, edit trim DNA chromatograms
  • Remove overlaps ambiguous calls
  • Read in all sequence files (10-10,000)
  • Reverse complement all sequences (doubles of
    sequences to align)
  • Remove vector sequences (vector trim)
  • Remove regions of low complexity
  • Perform multiple sequence alignment

65
Chromatogram Editing
66
Sequence Loading
67
Sequence Alignment
68
Contig Alignment - Process
ATCGATGCGTAGC
TAGCAGACTACCGTT
GTTACGATGCCTT
TGCTACGCATCG
CGATGCGTAGCA
CGATGCGTAGCA
ATCGATGCGTAGC
TAGCAGACTACCGTT
GTTACGATGCCTT
ATCGATGCGTAGCAGACTACCGTTACGATGCCTT
69
Sequence Assembly Programs
  • Phred - base calling program that does detailed
    statistical analysis (UNIX)
    http//www.phrap.org/
  • Phrap - sequence assembly program (UNIX)
    http//www.phrap.org/
  • TIGR Assembler - microbial genomes (UNIX)
    http//www.tigr.org/softlab/assembler/
  • The Staden Package (UNIX)
  • http//www.mrc-lmb.cam.ac.uk/pubseq/
  • GeneTool/ChromaTool/Sequencher (PC/Mac)

70
http//bio.ifom-firc.it/ASSEMBLY/assemble.html
71
Conclusions
  • Sequence alignments and database searching are
    key to all of bioinformatics
  • There are four different methods for doing
    sequence comparisons 1) Dot Plots 2) Dynamic
    Programming 3) Fast Alignment and 4) Multiple
    Alignment
  • Understanding the significance of alignments
    requires an understanding of statistics and
    distributions
Write a Comment
User Comments (0)
About PowerShow.com
