A Look Behind the Walls

1
A Look Behind the Walls

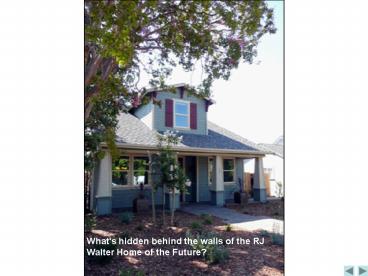

What's hidden behind the walls of the RJ Walter
Home of the Future?
2
Insulating Sheathing Detail
Insulating sheathing detail shows water
management layers that keep the wall dry. Photo
courtesy of Building Science Corporation.
3
Pan Flashed Windows
Pan flashing at windows eliminates entry of wind
blown rain.Photo courtesy of Building Science
Corporation.
4
Exterior Walls
Outside view of insulating sheathing, before
stucco is applied. Photo courtesy of Building
Science Corporation.
5
Insulated Walls
Blown in fiber fully seals and insulates interior
walls. Photo courtesy of Building Science
Corporation.
6
Spray Foam Insulation
Spray foam insulation in attic moves ducts into
conditioned space and provides additional living
area for a small incremental cost. Photo courtesy
of Building Science Corporation.
7
Cellulose Insulation
Cellulose insulation between garage and
conditioned space eliminates cold floor in room
over garagePhoto courtesy of Building Science
Corporation.
