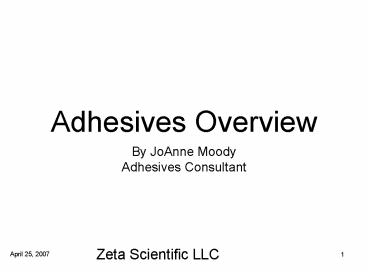

Title: Adhesives Overview


1
Adhesives Overview
  • By JoAnne Moody
  • Adhesives Consultant

Zeta Scientific LLC
April 25, 2007
1
2
Overview Topics
  • Market
  • Adhesion Terminology
  • Applications
  • Design Considerations
  • Case Studies
  • The Future

Zeta Scientific LLC
April 25, 2007
2
3
(Est. 2004)
Zeta Scientific LLC
April 25, 2007
3
4
Whats an Adhesive?
Adhesive - a substance capable of holding
materials together by surface attachment.
(Reference ASTM)
Zeta Scientific LLC
April 25, 2007
4
5
Reference Adhesive Sealant Council Inc (ASC)
Zeta Scientific LLC
April 25, 2007
5
6
ReferenceAdhesive Sealant Council Inc (ASC)
Zeta Scientific LLC
April 25, 2007
6
7
Applications
  • Consumer
  • Electronics
  • Medical and surgical
  • Construction
  • Transportation
  • Telecommunications

Zeta Scientific LLC
April 25, 2007
7
8
Adhesive Advantages
  • Quick, easy, cheap and convenient
  • Join dissimilar materials
  • Fills gaps and voids
  • Thin bond lines
  • Invisible means of attachment
  • May provide conductive or insulation properties

Zeta Scientific LLC
April 25, 2007
8
9
Adhesive Limitations
  • Must insure that substrate and adhesive are
    compatible
  • Aging and shelf-life considerations
  • Incoming material controls
  • Surface preparation is critical
  • May require mixing and curing time
  • Parts need to be held in place during curing

Zeta Scientific LLC
April 25, 2007
9
10
Adhesive Families
  • Structural (epoxies, polyurethanes,
    cyanoacrylates)
  • Water-based (natural rubber, acrylics, silicones)
  • Pressure Sensitive Adhesives (acrylics, rubber,
    silicone)
  • Hot Melts (Ethylene vinyl acetate, polyethylene)
  • UV and E-beam Cured (acrylate, urethane,
    polyesters)
  • Note This list is not all inclusive of the
    chemical families.

Zeta Scientific LLC
April 25, 2007
10
11
Conditions
  • Environmental (temperature, humidity, etc.)
  • Safety factors (such as shear loads, etc.)
  • Product-specific requirement
  • Surface preparation
  • Shelf life and aging

Zeta Scientific LLC
April 25, 2007
11
12
Failure Modes
  • All adhesive bonds should be tested to failure to
    understand the potential failure mode
  • Adhesive failure The bond breaks between the
    substrate and adhesive
  • Cohesive failure The bond does not break
    between the substrate and adhesive instead, the
    internal strength of the adhesive causes it to
    split. This is the preferred failure mode in
    most cases.

Zeta Scientific LLC
April 25, 2007
12
13
Adhesive Selection
  • Identify requirements.
  • Determine assembly process.
  • Select adhesive type and match the chemistry.
  • Test bond in actual and simulated (aging) tests
    of different adhesives. Understand failure mode.
  • Design production process and in-line monitoring.
  • Setup quality for incoming material and
    shelf-life controls.

Zeta Scientific LLC
April 25, 2007
13
14
Poster Mounting Adhesive Case Study
  • Requirements Bond paper poster to a wall.
    Removal should not damage the poster or wall, and
    no staining.
  • Assembly process Use hands only, no tools.
  • Adhesives Various mouning adhesives
  • Tests Simulate condition with adhesive, paper
    with a weight, and test board. Test shear, peel,
    and staining.
  • Design production process and in-line monitoring.
  • Setup quality for incoming material and
    shelf-life controls.

Zeta Scientific LLC
April 25, 2007
14
15
Poster Mounting Adhesive - Case Study
Zeta Scientific LLC
April 25, 2007
15
16
Medical Device -Intravascular Ultrasound (IVUS)
Catheter Case Study
  • Flip chip bonding (indium solder bumps)
  • Die underfill (cyanoacrylate)
  • Encapsulation (UV cured adhesive)
  • Adhesive bonding piezoelectric film to
    encapsulated device (cyanoacrylate)
  • Welding wire to substrate (resistance welding))
  • Conductive adhesive (silver-filled epoxy)

Zeta Scientific LLC
April 25, 2007
16
17
Medical Device - IVUS Test Case
Flip chip bonding die underfill
Zeta Scientific LLC
April 25, 2007
17
18
Medical Device - IVUS Test Case
Encapsulation
Zeta Scientific LLC
April 25, 2007
18
19
Medical Device - IVUS Case Study
Adhesive bonding of piezoelectric film to
encapsulated device
Zeta Scientific LLC
April 25, 2007
19
20
Medical Device - IVUS Test Case
Wire welding conductive adhesive bond
Zeta Scientific LLC
April 25, 2007
20
21
Trends
  • Adhesive growth in structural applications
  • Raw material price increases impact growth
  • Manufacturing expansion in Asia and Eastern
    Europe to reduce costs
  • Demand rising in dental medical adhesives
    (Global Info 2005)
  • Replacing mechanical fasteners in electronic
    components, transportation, and aerospace
    (Freedonia 2007)

Zeta Scientific LLC
April 25, 2007
21
22
Adhesive Consultant
JoAnne Moody Principal Zeta Scientific LLC PO
Box 2935 Livermore CA 94551 Tel 925.980.9655 Fax
888.657.6506 joanne_at_zetascientific.com http//www.
zetascientific.com
