Title: Project Manager


1

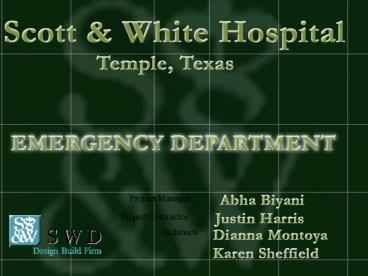

Project Manager
Project Contractor
S W D
Architects
Design Build Firm
2
S W D
Preview
Design Build Firm
About us Mission Statement Goals Solution Site
Circulation Relative Spaces
Floor Plan Elevation/Section Model
Photographs Exterior View Interior View
Bid Package Conceptual Cost-Emergency
Center Conceptual Cost Hospital
Facility Construction Schedule Construction Site
Layout Value Engineering
3
S W D
About Us
Design Build Firm
The SWD Design Build Firm was founded in November
2000 by coming together of COSC 648, COSC 455
and ARCH 305 students of TAMU under the guidance
of Dr. James Smith, Prof George Mann and
Dr.Charles Graham and has been working together
ever since. It has been a unique experience
working in this Design Build environment.
Team Members Diana Montoya ARCH 305 (Prof
George Mann-Architecture Design Studio) Karen
Sheffield ARCH 305 Justin Harris COSC 455
(Dr. Graham-Alternative Const Delivery Methods)
Abha Biyani COSC 648 (Dr. James Smith-Design
Build Delivery Methods)
  • Team Work
  • Team Meetings held to review the design and
    construction details.
  • E-mail to update, discuss progress and scheduling
    meetings.
  • Website specially designed for this project url
    carcweb/cosc648/swd/first.html
  • Putting together the Design and Construction
    requirements for the project.

4
S W D
Mission Statement
Design Build Firm
Scott and White Mission statement
To provide personalized, comprehensive, high
quality health care, enhanced by medical
education and research.
Team Statement
The Mission statement is the enduring statement
of purpose that distinguishes one hospital from
another.It is the declaration of a hospitals
purpose for existence.
Emergency Center
The SWD Team is primarily designing the
Emergency Center along with the Hospital Tower
for the expansion of the existing Scott and White
Hospital at Temple, Texas.
5
S W D
Goals - Solutions
Design Build Firm
Goals
Solutions
  • Tall, glass tower makes the front entrance of
    ED, easily seen from main road a road is located
    for a direct access ambulance entrance.
  • Visible and easily accessible
  • entrance.
  • Two sets of doors are used in the back entrance
    and a security system is installed in case of
    need.
  • Secure ambulance entrance
  • The large nurses station is placed in
  • the center of the ED with easy access
  • to surrounding rooms.
  • Centralized nurses station with
  • patient visibility
  • The ED is located next to the new towers the
    elevator shaft connects to the new tower,
    reaching all floors.
  • Vertical circulation to new towers

6
S W D
Site Circulation
Design Build Firm
Before
After
7
S W D
Relative Spaces
Design Build Firm
8
S W D
Floor Plans
Design Build Firm
Before
Emergency Center
After
9
S W D
Elevation/Section
Design Build Firm
Elevation
Section
10
S W D
Model Photographs
Design Build Firm
Before
After
11
S W D
Exterior View
Design Build Firm
12
S W D
Interior View
Design Build Firm
13
S W D
Construction Details
Design Build Firm
The project delivery method used is Design Build
with GMP (Guarantee Maximum Price) Contract.
DBIA 530, Standard form of agreement between
Design-Builder and the General Contractor, is to
be used as the contract form.
Bid Package
  Site work    Envelope Concrete
Masonry     Roofing     Metals
Electrical Mechanical    Plumbing
Conveying Furnishings     Doors and Windows
14
S W D
Conceptual Cost- Emergency Center
Design Build Firm
15
S W D
Conceptual Cost- Hospital Facility
Design Build Firm
16
S W D
CSI Cost Division Break Down
Design Build Firm
Emergency Center
Hospital Facility
17
S W D
Construction Schedule
Design Build Firm
18
S W D
Construction Site Layout
Design Build Firm
Site Logistics
19
S W D
Value Engineering
Design Build Firm
  •    Foundation - spread footing or drilled pier.
  •    Structure - steel framing or cast in place
    concrete.
  •    Structure - At the steel connections, gravity
    connections will be cheaper
  • than moment connections.
  •    Glazing - Be sure to use interior installed
    glazing.
  •    Ceiling Tile-Non-tegular, no beveled edge, is
    cheaper.
  •    Building Skin -Use "thin-shell" precast
    architectural panels in lieu of a
  • brick veneer
  •    Interior Build-out - explore carpet/VWC
    suppliers Same thing is true
  • for electrical light fixtures.
  •   Interior Build-out - Delete as many finishes
    (floor covering, acoustical
  • ceilings, etc.) as possible from stairwells.
