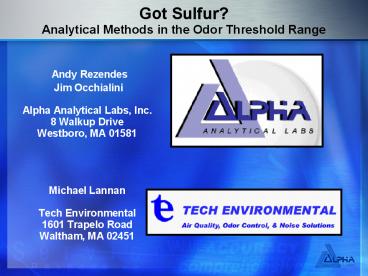

Got Sulfur Analytical Methods in the Odor Threshold Range

1
Got Sulfur? Analytical Methods in the Odor
Threshold Range

• Andy Rezendes
• Jim Occhialini
• Alpha Analytical Labs, Inc.
• 8 Walkup Drive
• Westboro, MA 01581
• Michael Lannan
• Tech Environmental
• 1601 Trapelo Road
• Waltham, MA 02451

2
Overview

• Gas chromatography and methods review
• Stability of sulfides and mercaptans in canisters
  and Tedlar bags
• Comparison of reporting limits
• Example of landfill gas analysis
• Conclusions

3
Conventional GC and GC/MS

• Conventional GC detectors
• Chemiluminecense (ASTM D-5504)
• excellent sensitivity
• very selective and costly
• Flame photometric (EPA method 16)
• not as sensitive
• high signal to noise
• poor linearity

4
Conventional GC and GC/MS

• Gas chromatography / mass spectrometry (GC/MS)
• Moderate sensitivity compared to other detectors
• Greater QA/QC capabilities by using internal
  standards
• Analytical instrumentation has multiple
  applications

5
Conventional GC vs. GC/MS

• Gas chromatography (GC)
• only retention time of compound used for
  identification
• GC/MS (mass spectrometry)
• spectral confirmation of compound in addition to
  retention time

6
Sulfides and Mercaptans via TO-15

• Modification of standard TO-15 procedure
• Can detect sulfides as low as 0.5 ppbV
• Mercaptans and H2S as low as 5.0 ppbV
• Fused silica lined (FSL) sample pathway

7
Modified TO-15 Procedure
8
Stability Study Summary

• Examines holding times of Sulfides and Mercaptans
  in canisters and bags
• Phase 1A Stability of short list was examined
  in cans
• Phase 1B Stability of additional
  sulfides/mercaptans in cans
• Phase 2 Effect of deactivation process on H2S
  stability
• Phase 3 Tedlar bag stability examined
• Phase 4 Method detection limit study performed

9
Fused Silica Lined vs. SUMMA Canisters

• SUMMA refers to the electropolishing technique
  used to deactivate the interior of the canisters
• Fused silica lining (FSL) is a glass coating,
  a.k.a. Silcosteel and Silonite
• FSL more inert and more stable for storage of
• VOCs
• Manufacturer claims holding time up to 7 days for
  sulfides and mercaptans

10
Stability Study Summary

• Spike concentrations 5 ppbV and 25 ppbV
  (mercaptans and H2S)
• Calculation of results using a response factor
  (RF)

11
Stability Study Results for Canisters
12
Stability Study Results for Canisters
13
Stability Study Results for Canisters
14
Stability Study Results for Canisters
15
Stability Study Results for Canisters
16
Stability Study Results for Canisters

• Non-H2S Sulfides and thiophene compounds all had
  acceptable recoveries, similar to carbonyl sulfide

17
Stability Study Results w/ Deactivation Process

• Canisters were spiked with 100 ppmV thiophene
  during cleaning process.
• No improvement in H2S stability was observed.

18
Tedlar Bag Stability Study Results

• Tedlar Bags were spiked at the same concentration
  as canisters
• Acceptable recovery over a 5-day period

19
Tedlar Bag Stability Study Results
20
Tedlar Bag Stability Study Results
21
Statistical Analysis of Response Factors
22
Selective Ion Monitoring (SIM)vs. Full Scan Mode

• Refers to mass spectrometer modes of operation
• Full scan detects ions present over range
  (29-260)
• SIM detects specific ions at specific intervals
• Advantages / Disadvantages
• SIM mode increases sensitivity 25-fold
• Cannot do library searches on unknown compounds
  (TICs)
• Can be susceptible to false positives

23
Selecitive Ion Monitoring (SIM)vs. Full Scan Mode
24
Comparison of Reporting Limits
25
System Calibration

• Dimethyl sulfide
• Curve type average RF
• RSD 9.44
• Range 0.5 100 ppbV
• Hydrogen sulfide
• Curve type linear regression
• R2 0.998
• Range 5.0 500 ppbV

26
Example Landfill Flare Inlet Analysis

• High ppmV levels of H2S and methane present
• Quantitation of COS, methyl and ethyl mercaptan
  and DMS possible to 500 ppbV
• Re-analysis for speciation of VOCs possible to 10
  ppbV

27
Conclusions

• Canister stability poor for mercaptans, H2S
  possibly due to
• Humidity
• FSL coating uniformity
• Reactions between sulfide compounds
• reactive sites in canisters
• Tedlar bag recovery acceptable for all compounds
  over 5 days

28
Conclusions

• Reporting limits
• GC/MS limits exceed D5504 limits for non-H2S
  sulfides and thiophenes
• GC/MS limits comparible to D5504 for mercaptans
  and H2S
• No significant gain in sensitivity using SIM,
  further investigation needed

29
Questions

• ?
