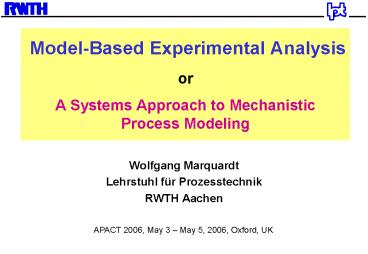

Model-Based Experimental AnalysisorA Systems
Approach to Mechanistic Process Modeling

• Wolfgang Marquardt
• Lehrstuhl für Prozesstechnik
• RWTH Aachen

2
Modeling of Product and Process Systems
experimental and theoretical methods tools
product process systems

• kinetic phenomena
• diffusion
• heat and mass transfer
• interface phenomena
• multiphase transport
• (bio-)chemical reaction
• nucleation ...
• multi-phase reaction and separation processes
• fluid, structured functional products
• biological systems

3
Integration of Modeling and Experimentation
cf. J.V. Beck, Meas. Sci. Techn. 9 (1998)

• common approach in research and industrial
  practice
• coupled phenomena
• detailed modes, numerical case studies
• comparison of simulation and experimental results
• evaluation of the model, but no model
  identification !
• suggested future approach
• coordinated design of model and experiment
• model refinement based on experimental evidence
• accounting for inevitable measurement errors
• identification of a valid (mechanistic) model
  (structure parameters) !

model-based experimental analysis MEXA valid
models at minimal effort
4
Collaborative Research Centre 540

• Model-based Experimental Analysis
• of Kinetic Phenomena in Fluid
• Multi-phase Reactive Systems

• 13 research groups with cross-disciplinary
  expertise
• biotechnolgy (Ansorge-Schuhmacher)
• biochemical engineering (Büchs)
• reaction engineering (Greiner, Leitner)
• thermal separations (Pfennig)
• transport phenomena (Kneer)
• multiphase fluid dynamics (Modigell)
• computational engineering science (Behr)
• process systems engineering (Bardow, Marquardt)
• numerical mathematics (Reusken)
• scientific computing (Bischof, Bücker)
• NMR imaging (Blümich, Stapf)
• optical spectroscopy (Koß, Lucas, Poprawe)

Funded by DFG(Deutsche Forschungs-gemeinschaft)
since 1999 Director W. Marquardt
5
MEXA Methodology
measurements
experimental design
iterative model refinement
incremental model identification
a-priori knowledge and intuition
extended understanding
iterative improvement of experiment
6
Simultaneous Model Identification
measurements y
model of observations y(x,q,t)
model parameters q

• What if we do not know any candidate model
  structure ?
• How to select a suitable model structure ?
• Is bias due to model structure defects or a lack
  of information content in data ?
• How to deal with very few or very many
  observations ?
• How to deal with convergence robustness
  problems of estimation algorithm?

7
Incremental Model Identification
measurements y
model of observations y(x,q,t)
model parameters q

• computationally efficient (minutes rather than
  days)
• numerically robust
• a-priori knowledge can be integrated into the
  identification process
• complex and interacting kinetic phenomena can be
  identified

8
Incremental Model Development
Incremental Model Identification
Illustratrion with a CSTR
Illustratrion with reaction kinetcis idenfication
in a CSTR
(Marquardt, 1995)
(Marquardt, 1998)
9
Incremental Model Identification
What are the ingredients for implementation ?
model-based design of experiments
high-resolution in-situ measurements
inversion algorithms for operator equations
parameter and structure identification for
algebraic models
10
High Resolution Measurement Techniques

• non-invasive, in-situ measurements of field data
• observation of qualitative behavior
• quantitative characterisation of kinetic
  phenomena

interpretation of the primary measurement data,
calibration, quantification of measurement errors
!
11
Calibration of Spectroscopic Measurement Data
mixture
xC
xT
pure component toluene
pure component cyclohexane

• simplest case xCspectrum C xT spectrum
  T mixture spectrum
• here nonlinear calibration for high accuarcy
  required during modeling

12
Nonlinear Spectral Effects

• effects of interaction
• band shifting
• band shape change,band splitting

0.8
Mixture
EtOH
EtOAc
0.6

• constant integral absorption coefficient

A -
0.4
0.2

• modeling approach
• spectrum is a sum of individual bands
• band shapes Gaussian, Lorentzian, Voigt
• interactions accounted for by corrections

0
0.1
A -
0
D
-0.1
1000
1100
1200
1300
1400
1500
1600
1700
1800
-1
n
cm

13
Indirect Hard Modeling of Spectral Data

• Indirect Hard Modeling (IHM)
• reduces calibration effort compared to
  established multivariate methods
• solves problems of establ. methods

Our Analysis Toolbox SPAIX can be applied plug
and play to different spectrometers without
additional reference data, because
all non-linear effects are modeled
phenomenologically
(Alsmeyer, Marquardt, 2004 Alsmeyer, Koß,
Marquardt, 2004 Kriesten, Bardow, Marquardt,
2006)
14
Incremental Model Identification
What are the ingredients for implementation ?
model-based design of experiments
high-resolution in-situ measurements
inversion algorithms for operator equations
parameter and structure identification for
algebraic models
15
Optimal Experimental Design Idea
parameter estimation objective
set free variables p such that information on
model parameters is maximized

maximize curvature of parameter estimation
objective
16
Modeling of Reaction Kinetics

• no. of reactions, stoichiometry and kinetics
  unknown
• isothermal semi-batch CSTR experiments
• concentration measurements (ex-situ, e.g. GC
  in-situ, e.g. Raman/IR spectroscopy)
• a number of simulated semi-batch reactor
  experiments, 60 min (cases noise, sampling )

17
Incremental Model Identification
18
Concentration Measurements ? Reaction Fluxes
estimated concentration
regularisation
19
Incremental Model Identification
target factor analysis Bonvin Rippin, 1990
20
Reactionfluxes ? Stoichiometry, Reaction Rates
estimated reaction fluxes
21
Incremental Model Identification
measurements
measured concentrations
candidates for
model 1
balances
stoichiometry
fluxes
concentrations
candidates for
balances
model 2
stoichiometry
reaction kinetics
concentrations
fluxes
rates
model 3
kinetic law
stoichiometry
balances
concentrations
fluxes
rates
reaction parameters
model of the reaction
22
Identification of Reaction Kinetic Laws
candidate kinetic laws
regression of estimated rates and
concentrationens for each individual reaction
estimated rate kinetic las 4 kinetid law 5
kinetic law 8
?
simultaneous identification for promising model
candidates
best model structure with statistically optimal
parameters
23
Iterative Model lmprovement
measurements
Reaktionsparameter
model structure and parameters q
24
Iterative Improvement - Example
scenario 3600 data points in each experiment
(Ts1 s), 5 noise
stoichiometry
kinetic law
validation
parameters
-
1 P D PAA 2 D D DHA 3 D OL
1
N/A
25
Incremental vs. Simultaneous Model Identification
Incremental Method
Simultaneous Method
CPU Time
Ident. Corr.
Reso- lution
Ident. Corr.
CPU Time
Reso- lution
Models
Models
STDV 2
3 sec
1
30 min
100
3 sec
100
3600
1.7 d
30 sec
1
15 sec
100
30 sec
100
3600
3.8 h
5 min
7
6 sec
100
5 min
100
3600
1.7 h
STDV 10
3 sec
40 min
100
100
3 sec
100
3600
1.6 d
30 sec
160
3 min
50
30 sec
50
3600
3.9 h
5 min
200
2 min
10
5 min
10
3600
1.1 h
60 min
26
Incremental vs. Simultaneous Identification
?
?
?
?
?
?
?
?
?
?
?
?
27
Asymmetric Multi-phase Catalysis in scCO2
catalytic hydration of olefins
chemo-catalysis Greiner, Leitner modelling,
spectral calibration Kriesten, Michalik,
Marquardt
28
Enzymatic catalysis in Two-phase Systems
organic solvent
Raman spectroscopy
hydrogel
educts
products
confocal 3-photonslaser scanning microscopy
modelling Michalik, Marquardt measurements
Koß, Lucas / Poprawe bio-catalysis
Ansorge-Schumacher, Büchs, Spieß
29
MEXA for Investigation of Diffusive Transport

• Why studying diffusion ?
• detrimental for product and process design
• very high experimental effort
• very few multi-component diffusion data available
• validity of diffusion models still a matter of
  debate

selectivity of heterogeneously catalyzed
reactions(Pantelides Urban, 2004)

• a good model problem
• for the development of
• MEXA methodology

30
Incremental Model Identification
measurements y
binary diffusion
model for fluxes
model F(x,?)
parameters ?
31
Incremental Model Identification
Dik(x, ?)
Ji(z,t)
model discrimination
transport laws
x(z,t)
model
balance equations 1D
sequence of inverse problems
32
Quaternary Diffusion
- 9
Marquardt, LPT

• concentration measurements with Raman
  spectroscopy and
• model-based design and evaluation of diffusion
  experiments
• (cyclohexane toluene dioxane chlorobutane)

matrix of Ficksdiffusion coefficients
thermodynamical factor accuracy improvements
electrolytes
33
Kinetic Phenomena in Falling Film Reactors

• falling films are all around - falling film
  cooler
• - falling film evaporator
• falling film absorber
• falling film reactors
• transport phenomena are hardlyunderstood,
  interaction between
• - fluid dynamics with free surface
• - heat and mass transfer
• - chemical reaction
• first milestone modelling of heat transfer
  with effective transport coefficients

34
Heat Transfer through Falling Film
measurement data
measured temperature field
model 1
energy bal.
heat flux
temperatures
transportlaw
energy bal.
model 2
eff. heat conduction
temperatures
heat flux
constitutive equation
transportlaw
model 3
energy bal.
eff. heat conductiont
temperatures
heat flux
parameters
Model structure and parameters
35
Experimental Set-up
36
Mathematical Problem Formulation
37
Heat Flux Estimates from Experimental Data
measured temperature distributions
estimated heat flux distribution
(Groß, Soemers, Mhamdi, Al-Sibai, Reusken,
Marquardt, Renz, 2005)
38
Towards Inverse Transport Problems

• CG method for the solution of inverse problem
  embeds DROPS (Reusken u.a., SFB 540) ein.
• DROPS employs
• adaptive multi grid methods,
• finite element discretization,
• levelset method
• and facilitates the numerical simulation
• of multi-phase flow problems in 3D
• at high resolution
• of the phenomena at the phase interface,
• efficient and error-controlled
• with
• appropriate flexibility
• for model extensions.

a droplet rising in a stagnant liquid Pfennig,
Reusken u.a., CRC 540
39
MEXA Business Process Evaluation

• method integration has high potential !
• optimal experimental design reduces effort
• structure identification leads to mechanisms
• improvement of method integration in
  particular for distributed problems

• incremental refinement has high potential !
• homogenous reactions, multi-component diffusion,
  diffusion bioreaction in gels
• drastic reduction of experimental and engg.
  effort
• significantly improved transparency
• further development for CFD problems

40
Lessons Learned

• accept interactions between kinetic phenomena in
  experiments,
• butisolate them during identification by a
  suitable decomposition strategy
• high precision calibration of high-resolution
  measurements
• (PIV, LIC, LCSM, NMR imaging, Raman / IR
  spectroscopy etc.)
• often is a difficult modeling problem in itself
• statistics of measurement errors need to be
  included in the analysis
• flux estimation is the key to reliable
  identification
• tremendous improvements are possible by
  systematic cross-disciplinary linking of process
  systems and experimental skills
