Mechanisms of orientation processing

1

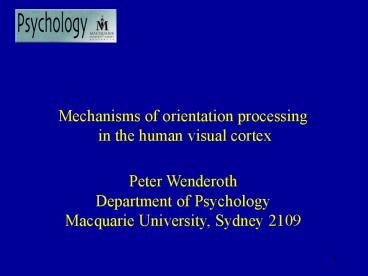

Mechanisms of orientation processing in the
human visual cortex
Peter Wenderoth Department of Psychology Macquarie
University, Sydney 2109
2

• First-order (luminance defined) and
• second-order (contrast defined) gratings

3

• but
• they do
• respond to
• luminance
• gratings
• of the
• appropriate
• spatial
• frequency
• so-called
• first-order
• stimuli

It is well accepted that the visual cortex
contains oriented linear filters which vary in
size and which do not respond to equal
stimulation of their on (black) and off
(white) areas (or vice versa) .
4
It appears that it is necessary to invoke
another kind of non-linear filtering mechanism
because we can easily detect certain kinds of
stimuli which would stimulate equally all areas
of a linear filter...
so if we only had linear filters these
so-called second-order stimuli would not be
visible
5
This is noise (black and white dots randomly
placed) modulated by luminance gratings and hence
this is a first order stimulus
One can tell that it is 1st order because in the
dark bars both the lighter and the darker
elements are darker than those in the light
bars so that the bars differ in average
luminance.
6
This is noise (black and white dots randomly
placed) modulated by contrast and hence this is
a second-order stimulus
One can tell that it is 2nd order because the
dark bars and light bars differ only in contrast
- their average luminance is the same.
7
(No Transcript)
8
Another way to show this is to blur your eyes to
get rid of high spatial frequencies of the dots
leaving only the lower frequencies of the bars
visible - the 1st order bars are still seen but
the 2nd order ones disappear
The same effect is achieved by minimising the
size of the stimuli so that the dots that carry
the contrast grating cannot be resolved
9
The luminance pattern (the carrier) that carries
the contrast grating (the envelope) can be
a grating (left) or noise (right)
10
Once again - simple cell filters in V1 would not
be able to respond to 2nd order gratings
because the average luminance would be the same
all over the receptive field
11
Because simple cell filters in V1 would not be
able to respond to 2nd order gratings, it has
been suggested that there are 2 pathways from V1
to V2 - a linear one using simple cell receptive
fields and a non- linear one which rectifies -
.
Full-wave rectification, for example, would turn
the 2nd order stimulus into a white and grey
luminance grating for subsequent linear filters
12
This is from Mather (2009). The small square at
the top is defined purely by texture so it is 2nd
order and first order filters (simple cells)
could not see it. Row 2 But tiny simple cell
ON-centre RFs do see the little 45 tilted
texture elements. They are excited by the lines
on the on-centre (white) and inhibited by light
on the surround (dark areas). Row 3
Half-rectification makes the black areas grey so
square has gt luminance than surround Row 4
Simple cells with much bigger RFs can now extract
the square with higher luminance Row 5
13
There is much evidence for both linear
and nonlinear pathways and the FRF model
postulates a higher level at which the two
pathways converge

14

• The tilt illusion

15
The tilt illusion a truly vertical test
grating appears tilted when it is surrounded by
a tilted inducing grating

16
(No Transcript)
17
deg
deg
18
Wenderoth and Johnstone (The different
mechanisms of the direct and indirect tilt
illusionsVision Research, 1988a, pp. 301 -312)
argued that direct TIs are low level (V1?)
effects whereas indirect TIs are higher
level, extrastriate effects.
This was so because direct effects were
reduced if inducing and test stimuli
differed in low - level parameters such as
spatial position, spatial frequency and size.
Similar spatial differences did not reduce
indirect effects. However, a square frame
around the stimuli eradicated indirect
effects but had no effect on direct effects
19
This double dissociation was strong evidence
for different mechanisms of the direct and
indirect effects and we have a lot of other
evidence since then that direct effects occur in
V1 and are due to lateral inhibitory processes
whereas indirect effects occur in
extrastriate cortex and are more to do with
orientation constancy mechanisms
20
3. Experiments
21
Given the FRF model, it was of interest to
measure direct and indirect tilt illusions using
both luminance modulated (LM) and contrast
modulated (CM) gratings.
The four conditions of particular interest were
INDUCE TEST (1) LM LM (2)
CM CM (3) LM CM (4)
CM LM
22
Assume that the size of any effect will be
reduced if some cells stimulated by the test
grating were not stimulated by the inducing
grating - i.e. TI cells both induced and tested
all cells tested
and note that the linear pathway will process
only LM stimuli but the nonlinear one will
process both CM and LM
If a TI arises at a point before the CM and LM
pathways merge, then in condition induce CM/test
LM the LM test stimulus will be affected by the
CM inducer in the CM pathway but not in the LM
pathway - the LM pathway will carry veridical
signals of test verticality and hence the TI will
be reduced
23
If the TI is generated after the pathways
converge then any type of contour - CM or LM -
will interact fully with any other and the CM/LM
effect will be the same size as all the others
It is certainly the prediction that LM/LM CM/CM
LM/CM whether the effects arise before or after
combination - as shown here, in each case all
cells tested will be affected by the inducer. In
the case of LM/CM, some cells affected by the
inducer arent tested but thats not relevant.
24
In the remaining CM/LM condition, however, the CM
inducer will affect only the 2nd order pathway
but the LM test stimulus will test both,
including the unadapted 1st order cells. Thus
So here, the TI should be smaller than maximum if
it arises prior to the pathway combination in
which case it is predicted that LM/LM
CM/CM LM/CM gt CM/LM. If the TI occurs
after combination, the prediction is that all
effects will be equal.
25
The results obtained by Smith, Clifford
Wenderoth (Vision Research 2001 41 1057-1071)
are
Repulsion - LM/LM CM/CM LM/CM gt
CM/LM Attraction - LM/LM CM/CM LM/CM
CM/LM
N 20
26
It was possible that the small CM/LM effects
obtained were due to the relative lack of
salience of the 2nd - order inducing grating -
it might have acted as the equivalent of a low
contrast luminance grating.
To test this possibility, we ran another 10
subjects using the same 2nd order inducing
gratings but varied the test grating contrast so
that it was 0.2, 0.4 or 0.8. If the very small
CM/LM effect in the previous experiment was due
to the low effective contrast of the CM grating,
then decreasing the 1st order test grating
contrast should systematically increase the
repulsion tilt illusion. The results with 10
subjects were -
27
These results clearly show that systematically
decreasing test contrast does not effect
orientation repulsion effects when a 2nd order
inducing grating acts on a 1st order test grating.
28
CONCLUSIONS
We can conclude that repulsion TIs are generated
before the linear and non-linear pathways
converge because the results were consistent with
uninduced but tested cells in condition CM/LM.
29
CONCLUSIONS
The repulsion effect results thus were consistent
with the model which says that the magnitude of
the TI cells both induced and tested all
cells tested
The magnitude of indirect or attraction Tis can
also be modelled by the ratio assumption that
TI cells both induced and tested all cells
tested.
Attraction effects are probably generated in
extrastriate cortex, after the linear and
non-linear pathways converge. Consequently, all
cells involved in attraction effects are always
both induced and tested
Thus, indirect or attraction TIs are cue
invariant - they are independent of the kind of
cue which specifies the inducing and test
gratings and respond equally to all cue types.
30
McGraw, Levi Whitaker (1999) Adapting to the
antisymmetric Gaussian luminance windows in (a)
for 20 seconds makes the central ball in (b)
appear misaligned to the right and in (c) appear
misaligned to the left. This is a first-order
positional aftereffect with directionally
opposite effects on luminance increments (b) and
decrements (c).
31
A
The top row here is the same aftereffect but
now with contrast-defined Gaussian blobs - a
second- order version ....
32
McGraw et al. asked whether this 2nd order effect
is tuned to carrier orientation whether similar
effects would or would not occur when the test
carrier had the same orientation as the adaptor
(as in b) or was orthogonal (as in d). They asked
the same question about carrier spatial frequency.
33
Results Carrier Orientation
Luminance decrements (filled symbols) and
increments (open symbols) both produced
alignment errors. The authors stated that there
was complete orientation crossover but this is
false triangles (orthogonal carriers) were
always less displaced from zero than circles.
So there is - albeit broad - orientation tuning
with crossover 63-99 for the three observers
34
Spatial Frequency
There was clear spatial frequency tuning Effects
were largest when adapting and test carriers had
the same frequency (circles) less for a 1 octave
difference (triangles) and smallest for a 2
octave difference (squares)
35
Given both the psychophysical and
neurophysiological evidence for the
filter-rectify-filter (FRF) model of the cortical
nonlinear pathway that processes second
order contours
McGraw et al. concluded that populations of cells
in the nonlinear pathway receive pooled
orientation signals from first stage filters but
that the output of first stage filters is not
pooled across spatial frequencies
That is, there is parallel processing of
different spatial scales but within these
spatial scales, orientation information is pooled
36
McGraw et al. noted the apparent discrepancy
between their alleged finding of complete
orientation crossover whereas single cell studies
have reported broad tuning to the orientation of
the carrier (Mareschal Baker, 1998) ....
.... but as we have just emphasized, thats also
what they actually found too.
37
There is now abundant psychophysical evidence
that repulsion and attraction tilt illusions
have different mechanisms
Whereas attraction effects are thought to be
determined by a single, higher level mechanism,
probably extrastriate, repulsion effects are
determined by that mechanism but largely by a
lower level mechanism, probably arising in V1
(Wenderoth Johnstone, 1987 1988 Smith
Wenderoth, 1999 Clifford, Wenderoth Spehar,
2000 Poom, 2000).
38
We wondered whether

• large orientation but not spatial frequency
  crossover,
• similar to that found by McGraw et al., would
  occur with the second-order tilt illusion

• different patterns of crossover might occur with
• repulsion (direct) and attraction (indirect)
  effects

• For example, one possibility is that partial
  early pooling
• occurs in V1 and is reflected in partial
  orientation crossover with repulsion effects but
  that attraction effects arise after rectification
  and there is additional late pooling of
  orientation information, giving more complete
  crossover in the case of attraction effects

39
Methods and Procedures
Apparatus and stimuli

• Experiments used a PC with a CRS VSG 2/3
  graphics card.

• Stimuli were presented on a 21 Sony GDM-20SE
  2T5 monitor and consisted of a 2-deg diameter
  test grating surrounded by a 6-deg outside
  diameter inducing grating.

• Carrier spatial frequency was either 4.5, 6 or 9
  cpd (Expts 1 and 2) or 9 cpd (Expt 3). Envelope
  spatial frequency was 1.5 cpd. Carrier contrast
  was 60 (Expts 1 and 2) or 90 (Expt 3) with
  complete depth of modulation. Test carrier
  orientation was always 45 deg (clockwise),
  inducer carrier orientation was either 45-deg
  (parallel) or 45-deg (orthogonal). To induce
  repulsion and attraction effects, the inducing
  envelope was oriented ? 15-deg or ? 75-deg,
  respectively.

40
An example of the kind of stimulus used
Subjects judged the apparent tilt of
the contrast envelope
41
Subjects
All subjects were emmetropic or wore corrective
lenses.
Experiment 1 2 experienced psychophysical
observers and 37 volunteers from an introductory
Psychology course at Macquarie University, who
participated in return for nominal course credit.
Experiment 2 10 of the volunteer subjects and 6
experienced observers.
Experiment 3 17 subjects provided repulsion
effects, 3 experienced psychophysical observers,
2 volunteers and 12 students in an advanced 3rd
year Perception course. 25 subjects were tested
on attraction effects, 20 3rd year students and 5
experienced observers.
42
Procedures
Subjects indicated perceived tilt left or right
of vertical by pressing a key on a response box.
Stimuli were viewed through a matte black
circular viewing tube from a distance of 57 cm
and masks removed all cues to vertical and
horizontal. All stimuli were flashed for 100 msec.
A randomly interleaved double staircase with 8
reversals was used. Step size began at 1-deg and
was incremented by 0.5-deg at a time if a
subject had difficulty completing any run. Only
the last 6 reversals were used to calculate the
illusion. The point of subjective vertical was
measured twice, once with the inducing envelope
tilted 15 (or 75) deg and once with it tilted
15(or 75) deg. The magnitude of the tilt
illusion was taken to be half the
clockwise-induced effect minus the
counterclockwise-induced effect, so that
repulsion effects were signed ve, attraction
effects ve.
43
Experiment 1 Do second-order repulsion and
attraction tilt illusions transfer across
different inducer and test stimulus carrier
orientations?
Repulsion effect 39 subjects - 12 with carrier
frequency 4.5 cpd - 13 with carrier
frequency 6.0 cpd - 14 with carrier
frequency 9.0 cpd
Attraction effect 35 subjects - 12 with carrier
frequency 4.5 cpd - 11 with carrier
frequency 6.0 cpd - 12 with carrier
frequency 9.0 cpd
44
Repulsion effects ...

• Increased with
• carrier spatial frequency, plt0.005

• Were larger with parallel test and inducing
  carriers, plt0.002

• Both parallel and orthogonal carrier
• effects were different from zero, plt0.0005 in
  each case

45
Attraction effects ...

• Showed no effect of carrier spatial frequency

• Were not different for parallel and orthogonal
  carriers

• Both parallel and orthogonal carrier
• effects were different from zero, plt0.0005 in
  each case

46
Experiment 2 Do second-order repulsion and
attraction tilt illusions transfer across
different inducer and test stimulus parallel
carrier spatial frequencies?

• Repulsion effect 10 naive volunteers

• Attraction effect 10 naive volunteers plus 6
  experienced observers

• Seven pairs of test/inducer spatial frequencies
  4.5/4.5 6.0/6.0
• 9.0/9.0 4.5/9.0 9.0/4.5 6.0/9.0 and 9.0/6.0

• By using the 9/9 cpd condition in two separate
  analyses, it was
• possible to examine spatial frequency crossover
  between 4.5 and
• 9 cpd in one pair of repulsion/attraction effect
  analyses and also the
• crossover between 6 and 9 cpd in another set of
  analyses.

47
Repulsion effects ...

• Top panel
• Larger illusions with same (2.04 deg) than
• different (0.68 deg) carrier frequencies,
• F (1,9) 101.6, p lt0.0001. Larger illusions
• with higher test carrier frequency, F (1,9)
• 26.1, p 0.0006.

• Bottom panel
• Larger illusions with same (2.33 deg) than
• different (1.13 deg) carrier frequencies,
• F (1,9) 14.52, p 0.004. Larger illusions
• with higher carrier frequency, F (1,9) 15.0,
• p 0.004.

48
Attraction effects ...

• Top panel
• Larger obtained illusions with same
• (- 0.72 deg) than different (- 0.30 deg) carrier
• frequencies and larger illusions
• with higher test carrier frequency, but neither
• statistically significant.

• Bottom panel
• Larger illusions with same - 0.76 deg) than
• different (- 0.38) carrier frequencies,
• F (1,15) 6.44, p 0.02. Larger illusions
• with higher test carrier frequency, but not
• statistically significant

49
The results of Experiments 1 and 2 suggest that
orientation crossover exceeds spatial frequency
crossover, as found in the context of a
positional aftereffect by McGraw et al. (1999).
This was particularly so in the case of the
attraction effect where there was complete
orientation crossover in Experiment 1 but only
partial spatial frequency crossover in Experiment
2.
50
Experiment 3 To what extent do second-order
repulsion and attraction tilt illusions exhibit
IOT with same or different inducer and test
stimulus carrier orientations?
Repulsion effects 17 subjects, 3 experienced
psychophysical observers, 2 volunteer students
and 12 students from an advanced 3rd year course
on Perception.
Attraction effects 25 subjects, 20 3rd year
students and 5 experienced observers.
2 repeated measures conditions Adapt/test same
vs different eye (called MON/MON vs IOT) and
parallel vs orthogonal carrier
A mirror stereoscope with fusion lock stimuli was
used to present stimuli to the two eyes separately
51
Repulsion effects ...

• Parallel carriers
• MON/MONgtIOT,
• plt0.02

• Orthogonal
• carriers
• MON/MON IOT,
• F 0.001, pgt0.05

52
Attraction effects ...

• All four
• attraction effects
• greater than zero

• Parallel carriers
• MON/MON IOT,
• pgt0.05

• Orthogonal
• carriers
• MON/MON IOT,
• pgt0.05

53
Summary of Experiments 1-3
Experiment 1 Repulsion tilt illusions were
significantly reduced (by 42) with orthogonal
rather than parallel carriers of second order
inducing and test gratings. Attraction effects
were unaffected by this manipulation
Experiment 2 Both repulsion and attraction
effects showed specificity for carrier spatial
frequency, especially at the higher of the
frequencies used, with 3/4 same effects
statistically larger than different effects.
Experiment 3 With parallel carriers, the IOT of
repulsion effects was 61.8, a significant
reduction relative to the MON/MON effect, similar
to the IOT of first-order repulsion effects.
With orthogonal carriers, the repulsion illusion
was smaller (not significantly) than with
parallel carriers, 1.67-deg versus 2.07-deg, but
showed 100 IOT. Attraction effects showed 100
IOT with parallel or orthogonal carriers
54
Conclusions
We have previously presented evidence that
repulsion tilt illusions are mediated by two
mechanisms, one possibly arising in V1 and the
other extrastriate, whereas attraction effects
arise solely from the extrastriate process All
of the results described here are consistent with
this kind of processing hierarchy in which
repulsion effects involve earlier visual
mechanisms than do attraction effects.
Thus, the partial orientation crossover for
repulsion effects but the near -complete
crossover for attraction effects (Experiment 1)
is consistent with the hierarchy, if it assumed
that more pooling of orientation signals occurs
at higher levels. The results are consistent with
the hypothesis that some orientation pooling
occurs prior to rectification and the extraction
of the contrast envelope and that additional
pooling occurs post-rectification.
55
Conclusions
It is not immediately clear why early spatial
frequency selective signals are not pooled to
the same extent that orientation signals are
nor is it clear at this stage why larger
illusions occurred with the highest carrier
spatial frequencies that we used (Experiments 1,
2).
One reason for the continued separation of
spatial frequency channels might be the later
use of different spatial scales to convey
information about different attributes of
objects such as global shape fine grain
texture, and so on.
56
Conclusions
The partial IOT of repulsion effects with
parallel carriers in Experiment 3 suggests a low
level, partially monocular site for orientation
tuned interactions. Conversely, the numerically
smaller illusion but which exhibits 100 IOT
when carriers are orthogonal suggests a later
site where early filter orientations are pooled
but monocular, low level contributions are
absent.
The complete immunity of the attraction effects
in Experiment 3 to IOT and to relative carrier
orientations also suggests processing at higher
levels than repulsion effects.
