The NCNR Spin-Polarized Triple-Axis Spectrometer
(SPINS)

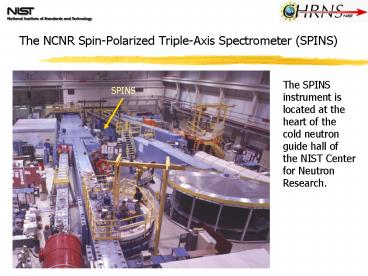

The SPINS instrument is located at the heart of
the cold neutron guide hall of the NIST Center
for Neutron Research.
SPINS
2
The NCNR Spin-Polarized Triple-Axis Spectrometer
(SPINS)
  • Incident Energy
  • 14 2 meV ( 2.4 6.1 Å )
  • Energy Resolution
  • 0.02 1 meV
  • Special Equipments
  • Supermirror Transmission Polarizer
  • A stack of single crystal Si plates with Fe/Si
    supermirror coatings
  • Multi-crystal Analyzer
  • 11 Horizontally Focusing PG Blades
  • Position Sensitive Detector
  • 3He, 20 25 cm2
  • Filters
  • PG or Be filters before sample
  • Be or BeO filters after sample

The SPINS instrument with a super-conducting
magnet.
3
The SPINS Operation Modes IConventional
Triple-Axis Spectroscopy (TAS)
A single point at a time
TAS is ideally suited for probing small regions
of phase space
Shortcoming Low data collection rate
4
The SPINS Operation Modes II Horizontally
Focusing (HF) Analyzer Mode
Relaxed Q-resolution
Useful for studying systems with short-range
correlations
5
The SPINS Operation Modes III Multiplexing
Detection System for TAS
1meV
qai qa D2qi qa - atan(x sinqa/(Lxcosqa)) kf
i ta/2sinqai Qi ki - kfi
Probes scattering events at different energy and
momentum transfers simultaneously
Survey (hw-Q) space by changing the incident
energy and scattering angle
6
The SPINS Operation Modes IV Position-Sensitive
Detector in Two-Axis Mode
The filter passes only those neutrons with 0 lt Ef
lt Ecutoff
Large angular acceptance w / L 11o for SPINS
