Title: Presentation for Advanced VLSI Course


1

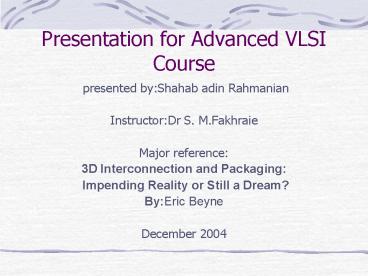

Presentation for Advanced VLSI Course
  • presented byShahab adin Rahmanian
  • InstructorDr S. M.Fakhraie
  • Major reference
  • 3D Interconnection and Packaging
  • Impending Reality or Still a Dream?
  • ByEric Beyne
  • December 2004

2
Overview
  • Introduction Why 3D-interconnects?
  • Classification of 3D-technologies
  • 3D-SIP
  • 3D-SOC
  • 3D-IC
  • Conclusion

3
Introduction Why 3D?
  • Drivers for 3D interconnects packaging
  • Size reduction
  • minimal area/volume of an electronic system
  • Solving the interconnect bottleneck
  • Long interconnects are too slow
  • Long interconnects consume too much power
  • Hetero-integration
  • Seamless mixing of different microelectronic
  • technologies at the wafer level

4
The Interconnect Bottleneck
  • Driven by technology scaling, SOC devices are
  • partioned in functional blocks (tiles)
  • Within a tile
  • Operations can be performed within a single
    clock cycle
  • Interconnects Local and intermediate
    interconnect levels on
  • the die
  • The interconnect between the tiles
  • Global interconnect levels longest on chip
    interconnect lines,
  • significantly less interconnects than on
    local intermediate
  • levels
  • Speed-limiting factor on the chip require
    repeaters
  • Significant source for area power consumption.

5
The Interconnect Bottleneck
  • If the functional tiles on the chip could be
    stacked in
  • the 3rd dimensions, the chip area would be
    reduced,
  • resulting in much shorter global interconnect
    lines.

6
Logic Memory
  • 2D interconnect
  • Long lines between
  • Logic Memory
  • Through bus
  • SOC solution
  • Large die
  • Large size
  • Memory cells

3D interconnect Short, direct lines Between Logic
Memory banks
7
3D-Interconnect technology
  • Current developments in packaging technology
  • are delivering the key enabling technologies for
  • building true 3D stacked devices
  • Thinning of wafers, below 50 µm , as thin as the
    active layer.
  • Wafer-to-wafer bonding, up to 300 mm diameter
    wafers.
  • Die-to-wafer bonding singulated top die are
    bonded to bottom
  • die on a base wafer
  • Wafer-through-hole technologies realization of
    electrically
  • isolated connections through the silicon
    substrate.
  • Many of these technologies were originally
    developed in
  • the field of MEMS technology and are now finding
    their
  • application in IC packaging technologies.

8
Different 3D-interconnectflavors
  • 3D-SIP 3D-System-in-a-Package
  • Stacking of multiple die in a single package
  • Stacking of multiple SIP-packages
  • 3D-interconnects at the traditional chip pin-out
    level
  • 3D-SOC 3D-System-on-a-Chip
  • Stacking of wafers or die-to-wafer with
    3D-global
  • interconnectivity at the tile-level
  • 3D-IC
  • Stacking of wafers with interconnectivity at
    local
  • level (gate or transistor level)

9
3D-SIPDie stacking in a single package
  • Assembly by wire bonding of stacked die in a
    single
  • package has been shown by several
    packaging vendors.
  • Main limitation interconnectivity interposer
    substrate does
  • not allow for complex rerouting among the
    die.
  • Only possible for specific applications, such as
    standard
  • memory stacking, or die with specific I/O
    pad rerouting.
  • Requires Known-good-die(KGD)

10
3D-SIPStacking of chip-scale SiP-packages
  • Improving the Yield and manufacturability of
  • 3D-SIP by stacking of 2D-SIP sub-systems
  • Each layer is an SIP package
  • Each layer has the same size
  • Each layer is fully tested before final assembly
  • Many different technologies may be used for each
  • individual layer
  • Results in
  • Generic 3D technology
  • Best yield and manufacturability
  • Limitations
  • Relatively low 3D interconnectivity
  • Lack of standardization of package sizes

11
3D-SIP visionary applicationE-cube
  • E-Cube distributed, fully autonomous system for
  • realizing ambient intelligent systems.

12
3D-SIP application Example
  • 3D-SIP bluetooth rf radio, measuring
    7mmx7mmx2.5mm,
  • Rf-front-end CSP stacked on a digital base band
    CSP.

13
3D-SOC
  • Stacking of die at the wafer level
  • Reduced critical global interconnect lengths by
  • stacking
  • 3D-interconnectivitiy at the tile level
  • Requires a significantly higher 3D-wiring
    density than
  • 3D-SiP
  • Technology components
  • Die-to-wafer transfer bonding different
    chip sizes allowed
  • Uses very thin Si 50 µm and below

14
Ultra Thin Chip Stacking, UTCS
  • Objective To Realize 3D-VLSI structures, based
    on the
  • integration of thinned standard
    die, in a
  • modified multilayer thin film
    technology

15
3D Wiring scheme UTCS
  • 3D interconnectivity around the perimeter of the
    die
  • gt 100 connections per mm2 and per layer

16
Wafer thinning
  • 200 mm wafer CMOS wafer, thinned down to
  • 50 µm thickness.

17
Thinning of standard CMOSwafers, down to 10 - 15
µm
18
Thinning of standard CMOSwafers, down to 10 - 15
µm
19
Embedded test die
15 µm thin Si-die, transferred to a host
substrate and electrically connected to that
substrate
20
Why ultra thin die thindielectrics ?
  • Thermal thermal resistance dielectrics between
  • die in the stack result in an increase of
    the
  • thermal resistance
  • 1 µm BCB dielectric 10 µm SiO2 1 mm Si
  • 10 µm BCB between two 1 cm2 die 0.5 K/W
    thermal resistance
  • Interface thermal resistance Die/BCB
  • for 1 cm2 die 0.3 to 0.75 K/W (experimental)
  • Mechanical thermo-mechanical stress limits the
  • maximum height of the stack to 3 layers.

21
Why ultra thin die thindielectrics ?
  • Electrical thin dielectrics allow for a tighter
  • interconnect line pitch for the same cross-talk
    level

22
Impact of wafer thinning on theelectrical
performance
  • Test chip 20x20 mm, IMEC 0.35 µm CMOS
  • process development test reticle.
  • Processing
  • Mechanical wafer thinning down to 50 µm
  • Face-down bonding test wafer to a dummy carrier
    wafer
  • Plasma thinning test die down to 10-15 µm
  • Singulation die
  • Transfer of thinned die to a carrier substrate
  • Measurements Transistor parameters before
  • and after thinning.

23
Electrical measurements
  • Vtlin versus Ldes for CMOS transistors, measured
    before
  • and after thinning and stacking on a host Si
    wafer.

24
3D-IC3D-local interconnects at gate-level
  • Scaling-driven technology integrates more
    transistors per unit area.
  • Differences with 3D-SOC
  • 3D-interconnects are local interconnects
    several orders
  • of magnitude more connections required
    than 3D-SOC.
  • 3D-interconnects block substantial areas for
    transistor
  • logic lower effective integration density
  • No solution for long, global interconnect lines
  • Requires wafer-to-wafer bonding equal size
    stacked die.
  • Highly complex technology, questionable yield
    economics

25
Conclusions
  • In order to be successful, 3D-Interconnect and
  • packaging technologies need to become
  • manufacturable technologies (high yield)
  • high degree of parallel processing of individual
    layers,
  • testing of these intermediate layers
  • stacking of known-good-devices.
  • This goal is likely to be reached first for
    3D-SIP,
  • followed by 3D-SOC.
  • This is confirmed by the emergence of such
  • technologies in actual products.
  • It is much further out for 3D-IC technologies.

26
References
  • 1 Eric Beyne 3D Interconnection and Packaging
    Impending Reality or Still a Dream?ISSCC 2004
  • Pictures from Reference 1
  • 2 G.Carchon et.al., IEEE-CPMT, vol. 24, pp.
    510-519, 2001.
