UHECR photons

1

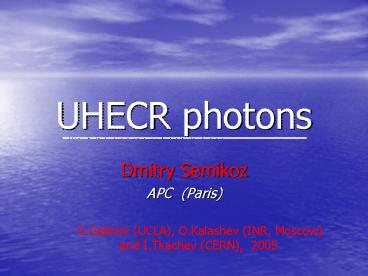

UHECR photons

• Dmitry Semikoz
• APC (Paris)

G.Gelmini (UCLA), O.Kalashev (INR, Moscow)
and I.Tkachev (CERN), 2005
2
INTRODUCTION
3
AUGER experiment combining ground array with
fluorescence such will resolve most of this
issues in 1-2 years from now.
4
Statistics is not a problem anymore! Expect
445000 events/year 1017 - 1018 eV
125000 events/year 1018 - 1919 eV

5000
events/year gt 1019 eV
350 events/year gt 4 x 1019 eV
10 of these are hybrid
(scaling from present yields)
compare to AGASA 72 events with
E gt 4 x 1019 eV in 10 years

5
Propagation of protons and photons
6
The Greisen-Zatsepin-Kuzmin (GZK) effect
Nucleons can produce pions on the cosmic
microwave background
?
nucleon

• sources must be in cosmological backyard
• within 50-100 Mpc from Earth
• (compare to the Universe size 5000 Mpc)

7
Proton deflections in extragalactic magnetic
field within 105 Mpc from our Galaxy
Extragalactic magnetic field in R50 Mpc large
scale structure box
Dolag et al, 2003
Sigl et al, 2002-2003
8
Galactic Magnetic field

• In average cosmic ray with energy 41019 eV will
  be deflected on 5 degrees and deflection
  decreases as 1/E at higher energies.
• Models are not very good to follow individual CR
  at 1019 eV but at higher energies E gt 1020 eV
  deflection is only 1-2 degrees.

9

• From G. Medina Tanco et al, astro-ph/9707041
• Protons with energy 41019 eV deflection in
  galactic magnetic field.

10

• From G. Medina Tanco et al, astro-ph/9707041
• Iron with energy 2.51020 eV deflection in
  galactic magnetic field.

11
HiRes stereo data Egt 1019 eV
12
AGASA data Egt 1019 eV
13
Pion production
n
p
Conclusion proton, photon and neutrino fluxes
are connected in well-defined way. If we know one
of them we can predict other ones
14
(No Transcript)
15
Radio backgrounds
16
Photon energy losses
17
Dependence on parameters
18
Minimal distance to sources.
19
Maximal proton energy.
20
Average extragalactic magnetic field.
21
Radio background.
22
Fit to AGASA and HiRes data
23
Fit to AGASA data.
24
Fit to HiRes data
25
Exotic models?
26
Z-burst mechanism

• Resonance energy E 4 1021 (1
  eV/mn) eV
• Works only if
• mn lt 1 eV
• Mean free path of neutrino is
  L 150 000 Mpc gtgt Luniv

T.Weiler, 1982 Fargion, Weiler, 1997
27
Cross sections for neutrino interactions
withrelict background n and g
28
EGRET diffuse gamma-ray flux
The high energy gamma ray detector on the Compton
Gamma Ray Observatory (20 MeV - 20 GeV)
29
Secondary gamma-rays obey EGRET limit
O.Kalashev, V.Kuzmin, D.S. and G.Sigl,
hep-ph/0112351
30
Sources of both g and n
O.Kalashev, V.Kuzmin, D.S. and G.Sigl,
hep-ph/0112351
31
FORTE and WMAP practically exclude Z-burst model
D.S. and G.Sigl, hep-ph/0309328
32
But only to explain AGASA
33
Top-down models

• Topological defects were produced in early
  Universe.
• Today they decay through GUT-scale particles with
  masses 1013-15 GeV
• UHECR are protons and photons from their decay.

V.Berezinsky and collaborators 1980-90th, See
review by G.Sigl
34
Top-down models disfavored by EGRET data
D.S. and G.Sigl, hep-ph/0309328
35
Top-down models still alive with lower flux
normalization
36
Super-heavy dark matter model

• Particles with mass 1012-14 GeV created in
  early Universe. Today they decay and produce
  UHECR.
• Main signature UHECR are photons. Arrival
  directions follow DM profile.

V.Berezinsky, M.Kachelriess and
A.Vilenkin V.Kuzmin and V.Rubakov , 1997
Annihilations Disfavored by SUGAR data. Decay
OK. M.Kachelriess and D.S., 2003 Kim and
P.Tinyakov, 2003
37
SHDM photons protons
38
Sensitivity to fraction of photons AGASA case
----------
----------
39
Sensitivity to fraction of photons HiRes case
----------
----------
40
Conclusion UHECR photons

• UHECR with energies below GZK cutoff Elt1020eV
  most probably are protons from astrophysical
  sources. Those protons would produce GZK
  neutrinos GZK photons.
• GZK photons are 0.01 50 fraction of UHECR
  depending from energy, proton spectrum,
  distribution of sources, extra-galactic magnetic
  fields, radio backgrounds.
• They can be used to identify UHECR sources.
• UHECR with energies Egt1020eV require new physics
  or very extreme astrophysics. Absence of near
  sources in direction of highest energy cosmic
  rays makes possibility to have new physics
  practically unavoidable.
• Top-down models are difavorate by existing data.
  Z-burst model is excluded by neutrino and CMB
  experiments. Measurement of photon flux or limit
  will critically test all those models in near
  future!

41
