Underwood Equations

1
Underwood Equations (L/D)min

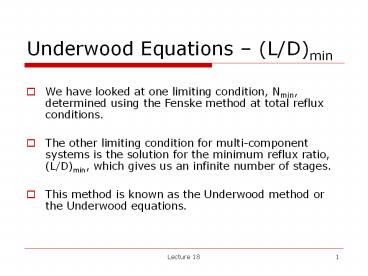

• We have looked at one limiting condition, Nmin,
  determined using the Fenske method at total
  reflux conditions.
• The other limiting condition for multi-component
  systems is the solution for the minimum reflux
  ratio, (L/D)min, which gives us an infinite
  number of stages.
• This method is known as the Underwood method or
  the Underwood equations.

2
Underwood Equations (L/D)min
3
1st Underwood Equation f Roots
4
Underwood Equations Cases
5
Underwood Equations Case A Methodology
6
Underwood Equations Case A Methodology
(continued)
7
Underwood Equations Case A Methodology
(continued)
8
Underwood Equations Case B Methodology
9
Underwood Equations Case B Methodology
(continued)
10
Underwood Equations Case B Methodology
(continued)
11
Underwood Equations Case C Methodology
12
Underwood Equations Case C Methodology
(continued)
13
Underwood Equations Case C Methodology
(continued)
14
Gilliland Correlation N and NF

• Empirical relationship which relates the number
  of stages, N, at finite reflux ratio, (L/D)actual
  to the Nmin and (L/D)min.
• Nmin is determined from the Fenske equation.
• (L/D)min is determined from the Underwood
  equations.

15
Gilliland Correlation
16
Gilliland Correlation Curve Fits
17
Gilliland Correlation NF
