Parallel Processing (CS 730) Lecture 9: Distributed Memory FFTs*

1

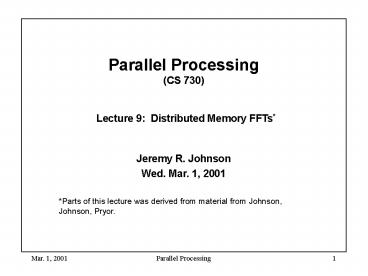

Parallel Processing (CS 730) Lecture 9
Distributed Memory FFTs

• Jeremy R. Johnson
• Wed. Mar. 1, 2001
• Parts of this lecture was derived from material
  from Johnson, Johnson, Pryor.

2
Introduction

• Objective To derive and implement a
  distributed-memory parallel program for computing
  the fast Fourier transform (FFT).
• Topics
• Derivation of the FFT
• Iterative version
• Pease Algorithm Generalizations
• Tensor permutations
• Distributed implementation of tensor permutations
• stride permutation
• bit reversal
• Distributed FFT

3
FFT as a Matrix Factorization

• Compute y Fnx, where Fn is n-point Fourier
  matrix.

4
Matrix Factorizations and Algorithms
function y fft(x) n length(x) if n 1
y x else x0 x1 Ln_2 x x0
x(12n-1) x1 x(22n) t0 t1 (I_2
tensor F_m)x0 x1 t0 fft(x0) t1
fft(x1) w W_m(omega_n) w
exp((2pii/n)(0n/2-1)) y y0 y1 (F_2
tensor I_m) Tn_m t0 t1 y0 t0 w.t1 y1
t0 - w.t1 y y0 y1 end
5
Rewrite Rules
6
FFT Variants

• Cooley-Tukey
• Recursive FFT
• Iterative FFT
• Vector FFT (Stockham)
• Vector FFT (Korn-Lambiotte)
• Parallel FFT (Pease)

7
Example TPL Programs

• Recursive 8-point FFT
• (compose (tensor (F 2) (I 4)) (T 8 4)
• (tensor (I 2)
• (compose (tensor (F 2) (I 2)) (T
  4 2)
• (tensor (I 2) (F 2)) (L
  4 2))
• (L 8 2))
• Iterative 8-point FFT
• (compose (tensor (F 2) (I 4)) (T 8 4)
• (tensor (I 2) (F 2) (I 2)) (tensor (I 2)
  (T 4 2))
• (tensor (F 2) (I 4))
• (tensor (I 2) (L 4 2)
• (L 8 2))

8
FFT Dataflow

• Different formulas for the FFT have different
  dataflow (memory access patterns).
• The dataflow in a class of FFT algorithms can be
  described by a sequence of permutations.
• An FFT dataflow is a sequence of permutations
  that can be modified with the insertion of
  butterfly computations (with appropriate twiddle
  factors) to form a factorization of the Fourier
  matrix.
• FFT dataflows can be classified wrt to cost, and
  used to find good FFT implementations.

9
Distributed FFT Algorithm

• Experiment with different dataflow and locality
  properties by changing radix and permutations

10
Cooley-Tukey Dataflow
11
Pease Dataflow
12
Tensor Permutations

• A natural class of permutations compatible with
  the FFT. Let ? be a permutation of 1,,t
• Mixed-radix counting permutation of vector
  indices
• Well-known examples are stride permutations and
  bit-reversal.

?
13
Example (Stride Permutation)

• 000 000
• 001 100
• 010 001
• 011 011
• 100 010
• 101 110
• 110 101
• 111 111

14
Example (Bit Reversal)

• 000 000
• 001 100
• 010 010
• 011 110
• 100 001
• 101 101
• 110 011
• 111 111

15
Twiddle Factor Matrix

• Diagonal matrix containing roots of unity
• Generalized Twiddle (compatible with tensor
  permutations)

16
Distributed Computation

• Allocate equal-sized segments of vector to each
  processor, and index distributed vector with pid
  and local offset.
• Interpret tensor product operations with this
  addressing scheme

17
Distributed Tensor Product and Twiddle Factors

• Assume P processors
• In?A, becomes parallel do over all processors
  when n ? P.
• Twiddle factors determined independently from pid
  and offset. Necessary bits determined from I, J,
  and (n1,,nt) in generalized twiddle notation.

18
Distributed Tensor Permutations
19
Classes of Distributed Tensor Permutations

• Local (pid is fixed by ?)
• Only permute elements locally within each
  processor
• Global (offset is fixed by ?)
• Permute the entire local arrays amongst the
  processors
• GlobalLocal (bits in pid and bits in offset
  moved by ?, but no bits cross the pid/offset
  boundary)
• Permute elements locally followed by a Global
  permutation
• Mixed (at least one offset and pid bit are
  exchanged)
• Elements from a processor are sent/received
  to/from more than one processor

20
Distributed Stride Permutation

• 0000 0000
• 0001 1000
• 0010 0001
• 0011 1001
• 0100 0010
• 0101 1010
• 0110 0011
• 0111 1011

• 1000 0100
• 1001 1100
• 1010 0101
• 1011 1101
• 1100 0110
• 1101 1110
• 1110 0111
• 1111 1111

21
Communication Pattern
22
Communication Pattern
Each PE sends 1/2 data to 2 different PEs
23
Communication Pattern
Each PE sends 1/4 data to 4 different PEs
24
Communication Pattern
Each PE sends1/8 data to 8 different PEs
25
Implementation of Distributed Stride Permutation
D_Stride(Y,N,t,P,k,M,l,S,j,X) // Compute Y
LN_S X // Inputs // Y,X distributed vectors of
size N 2t, // with M 2l elements per
processor // P 2k number of processors //
S 2j, 0 lt j lt k, is the stride. //
Output // Y LN_S X p pid for
i0,...,2j-1 do put x(iSiS(n/S-1)) in
y((n/S)(p mod S)(n/S)(p mod S)N/S-1) on
PE p/2j i2k-j
26
Cyclic Scheduling
Each PE sends 1/4 data to 4 different PEs
27
Distributed Bit Reversal Permutation

• Mixed tensor permutation
• Implement using factorization

b7b6b5 b4b3b2b1b0
b0b1b2 b3b4b5b6b7
b7b6b5 b4b3b2b1b0
b5b6b7 b0b1b2b3b4
28
Experiments on the CRAY T3E

• All experiments were performed on a 240 node
  (8x4x8 with partial plane) T3E using 128
  processors (300 MHz) with 128MB memory
• Task 1(pairwise communication)
• Implemented with shmem_get, shmem_put, and
  mpi_sendrecv
• Task 2 (all 7! 5040 global tensor permutations)
• Implemented with shmem_get, shmem_put, and
  mpi_sendrecv
• Task 3 (local tensor permutations of the form I ?
  L ? I on vectors of size 222 words - only run on
  a single node)
• Implemented using streams on/off, cache bypass
• Task 4 (distributed stride permutations)
• Implemented using shmem_iput, shmem_iget, and
  mpi_sendrecv

29
Task 1 Performance Data
30
Task 2 Performance Data
31
Task 3 Performance Data
32
Task 4 Performance Data
33
Network Simulator

• An idealized simulator for the T3E was developed
  (with C. Grassl from Cray research) in order to
  study contention
• Specify processor layout and route table and
  number of virual processors with a given start
  node
• Each processor can simultaneously issue a single
  send
• Contention is measured as the maximum number of
  messages across any edge/node
• Simulator used to study global and mixed tensor
  permutations.

34
Task 2 Grid Simulation Analysis
35
Task 2 Grid Simulation Analysis
36
Task 2 Torus Simulation Analysis
37
Task 2 Torus Simulation Analysis
