Title: Module 23 Application Protocols 1. DHCP 2. DNS


1

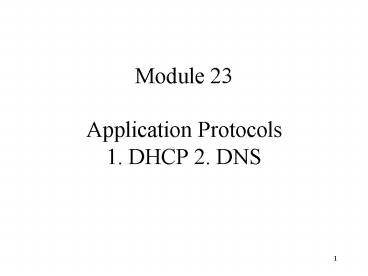

Module 23Application Protocols1. DHCP 2. DNS
2
  • Textbook sections
  • BF Chapter 15 BOOTP and DHCP
  • BF Chapter 16 Domain Name System (DNS)
  • Topics
  • DHCP
  • Overview
  • Dynamic Addressing
  • Dynamic allocation and manual allocation
  • DHCP Operation
  • DNS
  • Overview
  • The Domain Name Space
  • Name Servers
  • Resolvers
  • Messages

3
1. DHCP - Overview
  • Dynamic Host Configuration Protocol (DHCP) is a
    protocol for assigning dynamic IP addresses to
    hosts on a network.
  • DHCP is built on a client-server model, where
    designated DHCP server allocates network
    addresses and delivers configuration parameters
    to dynamically configured clients.
  • DHCP server a host providing configuration
    parameters through DHCP
  • DHCP client a host requesting configuration
    parameters from a DHCP server.
  • DHCP consists of two components
  • A protocol for delivering host-specific
    configuration parameters from a DHCP server to a
    host
  • A mechanism for allocation of IP addresses to
    hosts.
  • A partial list of configuration parameters IP
    address, subnet mask, default gateway (router),
    domain name, DNS
  • A host should not act as a DHCP server unless
    explicitly configured to do so by a system
    administrator.
  • DHCP client support is built into NT
    workstations. NT 4 server includes both client
    and server support.

4
1. DHCP Dynamic Addressing
  • Dynamic addressing
  • With dynamic addressing, a host can have a
    different IP address every time it connects to
    the network.
  • Dynamic addressing simplifies network
    administration because the software keeps track
    of IP addresses rather than requiring an
    administrator to manage the task. A new computer
    can be added to a network without the trouble of
    manually assigning it a unique IP address.
  • Many ISPs use dynamic IP addressing for dial-up
    users

5
1. DHCP - Dynamic allocation and manual
allocation
  • Dynamic allocation and manual allocation
  • Dynamic allocation DHCP assigns an IP address to
    a client for a limited period of time (or until
    the client explicitly relinquishes the address)
  • Useful for assigning an address to a client that
    will be connected to the network only temporarily
  • Useful sharing a limited pool of IP addresses
    among a group of clients that do not need
    permanent IP addresses
  • Useful for assigning an IP address to a new
    client being permanently connected to a network
    where IP addresses are sufficiently scarce that
    it is important to reclaim them when old clients
    are retired.
  • Manual allocation A clients IP address is
    assigned by the network administrator, and DHCP
    is used simply to convey the assigned address to
    the client.
  • DHCP server functions just as a centralized
    repository for host configuration parameters

6
1. DHCP - Overview
  • A DHCP server has two databases
  • The first database statically binds physical
    addresses with IP addresses
  • The second database has a pool of available IP
    addresses. When a DHCP client requests a
    temporary IP address, DHCP server goes to the
    pool of available (unused) IP addresses and
    assign an IP address for a negotiable period of
    time.

7
BF Figure 15-4 DHCP Operation Part I
Step 1
Step 2
Step 3
Step 4
Step 5
8
BF Figure 15-4 DHCP Operation Part II
Step 6
Step 7
9
1. DHCP DHCP Operation
  • Step 1
  • The client broadcast a DHCPDISCOVER message using
    destination port 67
  • The first problem faced by DHCP is for a client
    to find its DHCP servers. In order to minimize
    the amount of manual configuration, instead of
    having each host to be configured with the
    address of a DHCP server, a broadcast message is
    sent by the client.
  • Step 2
  • All DHCP servers on the local net receives the
    DHCPDISCOVER message, and those servers that have
    been programmed to respond to the particular
    client send a DHCPOFFER message.
  • Thus, a client may receive zero or more
    responses.
  • If the client receives no DHCPOFFER message, it
    will try four more times, each with a span of two
    seconds. If there is still no reply of these
    messages, the client sleeps for five minutes
    before trying again.
  • An IP address is offered by each server in its
    DHCPDISCOVER message. Duration of the lease can
    be offered in the message (default value is one
    hour).

10
1. DHCP DHCP Operation
  • Step 3
  • The client chooses one of the offers (e.g., the
    first to arrive) and sends a DHCPREQUEST message
    to the selected server.
  • Step 4
  • The server responds with a DHCPACK message
  • The server creates a binding between the client
    physical address and its IP address
  • The client can use the IP address until the lease
    expires
  • Step 5
  • Before 50 percent of the lease period is reached,
    the client sends another DHCPREQUEST and asks for
    renewal.
  • If the server responds with a DHCPACK, the client
    has a new lease agreement and can reset its
    timer.
  • If the server responds with a DHCPNACK, the
    client must immediately stop using the IP address
    and find another server (step1)

11
1. DHCP DHCP Operation
  • Step 6
  • If the server does not respond, the client sends
    another DHCPREQUEST when the lease time reaches
    87.5 percent.
  • If the server responds with a DHCPACK, the client
    has a new lease agreement and can reset its
    timer.
  • If the server responds with a DHCPNACK, the
    client must immediately stop using the IP address
    and find another server (step1)
  • If the client receives no response from the
    server, it waits until the lease time expires and
    starts all over again from step 1.
  • Step 7
  • The client can terminate the lease prematurely by
    sending a DHCPRELEASE message to the server.

12
State-transition diagram for DHCP clients
  • Notation
  • event/action for client
  • T1 50 timer
  • T2 87.5 timer

Host boots/
INITIALIZE
- / Send DHCPDISCOVER
SELECT
DHCPOFFER/Collect replies
DHCPNAK/ Halt network
Select offer/Send DHCPREQUEST
DHCPNAK, Lease expired/Halt network
REQUEST
REBIND
T2 expires/ DHCPREQUEST
RENEW
T1 expires/Send DHCPREQUEST to lease server
DHCPACK/Record lease, set timers T1,T2
DHCPACK/ Record lease, set timers T1,T2
DHCPACK/Record lease, set timers T1,T2
BOUND
13
2. DNS - Overview
  • Domain Name System (DNS) The distributed naming
    system of the Internet, used to resolve host name
    (e.g., cicada.cs.princeton.edu) into IP address
    (e.g., 192.12.69.35). The DNS is implemented by
    a hierarchy or name servers.
  • Other approaches for name mapping
  • Host files
  • Not suitable for large networks.
  • Not easy to maintain when changes are frequent
  • Centralized control use a single computer
  • Not acceptable for Internet due to a huge amount
    of traffic

14
2. DNS - The Domain Name Space
  • Domain name space The names are defined in an
    inverted-tree structure with the root at the
    top. The tree can have only 128 levels.

BF Figure 16-1 Domain Name Space
15
2. DNS - The Domain Name Space
BF Figure 16-7 DNS used in the Internet
16
2. DNS - The Domain Name Space
  • The Internet authority has chosen to partition
    its top level into the domains listed below

17
2. DNS - The Domain Name Space
  • Conceptually, the top-level domains come in two
    flavors generic and country.
  • The country domains include one entry for every
    country, as defined in ISO 3166.
  • In principle, domains can be inserted into the
    tree in two different ways.
  • In practice, however, nearly all organizations in
    the United States are under a generic domain
  • Nearly all outside the United State are under the
    domain of their country.
  • There is no rule against registering under two
    top-level domains, but doing so might be
    confusing, so few organizations do it.

18
2. DNS - The Domain Name Space
  • Label
  • Each node in the tree has a label, which is a
    string with a maximum 63 characters.
  • The root label is null string (empty string).
  • DNS requires that children of a node (nodes
    which branch from the same node) have different
    labels, which guarantees the uniqueness of the
    domain names

BF Figure 16-2 Domain names and labels
19
2. DNS - The Domain Name Space
  • Domain Name
  • Each node in the tree has a domain name.
  • Fully Qualified Domain Name (FQDN) A label
    which is terminated by a null string. It contains
    all labels, from the most specific to the most
    general, that unique defines the name of the
    host.
  • Partially Qualified Domain Name (PQDN) A PQDN
    starts from a node, but it does not reach the
    root.
  • It is used when the name to be resolved belongs
    to the same site as the client. Here the
    resolver can supply the mission part, called the
    suffix, to create an FQDN.

BF Figure 16-3 FQDN and PQDN
20
2. DNS - The Domain Name Space
  • Domains
  • a domain is a subtree of the domain name space.
  • The name of the domain is the domain name of
    the node at the top of the subtree.

BF Figure 16-4 Domains
21
2. DNS Name Servers
BF Figure 16-5 Hierarchy of name servers
22
2. DNS Name Servers
  • Concept of zones
  • What a server is responsible for or has authority
    over is called a zone.
  • Relationship between a zone and a domain
  • If a server accepts responsibilities for a domain
    and does not divide the domain into smaller
    domains, the domain and the zone refer to the
    same thing. The server makes a database called a
    zone file and keeps all the information for every
    node under that domain.
  • If a server divides its domain into sub-domains
    and delegates part of the authority to other
    servers, domain and zone refer to different
    things.
  • Information about the nodes in the sub-domains is
    stored in the servers at the lower levels, with
    the original server keeping some sort of
    reference to these lower-level servers.
  • The original server still has a zone, but the
    detailed information is kept by the lower-lever
    servers.

23
2. DNS Name Servers
  • Relationship between a zone and a domain
  • A server can also divide part of its domain and
    delegate responsibility but still keep part of
    the domain for itself. In this case, its zone is
    made of detailed information for the part of the
    domain that is not delegated and reference to
    those parts that are delegated.
  • Summary
  • In general, a particular name server has complete
    information about a subset of the domain space,
    and pointers to other name servers that can be
    used to lead to information from any part of the
    domain tree.
  • Name servers know the parts of the domain tree
    for which they have complete information a name
    server is said to be an Authority for these parts
    of the name space.
  • Authoritative information is organized into units
    called Zones.

24
2. DNS Name Servers
BF Figure 16-6 Zones and domains
25
2. DNS Name Servers
  • DNS name servers
  • Primary servers
  • A server that stores a file about the zone for
    which it is an authority.
  • Responsible for creating, maintaining, and
    updating a zone file.
  • It stores the zone file on a local disk.
  • Secondary servers
  • A server that transfer the complete information
    about a zone from another server (primary or
    secondary) and stores zone file on its local
    disk.
  • The secondary servers neither create nor update
    the zone files.
  • The secondary servers provide redundancy for the
    zone file so that if one server fails, the other
    can continue serving clients.

26
2. DNS - Resolvers
  • Resolver
  • DNS is designated as a client/server application
  • A host that needs to map an address to a name or
    a name to an address calls a DNS client called a
    resolver.
  • The resolver accesses the closed DNS server with
    a mapping request. If the server has the
    information, it satisfies the resolver
    otherwise, it either refers the resolvers to
    other servers or asks other servers to provide
    the information. After the resolver receives the
    mapping, it interprets the response to see if it
    is a real resolution or an error, and finally
    delivers the results to the process that
    requesting it.
  • A name server can operate either in a recursive
    mode or a non-recursive mode.

27
2. DNS - Resolvers
  • Recursive Resolution
  • The client (resolver) can ask for a recursive
    answer from a name server.
  • The simplest mode for the client In this mode
    the name server acts in the role of a resolver
    and returns either an error or the answer, but
    never referrals.
  • This service is optional in a name server, and
    the name server may also choose to restrict the
    client which can use recursive mode.
  • Recursive service can be used by a relatively
    simple client, which lacks the ability to use
    anything other than a direct answer to the
    question.

BF Figure 16-11 Recursive resolution
28
2. DNS - Resolvers
  • Iterative resolution
  • The name server can operate in non-recursive
    mode.
  • The simplest mode for the name server, since it
    can answer queries using only local information.
    The response contains either an error, the
    answer, or a referral to some other server
    closer to the answer.
  • All name servers must implement non-recursive
    mode.

BF Figure 16-12 Iterative resolution
29
2. DNS - Resolvers
  • Caching The Key to Efficiency
  • Approach
  • Each time a server receives a query for a name
    that is not in its domain, it needs to search its
    database for a server.
  • Reduction of this search time would increase
    efficiency.
  • When a server asks for a mapping from another
    server and receives the response, it stores this
    information in its cache memory before sending it
    to the client.
  • If the same or another client asks for the same
    mapping, it can check its cache memory and
    resolve the problem.
  • In order to inform the client that the response
    is coming from the cache memory and not from an
    authoritative source, the serve marks the
    response as unauthoritative.

30
2. DNS - Resolvers
  • Caching The Key to Efficiency
  • Usage of caching
  • When a client asks a local name server to resolve
    a name, the local name server first checks to see
    if it has authority for the name according to the
    standard procedure.
  • If not, the local name server checks its cache to
    see if the name has been resolved recently. If
    it has, then
  • The local name server reports cached information
    to the client, but mark it as a unauthoritative
    binding.
  • The local name server provides the domain name of
    the server, S, from which they obtained the
    binding.
  • The name server also sends along additional
    information that tells the client the binding
    between S and an IP address.
  • Therefore, the client receives answers quickly,
    but the information may be out-of-date.
  • If efficiency is important, the client will
    choose to accept the unauthoritative information.
  • If accuracy is important, the client will choose
    to contact the authority and verify that binding
    between name and address is still valid.

31
2. DNS - Resolvers
  • Caching The Key to Efficiency
  • Potential problems If a server caches a mapping
    for a long time, it may send an outdated mapping
    to the client. Solution
  • First, the authoritative server always adds a
    piece of information to the mapping called
    time-to-live (TTL). It defines the time in
    seconds that the receiving server can cache the
    information. After that time, the mapping is
    invalid and any query must be sent again to the
    authoritative server.
  • Thus, an authoritative can reduce network
    overhead by specifying long TTL for entries that
    they expect to remain unchanged, while improving
    correctness by specifying short TTL for entries
    that they expect to change frequently.
  • Second, DNS requires that each server keeps a TTL
    counter for each mapping it caches. The cache
    memory must be searched periodically and those
    mapping with an expired TTL must be purged.

32
2. DNS - Messages
BF Figure 16-13 DNS Messages
  • Answer section
  • Consists of one or more resource records.
  • Presents only on response messages.
  • Includes the answer from the server to the
    client (resolver)

BF Figure 16-14 Query and response messages
33
2. DNS - Messages
BF Figure 16-19 Resource record format
34
2. DNS - Messages
  • Resource record fields
  • Domain name
  • Domain type (See BF Table 16.4)
  • Domain class (See BF Table 16.5)
  • Time to live
  • Resource data length
  • Resource data The format and contents of this
    field depends on the value of the type field. It
    can be one one of the following
  • A number
  • A domain name
  • An offset pointer
  • A character string

35
2. DNS - Messages
BF Table 16.4 Types
36
2. DNS - Messages
BF Table 16.5 Classes
Write a Comment
User Comments (0)
About PowerShow.com
