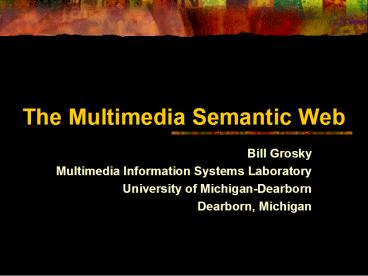

The Multimedia Semantic Web

• Bill Grosky
• Multimedia Information Systems Laboratory
• University of Michigan-Dearborn
• Dearborn, Michigan

2
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


3
CBR Where are We?

• Development of feature-based techniques for
  content-based retrieval is a mature area, at
  least for images

• CBR researchers should now concentrate on
  extracting semantics from multimedia documents so
  that retrievals using concept-based queries can
  be tailored to individual users
• The semantic gap
• (Semi)-automated multimedia annotation

4
Multimedia Annotation

• Multimedia annotations should be semantically
  rich

• Multiple semantics
• A social theory based on how multimedia
  information is used

• This can be discovered by placing multimedia
  information in a natural, context-rich environment

5
Context-Rich Environments

• Structural context Authors contribution
• Documents author places semantically similar
  pieces of information close to each other

• User can cluster together semantically similar
  pieces of information

• Dynamic context Users contribution
• Short browsing sub-paths are semantically coherent

6
Context-Rich Environments

• The WEB is a perfect example of a context-rich
  environment

• Develop multimedia annotations through
  cross-modal techniques

• Audio
• Images
• Text
• Video

7
Semantic Web

• This program overlaps another very important
  current research topic, the semantic web

• Web page annotations are the backbone of this
  research effort

• We have something very important to offer to this
  area

• Multimedia documents
• Deriving multiple semantics for a single
  document

• Combining our efforts will enrich both
  communities


8
Semantic Web

• The Semantic Web is a new initiative to
  transform the web into a structure that supports
  more intelligent querying and browsing, both by
  machines and by humans. This transformation is to
  be supported through the generation and use of
  metadata constructed via web annotation tools
  using user-defined ontologies that can be related
  to one another.
• Somewhere on the web

9
Semantic Web
End User
Ontology Articulation Toolkit
Agents
Ontology Construction Tool
Ontologies
Community Portal
?x C ? D
Inference Engine
Web-Page Annotation Tool
Annotated Web Pages
Metadata Repository
Based on www.semanticweb.org
10
Semantic Web

• Plan a vacation within the next month
• Bill instructed his semantic web agent through
  his handheld browser.

• An agent retrieved Bills vacation profile from
  his travel agent, retrieved Bills availability
  from his calendar, checked availability of
  airlines, hotels and restaurants, and made all
  the necessary arrangements.

11
Semantic Web

• Multimedia semantic web
• Plan a vacation close to where
• is being exhibited.

12
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


13
Anglograms

• Image object
• Entire image
• Some meaningful portion of an image
• semcon
• Point-based features
• corner points
• color histograms

14
Anglograms
Point feature map for shape
15
Anglograms
Point feature map for color
16
Anglograms
Voronoi diagram of n 18 sites
17
Anglograms
18
Anglograms

• Delaunay triangulation of a set of n points
• O(n log n) algorithm
• Invariance of Delaunay triangles of a set of
  points to

• translation
• rotation
• scaling

19
Anglograms

• Spatial layout of point set
• Anglogram
• Computed by discretizing and counting the angles
  of the Delaunay triangles

• Which angles are counted?
• O(max(n bins)) algorithm
• What is bin size?

20
(No Transcript)
21
Anglograms

• Computation of color anglogram of an image
• Divide image evenly into a number of MN
  non-overlapping blocks

• Each individual block is abstracted as a unique
  feature point labeled with its spatial location
  and dominant colors

22
Anglograms

• Computation of color anglogram of an image
• Point feature map
• Normalized feature points, after adjusting any
  two neighboring feature points to a fixed
  distance

• Construct Delaunay triangulation for each set of
  feature points labeled with identical color

23
Anglograms

• Computation of color anglogram of an image
• Compute anglogram based on each Delaunay
  triangulation

• Color anglogram for image
• Concatenating all the anglograms together

24
Anglograms
Pyramid image
25
Anglograms
26
Anglograms
Hue component
27
Anglograms
Saturation component
28
Anglograms
Point feature map
29
Anglograms
Feature points of hue 2
30
Anglograms
Delaunay triangulation of hue 2
31
Anglograms
Delaunay triangulation of saturation 5
32
Anglograms
Anglogram of saturation 5
33
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


34
Finding Latent Semantics

• We want to transform low-level features to a
  higher level of meaning

• Used for dimension reduction in QBIC
• Searching in high-dimensional spaces
• More importantly, it creates clusters of
  co-occurring features

• So-called concepts

35
Finding Latent Semantics

• Latent Semantic Analysis (LSA) was introduced to
  overcome a fundamental problem in textual
  information retrieval

• Users want to retrieve on the basis of conceptual
  content

• Individual words provide unreliable evidence
  about conceptual meanings

• Synonymy
• Many ways to refer to the same object
• Polysemy
• Most words have more than one distinct meaning

36
Finding Latent Semantics

• Searching for documents concerning automobiles
• Tend to use the key-word automobile
• A statistical analysis determines that the
  key-words automobile and car tend to co-occur

• LSA will retrieve documents in which the key-word
  car appears, but not the key-word automobile

37
Finding Latent Semantics

• Term-document association
• It is assumed that there exists some underlying
  latent semantic structure in the data that is
  partially obscured by the randomness of term
  choice
• By semantic structure we mean the correlation
  structure in which individual terms appear in
  documents

• Semantic implies only the fact that terms in a
  document may be taken as referents to the
  document itself or to its topic

• Statistical techniques are used to estimate this
  latent semantic structure, and to get rid of
  obscuring noise

38
Finding Latent Semantics

• Singular-value decomposition (SVD)
• Take a large matrix of term-document association
• Construct a semantic space wherein terms and
  documents that are closely associated are placed
  near to each other

• SVD allows the arrangement of space to reflect
  the major associative patterns and ignore
  smaller, less important influence

• As a result, terms that did not actually appear
  in a document may still end up close to the
  document, if that is consistent with the major
  patterns of association
• Position in the space serves as the semantic
  indexing

• Retrieval proceeds by using the terms in a query
  to identify a point in the semantic space, and
  documents in its neighborhood are returned as
  relevant results

39
Finding Latent Semantics

• Term-document matrix
• d documents
• t terms
• Represented by a t ? d term-document matrix A
• Each document is represented by a column
• document vector
• Each term is represented by a row
• term vector

40
Finding Latent Semantics
41
Finding Latent Semantics
42
Finding Latent Semantics

• SVD is a dimension reduction technique
• Reduced-rank approximation to both column space
  and row space

• Find a rank-k approximation to matrix A with
  minimal change to that matrix for a given value
  of k

• This decomposition exists for any matrix A

43
Finding Latent Semantics

• SVD of a term-document matrix A
• A U ? VT
• A is t ? d
• U is a t ? r orthogonal matrix, where r is
  rank(A)

• The columns of U are a basis for the column space
  of A

• U is the matrix of eigenvectors of the matrix
  AAT

• ? is an r ? r diagonal matrix having singular
  values ?1 ? ?2 ? ? ?r of A in order along its
  diagonal

• ?2 is the matrix of eigenvalues of AAT or ATA
• VT is a r ? d orthogonal matrix
• The rows of VT are a basis for the row space of
  A

• V is the matrix of eigenvectors of the matrix
  ATA


44
Finding Latent Semantics
t ? d
t ? r
r ? r
r ? d
45
Finding Latent Semantics

• A special rank-k approximation, Ak
• Ak Uk ?k VkT
• Uk
• First k columns of U
• ?k
• First k diagonal values of ?
• VkT
• First k rows of VT

46
Finding Latent Semantics
47
Finding Latent Semantics

• Reduce the rank to 3

48
Finding Latent Semantics
Query
Score
49
Finding Latent Semantics
Query
Score
50
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


51
Using Text for Improved Image Search

• 10 sets of 5 similar images

52
Using Text for Improved Image Search

• Color anglogram
• Each image is divided into 64 non-overlapping
  blocks

• Extract average hue and average saturation values
  of each block

• Hue and saturation each quantized into 10 values
• Generate Delaunay triangles for each hue value
  and each saturation value

• Count two largest angles and quantize them into
  36 bins, each of 5

• Feature vector has 720 elements

53
Using Text for Improved Image Search

• Annotations
• Extra 15 elements
• Category positions
• sky, sun, land, water, boat, grass, horse, rhino,
  bird, human, pyramid, column, tower, sphinx,
  snow

• Each image annotated with appropriate keywords
  and the area coverage of each of these keywords

• e.g., sky (0.55), sun (0.15), water (0.30)

54
Using Text for Improved Image Search
55
Using Text for Improved Image Search
56
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


57
Using Images for Improved Text Search

• Using documents collected from news Web sites
• News headlines are often used as URL anchors and
  document titles

• Topic can be represented easily and clearly by a
  group of keywords in the headline

• News web sites often have extensive coverage of
  the same topic during certain period of time

• News documents often include multimedia
  components which are closely related to the topic



58
Using Images for Improved Text Search

• Discover the semantic correlation between
  keywords and image in the same document

• A collection of 20 documents from cnn.com
• 4 semantic categories of 5 documents each
• 43 keywords
• Select 1 image from each document
• Color anglogram

59
Using Images for Improved Text Search
60
Using Images for Improved Text Search
61
Using Images for Improved Text Search

• Integrated feature vector F f1, f2,, f143T
• Textual feature vector K k1, k2, , k43T
• Image feature vector I i1, i2, , i100T
• Feature document matrix A F1, F2, , F20
• A USVT
• U is 143 ? 143, S is 143 ? 20, and V is 20 ? 20
• k 12
• Ak UkSkVkT
• Uk is 143 ? 12, Sk is 12 ? 12, and Vk is 20 ?
  12


62
Using Images for Improved Text Search

• Each image is normalized to 192 ? 128, and then
  divided into 64 non-overlapping blocks

• Extract average hue and saturation values of each
  block

• Hue and saturation each quantized into 10 values
• Generate Delaunay triangles for each hue value
  and each saturation value

63
Using Images for Improved Text Search

• Count two largest angles and quantize them into
  36 bins, each of 5

• Image feature vector has 720 elements
• Feature document matrix A is 763 ? 20
• SVD
• k 12

64
Using Images for Improved Text Search
Keywords only
Keywords using LSA
1 improvement
3 improvement
Image (global color histogram)
annotated keywords using LSA
21 improvement
Image (anglogram) annotated keywords using LSA
65
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


66
Web Page Structure

• Genre detection
• We do the following
• Display web page in the program
• Get tag hierarchy with area co-ordinates
• Normalize the web page to size 512 512
• Divide page in 1616 blocks
• Calculate area covered by each tag in each block
  considering the level of the tag in tag
  hierarchy

• For each feature tag get the center coordinates
  of the blocks where it is covering maximum area
  as compared with other tags on the same level

67
Web Page Structure
68
Web Page Structure
69
Web Page Structure

• Histogram
• 36 bins with two large angles
• Tags independent of level
• Try approach where tag on lower level overrides
  upper-level tag

70
Web Page Structure

• Set of tags defined -
• Initially, a large set of feature tags (52) is
  defined to ensure a powerful set of independent
  features for the discrimination of web pages

• A second set of tags (3) is defined based on
  histograms created for initial set of tags so
  that these tags will better differentiate web
  pages

71
Web Page Structure

• Experiment 1
• Categories defined are
• Detroit News
• Times of India
• Tribune India
• Esakal
• Amazon.com
• Buy.com

72
Web Page Structure

• Cluster category based on closest page

73
Web Page Structure

• Experiment 2
• Categories defined are
• News paper environment
• Detroit News
• Times of India
• Tribune India
• Esakal
• e - Commerce environment
• Amazon.com
• Buy.com

74
Web Page Structure
75
Contents

• Introduction
• CBR Where are we?
• Multimedia annotation
• Context-rich environments
• Semantic web
• Our work
• Anglograms
• Finding latent semantics
• Using text for improved image search
• Using images for improved text search
• Web page structure
• A cross-modal theory of linked document
  semantics


76
A Cross-Modal Theory of Linked Document Semantics

• Environment
• Suppose one has a linked set of multimedia
  documents

• Web
• Content-based hypermedia
• This provides a rich context for individual
  chunks of information

• The structure of individual multimedia documents
• The link structure

77
A Cross-Modal Theory of Linked Document Semantics

• Goal
• Derive document semantics based on user browsing
  behavior

• The same document has multiple semantics
• Different people see different meanings in the
  same document

• Over short browsing paths, an individual users
  wants and needs are uniform

• The pages visited over these short paths exhibit
  semantics in congruence with these wants and
  needs


78
A Cross-Modal Theory of Linked Document Semantics

• Questions
• How can the semantics of a web page be derived
  given a set of user browsing paths that end at
  that page?

• How can we characterize the semantics of a user
  browsing path?

• How can web page semantics help us in navigating
  the web more efficiently?

• How can our approach actually be implemented in
  the real web world?


79
A Cross-Modal Theory of Linked Document Semantics

• Our approach
• We use actual browsing paths to find the latent
  semantics of web pages

• Textual features
• Image features
• Structural features
• We hope to find general concepts comprising
  various textual and image features which
  frequently co-occur

80
A Cross-Modal Theory of Linked Document Semantics

• We believe that a users browsing path exhibits
  semantic coherence

• While the users entire path exhibits multiple
  semantics, especially pages far from each other
  on the path, neighboring pages, especially the
  portions close to the links taken, are
  semantically close to each other

81
A Cross-Modal Theory of Linked Document Semantics

• We would like to characterize the contiguous
  sub-paths of a users browsing path that exhibit
  similar semantics and detect the semantic break
  points along the path where the semantics
  appreciably change
• Collect these sub-paths into a multiset

82
A Cross-Modal Theory of Linked Document Semantics

• We categorize the semantics of each web page
  based on a history of the semantically-coherent
  browsing paths of all users which end at that
  page
• A browsing path will be represented by a
  high-dimensional vector

• The various positions of the vector correspond to
  the presence of

• textual keywords
• image features (visual keywords)
• structural features (structural keywords)

83
A Cross-Modal Theory of Linked Document Semantics

• From the complete set of web pages under
  consideration, we extract a set of textual,
  visual, and structural keywords

• For each multiset, M, of sub-paths that we are to
  analyze, we form three matrices

• term-path matrix
• image-path matrix
• structure-path matrix

84
A Cross-Modal Theory of Linked Document Semantics

• The (i,j)th element of these matrices are
  determined by

• Strength of the presence of ith keyword along the
  jth browsing path

• Determined by
• How many times this term occurs on the pages
  along the path

• How much time the user spends examining these
  pages

• How close each occurrence of the ith keyword is
  to both the outgoing and incoming anchor
  positions

• How many times this browsing path occurs in M

85
A Cross-Modal Theory of Linked Document Semantics

• These matrices may be concatenated together in
  various ways to produce an overall keyword-path
  matrix

• Perform latent-semantic analysis to get concepts
• A page is then represented by a set of concept
  classes


86
Conclusions

• Researchers in CBR should now be concentrating on
  extracting semantics from multimedia documents

• The web is a perfect testbed for studying
  semi-(automated) techniques for multimedia
  annotation due to contextual richness

• CBR Semantic Web The Multimedia Semantic Web
• Get Involved!!!
