Title: 14. Memory testing


1

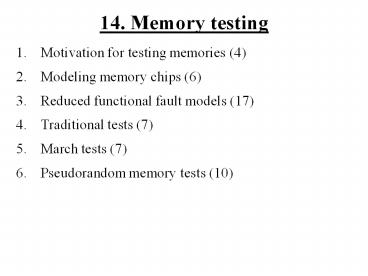

14. Memory testing
  1. Motivation for testing memories (4)
  2. Modeling memory chips (6)
  3. Reduced functional fault models (17)
  4. Traditional tests (7)
  5. March tests (7)
  6. Pseudorandom memory tests (10)

2
1.1 Importance of memories
  • Memories dominate chip area (94 of chip area in
    2014)
  • Memories are most defect sensitive parts
  • Because they are fabricated with minimal feature
    widths
  • Memories have a large impact on total chip DPM
    level
  • Therefore high quality tests required
  • (Self) Repair becoming standard for larger
    memories (gt 1 Mbit)

of chip area
year
3
1.2 Memory chip cost over time
Price of high-volume parts is constant in time
except for inflation Note Slope of line matches
inflation!
Dollars per DRAM chip
4
1.3 Table with test times
  • Note A memory is tested with several
    algorithms, which together may go through the
    total address space over 100 times
  • ? Effective test time for 16 Mb DRAM, using O(n)
    tests, is about 168 s
  • Test time reduced using on-chip parallelism (DFT
    and BIST)

5
1.4 Problems with testing memories
  • Number of bits/chip increases exponentially (4in
    lt3 years)
  • Price/bit decreases exponentially
  • Test cost has to decrease exponentially as well
  • Older traditional tests were of O(n2)
  • Current tests have to be of O(n) or less
  • DFT and BIST used to reduce test time to about
    O(n)
  • Area/cell decreases exponentially
  • Line widths decrease (more opens, resistance)
  • Line distances decrease (more shorts, couplings)
  • Cell leakage increases with reduced threshold
    voltages
  • Consequence
  • More complex fault behavior
  • More global fault behavior (ground bounce,
    coupling effects)
  • ? Result Number of bits to be tested increases
    exponentially, fault
  • behavior becomes more complex,
    while test cost has to be same

6
2.1 Functional SRAM memory model
  • Fig. 4.2 pag. 35

7
2.2 Electrical SRAM cell model
  • Structure of a CMOS SRAM cell (left cell below)
  • Q1--Q3 and Q2--Q4 form inverters (Q3 and Q4 are
    the load devices)
  • Inverters are cross coupled to form a latch
  • Q5 and Q6 are pass transistors
  • Addressing of a cell uses
  • a row address (using the word line WL)
  • a column address (using the bit lines BL and BL)
  • Operations
  • Write precharge BLs drive BL, BL and WL
  • Read precharge BLs drive WL feed BLs to sense
    amplifiers

SRAM Cell with Polysilicon Load Devices L1 and L2
8
2.3 Electrical DRAM cell model
  • DRAM cell stores information as a charge in a
    capacitor
  • Cell capacitance ? 40 fF 40 10-15 F BL
    capacitance ? 300 fF!
  • (SRAM cell stores information in terms of the
    state of a latch)
  • This charge leaks away over time
  • DRAMs require refresh circuitry (Refresh rate ?
    64 ms)
  • DRAM cells require 1/4th the area of SRAM cells
  • DRAM cells dissipate less power (thicker gate
    oxide)
  • DRAMs are less sensitive to Soft Errors
  • DRAMs are slower
  • Operations
  • Read precharge BL drive WL
  • feed BL to sense amplifier
  • Write drive BL drive WL

9
2.4 Decoders
  • Decoders address a specific cell in the Memory
    Cell Array MCA
  • If the MCA would be a vector, then 1 Mbit MCA
    requires 1M WLs
  • By arranging the cells in the MCA in a
    two-dimensional structure,
  • a 1 Mbit MCA requires 1K WLs and 1 K BLs
  • This is a significant reduction in the decoder
    area!
  • Hence, the MCA is two dimensional and consists of
    rows and columns
  • The Column decoder selects a particular Column
  • The Row decoder selects a particular Row
  • Decoders may be simple logic gate structures

Example of a simple k-input decoder
10
2.5 Read/write drivers
  • The write driver can be rather simple
  • The data-to-be-written is presented on BL
  • The inverse data-to-be-written is presented on
    BL
  • The sense amplifier can be
  • a simple inverter e.g. for small arrays, which
    have strong signals
  • a differential amplifier for larger arrays,
    which have weak signals

11
2.6 The reduced functional model
  • For test purposes Functional model
  • reduced (simplified) to three blocks
  • The functional faults also reduced
  • single-cell faults (SAFs, TFs, etc.)
  • two-cell faults (Coupling faults)
  • k-cell faults (NPSFs)
  • The functional fault models have
  • a hierarchy
  • 1. Stuck-at fault (SAF)
  • 2. Transition fault (TF)
  • 3a. Coupling fault (CF)
  • 3b. Neighborhood pattern
  • sensitive fault (NPSF)

12
3.1 Notation for describing faults
  • ltgt describes a fault
  • ltS/Fgt describes a single-cell fault
  • S describes the state/operation sensitizing the
    fault
  • A fault is sensitized when the fault effect is
    made present
  • F describes the fault effect in the victim cell
    (v-cell)
  • ltSFgt describes a two-cell fault (a Coupling
    Fault)
  • S describes the state/operation of the aggressor
    cell (a-cell) sensitizing the fault
  • F describes the fault effect in the v-cell
  • Examples
  • lt?/0gt a SA0 fault lt?/1gt a SA1 fault
  • lt?/0gt an ? TF lt?/1gt a ? TF
  • lt?0gt a CFid lt?1gt a CFid
  • lt?0gt a CFid lt?1gt a CFid

1-cell fault ltS/Fgt
/
2-cell fault ltSFgt

13
3.2 Stuck-At Fault (SAF)
  • The logic value of a Stuck-At cell or line is
    always
  • 0 a SA0 fault
  • 1 a SA1 fault
  • Only one fault (a SA0 or a SA1) can be present at
    a time

SAF fault type has two subtypes
14
3.3 Stuck-Open Fault (SOpF)
  • SOpF A cell cannot be accessed e.g., due to an
    open in its WL
  • When a read operation is applied to a cell, the
    differential sense amplifier has to sense a
    voltage difference between BL and BL
  • In case of an SOpF BL and BL have the same
    (high) level
  • Output Sense Amplifier
  • fixed value (SOpF behaves as a SAF)
  • previous value of sense amplifier
  • Detected when in a march element
  • a 0 and 1 is read. Required form of
  • the march element (,rx,,rx)
  • 3. random (fault detected probabilistically)
  • Every read operation detects the SOpF with a
    probability of 50

15
3.4 Transition fault (TF)
  • A cell fails to undergo the following
    transition(s)
  • Fails up-transition a lt?/0gt TF
  • Fails down-transition a lt?/1gt TF
  • Fault type has two subtypes the lt?/0gt and the
    lt?/1gt TF
  • A single cell may contain both faults
  • The Set input may not work (e.g., SA0)
  • The Reset input may not work
  • Test Every cell should make ? and ? transition
    and be read

Conceptual TF representation
Defect
16
3.5 Data retention fault (DRF)
  • DRF A cell cannot retain its logic value
  • Typically caused by a broken pull-up device which
    causes the leakage current of the node with a
    logic 1 not to be replenished
  • After a time delay Del (Typically 100 ms ? Del
    ? 500 ms) the cell will flip
  • The DRF fault type has two subtypes, which may be
    present simultaneously in the same cell lt1T/0gt
    and lt0T/1gt
  • lt1T/0gt means that a logic 1 will become a logic 0
    after a delay time T

17
3.6 Faults involving 2 cells Coupling Faults
CFs
  • CF The state of, or an operation applied to, the
    a-cell (aggressor cell) forces or changes the
    state of the v-cell (victim cell)
  • Fault type Idempotent CF CFid
  • A transition write operation (?0 ?1 ?1?0
    change) applied to the a-cell forces the contents
    of the v-cell
  • CFid has 4 subtypes lt?0gt, lt?1gt, lt?0gt and
    lt?1gt
  • The ?or ? write operations to a-cell sensitize
    the fault
  • The 0 or 1 are the fault effect in the v-cell
  • In addition, each subtype has two positions
  • A. address of a-cell lt address of v-cell
  • B. address of a-cell gt address of v-cell

18
3.7 Coupling faults (CFst, CFin)
  • State CF (CFst) A CF whereby the state of the
  • a-cell forces a fixed value in the v-cell
  • Four fault subtypes lt10gt, lt11gt, lt00gt and
    lt01gt
  • Each subtype has 2 positions
  • addr. a-cell lt addr. v-cell
  • addr. a-cell gt addr. v-cell
  • Inversion CF (CFin) A transition write operation
    to the a-cell toggles the contents of the v-cell
    (Note ? denotes toggling)
  • Two fault subtypes exist lt??gt and lt??gt
  • Each subtype has 2 positions
  • addr. a-cell gt addr. v-cell
  • addr. a-cell lt addr. v-cell

Note CFin not a realistic fault An SRAM cell is
a latch, rather then a flip-flop ? Cannot toggle!
19
3.8 Pattern sensitive fault (k-CF, PSF)
  • A k-Coupling Fault (k-CF), also called a Pattern
    Sensitive Fault (PSF), involves k cells which
    form a neighbourhood
  • The v-cell is also called the base cell
  • The k-1 non-v-cells are the deleted neighbourhood
    cells
  • The k cells can be anywhere in memory
  • Example Active PSF
  • A CFid with k-2 enabling values
  • a a-cell, v v-cell, e enabling cell
  • Neighbourhood PSFs (NPSFs) more realistic
  • The cells have to be physical neighbours
  • Example Active NPSF (ANPSF)
  • a-cell sensitises fault in v-cell
  • iff e-cells have enabling state

PSF
NPSF
20
3.9 Pattern sensitive fault (NPSFs)
  • A Neighbourhood PSF (NPSF) is a restricted k-CF
  • The deleted neighbourhood cells have to
  • be physically adjacent to the base cell
  • Active NPSF (ANPSF) A conditional CFid
  • A CFid requiring the k-2 e-cells to have
  • to have an enabling state
  • Passive NPSF (PNPSF) A conditional TF
  • A TF requiring the k-1 e-cells have
  • to have an enabling state
  • Static NPSF (SNPSF) A conditional CFst
  • A CFst whereby the k-2 e-cells have to
  • have an enabling state

TF
CFst
21
3.10 Validation of the fault models
  • Performed by (Dekker, ITC88) for SRAMs
  • 8 K8 64 Kbits, 4 Transistor (4T) cells
  • technology 4 ?m (Note R-defect is defect
    resistivity)
  • Distribution for R-defect values assumed to be
    uniform
  • i.e., no FAB statistics taken into account
  • Table shows likelihood of functional faults, as a
    function of the spot defect size
  • Results
  • Two new fault models established SOpF and DRF
  • SAFs ? 50
  • CFs due to large spot defects
  • CFin not present!

22
3.11 March tests Concept and notation
  • A march test consists of a sequence of march
    elements
  • A march element consists of a sequence of
    operations applied to every cell, in either one
    of two address orders
  • 1. Increasing (?) address order from cell 0 to
    cell n-1
  • 2. Decreasing (?) address order from cell n-1 to
    cell 0
  • Note The ? address order may be any sequence of
    addresses (e.g., 5,2,0,1,3,4,6,7), provided that
    the ? address order is the exact reverse sequence
    (i.e, 7,6,4,3,1,0,2,5)
  • Example MATS ?(w0)?(r0,w1)?(r1,w0)
  • Test consists of 3 march elements M0, M1 and M2
  • The address order of M0 is irrelevant (Denoted by
    symbol ?)
  • M0 ?(w0) means for i 0 to n-1 do Ai0
  • M1 ?(r0,w1) means for i 0 to n-1 do read
    Ai Ai1
  • M2 ?(r1,w0) means for i n-1 to 0 do read
    Ai Ai0

23
3.12 Combinations of memory cell faults
  • A memory may contain
  • A single fault
  • Multiple faults (6 cases of CFs shown ai is
    a-cell, vj is v-cell)) can be
  • Unlinked Faults do not interact (Cases a, b, c,
    e)
  • Linked Faults do interact (Cases d, f)
  • Linked faults have a common victim

24
3.13 Linked coupling faults
  • Case a Two unlinked CFids detected by the march
    test
  • ?(w0) ?(r0,w1)?(w0,w1)?(r1)
  • M0 M1 M2 M3
  • lt?1gt CFid sensitized by w1 operation of M1
  • detected by r0 of M1
  • lt?0gt CFid sensitized by w1 of M2, detected by r1
    of M3
  • Case b Linked CFids
  • Cannot be detected by test of Case a (for
    unlinked CFids) because of masking
  • Linked faults require special, more complex, tests

March elements
lt?1gt
Case b
Case a
lt?1gt
lt?0gt
lt?0gt
a1
v1
v2
a2
a1
a2
v1v2
25
3.14 Address decoder faults (AFs)
  • Functional faults in the address decoders
  • A. With a certain address, no cell will be
    accessed
  • B. A certain address accesses multiple cells
  • C. A certain cell is accesses with multiple
    addresses
  • D. Certain cells are accessed with their own and
    other addresses
  • Difficult fault Read operations may produce a
    random result

Cx0
Cx1
Reading from address Ay
Ax
Ax
Cy1
Cy1
Ay
Ay
26
3.15 Mapping read/write logic faults
  • The reduced functional model consists of three
    blocks
  • the address decoder
  • the memory cell array (MCA)
  • the read/write logic
  • Read/write logic faults can be mapped
  • onto MCA faults
  • SAFs, TFs and CFs will de
  • detected by tests for the MCA

27
3.16 Mapping address decoder faults
  • March tests for MCAFs detect AFs if they satisfy
    Cond. AF
  • Cond. AF The march test has to contain the
    following march elements
  • 1. ?(rx,,wx) This means either ?(r0,,w1) or
    ?(r1,,w0)
  • 2. ?(rx,,wx) Note means any of r or w
    operations
  • Proof
  • Easy for Faults A, B and C
  • For Fault D the result of a read operation can
    be
  • A deterministic function (Logical AND or OR) of
    read values
  • A random result (when the read cells contain
    different values)

28
3.17 Mapping address decoder faults (cont.)
  • Fault D read result random if cells contain
    different values
  • Cond. AF-1 ?(rx,,wx) detects Faults D1 D2
  • When Ax written with x, cells Cy...Cz are also
    written with x
  • Fault detected when Cy is read reads x while
    expecting x
  • Cond. AF-2 ?(rx,,wx) detects Faults D1 D3
  • When Ax written with x, cells Cv...Cw are also
    written with x
  • Fault detected when Cw is read reads x while
    expecting x
  • .

Fault D2
Original Fault D
Fault D3
Fault D1
29
4.1 Functional RAM chip testing
  • Purpose
  • 1. Cover traditional tests (5)
  • Zero-One (MSCAN)
  • Checkerboard
  • GALPAT and Walking 1/0
  • 2. Cover tests for stuck-at, transition and
    coupling faults (6)
  • MATS and MATS
  • March C-
  • March A and March B
  • 3. Comparison of march tests (1)

30
4.2 Fault coverage of tests
  • When a test detects faults of a particular fault
    type, it detects
  • all subtypes of that type e.g., if it detects
    TFs is has to detect all lt?/0gt and lt?/1gt TFs
  • all positions of each subtype (addr. a-cell lt or
    gt v-cell)
  • A complete test detects all faults it is designed
    for
  • It may, additionally, and unintentionally, detect
    also other faults
  • But not all subtypes and not all positions of
    each of these faults
  • Example MATS ?(w0)?(r0,w1)?(r1,w0)
  • Detects all AFs
  • Detects all SAFs
  • Detects all lt?/0gt TFs
  • Does not detect all lt?/1gt TFs
  • ? MATS does not detect TFs

Fault coverage of MATS
AFs, SAFs
lt?/0gt TFs
31
4.3 Traditional tests
  • Traditional tests are older tests
  • Usually developed without explicitly using fault
    models
  • Usually they also have a relatively long test
    time
  • Some have special properties in terms of
  • detecting dynamic faults
  • locating (rather than only detecting) faults
  • Many traditional tests exist
  • 1. Zero-One (Usually referred to as Scan Test or
    MSCAN)
  • 2. Checkerboard
  • 3. GALPAT and Walking 1/0
  • 4. Sliding Diagonal
  • 5. Butterfly
  • 6. Many, many others

32
4.4 Zero-One test (Scan test, (M)SCAN)
  • Minimal test, consisting of writing reading 0s
    and 1s
  • Step 1 write 0 in all cells
  • Step 2 read all cells
  • Step 3 write 1 in all cells
  • Step 4 read all cells
  • March notation for Scan test ?(w0)?(r0)?(w1)?
    (r1)
  • Test length 4n operations which is O(n)
  • Fault detection capability AFs not detected
  • Condition AF not satisfied 1. ?(rx,,wx) 2.
    ?(rx,,wx)
  • If address decoder maps all addresses to a single
    cell, then it can only be guaranteed that one
    cell is fault free
  • Special property Stresses read/write precharge
    circuits when Fast X addressing is used and
    sequence of write/read 0101.... data in a column!

Fast X addressing
Row 000000 stripe 111111
000000 111111
Checker 010101 board 101010
010101 101010
Columns
Rows
33
4.5 Checkerboard
  • Is SCAN test, using checkerboard data background
    pattern
  • Step 1 w1 in all cells-W
  • w0 in all cells-B
  • Step 2 read all cells
  • Step 3 w0 in all cells-W
  • w1 in all cells-B
  • Step 4 read all cells
  • Test length 42N operations which is O(n)
  • Fault detection capability
  • Condition AF not satisfied 1. ?(rx,,wx) 2.
    ?(rx,,wx)
  • If address decoder maps all cells-W to one cell,
    and all cells-B to another cell, then only 2
    cells guaranteed fault free
  • Special property Maximizes leakage between
    physically adjacent cells. Used for DRAM
    retention test!!

B W B W
W B W B
B W B W
W B W B
0 1 0 1
1 0 1 0
0 1 0 1
1 0 1 0
Step1 pattern
Checkerboard data background
34
4.6 GALPAT and Walking 1/0
  • GALPAT and Walking 1/0 are similar algorithms
  • They walk a base-cell through the memory
  • After each step of the base-cell, the contents of
    all other cells is verified, followed by
    verification of the base-cell
  • Difference between GALPAT and Walking 1/0 is
    when, and how often, the base-cell is read

Base cell
Base cell
35
4.7 GALPAT and Walking 1/0 Properties
  • Tests can locate faults
  • GALPAT detects write recovery faults (Cause slow
    addr. decoders)
  • Test length O(n2) Not acceptable for practical
    purposes
  • Most coupling faults in a memory are due to
    sharing
  • a WL and the column decoder cells in the same
    row
  • BLs and row decoder cells in the same column
  • Subsets of GALPAT and Walking I/O used (BC
    Base-Cell)
  • GALROW and WalkROW Read Action on cells in row
    of BC
  • GALCOL and WalkCOL Read Action on cells in
    column of BC
  • Test length (assuming n1/2 rows and n1/2
    columns) O(n3/2)
  • Note Test time for 4Mb 150 ns memory
  • For O(n2) test O(20 days), and for O(n3/2 )
    test O(14 sec.)

36
5.1 March tests
  • The simplest, and most efficient tests for
    detecting AFs, SAFs, TFs and CFs are march tests
  • The following march tests are covered
  • MATS
  • Detects AFs and SAFs
  • March C-
  • Detects AFs, SAFs, TFs, and unlinked CFins,
    CFsts, CFids
  • March A
  • Detects AFs, SAFs, TFs, CFins, CFsts, CFids,
    linked CFids (but not linked with TFs)
  • March B
  • Detects AFs, SAFs, TFs, CFins, CFsts, CFids,
    linked CFids

37
5.2 MATS
  • MATS algorithm ?(w0)?(r0,w1)?(r1,w0)
  • Fault coverage
  • AFs detected because MATS satisfies Cond. AF
  • (When reads, accessing multiple cells,
    return a random value)
  • Cond. AF 1. ?(rx,,wx) and 2.
    ?(rx,,wx)
  • (1) satisfied by ?(r0,w1) and (2) by ?(r1,w0)
  • SAFs are detected from each cell the value 0 and
    1 is read
  • Test length 5n
  • Note If fault model is symmetric with respect to
    0/1, ?/?,
  • and with respect to address a-cell lt v-cell and
    address a-cell gt v-cell,
  • then each march tests has 3 equivalent tests
  • 0s ? 1s ?(w0)?(r0,w1)?(r1,w0)?
    ?(w1)?(r1,w0)?(r0,w1)
  • ?s ? ?s ?(w0)?(r0,w1)?(r1,w0)?
    ?(w0)?(r0,w1)?(r1,w0)
  • 0s?1s,?s??s ?(w1)?(r1,w0)?(r0,w1)??(w1)?(r1
    ,w0)?(r0,w1)

38
5.3 March C-
  • March C (Marinescu,1982) an 11n algorithm
  • ?(w0)?(r0,w1)?(r1,w0)?(r0)?(r0,w1)?(r1,w0)?
    (r0)
  • It can be shown that middle ?(r0) march element
    is redundant
  • March C- (van de Goor,1991) a 10n algorithm
  • ?(w0)?(r0,w1)?(r1,w0)?(r0,w1)?(r1,w0)?(r0)
  • M0 M1 M2 M3 M4
    M5
  • Fault coverage of March C-
  • AFs Cond. AF satisfied by M1 and M4, or by M2
    and M3
  • SAFs Detected by M1 (SA1 faults) and M2 (SA0
    faults)
  • TFs lt?/0gt TFs sensitized by M1, detected by M2
    (and M3M4)
  • lt?/1gt TFs sensitized by M2, detected by
    M3 (and M4M5)
  • CFins detected
  • CFsts detected
  • CFids detected (see proof)

39
5.4 March C- detects CFids
  • March C- ?(w0)?(r0,w1)?(r1,w0)
    ?(r0,w1)?(r1,w0)?(r0)
  • M0 M1 M2 M3
    M4 M5
  • Proof for detecting CFs are all similar. Analyze
    all cases
  • Relative positions of a-cell and v-cell
  • 1. address of a-cell lt v-cell
  • 2. address of a-cell gt v-cell
  • Fault subtype
  • a. CFid lt?0gt b. CFid lt?1gt c. CFid lt?0gt d.
    CFidlt?1gt
  • Consider Case 1a a-cell lt v-cell and CFid lt?0gt
  • Fault sensitized by M3 and detected by M4
  • If the CFid lt?0gta1 (a-cell is a1) is linked to
    CFid lt?1gta2, and address of a2 lt a1 then linked
    fault will not be detected
  • Reason M3 will sensitize both faults, such that
    masking occurs

Linked fault
40
5.5 March A March B
  • March A algorithm (Suk,1981)
  • ?(w0)?(r0,w1,w0,w1)?(r1,w0,w1)?(r1,w0,w1,
    w0)?(r0,w1,w0)
  • M0 M1 M2
    M3 M4
  • March A (Test length 15n) detects
  • AFs, SAFs, TFs, CFins, CFsts, CFids
  • Linked CFids, but not linked with TFs
  • March A is complete detects all intended faults
  • March A is irredundant no operation can be
    removed
  • March B algorithm (Test length 17n)
  • ?(w0)?(r0,w1,r1,w0,r0,w1)?(r1,w0,w1)?(r1,w0,w1
    ,w0)?(r0,w1,w0)
  • M0 M1 M2
    M3 M4
  • Detects all faults of March A
  • Detects CFids linked with TFs, because M1 detects
    all TFs

41
5.6 Test requirements for detecting SOpFs
  • An SOpF is caused by an open WL which makes the
    cell inaccessible
  • To detect SOpFs, assuming a non-transparent sense
    amplifier, a march test has to verify that a 0
    and a 1 has to be read from every cell
  • This will be the case when the march test
    contains the March Element ME of the form (,
    rx, , rx, ), for x 0 and x 1.
  • This ME may be broken down into two MEs of the
    form (,rx,) (, rx,), for for x 0 and x
    1.
  • Example The ME ?(r0,w1,r1,w0,r0,w1) satisfies
    the above requirement
  • Note Any test can be changed to detect SOpFs by
  • making sure that the above requirement is
  • satisfied by possibly adding a rx and/or a rx
  • operation to a ME
  • Example MATS ?(w0)?(r0,w1)?(r1,w0)
  • becomes ?(w0)?(r0,w1,r1) ?(r1,w0,r0)

42
5.7 Test requirements for detecting DRFs
  • Any march test can be extended to detect DRFs
  • Every cell has to be brought into one state
  • A time period (Del) has to be waited for the
    fault to develop
  • Note The time for Del is typically between 100
    and 500 ms
  • The cell contents has to be verified (should not
    be changed)
  • Above three steps to be done for both states of
    the every cell
  • Example MATS ?(w0)?(r0,w1)?(r1,w0)
  • becomes ?(w0)Del?(r0,w1)Del?(r1,w0)

43
6.1 Pseudo-Random PR memory tests
  • Purpose
  • Explain concept of pseudo-random (PR) testing (1)
  • Compute test length of PR tests for SAFs and
    k-CFs (5)
  • Evaluation of PR tests (3)
  • PR pattern generators and test response
    evaluators (2)
  • Sources of material
  • Mazumder, P. and Patel, J.H. (1992). An Efficient
    Design of Embedded Memories and their Testability
    Analysis using Markov Chains. JETTA, Vol. 3, No.
    3 pp. 235-250
  • Krasniewski, A. and Krzysztof, G. (1993). Is
    There Any Future for Deterministic Self-Test of
    Embedded RAMs? In Proc. ETC93 pp. 159-168
  • van de Goor, A.J. (1998). Testing Semiconductor
    Memories, Theory and Practice. ComTex Publishing,
    Gouda, The Netherlands
  • van de Goor, A.J. and de Neef, J. (1999).
    Industrial Evaluation of DRAM Tests. In Proc.
    Design and Test in Europe (DATe99), March 8-13,
    Munich pp. 623-630
  • van de Goor, A.J. and Lin, Mike (1997). The
    Implementation of Pseudo-Random Tests on
    Commercial Memory Testers. In Proc. IEEE Int.
    Test Conf., Washington DC, 1997, pp. 226-235

44
6.2 Concepts of PR memory testing
  • Deterministic tests
  • Control Reference data for the RAM under test
    have predetermined values
  • The Response data of the RAM under test is
    compared with the expected data, in order to make
    Pass/Fail decision
  • Pseudo-random tests
  • Control data on some or all inputs established
    pseudo-randomly
  • Reference data can be obtained from a Reference
    RAM or, as shown, from as compressor

45
6.3 Concepts of PR memory testing
  • Memory tests use
  • control values for
  • Address lines (N)
  • R/W line (1)
  • write data values (B)
  • Deterministic test method
  • Uses deterministic control and write data values
  • In a test the following can be Deterministic (D)
    or PR (R)
  • The Address (A) DA or RA
  • The Write (W) operation DW or RW
  • The Data (D) to be written DD or RD
  • ? MATS is a DADWDD (Det. Addr, Det. Write, Det.
    Data) test
  • In a PR test at least ONE component has to be PR
  • This can be A (Addr.) /or W (Write oper.) /or
    D (Dat)
  • PR tests are preferred above random tests PR
    tests are repeatable

46
6.4 Pseudo-random tests for SAFs
  • Some probabilities for computing the test length
    (TL)
  • The TL is a function of the escape probability
    e
  • p probability that a line has the value 1
  • pa probability that an address line has the
    value 1
  • pd probability that a data line has the value 1
  • pw probability that the write line has the value
    1
  • pA probability of selecting address A (with z 0s
    and N-z 1s)
  • pA (1- pa)z pa(N-z)
  • p1 probability of writing 1 to address A p1
    pd pw pA
  • p0 prob. of writing 0 to address A p0 (1- pd
    ) pw pA
  • pr probability of reading address A pr (1-
    pw ) pA

47
6.5 Test length of PR test for SAFs
  • Markov chain for detecting a SA0 fault (SA1 fault
    is similar)
  • S0 state in which a 0 is stored in the cell
  • S1 state in which a 1 should be in the cell
  • SD0 state in which SA0 fault is detected
    (absorbing state)
  • pS0(t) probability of being in state S0 at time
    t
  • Initial conditions pS0(0) 1-pI1, pS1(0) pI1
    , pSD0(0) 0
  • pS0(t) (1- p1)pS0(t-1) p0 pS1(t-1)
  • pS1(t) p1pS0(t-1) (1- p0 -pr) pS1(t-1)
  • pSD0(t) prpS1(t-1) pSD0(t-1)

1-(p0pr)
1
48
6.6 Test length of PR test for SAFs
  • With deterministic testing fault detected with
    certainty
  • With PR testing fault detected with an escape
    probability e
  • SA0 fault is detected when pSD0(t) ? 1-e T0(e)
    is TL for SA0 faults
  • T(e) The test length for SAFs is T(e)
    max(T0(e),T1(e))

Test length coefficient Independent of n
proportional with ln(e)
Test length coefficient
49
6.7 Test length of PR tests for k-CFs
  • PR tests for k-CFids the k cells may be located
    anywhere
  • For k 2 the test will be for CFids for k gt2 the
    for PSFs
  • To sensitize the CFid the k-2 cells require
    enabling value G
  • For k 5, there are k-2 3 enabling cells
  • Assume G 110 g1g2g3 then pG pd2(1-pd)
  • Several PR tests for k-CFs exist (2 shown below)
  • DADWRD (Det. Addr., Det. Write, PR Data)
  • Step 1 ?(w?) Initialize memory with PR values
  • Step 2 repeat t times ?(r?,w?) Read and write
    new PR value
  • Step 3 ?(r?) Perform a final read
  • RARWRD (PR Addr, PR Write, PR Data)
  • Step 1 ?(w1) Initialize memory
  • Step 2 repeat t times Generate PR Addr.,
  • perform read with pr1-pw or a write with pw

CFid
50
6.8 Test length of PR tests for k-CFs
Test length coefficients Fault
coverage of RARWRD tests
Note k Neigborhood Size
  • Observations
  • Number of operations roughly doubles if k
    increases by 1
  • The DADARD test is more time efficient
  • The RARWRD test will detect more unanticipated
    faults
  • (Faults of unexpected or unknown fault models)

51
6.9 Test lengths Deterministic -- PR tests
  • Observations
  • Note ANPSFs have k-2 cells in only one position
  • For simple fault models deterministic tests more
    efficient
  • - Detect all faults of some fault models with
    e 0
  • For complex fault models PR tests do exist
  • - PR tests detect all faults of all fault
    models, however with e gt 0

52
6.10 Strengths/weaknesses of PR tests
  • Deterministic tests based on a-priory fault
    models
  • Models usually restricted to the memory cell
    array
  • 5 of real defects not explained (Krasniewski,
    ETC93)
  • Tests detect 100 of targeted faults only
  • Pseudo-random tests
  • Not targeted towards a particular fault model
  • PR tests detect faults of all fault models
    however, with some e gt 0
  • Long test time Test length (TL) proportional to
    ln(e) and 2k-2
  • For CFids 445n (e 10-5) versus 10n (for
    March C-)
  • Less of a problem for SRAMs (e.g.,1 Mwrd, 1ns,
    1000n test takes1s)
  • Random pattern resistant faults
  • with a large data state (e.g., bit line
    imbalance)
  • requiring a large address/operation state (e.g.,
    Hammer tests)
  • Cannot locate faults easily (For laser/dynamic
    repair)
  • Well suited for BIST
  • Very useful for verification purposes
  • Used for production SRAM testing (together with
    deterministic tests)
  • Unknown fault models, short time to volume, high
    speed SRAM
About PowerShow.com
