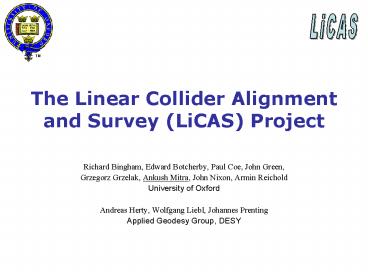

The Linear Collider Alignment and Survey (LiCAS)
Project

• Richard Bingham, Edward Botcherby, Paul Coe, John
  Green,
• Grzegorz Grzelak, Ankush Mitra, John Nixon, Armin
  Reichold
• University of Oxford
• Andreas Herty, Wolfgang Liebl, Johannes Prenting
• Applied Geodesy Group, DESY

2
Contents

• Introduction
• LiCAS Phase I
• Frequency Scanning Interferometry (FSI)
• Straightness Monitors (SM)
• LiCAS Phase II Final Focus Stabilisation
• Summary

3
Requirements for a Linear Collider

• To study interesting physics, LC must be
• High Energy to create massive particles
• High Luminosity to create large numbers of
  particles
• LC must have
• Large accelerating gradients
• VERY small beam cross-sections at IP O(nm)

4
Proposed Linear Collider TESLA
X-FEL

• Collider Length 33km
• Beam Energy 500 GeV
• Beam Luminosity 1034 cm-2 s-1
• Beam Alignment at IP O(nm)
• Collider Alignment Survey

200mm over 600m
5
Why is this hard ?
200mm over 600m

• Temperature pressure gradients inside collider
  tunnel affect open-air measurements
• Ground motion will misalign collider so survey
  must be quick
• These precludes conventional open-air surveying
  techniques

Light gets bent by air refraction
T
6
Survey Procedure

• Two-step Survey procedure
• Survey regularly spaced tunnel wall markers via
  multiple overlapping measurements LiCAS Job
• Measure collider components against wall makers

• Can be done manually with simple instrument
• Advantage
• The same procedure is employed during tunnel
  construction, collider installation, operation
  and maintenance

7
Survey Implementation
Tunnel Wall
Reconstructed tunnel shapes (relative
co-ordinates)
8
Survey Train LiCAS Systems

• An Optical metrology system for survey of a
  linear Collider
• Fast, automated high precision system
• Can operate in tight spaces

9
First Survey Train Carriage

• This carriage forms the mechanical body to hold
  the LiCAS sensors (FSISM).
• The carriage is able to move the sensors into
  position

10
Frequency Scanning Interferometry

• Interferometric length measurement technique
• Require precision of 1mm over 5m
• Originally developed for online alignment of the
  ATLAS SCT tracker

Tunable Laser
Reference Interferometer L
Measurement Interferometer D
(Grid Line Interferometer (GLI))
Change of phase DFGLI
11
FSI Interferometer
Glass BeamSplitter
Tunable Laser
Fibre
Collimator
Retroreflector
Photodiode
Quill
Fibre Splitter

• Common path optical-fibre based interferometer
• Optical fibre allows remote delivery and
  measurement
• Allows interferometer heads to be small compact

12
FSI Implementation
½ Sphere mounted retroreflector
Fibre Collimator
13
FSI Results

• A retroreflector was moved perpendicular to FSI
  measurement interferometer
• Error on each measurement is 4mm
• Good for first attempt but still need to achieve
  1mm

14
Straightness Monitors

• Used to measure carriage transverse translations
  and rotations
• Require 1mm precision over length of train

Rotation Spots move opposite directions
Translation Spots move same direction
CCD Camera
15
SM Apparatus
Retroreflector
Beam Splitter
Linear Stage
Rotation Stage
16
SM Results Linear Translation
CCD 1
The beam spots move in the same direction for
translation
CCD 0
17
SM Rotation
CCD 1
The beam spots move in the opposite directions
for rotation
CCD 0
18
Simulations of Train over 600m
Error on positions lt 200mm after 600m
19
End of LiCAS Phase I ..Onto LiCAS Phase II
20
LiCAS Phase II Final Focus Stabilisation

• Final Focus magnets of LC need to be stabilised
  to nanometres
• FSI can provide micron resolution absolute
  measurements.
• Interferometer fed with light from a tunable
  laser
• Michelson interferometry gives differential
  nanometre resolution
• Add fixed frequency laser to interferometer
• Combine to get best of both techniques

Tunable Laser
Photodiode
21
LiCAS Final Focus Stabilisation
Final Focus Magnets
e
Detector
Machine Components

• M-FSI can measure absolute and relative lengths
• Position is not dependent on beam
• Light fed by fibres
• No complex geometry for light path
• Can follow same route as DAQ cables out of
  detector
• Grid can measure all degrees of freedom

22
Summary

• Future linear colliders require precision survey
  and alignment
• The LiCAS group is developing optical metrology
  techniques to address this in collaboration with
  DESY
• General collider alignment survey is a good
  test-bed for LiCAS technology
• Plans to extend LiCAS technology for Final Focus
  stabilisation

23
(No Transcript)
24
Final Focus Stabilisation Optical Anchor

• Use Michelson interferometers to monitor nm
  movement of magnets
• Complex geometry for light path
• Not all degrees of freedom can be measured
• Can only make relative measurements
• Position data lost when beam is lost

Optical Anchor
Final Focus Magnets
e
Detector
Optical Anchor
25
Survey Train External Measurements

• Each carriage measures the position of a
  reference marker in its own co-ordinates
• Q How to tie reference marker co-ordinates
  together

Marker 1 at (x1,y1)
Marker 2 at (x2,y2)
1D FSI Length Measurements
Carriage 2
Carriage 1
26
Survey Train Internal Measurements

• Use internal system to relative positions of
  carriages
• Internal systems ties the external measurements
  together

Marker 1 at (x1,y1)
Marker 2 at (x2,y2)
1D FSI Length Measurements
SM Measurements
Carriage 1
Carriage 2 (xc2,yc2)
27
FSI ATLAS Implementation
28
FSI ATLAS Test Grid

• 6 simultaneous length measurements made between
  four corners of the square.
• 7th interferometer to measure stage position.
• Displacements of one corner of the square can
  then be reconstructed.

29
FSI ATLAS Resolution
30
FSI ATLAS Resolution

• Stage is kept stationary
• RMS 3D Scatter
• lt 1 mm

31
FSI Installation

• Installation of first components of ATLAS FSI
  system into first carbon fibre barrel.
• Just completed on Tuesday (19/08/2003)

32
Reference Interferometer Phase Extraction

• Reference Interferometer is FSIs yard-stick
• Must measure interferometer phase precisely
• Uses standard technique of Phase-Stepping

Step1 I(ftrue-1.5Df) Step2 I(ftrue-0.5Df) Step3
I(ftrue0.5Df) Step4 I(ftrue1.5Df)
Reference Interferometer mirror moved in 4 equal
sized steps
ftrue
33
Two Laser AM Demodulation

• Need 2 lasers for drift cancellation
• Have both lasers present use AM demodulation to
  electronically separate signals

M1
t0
t1
M2
Laser 1
Laser 2
Detector
t0
t1
34
Two Laser AM Demodulation

• Amplitude Modulation on FSI fringe
• _at_ 40 80 kHz (now) 0.5 1MHz (later)

• High Pass Filter

• FSI fringe stored as amplitude on
• Carrier (à la AM radio)
• Demodulation reproduces FSI Fringes

35
Results of Demodulation
Both signals have same frequency !!
Demodulation of modulated laser does not effect
interferometer signal
36
Getting FSI to nanometres
Tunable Laser
Photodiode

• FSI can provide micron resolution absolute
  measurements.
• Interferometer fed with light from a tunable
  laser
• Michelson interferometry gives differential
  nanometre resolution
• Add fixed frequency laser to interferometer
• Combine to get best of both techniques
