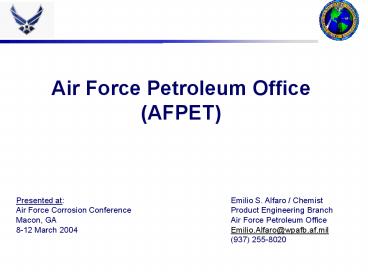

Air Force Petroleum Office (AFPET)

1
Air Force Petroleum Office (AFPET)
Presented at Air Force Corrosion Conference
Macon, GA 8-12 March 2004
Emilio S. Alfaro / Chemist Product Engineering
Branch Air Force Petroleum Office Emilio.Alfaro_at_wp
afb.af.mil [phone]
2
Topics

• Air Force Petroleum Office
• Technical Assistance Branch (AFTH)
• Aerospace Fuels Laboratories (AFTL)
• Product Engineering Branch (AFTT)
• P-D-680
• Deicing Fluids
• Aircraft Cleaning Compound
• Prevention of Internal Corrosion in Compressed
  Gas Cylinders
• FSII Study
• Microbial Growth in Wing Tanks

3
Technical Assistance Branch

• Worldwide support for any fuel problem
  (contamination, equipment failure, etc.)
• Capable of deploying anywhere in the world to
  help solve major fuels problems
• Response team made up of fuels specialists and
  fuel handling equipment specialists

4
Aerospace Fuels Laboratories

• 7 Laboratories Worldwide
• 3 Labs overseas, including the mobile deployed
  lab
• 2 Space Launch Labs Cape Canaveral and
  Vandenberg AFB
• 2 CONUS Labs
• Products Analyzed
• Jet Fuels (JP-8, Jet A, JP-TS, JP-10)
• Gases (Oxygen, Nitrogen, Argon, Air)
• Lubricating Oils, Hydraulic Fluids, Greases,
  Chemicals, and Coolants
• Ground Fuels (Diesel, B20, Gasoline, E85)
• Rocket Fuels and Missile Propellants
• Aircraft Cleaning Compounds, Deicing Fluids

5
Product Engineering Branch

• AFPET Web Site / Shelf Life Update Program
• Technical Orders and Specifications for Aerospace
  Fuels, Lubricants, and Chemicals
• International Standardization Issues
• ASTM International
• NATO
• ASCC
• Others (IATA, AFC)
• Projects of Interest
• P-D-680 Reformulation
• Coordination of New Aircraft Deicing Fluids
• Terpene-free Type I Aircraft Cleaning Compound

6
Shelf Life Program

• https//wpafbres34.wpafb.af.mil/afpet/

7
P-D-680 Dry Cleaning Compound

• Original P-D-680 specification canceled and
  replaced by MIL-PRF-680, a reformulated, safer
  solvent
• MIL-PRF-680 now has a QPL
• MIL-PRF-680 does not meet the requirements of all
  DOD users
• The original P-D-680 formulation was reinstated
  in the specification A-A-59601
• Recommend using MIL-PRF-680 if it meets your
  requirements
• FEDLOG has the NSNs for P-D-680 and A-A-59601
  linked

8
New Aircraft Deicing Fluids

• New Non-Glycol Based Deicing Fluids
• Non-toxic, Non-corrosive
• Environmentally Friendly (Low BOD)
• First Major Chemical Composition Change to T.O.
  42C-1-2 in Decades
• Products
• METSS ADF-2
• Battelle D3 Degradable by Design
• Foster Miller Inc. formulations
• Toxic-free glycol reformulations

9
ADF-2 by METSS

• Non-toxic / bio-based product
• All natural / environmentally friendly
• 50 BOD of propylene glycol (PG) fluids
• 100 biodegradable / non-corrosive
• Readily available / cost effective
• Qualified to SAE AMS 1424
• Equal or better performance than PG-based deicing
  fluids
• Operational problems experienced during heated
  applications
• Indications that AMS 1424 specification needs to
  be re-written
• Unless AMS 1424 is rewritten, it will be
  difficult to implement any bio-based deicing
  fluids

10
ADF-2 by METSS
Streaking Effect
Run-off
11
ADF-2 by METSS
Inside Window Effect
12
D3 by Battelle Corp.

• Bio-based formulation
• Initially qualified to SAE AMS 1424C
• Failed operational testing due to excessive
  foaming
• Failed on Feb 2003 and March 2004
• New formulation must be re-certified to SAE AMS
  1424
• Same problems (potentially) as with other
  bio-based formulations
• Same problems with AMS 1424

13
Foster Miller Inc. Formulation

• Triethylene glycol / glycerol formulation
• In early stages of qualification
• Presently seeking funding for materials
  compatibility testing
• 85 BOD of PG-based deicing fluids
• Non-toxic / bio-degradable
• Less corrosive than distilled water
• Drop-in replacement

14
Toxic-Free Glycol Reformulations

• NASA Ames non-toxic PG-based fluid
• Cryotech non-toxic PG-based fluid
• High BOD
• Non-toxic, triazole free

15
Runway Deicing Fluids

• Ethylene Glycol prohibited from use
• Glycol/Urea may be used until supplies exhausted
• 50 solution of potassium acetate is now most
  common type
• Sodium formate and sodium acetate also in use

16
Runways Potassium Acetate

• Environmentally friendly
• High performance (-60F freezing point)
• Dries rapidly
• Reduced conductivity
• Some corrosion issues

17
Aircraft Cleaning Compound

• Draft MIL-PRF-87937 revision E to include a
  terpene-free Type I aircraft cleaning compound
• The proposed Type V cleaning compound meets all
  the Type I requirements except it is terpene-free
• Purpose Some installations cannot use Type I
  cleaning compounds because of the terpenes
  environmental concerns
• Type V may not be as an effective cleaner for
  every application

18
Prevention of Internal Corrosion in Compressed
Gas Cylinders

• Most internal corrosion of compressed gas
  cylinders is caused by moisture in the air
• Air enters the cylinders when the cylinder
  pressure falls below 1 atm (14.7 psi)
• Especially designed cylinders in use in the UK
  prevent air from entering the cylinder by use of
  a back-flow valve
• The back-flow valve prevents moisture from
  entering the cylinder and causing corrosion
• This greatly extends the life of the cylinder

19
FSII Study

• AFPET has contracted with Radian (and C4e) to do
  the FSII study
• Can FSII be safely eliminated from JP-8?
• What level of protection does FSII provide to
  prevent free water from freezing in the fuel tank
• FSII is known to be corrosive and has been
  tentatively linked to top coat peeling
• The AF Materials Lab is conducting experiments to
  determine if the top coat peeling is related to
  free water and FSII in aircraft wing tanks

20
Microbial Growth in Wing Tanks

• The AFPET has been tracking increasing numbers of
  aircraft contaminated with microbial growth
• ASC/EN and the AFPET have prepared an Aircraft
  Advisory on the Water and Microorganism
  Contaminants in USAF Aircraft Fuels
• AFRL is preparing a study on the problems
  associated with microbial growth in aircraft and
  fuel handling equipment
• Initial indications are that FSII might not be
  controlling microbial growth in fuel tanks
• The potential for microbial induced corrosion
  exists as long as the microbial growth goes
  untreated

21
Any Questions?
