Christopher M' Bishop

1

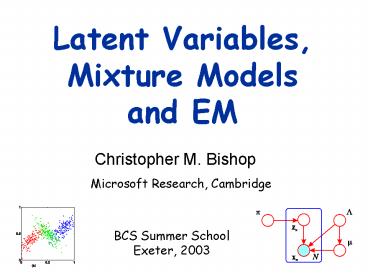

Latent Variables,Mixture Modelsand EM

• Christopher M. Bishop

Microsoft Research, Cambridge
BCS Summer SchoolExeter, 2003
2
Overview

• K-means clustering
• Gaussian mixtures
• Maximum likelihood and EM
• Probabilistic graphical models
• Latent variables EM revisited
• Bayesian Mixtures of Gaussians
• Variational Inference
• VIBES

3
Old Faithful
4
Old Faithful Data Set
Time betweeneruptions (minutes)
Duration of eruption (minutes)
5
K-means Algorithm

• Goal represent a data set in terms of K clusters
  each of which is summarized by a prototype
• Initialize prototypes, then iterate between two
  phases
• E-step assign each data point to nearest
  prototype
• M-step update prototypes to be the cluster means
• Simplest version is based on Euclidean distance
• re-scale Old Faithful data

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Responsibilities

• Responsibilities assign data points to
  clusterssuch that
• Example 5 data points and 3 clusters

16
K-means Cost Function
17
Minimizing the Cost Function

• E-step minimize w.r.t.
• assigns each data point to nearest prototype
• M-step minimize w.r.t
• gives
• each prototype set to the mean of points in that
  cluster
• Convergence guaranteed since there is a finite
  number of possible settings for the
  responsibilities

18
(No Transcript)
19
(No Transcript)
20
Limitations of K-means

• Hard assignments of data points to clusters
  small shift of a data point can flip it to a
  different cluster
• Not clear how to choose the value of K
• Solution replace hard clustering of K-means
  with soft probabilistic assignments
• Represents the probability distribution of the
  data as a Gaussian mixture model

21
The Gaussian Distribution

• Multivariate Gaussian
• Define precision to be the inverse of the
  covariance
• In 1-dimension

22
Likelihood Function

• Data set
• Assume observed data points generated
  independently
• Viewed as a function of the parameters, this is
  known as the likelihood function

23
Maximum Likelihood

• Set the parameters by maximizing the likelihood
  function
• Equivalently maximize the log likelihood

24
Maximum Likelihood Solution

• Maximizing w.r.t. the mean gives the sample
  mean
• Maximizing w.r.t covariance gives the sample
  covariance

25
Bias of Maximum Likelihood

• Consider the expectations of the maximum
  likelihood estimates under the Gaussian
  distribution
• The maximum likelihood solution systematically
  under-estimates the covariance
• This is an example of over-fitting

26
Intuitive Explanation of Over-fitting
27
Unbiased Variance Estimate

• Clearly we can remove the bias by usingsince
  this gives
• Arises naturally in a Bayesian treatment (see
  later)
• For an infinite data set the two expressions are
  equal

28
Gaussian Mixtures

• Linear super-position of Gaussians
• Normalization and positivity require
• Can interpret the mixing coefficients as prior
  probabilities

29
Example Mixture of 3 Gaussians
30
Contours of Probability Distribution
31
Surface Plot
32
Sampling from the Gaussian

• To generate a data point
• first pick one of the components with probability

• then draw a sample from that component
• Repeat these two steps for each new data point

33
Synthetic Data Set
34
Fitting the Gaussian Mixture

• We wish to invert this process given the data
  set, find the corresponding parameters
• mixing coefficients
• means
• covariances
• If we knew which component generated each data
  point, the maximum likelihood solution would
  involve fitting each component to the
  corresponding cluster
• Problem the data set is unlabelled
• We shall refer to the labels as latent ( hidden)
  variables

35
Synthetic Data Set Without Labels
36
Posterior Probabilities

• We can think of the mixing coefficients as prior
  probabilities for the components
• For a given value of we can evaluate the
  corresponding posterior probabilities, called
  responsibilities
• These are given from Bayes theorem by

37
Posterior Probabilities (colour coded)
38
Posterior Probability Map
39
Maximum Likelihood for the GMM

• The log likelihood function takes the form
• Note sum over components appears inside the log
• There is no closed form solution for maximum
  likelihood

40
Over-fitting in Gaussian Mixture Models

• Singularities in likelihood function when a
  component collapses onto a data pointthen
  consider
• Likelihood function gets larger as we add more
  components (and hence parameters) to the model
• not clear how to choose the number K of
  components

41
Problems and Solutions

• How to maximize the log likelihood
• solved by expectation-maximization (EM) algorithm
• How to avoid singularities in the likelihood
  function
• solved by a Bayesian treatment
• How to choose number K of components
• also solved by a Bayesian treatment

42
EM Algorithm Informal Derivation

• Let us proceed by simply differentiating the log
  likelihood
• Setting derivative with respect to equal to
  zero givesgivingwhich is simply the
  weighted mean of the data

43
EM Algorithm Informal Derivation

• Similarly for the covariances
• For mixing coefficients use a Lagrange multiplier
  to give

44
EM Algorithm Informal Derivation

• The solutions are not closed form since they are
  coupled
• Suggests an iterative scheme for solving them
• Make initial guesses for the parameters
• Alternate between the following two stages
• E-step evaluate responsibilities
• M-step update parameters using ML results

45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
Digression Probabilistic Graphical Models

• Graphical representation of a probabilistic model
• Each variable corresponds to a node in the graph
• Links in the graph denote relations between
  variables
• Motivation
• visualization of models and motivation for new
  models
• graphical determination of conditional
  independence
• complex calculations (inference) performed using
  graphical operations (e.g. forward-backward for
  HMM)
• Here we consider directed graphs

52
Example 3 Variables

• General distribution over 3 variables
• Apply product rule of probability twice
• Express as a directed graph

53
General Decomposition Formula

• Joint distribution is product of conditionals,
  conditioned on parent nodes
• Example

54
EM Latent Variable Viewpoint

• Binary latent variables
  describing which component generated each data
  point
• Conditional distribution of observed variable
• Prior distribution of latent variables
• Marginalizing over the latent variables we obtain

55
Expected Value of Latent Variable

• From Bayes theorem

56
Graphical Representation of GMM
57
Complete and Incomplete Data
complete
incomplete
58
Graph for Complete-Data Model
59
Latent Variable View of EM

• If we knew the values for the latent variables,
  we would maximize the complete-data log
  likelihoodwhich gives a trivial closed-form
  solution (fit each component to the corresponding
  set of data points)
• We dont know the values of the latent variables
• However, for given parameter values we can
  compute the expected values of the latent
  variables

60
Expected Complete-Data Log Likelihood

• Suppose we make a guess for the parameter
  values (means, covariances and mixing
  coefficients)
• Use these to evaluate the responsibilities
• Consider expected complete-data log likelihood
  where responsibilities are computed using
• We are implicitly filling in latent variables
  with best guess
• Keeping the responsibilities fixed and maximizing
  with respect to the parameters give the previous
  results

61
K-means Revisited

• Consider GMM with common covariances
• Take limit
• Responsibilities become binary
• Expected complete-data log likelihood becomes

62
EM in General

• Consider arbitrary distribution over the
  latent variables
• The following decomposition always holdswhere

63
Decomposition
64
Optimizing the Bound

• E-step maximize with respect to
• equivalent to minimizing KL divergence
• sets equal to the posterior distribution
• M-step maximize bound with respect to
• equivalent to maximizing expected complete-data
  log likelihood
• Each EM cycle must increase incomplete-data
  likelihood unless already at a (local) maximum

65
E-step
66
M-step
67
Bayesian Inference

• Include prior distributions over parameters
• Advantages in using conjugate priors
• Example consider a single Gaussian over one
  variable
• assume variance is known and mean is unknown
• likelihood function for the mean
• Choose Gaussian prior for mean

68
Bayesian Inference for a Gaussian

• Posterior (proportional to product of prior and
  likelihood) will then also be Gaussianwhere

69
Bayesian Inference for a Gaussian
70
Bayesian Mixture of Gaussians

• Conjugate priors for the parameters
• Dirichlet prior for mixing coefficients
• Normal-Wishart prior for means and
  precisionswhere the Wishart distribution is
  given by

71
Graphical Representation

• Parameters and latent variables appear on equal
  footing

72
Variational Inference

• As with many Bayesian models, exact inference for
  the mixture of Gaussians is intractable
• Approximate Bayesian inference traditionally
  based on Laplaces method (local Gaussian
  approximation to the posterior) or Markov chain
  Monte Carlo
• Variational Inference is an alternative, broadly
  applicable deterministic approximation scheme

73
General View of Variational Inference

• Consider again the previous decomposition, but
  where the posterior is over all latent variables
  and parameterswhere
• Maximizing over would give the true
  posterior distribution but this is intractable
  by definition

74
Factorized Approximation

• Goal choose a family of distributions which are
• sufficiently flexible to give good posterior
  approximation
• sufficiently simple to remain tractable
• Here we consider factorized distributions
• No further assumptions are required!
• Optimal solution for one factor, keeping the
  remained fixed
• Coupled solutions so initialize then cyclically
  update

75
Lower Bound

• Can also be evaluated
• Useful for maths/code verification
• Also useful for model comparison

76
(No Transcript)
77
(No Transcript)
78
Illustration Univariate Gaussian

• Likelihood function
• Conjugate priors
• Factorized variational distribution

79
Variational Posterior Distribution

• where

80
Initial Configuration
81
After Updating
82
After Updating
83
Converged Solution
84
Exact Solution

• For this very simple example there is an exact
  solution
• Expected precision given by
• Compare with earlier maximum likelihood solution

85
Variational Mixture of Gaussians

• Assume factorized posterior distribution
• Gives optimal solution in the formwhere
  is a Dirichlet, and is a
  Normal-Wishart

86
Sufficient Statistics

• Small computational overhead compared to maximum
  likelihood EM

87
Variational Equations for GMM
88
Bound vs. K for Old Faithful Data
89
Bayesian Model Complexity
90
Sparse Bayes for Gaussian Mixture

• Instead of comparing different values of K, start
  with a large value and prune out excess
  components
• Treat mixing coefficients as parameters, and
  maximize marginal likelihood Corduneanu
  Bishop, AIStats 01
• Gives simple re-estimation equations for the
  mixing coefficients interleave with variational
  updates

91
(No Transcript)
92
(No Transcript)
93
General Variational Framework

• Currently for each new model
• derive the variational update equations
• write application-specific code to find the
  solution
• Both stages are time consuming and error prone
• Can we build a general-purpose inference engine
  which automates these procedures?

94
Lower Bound for GMM
95
VIBES

• Variational Inference for Bayesian Networks
• Bishop and Winn (1999)
• A general inference engine using variational
  methods
• Models specified graphically

96
Example Mixtures of Bayesian PCA
97
Solution
98
Local Computation in VIBES

• A key observation is that in the general
  solutionthe update for a particular node (or
  group of nodes) depends only on other nodes in
  the Markov blanket
• Permits a local object-oriented implementation

99
Shared Hyper-parameters
100
Take-home Messages

• Bayesian mixture of Gaussians
• no singularities
• determines optimal number of components
• Variational inference
• effective solution for Bayesian GMM
• optimizes rigorous bound
• little computational overhead compared to EM
• VIBES
• rapid prototyping of probabilistic models
• graphical specification

101
Viewgraphs, tutorials andpublications available
from

• http//research.microsoft.com/cmbishop
