Normalisation

1

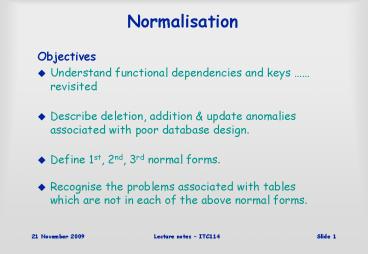

Normalisation

• Objectives
• Understand functional dependencies and keys
  revisited
• Describe deletion, addition update anomalies
  associated with poor database design.
• Define 1st, 2nd, 3rd normal forms.
• Recognise the problems associated with tables
  which are not in each of the above normal forms.

2
Functional Dependencies and Keys

• Functional dependencies and keys are fundamental
  to understanding the process of normalisation.
• Key words to look out for are functionally
  determines and functionally depends on.
• Functionally Determines .. By knowing the value
  of one particular attribute A, then you can
  determine a unique value of attribute B
• In the above situation, attribute A
  functionally determines attribute B.
• An example Your student ID functionally
  determines your student record

3
More on functional dependencies ..

• 2. Functionally Depends On .. A unique value of
  the attribute B can only be found by knowing the
  value of Attribute A.
• In the above situation, the value of attribute B
  functionally depends on the value of attribute A
• An example student name functionally depends on
  the the value of student ID

4
A good check

• When stating either functionally determines
  or functionally dependent on
• . remember that only ONE value can determine
  another value and vice versa that is only one
  unique value can exist as a result of a key.

5
Keys ..

• A primary key exists in a table if
• All the non-key attributes in the table are
  functionally dependent on the key
• No subcollection of the columns in the key also
  has the above property.

6
Consider the following tables
7
Answer the following questions ref p. 105

• Is Order date functionally dependent on Order
  Number?
• Is Customer Number functionally dependent on
  Order Number?
• Does Order date functional determine the Order
  number?
• For the Part table, is On-Hand functionally
  dependent on Part Description?
• In the Order Line table, is the Number Ordered
  dependent on Order Number?
• In the Order Line table, is the Number Ordered
  functionally dependent on the Part Number?

8
Design issues for a database

• Associate an entity with one piece of data only
• Define as character fields unless items are used
  in calculations
• Carefully consider the size of character fields
  not too large not too small
• Do not store derived data on a record
• Use dates rather than numbers to represent
  duration.
• Aim to design your database correctly in the
  first instance.

9
Normalization

• TABLES are the basis structure of the relational
  database and they need to be properly designed.
• the process to achieve this is referred to as
  normalisation
• Normalisation attempts to efficiently assign
  attributes to tables.
• Normalisation will
• reduces data redundancies (does not eliminate it)
• help eliminate data anomalies.

10
Data anomalies

• Modification anomaly
• If data is stored in more than one place in the
  database and a modification is made in one table
  but not another one then a modification anomaly
  exists
• Insertion anomaly
• When a new tuple is created an insertion anomaly
  can occur if
• The value of one attribute is not known
• An error occurs with the data entry

11
Data Anomalies

• Deletion Anomaly
• Is where an inconsistency arises in the database
  where data in a particular a record is deleted
  resulting in information being no longer
  available.
• The DBMS will ensure that NO data anomalies will
  occur.
• SO WHAT IS THE ACTUAL PROCESS OF NORMALISATION?

12
Normalisation

• Summary
• 1NF all attributes atomic - no repeating fields.
• 2NF all non-key attributes fully dependent
  on whole primary key.
• 3NF non transitive dependencies.
• BCNF every determinant is a candidate key.
• 4NF no multi-valued dependencies.
• DK/NF all constraints on relations are logical
  consequences of domains and key.

ITC114 ITC423
13
Normalisation

• Consider the following example
• Project Project Employee Employee Job
  Chg/ Hours Total
• Num Name No. Name Class
  Hour Billed Charge
• Golf 125 John Dig 12 10 120
  102 Mary Cut 15 20 300
  109 Peter Mow 5 15 75
• Tennis 102 Mary Cut 15 10 150
  109 Peter Mow 5 20
  100
• 3 Footy 101 Pam Chop 20 5
  100 102 Mary Cut 15 30 45
• Data redundancies creates the following
  anomalies
• update anomalies
• addition (or insertion) anomalies
• deletion anomalies.

ITC114
14
Normalization

• Data redundancy a potential problem with all
  databases - it can also cause
• wasted data and wasted disk space.
• potential integrity problems.
• impact on performance.
• additional management processing requirements
  for data.

ITC114
15
Normalization

• 1. First Normal form (1NF)
• A table is in 1NF if
• there are no repeating groups (multiple entries
  for a single record)
• each attribute is defined and is atomic.
• all key attributes are clearly defined.

ITC114
16

• The NORMALIZATION Process
• 1. First Normal Form
• Project Project Employee Employee Job
  Chg/ Hours TotalNum Name No.
  Name Class Hour Billed
  Charge1 Golf 123 John Dig
  12 10 120 102 Mary
  Cut 15 20 300
  109 Peter
  Mow 5 15 75

ITC114
17
Normalization
1st Normal Form (1NF) example....

• 1.1 Remove Repeating Groups how do you do this?
• Project Project Employee Employee Job
  Chg/ Hours Num Name No.
  Name Class Hour Billed 1
  Golf 123 John Dig 12 10
  1 Golf 102 Mary Cut
  15 20 1 Golf
  109 Peter Mow 5 15

• 1.2 Create a primary key for this table which
  key will uniquely identify all other non-key
  attributes
• Project Num Employee No.
• 1.3 Finally check each attribute is atomic.
• This table is now in 1NF but there are still
  problems .......

ITC114
18
Normalization

• 2. Second Normal form (2NF)
• A table is in 2NF if
• it is in 1NF.
• there are no partial dependencies.
• Partial Dependency
• A partial dependency occurs if any non key
  attribute/s is/are only dependent on part of the
  primary key.

ITC114
19
Second Normal Form (2NF) example..
Normalization

• Project Project Employee Employee Job
  Chg/ Hours Num Name No.
  Name Class Hour Billed1 Golf 123
  John Dig 12 10 1
  Golf 102 Mary Cut 15
  20 1 Golf 109
  Peter Mow 5 15
• In the above
• Employee Name dependent on Employee No NOT
  Project Num
• Project Name dependent on Project Num NOT
  Employee No.To be in 2NF we must remove some of
  the attributes from the above table to produce X
  new tables e.g.

ITC114
20
Second Normal Form (2NF) example..
Normalization

• To determine the tables required ask the
  question1. What primary key attributes are each
  of the non-key attributes functionally dependent
  on?
• 2. For each new primary key that can be
  identified
• create a new table with the new key identified
  as the primary keys for that table (but still
  leave the key in the 1NF table.
• remove the non-key attributes out of the 1NF
  table that are functionally dependent on this new
  key and put them into the new table created
  above.
• OUTCOME These steps will help you identify the
  tables you need to produce - for all tables to
  be in 2NF.

ITC114
21
Second Normal Form (2NF) example..
Normalization

• Table 1 - Employee Table 2 ProjectEmployee
  Employee Job Chg/ Project Project
  No. Name Class Hour Num
  Name 123 John Dig 12 1
  Golf102 Mary Cut 15 2
  Tennis109 Peter Mow
  5 3 Footy
• Table 3 - Assign table
• Project Employee HoursNum No.
  Billed1 123 10 1 102
  20 1 109 15

ITC114
22
Dependency Diagram 2nd Normal Form
Normalization
Table name PROJECT
P_NAME
P_NO
Table name EMPLOYEE
E_NO
E_NAME
J_CLASS
CHG_HR
Table name ASSIGN
E_NO
P_NO
HOURS
ITC114
23
Third Normal Form (3NF)
Normalization

• A Table is in 3NF
• if it is in 2NF and
• if it contains no transitive dependencies.
• Transitive dependency
• no non-key attribute can be functionally
  dependent on another non-key attribute.

ITC114
24
3NF

• To remove a transitive dependency
• Identify all the non-key attributes causing a
  transitive dependency from the table not in 3NF.
• Identify the KEY in the transitive dependency.
• Leave a copy of this KEY in the original table
  but put also place it into a new table
• Finally remove all the non-key attributes
  associated with the transitive dependency and
  also place in the new table

25
Third Normal Form (3NF) example...
Normalization

• Original Employee Table 1Employee Employee
  Job Chg/ No. Name
  Class Hour 123 John Dig
  12 102 Mary Cut 15
  109 Peter Mow 5
• Table 2 New Employee Table 4 - Charge
  Employee Employee Job Job Chg/
  No. Name Class Class Hour
  123 John Dig Dig
  12 102 Mary Cut Cut
  15 109 Peter Mow Mow
  5

ITC114
26
Dependency Diagram 3rd Normal Form
Table name PROJECT
P_NAME
P_NO
Table name EMPLOYEE
E_NO
E_NAME
J_CODE
Table name JOB
J_CLASS
J_CODE
CHG_HR
Table name ASSIGN
E_NO
P_NO
HOURS
ITC114
27
Denormalization

• Normalization is not the end of the story
  .......
• Other factors need to be considered
• physical processing requirements.
• practicalities e.g. is it worth having a lot of
  tables.
• Denormalization is common sense - we will see
  this in the design section.

ITC114
28
Consider the text example ..
29
1NF
30
2NF

• To be in 2NF each of the non-key attributes
  MUST be functionally dependent on the PRIMARY KEY
  not just part of it.
• To do this we can identify all the functional
  dependencies for the table in 1 NF
• Order No. ? Order Date
• Part No. ? Part Description
• Order No., Part No. ? Number Ordered, Quoted
  Price

31
2NF
32
This is what we now end up with .
33
3NF
34
Dependency diagram
35
3NF
