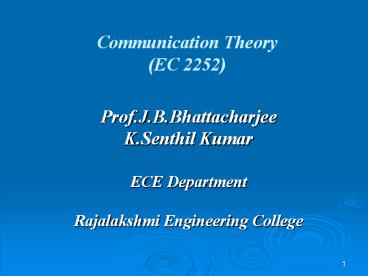

Communication Theory (EC 2252)

1
Communication Theory (EC 2252)

• Prof.J.B.Bhattacharjee
• K.Senthil Kumar
• ECE Department
• Rajalakshmi Engineering College

2
Review of Spectral characteristics

• Periodic and Non-periodic Signals A signal is
  said to be periodic, if it exhibits periodicity.
  i.e.,
• x(t T)x(t) , for all values of t.
• Periodic signal has the property that it is
  unchanged by a time shift of T. A signal that
  does not satisfy the above periodicity property
  is called a non-periodic signal.
• Periodic signals can be represented using the
  Fourier Series. Non-periodic signals can be
  represented using the Fourier Transform.
• Both Fourier series and Fourier Transform deal
  with the representation of the signals as a
  combination of sine and cosine waves.

3
Fourier Series

• Fourier series a complicated waveform analyzed
  into a number of harmonically related sine and
  cosine functions
• A continuous periodic signal x(t) with a period T
  may be represented by
• x(t)S8k1 (Ak cos k? t Bk sin k? t) A0
• Dirichlet conditions must be placed on x(t) for
  the series to be valid the integral of the
  magnitude of x(t) over a complete period must be
  finite, and the signal can only have a finite
  number of discontinuities in any finite interval

4
Fourier Series Equations

• The Fourier series represents a periodic signal
  Tp in terms of frequency components
• We get the Fourier series coefficients as
  follows
• The complex exponential Fourier coefficients are
  a sequence of complex numbers representing the
  frequency component ?0k.

5

• Periodic signals represented by Fourier Series
  have Discrete spectra.

6
The Fourier Transform

• Fourier transform is used for the non-periodic
  signals. A Fourier transform converts the signal
  from the time domain to the spectral domain.
• Continuous Fourier Transform

7

• Non-periodic signals represented by Fourier
  transform have Continuous spectra.

8
Fourier Transform PairsNote ? stands for
rectangular function. ? stands for triangular
function.
9
Introduction to Communication Systems

• Communication Basic process of exchanging
  information from one location (source) to
  destination (receiving end).
• Refers process of sending, receiving and
  processing of information/signal/input from one
  point to another point.

Source
Destination
Flow of information
Figure 1 A simple communication system
10

• Electronic Communication System defined as the
  whole mechanism of sending and receiving as well
  as processing of information electronically from
  source to destination.
• Example Radiotelephony, broadcasting,
  point-to-point, mobile communications, computer
  communications, radar and satellite systems.

11
Objectives

• Communication System to produce an accurate
  replica of the transmitted information that is to
  transfer information between two or more points
  (destinations) through a communication channel,
  with minimum error.

12
NEED FOR COMMUNICATION

• Interaction purposes enables people to interact
  in a timely fashion on a global level in social,
  political, economic and scientific areas, through
  telephones, electronic-mail and video conference.
• Transfer Information Tx in the form of audio,
  video, texts, computer data and picture through
  facsimile, telegraph or telex and internet.
• Broadcasting Broadcast information to masses,
  through radio, television or teletext.

13
Terms Related To Communications

• Message physical manifestation produced by the
  information source and then converted to
  electrical signal before transmission by the
  transducer in the transmitter.
• Transducer Device that converts one form of
  energy into another form.
• Input Transducer placed at the transmitter
  which convert an input message into an electrical
  signal.
• Example Microphone which converts sound energy
  to electrical energy.

Input Transducer
Electrical Signal
Message
14

• Output Transducer placed at the receiver which
  converts the electrical signal into the original
  message.
• Example Loudspeaker which converts electrical
  energy into sound energy.
• Signal electrical voltage or current which
  varies with time and is used to carry message or
  information from one point to another.

Electrical Signal
Output Transducer
Message
15
Elements of a Communication System

• The basic elements are Source, Transmitter,
  Channel, Receiver and Destination.

Information Source
Transmitter
Channel Transmission Medium
Receiver
Destination
Noise
Figure Basic Block Diagram of a Communication
System
16
Function of each Element.

• Information Source the communication system
  exists to send messages. Messages come from
  voice, data, video and other types of
  information.
• Transmitter Transmit the input message into
  electrical signals such as voltage or current
  into electromagnetic waves such as radio waves,
  microwaves that is suitable for transmission and
  compatible with the channel. Besides, the
  transmitter also do the modulation and encoding
  (for digital signal).

17
Block Diagram of a Transmitter
Transmitting Antenna

• 5 minutes exercise
• Describe the sequence of events that happen at
  the radio waves station during news broadcast?

Audio Amplifier
Modulator
RF Amplifier
Modulating Signal
Carrier Signal
18

• Channel/Medium is the link or path over which
  information flows from the source to destination.
  Many links combined will establish a
  communication networks.
• There are 5 criteria of a transmission system
  Capacity, Performance, Distance, Security and
  Cost which includes the installation, operation
  and maintenance.
• 2 main categories of channel that commonly used
  are line (guided media) and free space (unguided
  media)

19

• Receiver Receives the electrical signals or
  electromagnetic waves that are sent by the
  transmitter through the channel. It is also
  separate the information from the received signal
  and sent the information to the destination.
• Basically, a receiver consists of several stages
  of amplification, frequency conversion and
  filtering.

20
Block Diagram of a Receiver
Receiving Antenna

• Destination is where the user receives the
  information, such as loud speaker, visual
  display, computer monitor, plotter and printer.

RF Amplifier
Intermediate Frequency Amplifier
Demodulator
Destination
Audio Amplifier
Mixer
Local Oscillator
21
Analog Modulation

• Baseband Transmission
• Baseband signal is the information either in a
  digital or analogue form.
• Transmission of original information whether
  analogue or digital, directly into transmission
  medium is called baseband transmission.
• Example intercom (figure below)

Voice
Speaker
Audio Amplifier
Microphone
Voice
Audio Amplifier
Wire
22
Baseband signal is not suitable for long distance
communication.

• Hardware limitations
• Requires very long antenna
• Baseband signal is an audio signal of low
  frequency. For example voice, range of frequency
  is 0.3 kHz to 3.4 kHz. The length of the antenna
  required to transmit any signal at least 1/10 of
  its wavelength (?). Therefore, L 100km
  (impossible!)
• Interference with other waves
• Simultaneous transmission of audio signals will
  cause interference with each other. This is due
  to audio signals having the same frequency range
  and receiver stations cannot distinguish the
  signals.

23
Modulation

• Modulation defined as the process of modifying
  a carrier wave (radio wave) systematically by the
  modulating signal.
• This process makes the signal suitable for
  transmission and compatible with the channel.
• Resultant signal modulated signal
• 2 types of modulation Analog Modulation and
  Digital Modulation.
• Analogue Modulation to transfer an analogue low
  pass signal over an analogue bandpass channel.
• Digital Modulation to transfer a digital bit
  stream the carrier is a periodic train and one of
  the pulse parameter (amplitude, width or
  position) changes according to the audio signal.

24
Purpose of Modulation Process in Communication
Systems

• To generate modulated signal that is suitable for
  transmission and compatible with the channel.
• To allow efficient transmission increase
  transmission speed and distance, eg
• By using high frequency carrier signal, the
  information (voice) can travel and propagate
  through the air at greater distances and shorter
  transmission time
• Also, high frequency signal is less prone to
  noise and interference. Certain types of
  modulation have the useful property of
  suppressing both noise and interference
• For example, FM use limiter to reduce noise and
  keep the signals amplitude constant. PCM systems
  use repeaters to generate the signal along the
  transmission path.

25
Amplitude Modulation (AM)

• Objectives-
• Recognize AM signal in the time domain, frequency
  domain and trigonometric equation form
• Calculate the percentage of modulation index
• Calculate the upper sidebands, lower sidebands
  and bandwidth of an AM signal by given the
  carrier and modulating signal frequencies
• Calculate the power related in AM signal
• Define the terms of DSBSC, SSB and VSB
• Understand the modulator and demodulator
  operations

26
Introduction

• Modulation
• The alteration of the amplitude, phase or
  frequency of an oscillator in accordance with
  another signal.
• Input signal is encoded in a format suitable for
  transmission
• A low frequency information signal is encoded
  over a higher frequency signal
• Carrier Signal
• Sinusoidal wave,
• Modulating Signal/Base band
• Information signal,
• Modulated Wave
• Higher frequency signal which is being modulated
• Modulation Schemes
• To counter the effects of multi path fading and
  time-delay spread

27
Modulation Schemes
Carrier Signal, Vc
Modulating Signal, Vm
Modulated Signal VAM VPM VFM
28
Amplitude Modulation

• Time Domain
• Frequency Domain

29
AM Modulator
Modulator
Information Signal
Output
Carrier Signal
30
Amplitude Modulation
Vc
- Vc
Vm
- Vm
Vam
- Vam
31
Modulation Index

• Modulation Index, m
• Indicates the amount that the carrier signal is
  modulated.
• It is an expression of the amount of power in the
  sidebands.
• Modulation level ranges 0-1 where
• 0 no modulation
• 1 full modulation
• gt1 distortion

32
Modulation Index
33
Modulation Index
Vmax
Vmin
Vmax (p-p)
Vmin (p-p)
34
Modulation Index
m 0
m 0.5
m 1
35
Bandwidth
VC
fc

• Bandwidth for AM signal,

fc-fm
fcfm
36
Power Distributions
fc-fm
fcfm
fc

• Total transmitted power, PT
• If R 1,

37
Double Side Band Suppressed Carrier (DSBSC)

• It is a technique where it is transmitting both
  the sidebands without the carrier (carrier is
  being suppressed/cut)
• Characteristics
• Power content less
• Same bandwidth
• Disadvantages - receiver is complex and expensive.

38
Single Side Band (SSB)

• Improved DSBSC and standard AM, which waste power
  and occupy large bandwidth
• SSB is a process of transmitting one of the
  sidebands of the standard AM by suppressing the
  carrier and one of the sidebands

• Advantages
• Saving power
• Reduce BW by 50
• Increase efficiency, increase SNR
• Disadvantages
• Complex circuits for frequency stability

39
Vestigial Side Band (VSB)

• VSB is mainly used in TV broadcasting for their
  video transmissions.
• TV signal consists of
• Audio signal transmitted by FM
• Video signal transmitted by VSB
• A video signal consists a range of frequency and
  fmax 4.5 MHz.
• If it transmitted using conventional AM, the
  required BW is 9 MHz (BW2fm). But according to
  the standard, TV signal is limited to 7 MHz only
• So, to reduce the BW, a part of the LSB of
  picture signal is not fully transmitted.

40
Vestigial Side Band (VSB)

• The frequency spectrum for the TV signal / VSB

Video Carrier
Audio Carrier
Total TV signal bandwidth 7 MHz
4.5 MHz
Lower Video Bands
Upper Video Bands
Upper Audio Bands
Lower Audio Bands
f (MHz)
1.25
5.75
0
6.75
7.0
6.25
41
Modulator Circuits
42
Modulator Circuits
A. Modulating Signal
B. Carrier
C. Sum of carrier and modulating signal
D. Diode current
E. AM output across tuned circuit
43
Demodulator
44
Demodulator
A. AM signal
B. Current pulses through diode
C. Demodulating signal
D. Modulating signal
45
Frequency Modulation (FM)

• Objectives-
• Recognize FM signal in the time domain, frequency
  domain and trigonometric equation form
• Calculate the percentage of modulation index
• Calculate the upper sidebands, lower sidebands
  and bandwidth of an FM signal by Carsonss Rule
  and Bessel Function Table
• Calculate the power related in FM signal
• Understand the modulator and demodulator of FM

46
Introduction

• FM is the process of varying the frequency of a
  carrier wave in proportion to a modulating
  signal.
• The amplitude of the carrier is kept constant
  while its frequency is varied by the amplitude of
  the modulating signal.
• In all types of modulation, the carrier wave is
  varied by the AMPLITUDE of the modulating signal.

• FM signal does not have an envelope, therefore
  the FM receiver does not have to respond to
  amplitude variations ? it can ignore noise to
  some extent.

47
Frequency Modulation
48
Frequency Modulation

• The importance features about FM waveforms are
• The frequency varies
• The rate of change of carrier frequency changes
  is the same as the frequency of the information
  signal
• The amount of carrier frequency changes is
  proportional to the amplitude of the information
  signal
• The amplitude is constant

49
Frequency Modulation

• Carrier Signal
• Sinusoidal wave
• Modulating Signal/Base band
• Information signal
• Modulated Wave
• Higher frequency signal which is being modulated
• Where

50
Frequency Modulation

• Time Domain
• Frequency Domain

51
FM Modulator
52
FM Modulator
Modulator
Information Signal
Output
Carrier Signal
53
Frequency

• Carrier Frequency
• As in FM system, carrier frequency in FM systems
  must be higher than the information signal
  frequency.
• Maximum Frequency
• Minimum Frequency
• Carrier Swing

54
Modulation Index

• Modulation Index, m _at_ ß
• Indicates the amount that the carrier signal is
  modulated.
• It is an expression of the amount of power in the
  sidebands.
• Modulation level ranges 0
• Where
• ?f fd frequency deviation
• fm modulating frequency
• Vm amplitude of modulating signal

55
Modulation Index
ß 1
ß 5
56
Modulation Index
ß 25
57
Modulation Index


58
Bandwidth

• Using Bessel Function, the bandwidth for FM
  signal,
• n number of pairs of the significant
  sidebands
• fm the frequency the modulating signal

59
Bandwidth

• Using Carsons Rule, to estimate the bandwidth
  for an FM signal transmission.
• ?f peak frequency deviation
• fm(max) highest modulating signal frequency

60
Power Distributions

• FM transmitted power, PFM
• where

61
Narrowband FM and Wideband FM

• Narrowband FM has only a single pair of
  significant sidebands.  The value of modulation
  index ß lt1.
• Wideband FM has a large number  (theoretically
  infinite) number of sidebands. The value of
  modulation index ß gt1.

62
Generation of Narrowband FM (NBFM)
_
INTEGRATOR
PRODUCT MODULATOR
S
NBFM WAVE

• The modulator splits the carrier into two paths.
  One path is direct. The other path contains a -90
  degree phase shift unit and a product modulator.
  The difference between the signals in the two
  paths produces the NBFM signal.

-90 PHASE SHIFTER
CARRIER WAVE
MODULATING WAVE
63
Frequency Modulators

• A frequency modulator is a circuit that varies
  carrier frequency in accordance with the
  modulating signal.
• There are two types of frequency modulator
  circuits.
• (1) Direct FM Carrier frequency is directly
  varied by the message through voltage-controlled
  oscillator.
• Eg Varactor diode modulator.
• (2) Indirect FM Generate NBFM first, then NBFM
  is frequency multiplied for targeted ?f.
• Eg Armstrong modulator

64
FM Varactor Modulator
65
The Operation of the Varactor Modulator

• The info signal is applied to the base of the
  input transistor and appears amplified and
  inverted at the collector.
• This low freq signal passes through the RF choke
  (L1) and is applied across the varactor diode.
• Varactor diode behaves as voltage controlled
  capacitor.
• When low reverse biased voltage is applied, more
  capacitance is generated and thus decrease the
  frequency.

66

• When high reverse biased voltage is applied, less
  capacitance is generated and thus increase the
  frequency.
• The varactor diode changes its capacitance in
  sympathy with the info signal and therefore
  changes the total value of the capacitance in the
  tuned circuit.
• The changing value of capacitance causes the
  oscillator freq to increase and decrease under
  the control of the information signal.
• The output is therefore an FM signal.

67
Armstrong of indrect FM generation

• In this method the message signal is first
  subjected to NBFM modulator using a
  crystal-controlled oscillator for generating
  carrier.
• Crystal control provides frequency stability.
• The NBFM wave is next multiplied in frequency by
  using a frequency multiplier so as to produce the
  desired wideband FM.

68
Frequency Demodulator

• The FM demodulating circuits used to recover the
  original modulating signal.
• Any circuit that will convert a frequency
  variation in the carrier back into a proportional
  voltage variation can be used to demodulate or
  detect FM signals.
• A popular method used for FM demodulation is the
  Frequency discriminator.

69
Frequency discriminator
Output of the Frequency discriminator
70

• The Frequency discriminator circuit consists of
  the slope ciruit followed by the envelope
  detector.
• The slope circuit converts the instantaneous
  frequency variations of the FM input signal to
  instantaneous amplitude variations.
• These amplitude variations are rectified by the
  envelope detector to provide a DC output voltage
  which varies in amplitude and polarity with the
  input signal frequency.

71
FM vs AM
Advantages Disadvantages
Better noise immunity Rejection of interfering signals because of capture effect Better transmitter efficiency Excessive use of spectrum More complex and costly circuits
72

• Review of Probability
• Sample Spacethe space of all possible outcomes
  (d)
• Eventa collection of outcomessubset of d
• Probabilitya measure assigned to the events of
  a sample space with the following properties
• for all event A in S
• If A and B are mutually exclusive,
• Theorem
• The Conditional probability of an event A given
  the occurrence of event B is

73

• Two events A and B are independent if
• Random Variables
• A rule which assigns a numerical value to each
  possible outcomes of a chance experiment.
• If the experiment is flipping a coin. Then a
  random variable X can be defined as

S1 H X(S1)1
S2 T X(S2)-1
74

• Cumulative Distribution Function (CDF)
• ?
• Properties of CDF
• 1.
• 2.
• 3.
• Probability Density Function (PDF)
• ?
• Properties of PDF ,
  ,

75

• Random Processes A random process is a mapping
  from the sample space to an ensemble of time
  functions.

76
Gaussian process

• A random process X(t) is a Gaussian process if
  for all n and for all (t1 t2 ... tn), the
  sequence of random variables X(t1), X(t2)...
  X(tn) has a jointly Gaussian density function.
• Central limit theorem
• The sum of a large number of independent and
  identically distributed(i.i.d) random variables
  getting closer to Gaussian distribution.
• Thermal noise can be closely modeled by Gaussian
  process.

77

• Property 1
• For Gaussian process, knowledge of the mean(m)
  and covariance(C) provides a complete statistical
  description of process.
• Property 2
• If a Gaussian process X(t) is passed through a
  LTI system, the output of the system is also a
  Gaussian process. The effect of the system on
  X(t) is simply reflected by the change in mean(m)
  and covariance(C) of X(t).

78
Noise Theory

• Shot noise It results from the shot effect in
  the amplifying devices and active device. It is
  caused by random variation in the arrival of
  electrons (or holes) at the output of the
  devices.
• For diode, the rms shot noise current is given by

79

• Thermal noise is the electrical noise arising
  from the random motion of electrons in a
  conductor. The noise power generated by a
  resistor is given by

80

• White noise It is the idealized form of noise,
  whose spectrum is independent of the operating
  frequency. The power spectral density of white
  noise w(t) is Sw(f)N0 /2. The autocorrelation
  Rw(t) of white noise is an impulse as shown
  below.

81

• Narrow band noise (Ideal case)
• w(t) n(t)
• filtered noise is narrow-band noise
• n(t) nI(t)cos(2?fCt) - nQ(t)sin(2?fCt)
• where nI(t) is inphase, nQ(t) is
  quadrature component
• ? filtered signal x(t)
• x(t) s(t) n(t)
• - Average Noise Power N0BT

82

• Noise Figure
• Consider a signal source. The signal to noise
  ratio (SNR) available from the source is given
  by
• Consider that the source is connected to an
  amplifier with gain G. Since all amplifiers
  contribute noise, the available output SNR will
  be less than the SNR of the source.

83

• The noise power at the output of the amplifier
  will be
• The noise factor F is defined as
• When noise factor is expressed in decibels, it is
  called noise figure.
• Noise figure (F) dB 10logF

84

• The noise power expressed in terms of a
  temperature is callled Noise Temperature.
• If the amplifier noise is Pna , then the
  equivalent noise temperature Te of the amplifier
  is given by the equation

85
AM SUPERHETERODYNE RECEIVER
86

• RF section It generally consists of a
  pre-selector and an amplifier stage. The
  pre-selector is a broad tuned band-pass filter
  with adjustable center frequency that is tuned to
  the desired carrier frequency. The other
  functions of the RF section are detecting, band
  limiting and amplifying the received RF signals.
• Mixer/converter section It is the stage of
  down-converts the received RF frequencies to
  intermediate frequencies (IF) which are simply
  frequencies that fall somewhere between the RF
  and information frequencies, hence the name
  intermediate. This section also includes a local
  oscillator (LO).

87

• IF Section IF or intermediate frequency section
  is the stage where its primary functions are
  amplification and selectivity.
• AM detector Section AM detector section is the
  stage that demodulates the AM wave and converts
  it to the original
• information signal.
• Audio section Audio section is the stage that
  amplifies the recovered information.

88
Performance of CW Modulation Systems

• Introduction
• - Receiver Noise (Channel Noise)
• additive, White, and Gaussian
• Receiver Model
• 1. RX Model

• N0 KTe where K Boltzmanns constant
• Te equivalent noise
  Temp.
• Average noise power per unit
  bandwidth

89
SNR

• The signal x(t) available for demodulation is
  defined by
• The output signal-to-noise ratio (SNR)O is
  defined as the ratio of the average power of the
  demodulated message signal to the average power
  of the noise, both measured at the receiver
  output.
• The channel signal-to-noise ratio, (SNR)C is
  defined as the ratio of the average power of the
  modulated signal to the average power of the
  channel noise in the message bandwidth, both
  measure at the receiver input.
• For the purpose of comparing different CW
  modulation systems, we normalize the receiver
  performance by dividing (SNR)O by (SNR)C. This
  ratio is called figure of merit for the receiver
  and is defined as

90
Noise in DSB-SC Receivers
Lets consider the case of DSB-SC. The expression
for the modulated signal is given as The carrier
wave is statistically independent of the message
signal. The average power of DSB-SC modulated
component of s(t) is
91

• With a noise PSD of N0/2 the average noise power
  in the message bandwidth W equals WN0 (baseband
  scenario).
• Pm is the power of the message. Hence we have
• Finding an expression for (SNR)O, we have

92

• Output of the LPF is
• The power of the signal component at the
  receiver output is . The average
  power of the filtered noise is 2WN0.
• The average noise power at the receiver output is
• Hence we have,

93
Noise in AM receiver using envelope detection

• The expression for AM signal is given as
• where it is assumed that
• The average power of the carrier in the AM signal
  s(t) is
• The average power of the information bearing
  component
• is
• Average power of the full AM signal s(t) is

94

• Hence, the channel signal to noise ratio for AM
  is
• Finding an expression for (SNR)O, we have

95
Threshold Effect

• When carrier-to-noise ratio is small as compared
  to unity the noise term dominates the performance
  of the envelope detector and is completely
  different. Representing the narrowband noise n(t)
  in terms of its envelope and phase, we have
• The phasor diagram for x(t) s(t) n(t) becomes

96

• The noise envelope is used as a reference here
  due to its dominance. Here it is assumed that Ac
  is small as compared to r(t). If we neglect the
  quadrature component of the signal with respect
  to the noise we have
• Hence, when carrier-to-noise ratio is small the
  detector has no component that is strictly
  proportional to the message signal m(t).
  Recalling that is uniformly distributed
  over radians. Hence, it follows that we have a
  complete loss of information at the detector
  output (as expected value will be zero). This
  loss of information m(t) at the output of the
  envelope detector is called the threshold effect.

97
Pre-emphasis and De-emphasis

• FM results is an unacceptably low SNR at the high
  frequency end of the message spectrum. To offset
  this undesirable occurrence, pre-emphasis and
  de-emphasis technique is used.
• Pre-emphasis consists in artificially boosting
  the spectral components in the higher part of the
  message spectrum. This is accomplished by passing
  message signal m(t) , through the pre-emphasis
  filter, denoted Hpe(f) . The pre-emphasized
  signal is used to frequency modulate the carrier
  at the transmitting end.
• In the receiver, the inverse operation,
  de-emphasis, is performed. This is accomplished
  by passing the discriminator output through a
  filter, called the de-emphasis filter, denoted
  Hde(f ) .

98

• Pre-emphasis and de-emphasis in FM
• P.S.D. of noise at FM Rx output
• P.S.D. of typical message signal

99
Information theory

• What is information theory ?
• Information theory is needed to enable the
  communication system to carry information
  (signals) from sender to receiver over a
  communication channel
• it deals with mathematical modelling and analysis
  of a communication system
• its major task is to answer to the questions of
  signal compression and data transfer rate.
• Those answers can be found and solved by entropy
  and channel capacity

100

• Information is a measure of uncertainty. The less
  is the probability of occurrence of a certain
  message, the higher is the information.
• Since the information is closely associated with
  the uncertainty of the occurrence of a particular
  symbol, When the symbol occurs the information
  associated with its occurrence is defined as

101
Entropy

• Entropy is defined in terms of probabilistic
  behaviour of a source of information
• In information theory the source output are
  discrete random variables that have a certain
  fixed finite alphabet with certain probabilities
• Entropy is an average information content for the
  given source symbol. (bits/message)

102

• Rate of information
• If a source generates at a rate of r messages
  per second, the rate of information R is
  defined as the average number of bits of
  information per second.
• H is the average number of bits of information
  per message. Hence
• R rH bits/sec

103
Source Coding

• Source coding (a.k.a lossless data compression)
  means that we will remove redundant information
  from the signal prior the transmission.
• Basically this is achieved by assigning short
  descriptions to the most frequent outcomes of the
  source output and vice versa.
• The common source-coding schemes are prefix
  coding, huffman coding, lempel-ziv coding.

104
Source Coding Theorem

• Source coding theorem states that the output of
  any information source having entropy H units per
  symbol can be encoded into an alphabet having N
  symbols in such a way that the source symbols are
  represented by code words having a weighted
  average length not less than H/logN.
• Hence source coding theorem says that encoding of
  messages from a source with entropy H can be
  done, bounded by the fundamental information
  theoretic limitation that the Minimum average
  number of symbols/message is H/logN.

105
Source coding example

• Prefix coding has an important feature that it is
  always uniquely decodable and it also satisfies
  Kraft-McMillan (see formula 10.22 p. 624)
  inequality term
• Prefix codes can also be referred to as
  instantaneous codes, meaning that the decoding
  process is achieved immediately

106

• Shannon-Fano Coding In ShannonFano coding, the
  symbols are arranged in order from most probable
  to least probable, and then divided into two sets
  whose total probabilities are as close as
  possible to being equal. All symbols then have
  the first digits of their codes assigned symbols
  in the first set receive "0" and symbols in the
  second set receive "1".
• As long as any sets with more than one member
  remain, the same process is repeated on those
  sets, to determine successive digits of their
  codes. When a set has been reduced to one symbol,
  of course, this means the symbol's code is
  complete and will not form the prefix of any
  other symbol's code.

107

• Huffman Coding Create a list for the symbols, in
  decreasing order of probability. The symbols with
  the lowest probability are assigned a 0 and a
  1.
• These two symbols are combined into a new symbol
  with the probability equal to the sum of their
  individual probabilities. The new symbol is
  placed in the list as per its probability value.
• The procedure is repeated until we are left with
  2 symbols only for which 0 and 1 are assigned.
• Huffman code is the bit sequence obtained by
  working backwards and tracking sequence of 0s
  and 1s assigned to that symbol and its
  successors.

108

• Lempel-Ziv Coding A drawback of Huffman code is
  that knowledge of probability model of source is
  needed. Lempel-Ziv coding is used to overcome
  this drawback.
• while Huffmans algorithm encodes blocks of fixed
  size into binary sequences of variable length,
  Lempel-Ziv encodes blocks of varying length into
  blocks of fixed size.
• Lempel-Ziv coding is performed by parsing the
  source data into segments that are the shortest
  subsequences not encountered before.

109
Mutual Information
Source X
Channel
Receiver Y

• Consider a communication system with a source of
  entropy H(X). The entropy on the receiver side be
  H(Y).
• H(XY) and H(YX) are the conditional entropies,
  and H(X,Y) is the joint entropy of X and Y.
• Then the Mutual information between the source X
  and the receiver Y can be expressed as
• I(X,Y) H(X) - H(XY)
• H(X) is the uncertainty of source X and H(X/Y) is
  the uncertainty of X given Y. Hence the quantity
  H(X) - H(XY) represents the reduction in
  uncertainty of X given the knowledge of Y. Hence
  I(X,Y) is termed mutual information.

110
Channel Capacity

• Capacity in the channel is defined as a
  intrinsic ability of a channel to convey
  information.
• Using mutual information the channel capacity of
  a discrete memoryless channel is the maximum
  average mutual information in any single use of
  channel over all possible probability
  distributions.
• Thus Channel capacity Cmax( I(X,Y) ).

111

• Shannons Channel Coding theorem
• The Shannon theorem states that given a noisy
  channel with channel capacity C and information
  transmitted at a rate R, then if R lt C there
  exist codes that allow the probability of error
  at the receiver to be made arbitrarily small.
  This means that theoretically, it is possible to
  transmit information nearly without error at any
  rate below a limiting rate, C.
• The converse is also important. If R gt C, an
  arbitrarily small probability of error is not
  achievable. All codes will have a probability of
  error greater than a certain positive minimal
  level, and this level increases as the rate
  increases. So, information cannot be guaranteed
  to be transmitted reliably across a channel at
  rates beyond the channel capacity.

112

• Shannon-Hartley theorem or Information Capacity
  Theorem
• An application of the channel capacity concept to
  an additive white Gaussian noise channel with B
  Hz bandwidth and signal-to-noise ratio S/N is the
  Information Capacity Theorem.
• It states that for a band-limited Gaussian
  channel operating in the presence of additive
  Gaussian noise, the channel capacity is given by
• C B log2(1 S/N)
• where C is the capacity in bits per second, B
  is the bandwidth of the channel in Hertz, and S/N
  is the signal-to-noise ratio.

113

• Band width and SNR tradeoff
• As the bandwidth of the channel increases, it is
  possible to make faster changes in the
  information signal, thereby increasing the
  information rate.
• However, as B ? ?, the channel capacity does not
  become infinite since, with an increase in
  bandwidth, the noise power also increases.
• As S/N increases, one can increase the
  information rate while still preventing errors
  due to noise.
• For no noise, S/N ? ? and an infinite information
  rate is possible irrespective of bandwidth.

114
Implications of the Information Capacity Theorem
115

• Rate distortion theory
• Rate distortion theory is the branch of
  information theory addressing the problem of
  determining the minimal amount of entropy or
  information that should be communicated over a
  channel such that the source can be reconstructed
  at the receiver with a given distortion.
• Rate distortion theory can be used for the given
  below situations
• 1. Source coding in which the coding alphabet
  cannot exactly represent the source information.
• 2. when the information is to be transmitted at a
  rate greater than channel capacity.

116
Lower the bit rate R by allowing some acceptable
distortion D of the signal
117

• Rate Distortion Function
• The functions that relate the rate and distortion
  are found as the solution of the following
  minimization problem.
• In the above equation, I(X,Y) is the Mutual
  information.

118
Rate distortion function for Gaussian memory-less
source

• If Px(X) is Gaussian, variance is ?2 and if we
  assume that successive samples of the signal x
  are stochastically independent, we find the
  following analytical expression for the rate
  distortion function.

119
A Plot of the Rate distortion function for
Gaussian source
120
Lossy Source Coding

• Lossy source coding is the representation of the
  source in digital form with as few bits as
  possible while maintaining an acceptable loss of
  information.
• In lossy source coding, the source output is
  encoded at a rate less than the source entropy.
• Hence there is reduction in the information
  content of the source.
• Eg It is not possible to digitally encode an
  analog signal with a finite number of bits
  without producing some distortion.
