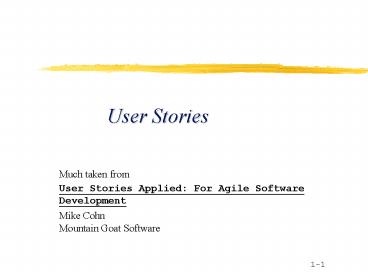

User Stories

1
User Stories
Much taken from User Stories Applied For Agile
Software Development Mike CohnMountain Goat
Software
2
Where are we?

• Found some objects and major responsibilities
• Understand a desired system better
• Did some role play on one scenario
• User plays one song, start to finish
• Understand the system from a high level
• Used a few design heuristics to more properly
  place responsibilities
• Next up ... User Stories to capture requirements

3
User Stories

• Extreme programming (XP) introduced the practice
  of expressing requirements in the form of user
  stories
• User stories are short descriptions of
  functionalitytold from the perspective of a
  userthat are valuable to either a user of the
  software or the customer of the software

4
A few Example User Stories

• The following are typical user stories for a job
  posting and search site
• A user can post her resume to the web site
• A user can search for jobs
• A company can post new job openings
• A user can limit who can see her résumé

5
User Stories

• A user story describes functionality that will be
  valuable to either a user or purchaser of the
  system
• User stories are traditionally written on an
  index card when the team and customers are
  communicating
• They will be written now as a line of text
• in the slides that follow, and
• in the project specification.

6
Aspects of a User Story

• A user story is composed of three aspects
• Written description of the story, used for
  planning and as a reminder
• Placeholder for future conversations among the
  user, customer, and developer
• User You, me, section leaders, maybe you can
  sell it?
• Customer Rick
• Developer You
• Tests that convey and document details that can
  be used to determine when a story is complete

7
In team of 2 or 3, write five user stories for
the Cashless Jukeboxwe'll collate them in 10
minutes

• The student affairs office want to put some
  newfound activity fee funds toward a Jukebox in
  the student center. The Jukebox must allow
  students to play a song. No money will be
  required. Instead, a student will swipe a
  magnetic ID card through a card reader, view the
  song collection and choose a song. Students will
  each be allowed to play up to 1500 minutes worth
  of "free" Jukebox music in their academic
  careers, but never more than two songs on any
  given date. No song can be played more than five
  times a day.
• What a drag it would be to hear "Dancing Queen"
  14 times while eating lunch (apologies to ABBA)

8
User stories for the Cashless Jukebox

• Example
• Songs can be played up to 5 times per day

9
Some User Stories for the Cashless Jukebox

• 1. A user can select a Song from the collection
  of songs
• 2. Songs can be played up to 5 times per day
• 3. User can hear audio files play
• 4. Any user can play up to 2 songs per day
• 5. Jukebox can find a user given an ID

10
Other Stories?

• When originally planned as an in-class demo,
  there were other user stories that seemed
  valuable to the students and the customer
• We can pick some, eliminate others

11
Do These Seem reasonable?

• 5. Notify Student the song is not selectable
• 6. The system should be able to queue songs on a
  FIFO basis
• 7. Show the play list (queue) to help users
  decide what to do
• 8. Have a nice GUI interface
• 9. User can swipe card

12
Seem reasonable?

• 10.Students see their account status
• 11.Students can see how long all songs in the
  queue would play
• 12.Administrator can add and remove Students
• 13. Administrator can add and remove songs
• 14. Use this for "WebRadio"
• 15. The system should be able to play mp3s
