Pervasive-Wireless-Device-Networks

1

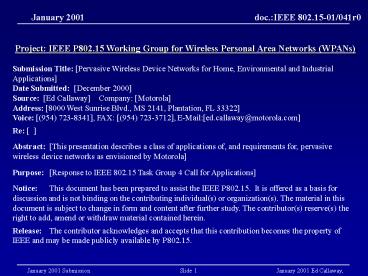

Project IEEE P802.15 Working Group for Wireless
Personal Area Networks (WPANs) Submission Title
Pervasive Wireless Device Networks for Home,
Environmental and Industrial Applications Date
Submitted December 2000 Source Ed
Callaway Company Motorola Address 8000
West Sunrise Blvd., MS 2141, Plantation, FL
33322 Voice [phone], FAX (954)
723-3712, E-Mailed.callaway_at_motorola.com Re
Abstract This presentation describes a
class of applications of, and requirements for,
pervasive wireless device networks as envisioned
by Motorola Purpose Response to IEEE 802.15
Task Group 4 Call for Applications Notice This
document has been prepared to assist the IEEE
P802.15. It is offered as a basis for discussion
and is not binding on the contributing
individual(s) or organization(s). The material in
this document is subject to change in form and
content after further study. The contributor(s)
reserve(s) the right to add, amend or withdraw
material contained herein. Release The
contributor acknowledges and accepts that this
contribution becomes the property of IEEE and may
be made publicly available by P802.15.
2
Pervasive Wireless Device Networks for Home,
Environmental and Industrial Applications
Submission to the IEEE 802.15 Wireless Personal
Area Networks Task Group 4
Ed Callaway, Member of the Technical
Staff Motorola Labs Phone [phone] Fax
1-954-723-3712 ed.callaway_at_motorola.com
3
Pervasive Wireless Device Network Applications
Basic Requirement Provide the low rate,
wireless interconnection of ultra low cost
sensor/actuator/processing devices to enable the
cyber-world to sense and affect the real physical
environment.

• Applications
• Environmental and Health Monitoring
• Home Entertainment and Toys
• Security, Location and Asset Tracking
• Emergency and Disaster Response

4
Cornerstones

• Energy Efficiency Battery Life Prioritized
  Above Data Capacity.
• Capable of Data Throughput lt 1kb/day.
• Scalable from Home Environment to Large
  Industrial Control and Monitoring Applications.
• Non-IP Addressing/Routing with IP Gateway.
• Inherent Node Location Awareness.
• Self Organizing/Configuring (rapid deployment).
• Fixed or Low Mobility Devices.
• Not Designed for Isochronous Data.
• Tolerant of Transient High Volume Data.

5
Applications Requirements

• Industrial and Environmental Control and
  Monitoring
• Reliable, distributed sensing and control with
  emphasis on energy efficiency a sensor network
  with long latency tolerance (long life span)
• Rapid Deployment with emphasis on
  self-organization, scalability and distributed
  management coping with disaster prevention,
  control, big events and exploration of unknown
  territory (short life span)
• Low Rate Consumer and SOHO Network
• Low rate control and entertainment devices a
  smaller network with low latency tolerance that
  remains energy efficient

6
Application Description
7
Application Description
