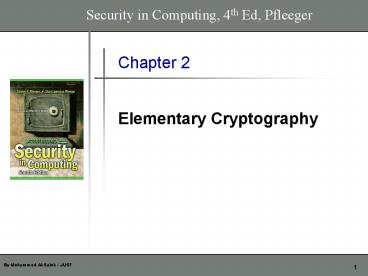

Security in Computing, 4th Ed, Pfleeger
Chapter 2
Elementary Cryptography
2
In this chapter

• Concepts of encryption
• Cryptanalysis how encryption systems are
  "broken"
• Symmetric (secret key) encryption and the DES and
  AES algorithms
• Asymmetric (public key) encryption and the RSA
  algorithm
• Key exchange protocols and certificates
• Digital signatures
• Cryptographic hash functions

3
Cryptography

• Cryptography (secret writing) is the strongest
  tool for controlling against many kinds of
  security threats.
• Well-disguised data cannot be read, modified, or
  fabricated easily.
• Cryptography is rooted in higher mathematics
• Group and field theory, computational complexity,
  and even real analysis, not to mention
  probability and statistics.
• Fortunately, it is not necessary to understand
  the underlying mathematics to be able to use
  cryptography.

4
Terminology and Background

• Consider the steps involved in sending messages
• from a sender, S
• to a recipient, R
• If S entrusts the message to T, who then delivers
  it to R, T then becomes the transmission medium.
• If an outsider, O, wants to access the message
  (to read, change, or even destroy it), we call O
  an interceptor or intruder.
• Encryption is a means of maintaining secure data
  in an insecure environment.

5
Terminology

• Encryption is the process of encoding a message
  so that its meaning is not obvious
• Decryption is the reverse process, transforming
  an encrypted message back into its normal,
  original form.
• Alternatively, the terms encode and decode or
  encipher and decipher are used instead of encrypt
  and decrypt
• A system for encryption and decryption is called
  a cryptosystem.

6
Terminology

• The original form of a message is known as
  plaintext, and the encrypted form is called
  ciphertext.

7
Terminology

• The original form of a message is known as
  plaintext, and the encrypted form is called
  ciphertext.

8
Terminology

• For convenience, we denote a plaintext message P
  as a sequence of individual characters
• P ltp1, p2, , pngt.
• Similarly, ciphertext is written as
• C ltc1, c2, , cmgt.
• We write C E(P) and P D(C), where C
  represents the ciphertext, E is the encryption
  rule, P is the plaintext, and D is the decryption
  rule.
• What we seek is a cryptosystem for which P
  D(E(P)). In other words, we want to be able to
  convert the message to protect it from an
  intruder, but we also want to be able to get the
  original message back so that the receiver can
  read it properly.

9
Encryption Algorithms

• The cryptosystem involves a set of rules for how
  to encrypt the plaintext and how to decrypt the
  ciphertext.
• The encryption and decryption rules, called
  algorithms, often use a device called a key,
  denoted by K, so that the resulting ciphertext
  depends on the original plaintext message, the
  algorithm, and the key value.
• C E(K, P)

10
Encryption Algorithms

• It would be very expensive for you to contract
  with someone to invent and make a lock just for
  your house.
• Also, you would not know whether a particular
  inventor's lock was really solid or how it
  compared with those of other inventors.
• A better solution is to have a few well-known,
  well-respected companies producing standard locks
  that differ according to the (physical) key
• Then, you and your neighbor might have the same
  model of lock, but your key will open only your
  lock.
• In the same way, it is useful to have a few
  well-examined encryption algorithms that everyone
  could use, but the differing keys would prevent
  someone from breaking into what you are trying to
  protect.

11
Encryption Algorithms

• Sometimes the encryption and decryption keys are
  the same, so P D(K, E(K,P)). This form is
  called symmetric encryption because D and E are
  mirror-image processes.
• At other times, encryption and decryption keys
  come in pairs. Then, a decryption key, KD,
  inverts the encryption of key KE so that
• P D(KD, E(KE,P)). Encryption algorithms of
  this form are called asymmetric
• An encryption scheme that does not require the
  use of a key is called a keyless cipher.

12
Encryption Algorithms
13
cryptology

• Cryptography means hidden writing, and it refers
  to the practice of using encryption to conceal
  text.
• Cryptanalyst studies encryption and encrypted
  messages, hoping to find the hidden meanings.

14
cryptology

• Both a cryptographer and a cryptanalyst attempt
  to translate coded material back to its original
  form. Normally, a cryptographer works on behalf
  of a legitimate sender or receiver, whereas a
  cryptanalyst works on behalf of an unauthorized
  interceptor.
• Cryptology is the research into and study of
  encryption and decryption it includes both
  cryptography and cryptanalysis.

15
Cryptanalysis

• A cryptanalyst's chore is to break an encryption.
• cryptanalyst attempts to deduce the original
  meaning of a ciphertext message.
• Better yet, he or she hopes to determine which
  decrypting algorithm matches the encrypting
  algorithm so that other messages encoded in the
  same way can be broken.

16
Cryptanalyst can attempt to do

• Break a single message
• Recognize patterns in encrypted messages, to be
  able to break subsequent ones by applying a
  straightforward decryption algorithm
• Infer some meaning without even breaking the
  encryption, such as noticing an unusual frequency
  of communication or determining something by
  whether the communication was short or long

17
Cryptanalyst can attempt to do (cont.)

• Deduce the key, to break subsequent messages
  easily
• Find weaknesses in the implementation or
  environment of use of encryption
• Find general weaknesses in an encryption
  algorithm, without necessarily having intercepted
  any messages

18
Information needed by a cryptanalyst

• A cryptanalyst works with a variety of pieces of
  information encrypted messages, known encryption
  algorithms, intercepted plaintext, data items
  known or suspected to be in a ciphertext message,
  mathematical or statistical tools and techniques,
  properties of languages, computers, and plenty of
  ingenuity and luck.
• Each piece of evidence can provide a clue, and
  the analyst puts the clues together to try to
  form a larger picture of a message's meaning in
  the context of how the encryption is done.

19
Attack models

• Attack models for the cryptanalysis
• Ciphertext-only
• is an attack model for cryptanalysis where the
  attacker is assumed to have access only to a set
  of ciphertexts.
• The attack is completely successful if the
  corresponding plaintexts can be deduced, or even
  better, the key.
• Known-plaintext
• is an attack model for cryptanalysis where the
  attacker has samples of both the plaintext and
  its encrypted version (ciphertext). These can be
  used to reveal further secret information such as
  secret keys.
• Chosen-plaintext
• is an attack model for cryptanalysis which
  presumes that the attacker has the capability to
  choose arbitrary plaintexts to be encrypted and
  obtain the corresponding ciphertexts.1 The goal
  of the attack is to gain some further information
  which reduces the security of the encryption
  scheme.

20
Breakable Encryption

• An encryption algorithm is called breakable when,
  given enough time and data, an analyst can
  determine the algorithm.
• However, an algorithm that is theoretically
  breakable may in fact be impractical to try to
  break.
• Ex., consider a 25-character message that is
  expressed in just uppercase letters. A given
  cipher scheme may have 2625 (approximately 1035)
  possible decipherments
• If your computer could perform on the order of
  1010 operations per second, finding this
  decipherment would require on the order of 1025
  seconds.
• Infeasible to compute

21
Breakable Encryption

• Two other important issues must be addressed when
  considering the breakability of encryption
  algorithms.
• First, the cryptanalyst cannot be expected to try
  only the hard, long way.
• ingenious approach might require only 1015
  operations. gt 1015 operations take slightly more
  than one day
• Second, estimates of breakability are based on
  current technology.
• Things that were infeasible in 1940 became
  possible by the 1950s
• A conjecture known as "Moore's Law" asserts that
  the speed of processors doubles every 1.5 years,
  and this conjecture has been true for over two
  decades.
• It is risky to pronounce an algorithm secure just
  because it cannot be broken with current
  technology, or worse, that it has not been broken
  yet.

22
Representing Characters

• We begin with the encryption of messages written
  in the standard 26-letter English-alphabet, A
  through Z.
• Convention plaintext is written in UPPERCASE
  letters, and ciphertext is in lowercase letters
• Because most encryption algorithms are based on
  mathematical transformations, they can be
  explained or studied more easily in mathematical
  form.

23
Representing Characters

• Consider performing arithmetic on the "letters"
  of a message
• Expressions such as A 3 D or K - 1 J have
  their natural interpretation.
• Arithmetic is performed as if the alphabetic
  table were circular (modular arithmatic)
• every result of an arithmetic operation is
  between 0 and 25
• Ex. Y 3 B (and B 3 Y)
• Two simple forms of encryption
• substitutions, in which one letter is exchanged
  for another
• transpositions, in which the order of the letters
  is rearranged

24
Substitution Ciphers

• The Caesar Cipher
• ci E(pi) pi 3
• A full translation chart of the Caesar cipher is
  shown here.
• Using this encryption, the message
• TREATY IMPOSSIBLE
• would be encoded as
• T R E A T Y I M P O S S I B L E
• w u h d w b l p s r v v l e o h
• The pattern pi 3 was easy to memorize and
  implement, however, it is easy break

25
Cryptanalysis of the Caesar Cipher

• Many clues on the "TREATY IMPOSSIBLE ciphertext
• the space between the two words is preserved in
  the ciphertext
• double letters are preserved The SS is
  translated to vv
• when a letter is repeated, it maps again to the
  same ciphertext as it did previously. So the
  letters T, I, and E always translate to w, l, and
  h.
• These clues make this cipher easy to break.

26
Cryptanalysis of the Caesar Cipher

• Suppose you are given the following ciphertext
  message, and you want to try to determine the
  original plaintext.
• Ciphertext wklv phvvdjh lv qrw wrr kdug wr
  euhdn
• 27-symbol alphabet A through Z plus the "blank"
  character
• Start with small words English has relatively
  few small words, such as am, is, to, be, he, we,
  and, are, you, she, and so on.
• substitute known short words at appropriate
  places in the ciphertext until you have something
  that seems to be meaningful.
• Once the small words fall into place, you can try
  substituting for matching characters at other
  places in the ciphertext.
• There is a strong clue in the repeated r of the
  word wrr.
• two very common three-letter words having the
  pattern xyy are see and too. other less common
  possibilities are add, odd, and off

27
Cryptanalysis of the Caesar Cipher

• Note that the combination wr appears in the
  ciphertext
• if wrr is SEE, wr would have to be SE, which is
  unlikely
• However, if wrr is TOO, wr would be TO, which is
  quite reasonable.
• Substituting T for w and O for r, the message
  becomes
• The OT could be cot, dot, got, hot, lot, not,
  pot, rot, or tot a likely choice is not.
  Unfortunately, q N does not give any more clues
  because q appears only once in this sample.
• The word lv is also the end of the word wklv,
  which probably starts with T.
• Likely two-letter words that can also end a
  longer word include so, is, in, etc.
• However, so is unlikely because the form T-SO is
  not recognizable
• IN is ruled out because of the previous
  assumption that q is N
• A more promising alternative is to substitute IS
  for lv throughout, and continue to analyze the
  message in that way.
• By now, you might notice that the ciphertext
  letters uncovered are just three positions away
  from their plaintext counterparts.

28
Cryptanalysis of the Caesar Cipher

• The cryptanalysis described here is ad hoc, using
  deduction based on guesses instead of solid
  principles.
• But you can take a more methodical approach,
  considering
• which letters commonly start words
• which letters commonly end words
• which prefixes and suffixes are common
• Cryptanalysts have compiled lists of common
  prefixes, common suffixes, and words having
  particular patterns.
• (For example, sleeps is a word that follows the
  pattern abccda.)

29
Other Substitutions

• In substitutions, the alphabet is scrambled, and
  each plaintext letter maps to a unique ciphertext
  letter.
• mathematical way description
• permutation is a reordering of the elements of a
  sequence
• For instance, we can permute the numbers l to 10
  in many ways, including
• p1 1, 3, 5, 7, 9, 10, 8, 6, 4, 2 and p2 10,
  9, 8, 7, 6, 5, 4, 3, 2, 1
• A permutation is a function, so we can write
  expressions such as p1(3) 5
• meaning that the letter in position 3 is to be
  replaced by the fifth letter
• If the set is the first ten letters of the
  alphabet, p1(3) 5 means that C is transformed
  into e

30
Other Substitutions

• Alternative to using the permutation (p)
• One way to scramble an alphabet is to use a key
• a word that controls the permutation
• For instance, if the key is word, the sender or
  receiver first writes the alphabet and then
  writes the key under the first few letters of the
  alphabet.
• The sender or receiver then fills in the
  remaining letters of the alphabet, in some
  easy-to-remember order, after the keyword.

31
Complexity of Substitution Encryption and
Decryption

• An important issue in using any cryptosystem is
  the time it takes to turn plaintext into
  ciphertext, and vice versa.
• it is essential that the scrambling and
  unscrambling not deter the authorized parties
  from completing their missions
• The timing is directly related to the complexity
  of the encryption algorithm
• encryption and decryption with substitution
  ciphers can be performed by direct lookup in a
  table illustrating the correspondence
• Transforming a single character can be done in a
  constant amount of time, so we express the
  complexity of the algorithm by saying that the
  time to encrypt a message of n characters is
  proportional to n ( O(n) )

32
Cryptanalysis of Substitution Ciphers

• The techniques described for breaking the Caesar
  cipher can also be used on other substitution
  ciphers
• Short words, words with repeated patterns, and
  common initial and final letters all give clues
  for guessing the permutation.
• breaking the code is a lot like working a
  crossword puzzle. You try a guess and continue to
  work to substantiate that guess until you have
  all the words in place or until you reach a
  contradiction
• Using brute force attack, the cryptanalyst could
  try all 26! permutations of a particular
  ciphertext message
• We can use our knowledge of language to simplify
  this problem. For example, in English, some
  letters are used more often than others. The
  letters E, T, O, and A occur far more often than
  J, Q, X, and Z, for example.
• Encryption, even in a simple form, will deter the
  casual observer.

33
The Cryptographer's Dilemma

• An encryption algorithm must be regular for it to
  be algorithmic and for cryptographers to be able
  to remember it. Unfortunately, the regularity
  gives clues to the cryptanalyst
• There is no solution to this dilemma

34
One-Time Pads

• A one-time pad is sometimes considered the
  perfect cipher
• large, nonrepeating set of keys is written on
  sheets of paper, glued together into a pad.
• if the keys are 20 characters long and a sender
  must transmit a message 300 characters in length
• the sender would tear off the next 15 pages of
  keys
• The sender would write the keys one at a time
  above the letters of the plaintext and
• encipher the plaintext with a prearranged chart
  (called a Vigenère tableau) that has all 26
  letters in each column, in some scrambled order

35
One-Time Pads

• The one-time pad method has two problems
• the need for absolute synchronization between
  sender and receiver, and
• the need for an unlimited number of keys.

key
Plaintext
ciphertext
because row M column i is u, row A column a is a,
and so on.
36
Transpositions (Permutations)

• The goal of substitution is confusion
• the encryption method is an attempt to make it
  difficult for a cryptanalyst or intruder to
  determine how a message and key were transformed
  into ciphertext.
• A transposition (permutation) is an encryption in
  which the letters of the message are rearranged.
• the cryptography aims for diffusion

37
Columnar Transpositions

• rearrangement of the characters of the plaintext
  into columns
• The following set of characters is a five-column
  transposition.

38
Columnar Transpositions

• For instance, suppose you want to write the
  plaintext message THIS IS A MESSAGE TO SHOW HOW A
  COLUMNAR TRANSPOSITION WORKS. We arrange the
  letters in five columns
• The resulting ciphertext would then be read down
  the columns as

39
Encipherment/Decipherment Complexity

• This cipher involves no additional work beyond
  arranging the letters and reading them off again.
• Therefore, the algorithm requires a constant
  amount of work per character, and the time needed
  to apply the algorithm is proportional to the
  length of the message.
• we cannot produce output characters until all the
  message's characters have been read. This
  restriction occurs because all characters must be
  entered in the first column before output of the
  second column can begin, but the first column is
  not complete until all characters have been read.
• Thus, the delay associated with this algorithm
  also depends on the length of the message, as
  opposed to the constant delay we have seen in
  previous algorithms

40
Digrams, Trigrams, and Other Patterns

• Just as there are characteristic letter
  frequencies, there are also characteristic
  patterns of pairs of adjacent letters, called
  digrams.
• Letter pairs such as -re-, -th-, -en-, and -ed-
  appear very frequently.

41
Cryptanalysis by Digram Analysis

• The first step in analyzing the transposition is
  computing the letter frequencies.
• If we find that in fact all letters appear with
  their normal frequencies, we can infer that a
  transposition has been performed.
• The problem is to find where in the ciphertext a
  pair of adjacent columns lies and where the ends
  of the columns are

42
Cryptanalysis by Digram Analysis

• Assume the block being compared is seven
  characters
• The first comparison is c1 to c8, c2 to c9, , c7
  to c14. Then, we try a distance of eight
  characters, and so the window of comparison
  shifts and c1 is compared to c9, c2 to c10, and
  continuing..
• For each window position, we ask two questions.
  First, do common digrams appear, and second, do
  most of the digrams look reasonable?

43
Combinations of Approaches

• Substitution and transposition can be considered
  as building blocks for encryption.
• A combination of two ciphers is called a product
  cipher.
• Product ciphers are typically performed one after
  another, as in E2(E1(P,k1), k2)

44
Making "Good" Encryption Algorithms

• What Makes a "Secure" Encryption Algorithm?
• What does it mean for a cipher to be "good"?
• The meaning of good depends on the intended use
  of the cipher
• A cipher to be used by military personnel in the
  field has different requirements from one to be
  used in a secure installation with substantial
  computer support
• In this section, we look more closely at the
  different characteristics of ciphers

45
Shannon's Characteristics of "Good" Ciphers

• The amount of secrecy needed should determine the
  amount of labor appropriate for the encryption
  and decryption.
• reiteration of the principle of timeliness from
  Chapter 1
• The set of keys and the enciphering algorithm
  should be free from complexity
• If the process is too complex, it will not be
  used
• we should restrict neither the choice of keys nor
  the types of plaintext on which the algorithm can
  work
• For instance, an algorithm that works only on
  plaintext having an equal number of A's and E's
  is useless.
• Similarly, it would be difficult to select keys
  such that the sum of the values of the letters of
  the key is a prime number.
• Furthermore, the key must be transmitted, stored,
  and remembered

46
Shannon's Characteristics of "Good" Ciphers

• The implementation of the process should be as
  simple as possible
• formulated with hand implementation in mind
• A complicated algorithm is prone to error or
  likely to be forgotten
• With the development and popularity of digital
  computers, algorithms far too complex for hand
  implementation became feasible
• Still, the issue of complexity is important.
  People will avoid an encryption algorithm whose
  implementation process severely hinders message
  transmission
• And a complex algorithm is more likely to be
  programmed incorrectly.

47
Shannon's Characteristics of "Good" Ciphers

• Errors in ciphering should not propagate and
  cause corruption of further information in the
  message
• One error early in the process should not throw
  off the entire remaining ciphertext
• For example, dropping one letter in a columnar
  transposition throws off the entire remaining
  encipherment
• The size of the enciphered text should be no
  larger than the text of the original message
• ciphertext that expands dramatically in size
  cannot possibly carry more information than the
  plaintext
• it gives the cryptanalyst more data from which to
  infer a pattern
• longer ciphertext implies more space for storage
  and more time to communicate

48
Properties of "Trustworthy" Encryption Systems

• When we say that encryption is "commercial
  grade," or "trustworthy," we mean that it meets
  these constraints
• It is based on sound mathematics
• It has been analyzed by competent experts and
  found to be sound
• It has stood the "test of time.
• Three algorithms are popular in the commercial
  world and meet the above criteria DES (data
  encryption standard), RSA (Rivest Shamir Adelman,
  named after the inventors), and AES (advanced
  encryption standard).

49
Symmetric and Asymmetric Encryption Systems

• Two basic kinds of encryptions symmetric (also
  called "secret key") and asymmetric (also called
  "public key")
• Symmetric
• One key for enrcyption and decryption
• Usually, the decryption algorithm is closely
  related to the encryption one
• Ex., Caesar cipher encryption Pi 3
  decryption Ci - 3
• provide a two-way channel to their users
• A and B share a secret key, and they can both
  encrypt information to send to the other as well
  as decrypt information from the other
• the system also provides authentication proof
  that a message received was not fabricated by
  someone other than the declared sender

50
Symmetric Encryption Systems

• The symmetry of this situation is a major
  advantage of this type of encryption
• But, has key distribution problem
• How do A and B obtain their shared secret key?
• In general, n users who want to communicate in
  pairs need
• n (n - 1)/2 keys
• By the nature of the public key approach, you can
  send a public key in an e-mail message or post it
  in a public directory
• Only the corresponding private key, which
  presumably is kept private
• So, for all encryption algorithms, key management
  is a major issue
• involves storing, safeguarding, and activating
  keys

51
Stream and Block Ciphers

• Most of the ciphers we have presented so far are
  stream ciphers
• convert one symbol of plaintext immediately into
  a symbol of ciphertext
• The exception is the columnar transposition
  cipher
• The transformation depends only on the symbol,
  the key, and the control information of the
  encipherment algorithm
• skipping a character in
• the key during encryption,
• affect the encryption of all
• future characters

52
Stream and Block Ciphers

• A block cipher encrypts a group of plaintext
  symbols as one block
• Ex., The columnar transposition
• entire message is translated as one block
• Block ciphers work on blocks of plaintext and
  produce blocks of ciphertext

53
Confusion and Diffusion

• Two additional important concepts are related to
  the amount of work required to perform an
  encryption
• An algorithm providing good confusion has a
  complex functional relationship between the
  plaintext/key pair and the ciphertext
• it will take an interceptor a long time to
  determine the relationship between plaintext,
  key, and ciphertext
• Ex1 Caesar cipher is not good for an analyst who
  deduces the transformation of a few letters can
  also predict the transformation of the remaining
  letters, with no additional information
• Ex2 one-time pad is good because one plaintext
  letter can be transformed to any ciphertext
  letter at different places in the output

54
Confusion and Diffusion

• Two additional important concepts are related to
  the amount of work required to perform an
  encryption
• Confusion
• Diffusion distributing the information from
  single plaintext letters over the entire output

55
Cryptanalysis Breaking Encryption Schemes

• Assume that the attacker knows the
  encryption/decryption algorithm then she may use
  three types of attacks
• Ciphertext only attack
• The attacker has only the ciphertext and wants to
  know the plaintext (and the key if possible)
• Known plaintext attack
• The attacker has both the plaintext and its
  corresponding ciphertext. The goal is to find the
  key
• Chosen plaintext attack
• The attacker may ask that specific plaintexts be
  enciphered and she is given the corresponding
  ciphertexts. Her goal is to find the key that was
  used

56
The Data Encryption Standard (DES)

• developed for the U.S. government
• 1976
• intended for use by the general public
• accepted as a cryptographic standard both in the
  United States and abroad
• many hardware and software systems have been
  designed with the DES
• However, recently its adequacy has been questioned

57
The Data Encryption Standard (DES)

• Overview
• combination of two fundamental building blocks of
  encryption substitution and transposition
• derives its strength from repeated application of
  these two techniques
• one on top of the other, for a total of 16 cycles
• Hard to trace a single bit through 16 iterations
• The algorithm begins by encrypting the plaintext
  as blocks of 64 bits
• The key is 64 bits long
• in fact it is only 56-bit (the other bits are
  used to check digits)

58
The Data Encryption Standard (DES)

• Overview
• Leverages the two techniques Shannon identified
  to conceal information confusion and diffusion
• ensuring that the output bits have no obvious
  relationship to the input bits and spreading the
  effect of one plaintext bit to other bits in the
  ciphertext
• Substitution provides the confusion, and
  transposition provides the diffusion

59
The Data Encryption Standard (DES)
 A Cycle in the DES.
60
DES (Cont.)
Types of Permutations.
61
DES (Cont.)
Details of a Cycle.
62
DES (Cont. )
63
The Data Encryption Standard (DES)

• Double and Triple DES
• the DES 56-bit key length is not long enough for
  some people to feel comfortable
• Computing power has increased dramatically
• some researchers suggest using a double
  encryption for greater secrecy
• Take two keys, k1 and k2
• perform two encryptions, one on top of the other
  E(k2, E(k1,m)).
• Does this make the key as powerful as 112-bit
  key? NO
• the cryptanalyst works plaintext and ciphertext
  toward each other
• It only becomes 57-bit key
• However, a simple trick does indeed enhance the
  security of DES
• The so-called triple DES procedure is C E(k3,
  E(k2, E(k1,m))).
• This process gives a strength equivalent to a
  112-bit key
• differential and linear cryptanalysis (self study)

64
The Advanced Encryption Standards(AES)

• To solve the DES security problems
• Contest to develop a new algorithm
• Rijndael (pronounced RINE dahl) algorithm
• Won the contest and became the AES
• Key lengths are 128, 192, 256 (and possibly
  more) bits
• 1999
• the U.S. government has approved AES for
  protecting Secret and Top Secret classified
  documents

65
Public Key Encryption

• In 1976, Diffie and Hellman proposed a new kind
  of encryption system
• Each user has two keys
• One is public and the other is private
• Also, use one to encrypt and the other to decrypt
• In symmetric key system, each pair of users needs
  a separate key

66
Public Key Encryption

• In a public key or asymmetric encryption system,
  each user has two keys
• a public key and a private key.
• The user may publish the public key freely
• The keys operate as inverses
• one key undoes the encryption provided by the
  other key
• Ex. let kPRIV be a user's private key, and let
  kPUB be the corresponding public key
• we can write the relationship as
• P D(kPRIV, E(kPUB, P)) D(kPUB, E(kPRIV, P))

67
Rivest Shamir Adelman (RSA) Encryption

• Public key system
• RSA has been the subject of extensive
  cryptanalysis no serious flaws have yet been
  found
• Based on an underlying hard problem
• Determining the prime factors of a large number
• An area of mathematics known as number theory
• mathematicians study properties of numbers such
  as their prime factors
• Operates with arithmetic mod n

68
Rivest Shamir Adelman (RSA) Encryption

• The two keys used in RSA, d and e, are used for
  decryption and encryption
• They are actually interchangeable
• Either can be chosen as the public key (the other
  must be kept private)
• P E(D(P)) D(E(P))
• Any plaintext block P is encrypted as Pe mod n
• factoring Pe to uncover the encrypted plaintext
  is difficult
• legitimate receiver who knows d simply computes
  (Pe)d mod n P and recovers P without having to
  factor Pe.

69
Rivest Shamir Adelman (RSA) Encryption

• Here is how it works
• take two large primes, p and q, and compute their
  product n pq
• n is called the modulus
• Choose a number, e, less than n and relatively
  prime to (p-1)(q-1)
• i.e., e and (p-1)(q-1) have no common factors
  except 1
• Find another number d such that (ed - 1) is
  divisible by (p-1)(q-1)
• The values e and d are called the public and
  private exponents, respectively.
• The public key is the pair (n, e) the private
  key is (n, d).
• The factors p and q may be destroyed or kept with
  the private key.
• It is currently difficult to obtain the private
  key d from the public key (n, e).
• If one could factor n into p and q, then one
  could obtain the private key d.
• Example Suppose Alice wants to send a message m
  to Bob. Alice creates the ciphertext c by
  exponentiating c me mod n, where e and n are
  Bob's public key. She sends c to Bob. To decrypt,
  Bob also exponentiates m cd mod n the
  relationship between e and d ensures that Bob
  correctly recovers m. Since only Bob knows d,
  only Bob can decrypt this message.

70
RSA Example

• Choose p 3 and q 11
• Compute n p q 3 11 33
• Compute f(n) (p - 1) (q - 1) 2 10 20
• the number of positive integers less than n that
  are co-prime to n
• i.e., no common factors with n except 1
• 1 is included
• Choose e such that 1 lt e lt f(n) and e and n are
  co-prime. Let e 7
• Compute a value for d such that (d e) f(n)
  1. One solution is d 3 (3 7) 20 1
• Public key is (e, n) gt (7, 33)
• Private key is (d, n) gt (3, 33)
• The encryption of m 2 is c 27 33 29
• The decryption of c 29 is m 293 33 2

71
Rivest Shamir Adelman (RSA) Encryption

• http//www.rsa.com/rsalabs/node.asp?id2214
• http//www.rsa.com/rsalabs/node.asp?id2189

72
The Uses of Encryption

• Cryptographic Hash Functions
• Key Exchange
• Digital Signatures
• Certificates

73
The Uses of Encryption

• Encryption implements protected communications
  channels
• it can also be used for other duties/applications
• Cryptographic Hash Functions, Key Exchange,
  Digital Signatures, Certificates
• Public key algorithms are useful only for
  specialized tasks
• very slow take 10,000 times as long to perform
  as a symmetric encryption
• underlying modular exponentiation depends on
  multiplication and division
• slower than the bit operations (addition,
  exclusive OR, substitution, and shifting) on
  which symmetric algorithms are based
• symmetric encryption is the cryptographers'
  "workhorse," and public key encryption is
  reserved for specialized, infrequent uses, where
  slow operation is not a continuing problem

74
Cryptographic Hash Functions

•

75
Cryptographic Hash Functions

• The most widely used cryptographic hash functions
  are
• MD4, MD5 (where MD stands for Message Digest)
• MD5 is an improved version of MD4
• Any message will have 128-bit digest
• SHA/SHS (Secure Hash Algorithm or Standard).
• it produces a 160-bit digest
• http//md5-hash-online.waraxe.us
• http//sha1-hash-online.waraxe.us/
• cryptanalysis attacks on SHA, MD4, and MD5
• For SHA, the attack is to find two plaintexts
  that produce the same hash digest (collision)
• 263 steps, far short of the 280 steps that would
  be expected of a 160-bit hash function

76
Birthday Attack

• In probability theory, the birthday problem or
  birthday paradox concerns the probability that,
  in a set of n randomly chosen people, some pair
  of them will have the same birthday.
• By the pigeonhole principle, the probability
  reaches 100 when the number of people reaches
  367 (since there are 366 possible birthdays,
  including February 29).
• However, 99 probability is reached with just 57
  people, and 50 probability with 23 people.
• These conclusions are based on the assumption
  that each day of the year (except February 29) is
  equally probable for a birthday.
• The mathematics behind this problem led to a
  well-known cryptographic attack called the
  birthday attack, which uses this probabilistic
  model to reduce the complexity of cracking a hash
  function.

77
Birthday Attack

• A list of 23 people, comparing the birthday of
  the first person on the list to the others allows
  22 chances for a matching birthday, the second
  person on the list to the others allows 21
  chances for a matching birthday, third person has
  20 chances, and so on. Hence total chances are
  222120....1 253, so comparing every person
  to all of the others allows 253 distinct chances
  (combinations) in a group of 23 people there are
  (23 22) / 2 253 pairs.

78
Key Exchange

• We talk about symmetric keys here
• The problem is almost circular To establish an
  encrypted session, you need an encrypted means to
  exchange keys.

79
Key Exchange

• Public key cryptography can help
• To see how, suppose S and R want to derive a
  shared symmetric key
• kPRIV-S, kPUB-S, kPRIV-R, and kPUB-R, are the
  private and public keys for S and R, respectively
• S chooses any symmetric key K
• S sends E(kPRIV-S,K) to R
• R takes S's public key, removes the encryption,
  and obtains K
• Ooops, any eavesdropper who can get S's public
  key can also obtain K
• let S send E(kPUB-R, K) to R. Then, only R can
  decrypt K
• Ooops, R has no assurance that K came from S
• The solution is for S to send to R
• E(kPUB-R, E(kPRIV-S, K))

80
Key Exchange
81
Key Exchange

• Another key exchange approach
• Diffie-Hellman key exchange protocol
• S and R use some simple arithmetic to exchange a
  secret
• They agree on a field size n and a starting
  number g
• they can communicate these numbers in the clear
• Each thinks up a secret number, say, s and r.
• S sends to R gs and R sends to S gr
• S computes (gr)s and R computes (gs)r ,which are
  the same, so grs gsr becomes their shared
  secret
• computations are done over a field of integers
  mod n (omitted for simplicity)
• http//dkerr.home.mindspring.com/diffie_hellman_ca
  lc.html
• Diffie-Hellman, however, does NOT provide
  authentication
• You can not be sure if you are talking to the
  right person

82
Digital Signatures

• A digital signature is a protocol that produces
  the same effect as a real signature
• It is a mark that only the sender can make
• but other people can easily recognize as
  belonging to the sender

83
Digital Signatures

• Two conditions
• It must be unforgeable
• If person P signs message M with signature
  S(P,M), it is impossible for anyone else to
  produce the pair M, S(P,M)
• It must be authentic If a person R receives the
  pair M, S(P,M) purportedly from P, R can check
  that the signature is really from P
• Only P could have created this signature, and the
  signature is firmly attached to M

84
Digital Signatures
85
Digital Signatures

• Two more properties
• It is not alterable. After being transmitted, M
  cannot be changed by S, R, or an interceptor.
• It is not reusable. A previous message presented
  again will be instantly detected by R.

86
Digital Signatures

• Public Key Protocol
• ideally suited to digital signatures.
• E use the public key in transformation
• D use the private key in transformation

87
Certificates

• A public key and user's identity are bound
  together in a certificate, which is then signed
  by someone called a certificate authority,
  certifying the accuracy of the binding.

88
Certificates

• The algorithms to generate a matched pair of
  public and private keys are publicly known, and
  software that does it is widely available.
• So if Alice wanted to use a public key cipher,
  she could generate her own pair of public and
  private keys, keep the private key hidden, and
  publicize the public key.
• But how can she publicize her public key assert
  that it belongs to herin such a way that other
  participants can be sure it really belongs to her?

89
Certificates

• A complete scheme for certifying bindings between
  public keys and identities what key belongs to
  whois called a Public Key Infrastructure (PKI).
• A PKI starts with the ability to verify
  identities and bind them to keys out of band. By
  out of band, we mean something outside the
  network and the computers that comprise it, such
  as in the following scenarios.
• If Alice and Bob are individuals who know each
  other, then they could get together in the same
  room and Alice could give her public key to Bob
  directly, perhaps on a business card.

90
Certificates

• If Bob is an organization, Alice the individual
  could present conventional identification,
  perhaps involving a photograph or fingerprints.
• If Alice and Bob are computers owned by the same
  company, then a system administrator could
  configure Bob with Alices public key.
• A digitally signed statement of a public key
  binding is called a public key certificate, or
  simply a certificate

91
Certificates

• One of the major standards for certificates is
  known as X.509. This standard leaves a lot of
  details open, but specifies a basic structure. A
  certificate clearly must include
• the identity of the entity being certified
• the public key of the entity being certified
• the identity of the signer
• the digital signature
• a digital signature algorithm identifier (which
  cryptographic hash and which cipher)

92
Certificates

• Certification Authorities
• A certification authority or certificate
  authority (CA) is an entity claimed (by someone)
  to be trustworthy for verifying identities and
  issuing public key certificates.
• There are commercial CAs, governmental CAs, and
  even free CAs.
• To use a CA, you must know its own key. You can
  learn that CAs key, however, if you can obtain a
  chain of CA-signed certificates that starts with
  a CA whose key you already know.
• Then you can believe any certificate signed by
  that new CA
