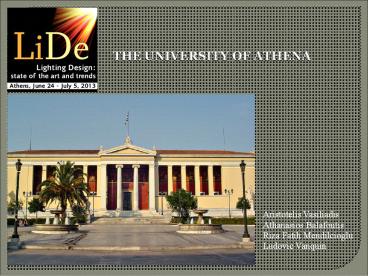

THE UNIVERSITY OF ATHENA

1
THE UNIVERSITY OF ATHENA
Aristotelis Vasiliadis Athanasios Balafoutis Riza
Fatih Mendilcioglu Ludovic Vanquin
2
OUTLINE

1. INTRODUCTION ARCHITECTURAL CHARACTERISTICS
2. CURRENT STATUS
3. LIGHTING CONCEPT DECISIONS
4. LUMINAIRES
5. FINAL RESULT
6. IF THERE WAS MORE TIME.. THINGS TO CONSIDER
   ABOUT

3

• 1.INTRODUCTION ARCHITECURAL CHARACTERISTICS
• The main building of the University of Athens
• designed by the Danish architect Hans Christian
  Hansen
• constructed between 1839 and 1842
• Today
• headquarters of the University of Athens
• houses the offices of the Rectorate, the
  Juridical Department, the Archives and the
  Ceremonial Hall for official ceremonies refering
  to the University community.

• INTRODUCTION ARCHITECTURAL CHARACTERISTICS
• CURRENT STATUS
• LIGHTING CONCEPT DECISIONS
• LUMINAIRES
• FINAL RESULT
• IF THERE WAS MORE TIME.. THINGS TO CONSIDER
  ABOUT

4
1. INTRODUCTION - ARCHITECTURAL
CHARACTERISTIC OF THE BUILDING

• The Building
• Neoclassical style with a double T or H shape
• Two symmetrical courtyards
• Strictly symmetrical facade with an Ionian-style
  entrance
• Entrance emphasized by two heavy columns with
  impresive capitals, similar architecture to the
  Propylaea of Acropolis
• Classical fresco on the inner walls designed by
  the Bavarian Karl Rahl and painted after 1888 by
  Eduardo Lebiedzky

5

• The Exterior
• Five statues stand in front of the building,
  commemorating important figures of the modern
  Hellenic history (William E. Gladstone, Rigas
  Pheraios of Velestino, Gregorios V,Count, loannis
  Kapodistrias, Adamantios Korais).
• Exterior consists of stone and green areas,
  formatting a circular entrance space. Two marble
  fountains at the front of the entrance complete
  the scene.
• There also two paths that climb up sideways, at
  the front of the building.

6
2. CURRENT LIGHTING STATUS

• SPOT PROJECTORS FOR THE FRESCO
• LINEAR LIGHTING OF THE UPPER TRIANGLE OF THE
  BUILDING
• TRADITIONAL LUMINAIRES FOR THE SURROUNDINGS
• PATHWAY MARKERS (NOT WORKING)

7
2. CURRENT LIGHTING STATUS (Cont.)

• Actually, we saw no light nor water in the
  fountains!!

8
3. LIGHTING CONCEPT - DECISIONS

• Aims and goals
• Emphasize the functionality of the building ( a
  place for learning, communication and
  intellectual exchanges).
• Show the historical and cultural characteristics
  of building.
• Use the lighting to create an attractive
  atmosphere. Visitors are invited to feel
  attracted and curious to explore. Emphasize the
  hug-shaped entrance.
• Arrange the surroundings to create a friendly and
  calming place.
• Emphasize the green space, highlight the
  fountains and the statues.
• Finally Playing with columns and fresco, giving
  the impression of a book that is ready to reveal
  its content but not without effort.

9
3. LIGHTING CONCEPT DECISIONS (Cont.)
10
3. LIGHTING CONCEPT DECISIONS (Cont.)The model
11
3. LIGHTING CONCEPT DECISIONS (Cont.)General
luminaire arrangement
12

• 4. LUMINAIRES USED - CHARACTERISTICS

13
AmazonLED² Ground marker used to show the hug
shape of the entrance Type BBC200 (230 V,
class II version) BBC201 (24 V, class
IIIversion) Light source Integral
LED-module Power (/-10) BBC200 lt 2 W BBC201 lt
1 W Luminous flux Warm white (WW) 20 lm Blue
(BL) 5 lm Correlated Color Temperature 3000
K Color Rendering Index 80
Maintenance of lumen output - L70 35,000 hours
at 35ºC Operating temperature range -20 to
35ºC Driver BBC200 integrated BBC201 not
integrated Mains voltage BBC200 220-240 V /
50-60 Hz BBC201 24 V DC Inrush current 100 mA
at 14 ms Optical cover Opal cover
Material Ringstainless steel, grade
316x Optical cover polycarbonate, opal,
UV-stabilized Connection Delivered with mains
cable, 20 cm of length Installation Ground
recessed Cable gland M20 Accessories Tube for
installation in concrete/ asphalt, ZBC200
TUBE Pack of 10 transformers 230/24 V, EBC201 PSU
230/24V (10 pieces) 1 transformer 230/24 V,
EBC201 PSU 230/24V
14
C-Splash 2 Underwater color luminaire to be used
in the fountains
Type BCP468 Light source Integral
LED-module Power 25 W Beam angle 10º (clear
lens) or 22º (frosted lens) Luminous flux 583 lm
(10º), 515 lm (22º) Luminaire efficacy 20.6 lm/W
(frosted lens) / 23.3 lm/W (clear
lens) Maintenance of lumen output - L50 50,000
hours at 50ºC
Operating temperature range -20 to 50ºC Driver
Integrated Power/Data Supply PDS-60 24 V supply
for indoor and outdoor applications PDS-150e
supply for Ethernet and DMX installations Mains
voltage 24 V DC Dimming Digital via PDS-60 24V
or PDS-150e Material Housing cast brass Lens
clear or frosted tempered glass
Connection 18.3 m unified power/data
cable, standard, 45.7 m maximum 121.9 m total per
power/data supply Installation Surface mounted
15
eW Burst Compact Powercore
Spot luminaire used to accent the trees Type
BCP463 Light source Non-replaceable LED
module Available in white (2700K or 4000K) as
well as 4 solid colors (Red, Blue, Green,
Amber) Power 20 W max. at full output Beam angle
8º primary optic 14, 23 or 41º spread lenses 10 x
41º asymmetric spread lens Luminous flux 624 lm
(8º), 543 lm (14º), 540 lm (23º), 520 lm (41º),
557 lm (10 x 41º) - 2700 K 812 lm (8º), 685 lm
(14º), 674 lm (23º), 646 lm (41º), 695 lm (10 x
41º) - 4000 K
Correlated Color Temperature 2700 K, warm
white 4000 K, neutral white Color Rendering
Index gt 82.6 (2700 K) or gt 80.6 (4000
K) Maintenance of lumen output - L50 120,000 hrs
at 25ºC Maintenance of lumen output - L70 90,000
hrs at 25ºC 45,000 hrs at 50ºC Operating
temperature range -40 to 50ºC operating -20 to
50ºC start-up
Driver Built-in Mains voltage 100-277 V AC /
50-60 Hz Optic Symmetrical and asymmetrical
with spread lenses Maintenance No internal
cleaning required
16
(No Transcript)
17
iW Burst Compact Powercore

• Spot luminaire of variable CCT used to accent
• - the fresco
• - the upper part of the building
• - the statues
• - the columns of the entrance
• Type BCP464
• Light source Non-replaceable LED module
• Beam angle 8 primary optic
• 14/ 23/ 41 spread lenses
• 10 x 41 asymmetric spread lens
• Correlated Color Temperature
• Warm white, 2700 K to cool white,
• 6500 K

Operating temperature range -40 to 50C
operating -20 to 50C start-up Driver Separate,
to be ordered separately Via Data Enabler Pro
(DMX or Ehernet) Mains voltage 100-240 VAC /
50-60 Hz via Data Enabler Pro
Controls system input Philips full range of
controllers, including Light System Manager
and iPlayer3, or third-party DMX
controllers Optic Symmetrical and asymmetrical
with spread lenses Material Housing
high-pressure, die-cast aluminum, powder-coating
finished Glass tempered Mounting bracket
high-pressure, diecast aluminum, powder
coating finished
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
5. And finally the results!!
23
5. And finally the results!! (Cont.)fresco 1
24
5. And finally the results!! (Cont.)fresco 2
25
5. And finally the results!! (Cont.)the
fountains
26
5. And finally the results!! (Cont.)water play
27
6. IF THERE WAS MORE TIME.. THINGS TO CONSIDER
ABOUT

• Examine different scenarios
• Examine lighting with respect to the two other
  buildings which consist Athens's Trilogy
• Full technical and economical analysis, regarding
  various different types of luminaires
• Exact photometric computations how much lux
  needed and how much are finally delivered?
  (insert virtual surfaces in Relux)
• Regard mistakes done and have feedback
• Examine side views
• .. and maybe have a better presentation!

28
THANK YOU FOR YOUR ATTENTION!
