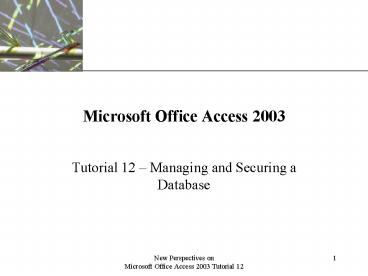

Title: New Perspectives on Microsoft Office Access 2003 Tutorial 12
1Microsoft Office Access 2003
- Tutorial 12 Managing and Securing a Database
2Analyze a database's performance
- Analysis tools will help you provide a database
that runs as efficiently as possible. - The Performance Analyzer will produce a list of
ideas, suggestions, and recommendations. - However, many of the suggestions and
recommendations can be carried out for you. - If you decide to allow Access to fix the problem,
you will be able to check the results by viewing
the objects pertaining to the suggestion.
3The Performance Analyzer dialog box
4The Performance Analyzer analysis window
5View and print database documentation
- If you want to print a graphical view of the
relationships in your database, you can have
Access print the relationships window. - This will print exactly what you see when you
open this window. - If you need to have more detailed information
about the objects in the database, you can run
the Documenter. - In the Documenter, you can choose what objects to
include in the Documenter's report and you can
make several choices as to what should be
included in the report. - When you are finished making your selections, you
will received a very detailed report containing
Field names, Field types, Field sizes,
relationships with other objects, etc.
6Link a database to a table in another database
- There will be times when you will want to make an
Access table available to a user for data entry,
but you would not want them to be able to change
the structure of your table. - You can do this by providing a linked table in
the database. - A linked table is a table that is stored in a
file outside the open database. - Access will be able to update and retrieve
records in the open database but will disallow
changes to the structure of the table. - When you establish a link to a table in the
database, the linked table shows up on your list
of table objects but the icon looks different.
7The Link Tables dialog box
8Use the Linked Table Manager
- When you link to a table, Access keeps track of
where that table is stored. - If you move the location of the database to a
different folder, Access won't know where it is. - You can use the Linked Table Manager to refresh
the link to the table so that Access will be able
to find the linked table. - In the Linked Table Manger, point to the new
location, and Access will then update the link
information.
9The Linked Table Manager dialog box
10Use replication to create a Design Master and
replica of a database
- Sometimes there will be multiple users updating
database data. - If you gave each one a copy of the database and
allowed them each to make changes in their copy,
it would be quite difficult to pull all the
changes together later into a single database. - However, replication makes it easy to handle this
kind of activity. - When you create a replica of a database, you
create a special copy of the database and the
original copy becomes the Design Master of the
database.
11Update Design Masters from replica sets
- The Design Master and all of the replicas that
have been made of it are called the replica set. - Once you have created a replica set, Access keeps
track of the changes that eventually will be
incorporated into the Design Master. - Any changes in the data in any replicas can be
updated automatically in the Design Master
through a process called synchronization.
12The Database Window for a Design Master
13Synchronize the Design Master and replica Data
- When you have a replica set, you can synchronize
the records in the replica database(s) by running
the Synchronize Database process. - When the synchronization process is run, Access
will check for changes in the data in the replica
database(s) and, if any, will incorporate those
changes into the Design Master. - After the synchronization process is complete,
you will be able to see the changes that have
been made in the replica database(s) in the
Design Master database. - When you no longer need the replica(s), you
should delete them. - If there are no replicas being used, you should
rename the Design Master to its original name.
14The Synchronize Database dialog box
15Split a database
- A database developer often will separate the
interface to a database (its queries, forms, and
other database objects) from the actual database
data. This is known as splitting the database. - The Database Splitter splits the database into
two databases. - The database that contains the actual data is
called the back-end database. - The database that contains the other objects is
called the front-end database.
16The Database Splitter dialog box
17Front-end versus back-end database
- The users of the database will work through the
front-end database to add, modify, and delete
data in the back-end database. - The developer does not make changes to the
back-end database but periodically makes changes
to the front-end database by updating its
queries, forms, and reports. - In a network environment, the back-end database
is usually stored on the network where users can
access it. - The Front-End database is stored on all the user
computers, as it is their interface to the
back-end database.
18An illustration of splitting a database
19Set database startup options
- There are several options that can be set to be
initiated at the time the database is opened. - These options are called Startup Options and can
be set by clicking Tools on the menu bar and then
click Startup. - On this Startup dialog box, you can specify a
particular form you want to display when the
database is opened. - You can also choose from several options related
to how much access users will have to the menu
and toolbars.
20The Startup dialog box
21Implement database security
- Databases often have sensitive data that must be
protected. - Security refers to the protection of a database
against unauthorized access. - Startup options offer a degree of security but
there is more that you could do to protect the
data. - You can use Encryption, Decryption, and Passwords
to protect your database.
22Encrypt and decrypt a database
- Encryption is a process that will convert the
data in a database to a format that is
unreadable. - If a user is able to gain access to a database
that is encrypted, the data could only be read if
it was decrypted - Decrypting a database is the process of returning
the encrypted data to its original state. - Another form of security includes the use of
passwords. - Passwords applied to a database makes it
impossible to open the database unless you know
the password
23Set and unset a database password
- If data is very important and meant to be viewed
only by authorized users, it is a good idea to
assign a password to the database. - When you set a password, you usually establish
exclusive access, meaning that only one user can
access the database at a time. - You can also set the password so that the
database is opened as Read-Only, meaning that no
changes can be made to the database. - In order to remove the password, you must use the
password to get into the database and unset (or
cancel) the password.
24The Set Database Password dialog box
25Implement user-level security
- The security measures discussed in previous
sections apply to all users of the database. - Sometimes you will want to allow some users
access rights and disallow those rights for other
users. - You can accomplish this by setting user-level
security. - User-level security lets you grant users or
groups of users specific permission to tables,
queries, forms, reports, and macros.
26Assign users permissions to a database
- You can assign each user a set of permissions,
which specify what that particular user has
rights to. - You can specify that a user can modify data or
can only read data. - You can specify whether the user is allowed to
delete data. - This kind of activity is usually managed by a
person designated as the database administrator,
or a group of people called the database
administration (DBA) group.
27Assign group permissions for multiple users
- The DBA will be responsible for controlling and
assigning permissions to certain users. - Because there are often groups of people who
should have the same permissions, the DBA can
assign permissions to groups rather than
individuals. - Usually there is a workgroup information file
that maintains group names, user names,
passwords, and group membership information. - This information is stored in hidden files and is
available only to the DBA.
28An illustration of user-level security
29Use the Security Wizard to assign permissions
30Protect VBA code from unauthorized changes
- Database developers often work long, tedious
hours writing VBA code to augment the
functionality of the database. - Usually, the developer will want to protect the
code from unwarranted changes. - The code is readily available in the modules of
the database unless the code is converted.
31Create an MDE file
- You can save a database as an MDE file, which
compiles all the VBA code into machine code and
removes the VBA source code. - The database will still work exactly as it did
prior to this conversion, but no one will be able
to alter the code because they will not be able
to get to it. - In Access 2003, you must make sure the database
is in 2002 format before you try to convert it to
an MDE file. - This process is not always necessary and should
only be done if there are many VBA modules in the
database and the code must be protected from
changes.
