Efficient Privacy Preserving Protocols for Visual Computation

1

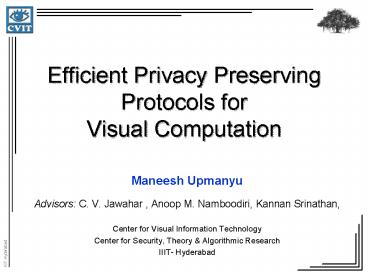

Efficient Privacy PreservingProtocols forVisual
Computation

• Maneesh Upmanyu
• Advisors C. V. Jawahar , Anoop M. Namboodiri,
  Kannan Srinathan,
• Center for Visual Information Technology
• Center for Security, Theory Algorithmic
  Research
• IIIT- Hyderabad

2
Security and Privacy of Visual Data
Broad Objective

• Development of secure computational algorithms in
  computer vision and related areas.
• To develop highly-secure solutions
• To develop computationally efficient solutions
• To develop solutions to problems with immediate
  impact

Project Web-Page http//cvit.iiit.ac.in/projects/
SecureVision
3
Research Directions

• Private Content Based Image Retrieval (PCBIR)

• Blind Authentication A Secure Crypto-Biometric
  Verification Protocol

• Efficient Privacy Preserving Video Surveillance

Publication Maneesh Upmanyu, Anoop M.
Namboodiri, K. Srinathan and C.V. Jawahar
Efficient Privacy Preserving Video Surveillance
Proceedings of the 12th International Conference
on Computer Vision (ICCV 2009)
Publication Maneesh Upmanyu, Anoop M.
Namboodiri, K. Srinathan and C.V. Jawahar Blind
Authentication - A Secure Crypto-Biometric
Verification Protocol Appears in
IEEE-Transactions on Information Forensics and
Security (IEEE-TIFS), June 2010

• Publication Shashank J, Kowshik P, Kannan
  Srinathan and C.V. Jawahar Private Content Based
  Image Retrieval In Proceedings of Computer
  Vision and Pattern Recognition (CVPR 2008)

4
Our Security Goal

• What is meant by Privacy?
• Design protocols to limit the information
  leakage through what is learned in addition to
  the designated output.
• What is the Adversary Model?
• Semi-honest vs. Malicious adversary
• Analysis outline
• Correctness
• Security
• Complexity

5
Assumptions

• Reliable and secure communication channel
• Players are passively corrupt, that is, honest
  but curious.
• Players are computationally bounded.
• Players do not collude.

6
Thesis Objective

• Traditional Approaches uses highly interactive
  protocols.
• Limitation massive datasets
• Example Blind Vision
• Paradigm Shift
• Compute directly in encrypted domain.
• Encrypt -gt Communicate -gt Compute -gt Decrypt
• Domain specific encryption schemes.
• PKC is data independent and generic.
• Can the paradigm be generic yet efficient?

7
Contribution of Thesis

• A method that provides provable security, while
  allowing efficient computations for generic
  vision algorithms have remained elusive.

• We show that, one can exploit certain properties
  inherent to visual data to break this seemingly
  impenetrable barrier.

8
Dilemma of Privacy vs. Accuracy
9
What is Blind Authentication?

• A biometric authentication protocol that does not
  reveal any
• information about the biometric samples to the
  authenticating server.
• information regarding the classifier, employed by
  the server, to the user or client

10
Biometric Authentication System
11
Primary Concerns in a Biometric System

• Template Protection
• Non-Repudiable
• Network and Client-side Security
• Revocability

12
Previous Work
A template protection scheme with provable
security and acceptable recognition performance
has thus far remained elusive. A.K. Jain,
Eurasip 2008
13
Homomorphic Encryption

• An encryption scheme using which some algebric
  operation , like addition or multiplication, can
  be directly done on the cipher text.

Let x1 20 and x2 22, to compute x1x2 42
Use an encryption scheme, for example E(x) ex
Server stores E(x1) e20 and E(x2) e22
Compute using encrypted data y E(x1) E(x2)
e20.e22 e42
Decrypt z D(y) ln(y) z D(y) ln (e42) 42
14
User Enrollment
15
Authentication using a Linear Kernel
16
Extensions to Kernels Neural Networks

• Kernel based classifier uses a discriminating
  function like
• Similarly, in Neural Network the basic units are
  for example perceptron or sigmoid
• Model above functions as arithmetic circuits
  consisting of add and multiplication gates over a
  finite domain.
• Consider two encryptions E and E

17
Implementation and Analysis

• Experiments designed to evaluate the efficiency
  and accuracy of proposed approach.
• For evaluation, an SVM based verifier based on
  client-server architecture was implemented.
• Accuracy as no assumptions are made, accuracy
  remains same.
• Verified this on various public domain (UCI,
  Statlog) datasets.

18

• Case study shows that matching using fixed length
  feature representation is comparable to variable
  length methods such as dynamic warping.

19
Security, Privacy and Trust

• Server Security
• Template database security
• Hacker sitting in server
• Client Security
• Hacker has users key or biometric
• Passive attacks at client end
• Network Security
• Network is susceptible to snooping attacks

20
Advantages of Blind Authentication

• Fast and Provably Secure authentication without
  trading off accuracy.
• Supports generic classifiers such as Neural
  Network and SVMs.
• Useful with wide variety of fixed-length
  biometric-traits.
• Ideal for applications such as biometric ATMs,
  login from public terminals.

21
Proposed Surveillance System
How do we carry out surveillance on
Randomized images ?
22
Motivation
Can we do surveillance without seeing the
original video ?
23
Paradigm Shift
We use the paradigm of secret sharing to achieve
private and efficient surveillance.
24
Protocol in a nutshell
Propose a Cloud-Computing based solution using
kgt2 non-colluding servers
25
Secret Sharing

• A method of distributing a secret among a group
  of servers, such that
• Each server on its own has no meaningful
  information
• Secret is reconstructed only when all shares
  combine together
• Existing methods are highly inefficient
• Asmuth-Bloom overcomes this limitation by working
  in Residue Number System (RNS).

26
Example to do Addition in RNS
RNS ( m1 37, m2 49 M m1 x m2 1813)
X 973(m1, m2) (x1, x2) (11, 42)
Y 678(m1, m2) (y1, y2) (12, 41)
Shatter f(x) (x.Sh) mod mi
Merge m(xi, mi) CRT(xi, mi) /S
Z 1651
27
Data Properties

• While general purpose secure computation appears
  inherently complex and oftentimes impractical.
• We show certain properties of the data can be
  used to ensure efficiency while ensuring privacy.
• Following properties are of interest to us.
• Limited and Fixed Range
• Scale Invariant
• Approximate Nature
• Non-General Operands

28
Characteristics of the System
29
Implementation Challenges

• Representation of negative numbers Use an
  Implicit sign representation.
• Use (0, M/2) as positive and rest as negative.
• Sign conversion is carried out using additive
  inversion of Z.
• Overflow and Underflow Operations are valid and
  correct as long as range of data is (-M/2, M/2).
• Integer Division and Thresholding RNS domain is
  finite and hence not all divisions are defined.
• Dividing integer A by B is defined as A/B
  (ai.bi-1) mod mi
• Defining Equivalent operations For every f(x),
  we need to define f(x) such that merging f(xi)
  would give f(x).

30
Experimental Results
31
(No Transcript)
32
Properties of the Protocol

• Servers are un-trusted and the network may be
  insecure.
• Near loss-less data encoding (PSNR51).
• No compromise in accuracy.
• Inexpensive capture device, and a unidirectional
  data flow.
• Negligible overheads to make private computation
  practical.
• Secure as long as servers do not collude.

Contribution
Our approach shows that privacy and efficiency
co-exists in the domain of visual data
33
K-Means Clustering

• Data clustering is one of the most important
  techniques for discovery of patterns in a
  dataset.
• K-Means clustering is a simple and extensively
  used technique that automatically partitions a
  dataset into k clusters.
• The technique becomes more effective with larger
  amount of data such as when multiple businesses
  share their data to carry out the clustering
  together.
• However, the data may contain sensitive
  information.

34
Secure K-Means Algorithms

• Trusted Third Party (TTP) based solutions
• Dwork et al. ( Crypto 2004)
• Very Efficient
• No TTP in Real World, Possible security
  compromise
• Data Perturbation techniques
• Stanley et al. (BSD 03), Kargupta et al. (ICDM
  03)
• Negligible communication overhead
• Partial security, Non-invertible transformations
  used
• Those employing Multiparty Computations
• Vaidya et al. (KDD 03), Jha et al. (ESORICS 05)
  Wright et al. (KDD 05), Inan et
  al (DKE 07)
• Complete privacy
• Highly in-efficient

35
Our Distributed Solution

• We simulate TTP on a set of un-trusted servers
  over an in-secure network.
• Secret Sharing is a method of distributing a
  secret among a group of servers.

36
Proposed Protocol

• Protocol consists of two phases
• Phase One Secure Data Distribution
• Phase Two Secure K-Means
• Phase One Secure Storage of data at servers
• Selection of an optimal RNS.
• Shattering of the users private data.
• Privacy Server stores only the shattered shares
  of data.
• Phase Two Secure K-Means
• Initialization
• Lloyd Step
• Knowledge Revelation

37
Phase Two Secure K-Means

• Clusters are initialized using the shattered
  shares
• Lloyd Step involves iteratively computing the
  closest centers in a Euclidean space
• Secure protocols for division and comparison
• Securely evaluate the termination criteria
• Send the shattered cluster centers to users who
  uses the Merge function on it
• Privacy No information is leaked to the servers
• Data for operations such as division secured
  using randomization
• Randomization done so as to secure against
  possible GCD and factorization based attacks

38
Overview of the Protocol
User 1
User 2
39
Analysis

• Overheads calculated over the naïve TTP based
  protocol.
• Division and Comparison operations introduce
  communication overhead.
• Limited to one round per operation
• Traditional approaches uses SMC for this.
• Based on OT, a communicational intensive
  protocol.
• O(n2) communication overhead to multiply two
  vectors (length n)
• Limited data expansion
• Eg 32bit data shattered into 5 shares requires
  54bits while traditional SS requires 160bits.

40
Algorithm Properties

• We have proposed a highly secure framework using
  paradigm of secret sharing.
• Negligible overheads in simulating algebraic
  operations.
• Achieve efficiency by exploiting the data
  properties.
• Solution does not demand any trust and the
  clustering is carried out directly on the
  encrypted data.

41
Conclusion
Broad Objective

• Development of secure computational algorithms in
  computer vision and related areas.
• To develop highly-secure solutions
• To develop computationally efficient solutions
• To develop solutions to problems with immediate
  impact

• The traditional methods of ensuring privacy are
  communication and computation expensive.
• We show that domain specific knowledge can be
  incorporated to ensure efficiency while retaining
  privacy.
• Moreover, our methods do not trade off accuracy.

42
Related Publications
Maneesh Upmanyu, Anoop M. Namboodiri, K.
Srinathan and C.V. Jawahar Blind
Authentication - A Secure Crypto-Biometric
Verification Protocol In IEEE-Transactions on
Information Forensics and Security (IEEE-TIFS,
June 2010) Efficient Biometric Verification in
Encrypted Domain In Proceedings of 3rd
International Conference on Biometrics (ICB
2009) Efficient Privacy Preserving Video
Surveillance Proceedings of the 12th
International Conference on Computer Vision
(ICCV 2009) Efficient Privacy Preserving
K-Means Clustering Proceedings of the Pacific
Asia Workshop on Intelligence and Security
Informatics (PAISI 2010)
43
Thank you for your attention
44
RNS CRT

• Residue Number System (RNS) is an integer using a
  set of smaller integers.
• RNS is defined by a set of k integer constants.
  m1, m2, m3, , mk
• Secret A is represented by k smaller integers.
  a1, a2, a3, , ak where ai A modulo mi
• This representation is valid as long as 0 lt A lt
  M, where M is LCM of mis
• Chinese Remainder Theorem (CRT) is the method of
  recovering the integer value from a given set of
  smaller integers.
• Define Mi M/mi
• Compute ci Mi x (Mi-1 mod mi)
• The above equation is always valid in our system,
  therefore unique solution exists

45
Shatter Merge Functions

• Shatter function Compute and store the
  secret shares of the private data.
• Where xi is the ith secret share, and ? is a
  uniform randomness
• Merge function Reconstruct the secret.
• Given for different
  primes Pis, secret is recovered using CRT
