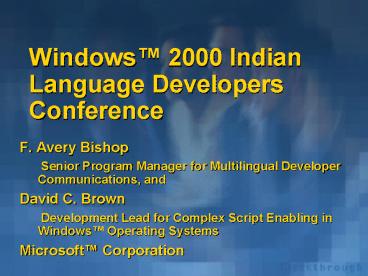

Windows 2000 Indian Language Developers Conference

1
Windows 2000 Indian Language Developers
Conference

• F. Avery Bishop
• Senior Program Manager for Multilingual Developer
  Communications, and
• David C. Brown
• Development Lead for Complex Script Enabling in
  Windows Operating Systems
• Microsoft Corporation

2
Agenda for the Day

• Welcome and Keynote
• International Features of Windows 2000
• Complex Script Processing in Windows 2000
• Uniscribe The Unicode Script Processor
• Lunch
• Guidelines for supporting complex scripts in
  Win32 applications
• Supporting Indian text in Enterprise applications
• Introduction to Open Type Fonts
• Microsoft developer programs in India

3
Updates on Session Materials

• Todays presentations vary slightly from your
  session handouts
• For updates to ppt files and demos,
  seewww.microsoft.com/globaldev

4
International Features in Microsoft Windows
2000F. Avery BishopSenior Program
ManagerMicrosoft Corporation
5
Agenda International Features of Windows 2000

• Definitions of key concepts
• Windows 2000 single-binary internationalization
• Multilingual content
• Windows 2000 Multilanguage version
• New complex script support, including
• Support for Indian languages
• Complex Scripts in web pages
• Right-to-left layout of shell, applications

Old name Windows NT 5.0
6
Definitions

• ScriptA set of symbols used to write one or
  more languages
• Locale
• A place or locality (Dictionary definition)
• Set of user preferences related to language and
  local customs
• Language GroupTerm used to describe the
  supported script families in Windows NT 5

7
Definitions

• System LocaleNot really a locale. Determines
  which script non-Unicode applications will
  support (e.g., what Windows 9x system Windows NT
  emulates)
• User LocaleUser preferences for formatting of
  dates, currencies, numbers, etc.
• Input LocalePairing of input language and
  method of of input determines what language is
  currently being entered and how

8
Definitions

• Enabling for a scriptAdding support for input,
  display, and output of the script
• LocalizationTranslating user interface elements
• GlobalizationDeveloping software such that
  feature design and code design are not limited to
  a single locale or script

9
Definitions

• Complex ScriptsScripts that require contextual
  processing for display, editing, and other
  processing

10
All language versions of Windows 2000 use the
same core binary files!So What?

• Advantages to Users
• Can enter text in any supported language on any
  version of Windows 2000
• Any language version of well written Win32 app
  runs on any language version of Windows 2000
• Advantages to developers
• Develop all language versions on one system
• Can develop and ship a single binary for all
  languages

11
More on Unified language Support in Windows 2000

• Effect of system default locale on application
• ANSI applications require appropriate system
  locale setting
• ANSI/Unicode applications may require system
  locale setting (more on this later)
• Pure Unicode applications work with any system
  locale
• Native Unicode support
• Important New scripts will have no codepage, the
  support is through Unicode only (e.g., Indian
  scripts, Armenian, Gregorian)

12
Unicode allows processing of Multilingual Content

• System components
• Internet Explorer 5.0 can do amazing things!
• Others Winlogon, File system, Notepad, etc.
• Unicode applications
• Office 2000
• Your application!

13
Windows 2000 Multilanguage Version

• Language of menus and dialogs is a
  per-user-setting
• Installable language modules
• Sold through MOLP, Select, and Enterprise
  Agreement
• Available to developers through MSDN

14
Support for Complex Scripts in Windows 2000
A complex script is one that requires special
processing, such as

• Bi-directional (BiDi) reordering (Arabic, Hebrew)
• Contextual shaping (Arabic, Indic family)
• Display of combining characters (Arabic, Thai,
  Indian)
• Specialized word-break and justification rules
  (Thai)
• Disallowing illegal character combinations
  (Indian, Thai)

15
RTL Orientation, or Mirroring
16
Right-to-Left Mirroring API

• One function call will mirror all windows in an
  application
• Can also mirror selective windows
• APIs to suppress mirroring of bitmaps
• May need to modify coding practices

17
Support for Indian Languages in Windows 2000

• APIs handle Devanagari and Tamil text through
  Unicode
• Locale support
• Time, Date, number, currency formats
• Sorting
• Conversion
• Explicit function calls convert to/from ISCII
• No Windows 98 compatibility mode

18
How We Developed Indian Script Support in Windows
2000

• Worked with Government organizations
• Consulted with NCST, CDAC, academics
• Brought engineers from NCST
• Added Indian shaping engines to Uniscribe
• Helped define feature tables for Open Type
• Hired Hindi/Tamil speakers to test

19
Complex Scripts in Web pages

• IE 5.0 supports complex scripts, including
  Devanagari and Tamil in
• Standard HTML text
• DHTML All properties in DOM
• XML
• Recommended encoding is UTF-8
• Place charsetutf-8 in HTTP header
• Allows mixed scripts

20
Demo!
21
Questions?
22
Further Information and Resources

• http//www.microsoft.com/globaldev(Watch for
  updates!)
• MSJ articles, e.g.,
• Uniscribe http//www.microsoft.com/msj/1198/multi
  lang/multilangtop.htm
• Multilingual UI Coming April 1999
• Send suggestions to nlshelp_at_microsoft.com

23
Break!
24
Complex Script Processing in Microsoft Windows
2000 David BrownDevelopment LeadMicrosoft
Corporation
25
Agenda

• Overview
• Implementation
• Details

26
1. Overview

• Distinct language groups
• Mix any and all scripts
• Most apps are easy to develop
• CS Complex Script

27
Complex Script Language groups

• Arabic, Hebrew, Indic, Thai, Vietnamese
• Part of ALL versions of Windows 2000
• Enable in Control Panel - Regional Settings
• Turn it on today!

28
All scripts, any mix

• Unicode makes representation easy
• Common framework and APIs
• Individual script and font handlers
• Multilingual for no extra effort

29
Built into standard system APIs

• Plain text
• ExtTextOut, Drawtext, TabbedTextOut
• System edit control
• Dialog boxes
• Formatted text
• Richedit
• HTML control
• See the Win32 SDK
• Dont write your own formatting

30
Font fallback

• Standard system fonts
• For dialogs, plaintext edit controls
• and other plaintext display
• Dialog boxes work automatically

31
Summary

• CS support is standard in Windows 2000
• No restrictions on script combinations
• Easy (unless you are implementing your own
  formatting)

32
2. Implementation

• Callouts from GDI and USER
• Performance
• Text broken by script and direction
• Script handlers
• LPK.DLL

33
Callouts from GDI and USER

• ExtTextOut, DrawText passed early to LPK.DLL
• Plaintext edit control has many callouts
• Caret placement
• Text measurement
• Line breaking
• Word advance
• Safe, stable changes to OS core

34
Fast path for non CS

• Normal GDI 11 char to glyph
• Simple side by side placement
• No CS characters
• If right-to-left, no neutrals
• If Digit substitution, no digits
• Performance is good

35
Split by script and direction

• Separate e.g. Devanagari, Tamil, Western
• Left-to-right or right-to-left
• Unicode bidirectional algorithm
• Atomic item of display

36
Handler for each script

• Script shaping and reordering
• Devanagari - matra I reordered before consonant
  cluster
• Tamil - vowel sign O surrounds consonant cluster
• Urdu - Initial, media, final, alone forms
• Various font formats
• Backward compatability
• Shaping - ligatures, contextual forms
• Placement of marks
• Script handlers understand scripts

37
Language Pack LPK.DLL

• Apply NLS settings (preferred digits)
• Plaintext edit control
• Calls to Uniscribe string handling
• LPK.DLL is OS ltgt Uniscribe bridge

38
Application
USER GDI
LPK.DLL
Uni-scribe
39
Summary

• Callouts from GDI and USER
• Performance issues
• Split by script and direction
• Script handlers
• LPK.DLL

40
3. Details

• Clusters
• Caret placement and Mouse hits
• Word breaking
• Font metrics
• Measuring text
• Metafiles

41
Clusters

• Indivisible - Indian, Thai, Vietnamese
• Divisible - Arabic

42
Caret, mouse hits

• For indivisible clusters
• Arrow keys skip over clusters
• Del deletes entire cluster
• Backspace decomposes cluster one character at a
  time
• Arrows and Mouse select whole clusters
• Left click snaps to nearest boundary
• For divisible clusters
• Caret shows proportional position
• Use system controls or query Uniscribe

43
Font metrics

• Matching the body height

44
Font metrics

• Matching the ascender

45
Font metrics

• Matching the descender

46
Matching fonts

• When CS text is predominant
• Full CS line spacing
• Increase Western height
• When Western text is predominant
• Compromise line spacing
• Accept some clipping
• System edit control
• Line spacing from single font
• Richedit, HTML control
• Line spacing adjusted for multiple fonts

47
Measuring text

• Adding characters can make text smaller

48
Metafiles

• Device independent
• Store Unicode - Enhanced metafile
• Use ExtTextOut(W)
• Windows adjusts widths for different playback
  fonts
• Device dependant
• Avoid
• Stores glyphs
• Requires identical font for playback

49
Summary

• Caret placement and Mouse hits
• Word breaking
• Font metrics
• Measuring text
• Metafiles
• Format with richedit, MSHTML

50
Resources

• Uniscribe - next talk
• OpenType - later today
• Win32 SDK
• Richedit
• RTF
• messages
• Text object model
• HTML control
• HTML
• Document object model

51
Questions?
52
Conclusions

• Windows 2000 is multilingual
• Included on every CD
• Format with system controls
• is much easier than writing your own
• You can write your own formatting
• Uniscribe provides all you need

53
Uniscribe The Unicode Script Processor David
BrownDevelopment LeadMicrosoft Corporation
54
Agenda

• Overview
• Layers
• Low level APIs
• High level APIs

55
1. Overview

• Uniscribe is a DLL
• Client applications
• Hides language details
• Hides OS details

56
USP10.DLL

• Platforms
• Windows 2000
• Windows NT 4
• Windows 98
• Windows 95 (excluding Far East)
• Single worldwide binary
• Installs with Windows2000, IE5, Office 2000

57
Client applications

• Windows 2000
• Word 2000
• Excel 2000
• Access 2000
• PowerPoint 2000

• MSHTML (IE5)
• Richedit 3
• MS Agent
• Frontpage Express
• HTML/RTF converter

58
Hides language details

• Syllable structure (Indian, Thai)
• Contextual shaping (Arabic)
• Caret placement
• Wordbreak
• National digits
• Bidirectional layout (Arabic, Hebrew)

59
Hides Unicode OS details

• APIs are Unicode on all platforms
• Hides glyph codes
• Hides font differences
• Shaping tables
• Fixed repetoire fonts

60
Summary

• Cross platform Unicode display API

61
2. Layers

• Win32 glyph support
• OpenType
• Shaping engines
• Low level APIs
• Formatted text, Full control, Less simple
• High level APIs
• Plaintext, Simple

62
Win32 API

• Truetype fonts
• Internally indexed by glyph
• Glyph manipulation
• ExtTextOut(ETO_GLYPHINDEX)
• GetGlyphOutline(GGO_GLYPHINDEX)
• Font table access
• GetFontData

63
OpenType

• Provides standard table structures
• Contextual glyph substitution
• Mark to base attachment
• Defines instances for scripts
• Examples
• Initial form of Arabic letter
• Half form of Devanagari consonant
• Attachment position for Nukta

64
Shaping engines

• Per script
• Understand language rules
• Understand font features
• OpenType provides full control
• Many older fixed layout fonts

65
Low level APIs

• Low level item support for formatting apps
• Break string by script and direction
• Shaping
• Caret and mouse
• Word breaking, justification

66
High level APIs

• Simple string support for LPK and plaintext apps
• Features not in low level APIs
• Font fallback
• Tabstops
• Bidi highlighting
• Similar functionality to ExtTextOut, DrawText,
  TabbedTextOut

67
Summary

• High level plaintext APIs
• Low level formatting APIs
• Shaping engines
• OpenType
• Win32 API

68
3. Low level APIs

• Formatting text
• Style runs
• Measurement
• Paragraph filling
• Rendering

69
One run
70
Script and Direction Boundaries

• ScriptItemize generates items
• Each item has single script and direction
• Implements the Unicode Bidi algorithm
• Application must merge items into its own style
  runs
• Runs are unique in
• Font, Style
• Script, Direction

71
Glyphs and Metrics

• One run at a time
• ScriptShape generates
• glyphs,
• glyph attributes
• map of character to glyph buffer offsets
• ScriptPlace generates
• advance widths
• combining character x,y offsets

72
Line Filling

• Measure runs in logical order until the line
  overflows
• ScriptBreak provides codepoint attribute
  information
• Whitespace
• Start of word for scripts such as Thai
• Break the overflow run using these attributes

73
Word breaking

• ScriptBreak
• Thai, Khmer run words together
• This is 5 words
• Grammatical analysis
• Dictionary

74
Layout and Rendering

• ScriptLayout for visual order
• Embedding levels from ScriptItemize
• Use for generic multilingual support
• ScriptTextOut renders each run
• Glyphs from ScriptShape
• Positions from ScriptPlace

75
Caret Placement Mouse Hits

• ScriptXtoCP, ScriptCPtoX
• CP - character position
• X - horizontal coordinate
• Which edge?
• In bi-directional text the trailing edge of one
  character is not necessarily adjacent to the
  leading edge of the next character

76
Leading and Trailing edges
77
Font Fallback

• The more scripts you support the more you need
  font fallback
• ScriptShape returns HRESULT USP_E_SCRIPT_NOT_IN_FO
  NT if you ask it to shape a run that the selected
  font cannot support

78
Summary

• Script
• Itemize
• Shape, Place
• Break, Layout
• TextOut
• CPtoX, XtoCP

79
4. High level APIS

• Purpose
• Analysis
• Display
• Font fallback

80
Purpose

• For Windows 2000
• ExtTextOut
• DrawText
• System edit control
• Cross-platform Unicode plaintext display
• Easier than low level APIs

81
Analyze

• ScriptStringAnalyse
• Itemizes, shapes, places etc.
• Features
• Variety of tabbing options
• Clipping, justification
• Font fallback
• Control character representation
• hotkey substitution
• password entry
• Returns handle to analysis

82
Querying the analysis

• ScriptString
• Size
• pcOutChars
• pLogAttr
• GetOrder
• CPtoX, XtoCP
• GetLogicalWidths
• Validate

83
Displaying and freeing

• ScriptStringOut
• Clipping rect like ExtTextOut
• Selection highlighting
• ScriptStringFree

84
Bidi highlighting

• Arabic letters right-to-left
• Arabic numbers left-to-right

85
Font fallback

• When font in HDC is missing
• Codepoints
• Fallback clusters with codepoints not present in
  the font
• Scripts
• Fallback when Item script not supported by the
  font
• Finally to GDI for Far East font linking
• Requires Microsoft Sans Serif

86
Summary

• ScriptString
• Analyse
• query analysis ...
• Out
• Free

87
Demo
88
Resources

• OpenType talk
• Complex script sample CSSAMP
• Win32 SDK
• Microsoft Systems Journal
• November 1998

89
Questions?
90
Conclusion

• Unicode plaintext display APIs
• Unicode formatted text support APIs
• Cross-platform

91
Lunch!
