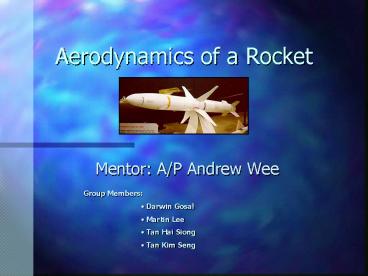

Aerodynamics of a Rocket

1
Aerodynamics of a Rocket

• Mentor A/P Andrew Wee

• Group Members
• Darwin Gosal
• Martin Lee
• Tan Hai Siong
• Tan Kim Seng

2
Outline

• Introduction
• Theoretical Background
• Procedure / Set Up
• Results and Analysis
• Conclusion
• Improvements
• Further Experiment

3
Introduction

• These fin shapes with angle ? varying from 45º to
  90º (in increasing steps of 5º) will be inserted
  onto the rocket body shaft during the experiment.
  A wind tunnel will be used to channel moving air
  currents upward towards the rocket body. An
  empirical relation between the resulting drag
  force and the angle ? would be obtained from the
  experimental results. The interdependence between
  the wind speed with these two variables was
  investigated.

4
Introduction
5
Theoretical Background

• Viscous Drag - drag due to skin friction
• Form Drag - drag due to the separation of the
  flow from the body which results in the
  alteration of pressure distribution.

6
Theoretical Background

• The expressions for the coefficient of viscosity
  ? and the shearing stress ? in terms of the
  properties of the fluid of the flow are
• ? 1/3 ? c L
• ? ? ?u / ?y

7
Theoretical Background

• The concept of a shearing stress isRate of
  transfer of downstream momentum in a direction
  lateral to the flow.
• The shearing stress at the surface
  ? ? ?u / ?y is the skin friction (Force per
  unit area.)
• This is exerted by the fluid on the surface in
  the tangential direction.

8
Theoretical Background
1. Eulers Equation may be written as
2. After summing up the pressure and shear forces
on an element in a boundary layer -
3. We thus obtain the boundary layer equation of
motion
9
Theoretical Background
4. The continuity equation for incompressible
flow -
5. The boundary layer equation of motion and the
continuity equation are the equations available
for the solution of our aerodynamic problem.
10
Theoretical Background

• For the steady flow of the incompressible viscous
  fluid along a flat plate

2. Upon solving these differential equations, we
obtained an expression for the drag force drag
per unit area
Figure 3.3 - Boundary Layer on a flat plate
where ue is the speed of wind of the wind tunnel
as measured by the anemometer.
11
Procedure / Set Up
12
Results Analysis
13
Results Analysis
14
Results Analysis
15
Results Analysis
16
Results Analysis
17
Results Analysis
18
Results Analysis
19
Results Analysis
20
Conclusion .

• There is a clear, direct relationship between
  resistive force and the variables and furthermore
  more that it is an increasing function of both of
  them.
• It has also been observed that with higher wind
  speed, the resistive force increases more quickly
  with increasing angles.

21
Problems Improvements
22
Problems Improvements
23
Problems Improvements
24
Problems Improvements
q
25
Problems Improvements
26
Further Experiment
27
Further Experiment
28
Further Experiment
29
Further Experiment
30
THE END
31
Weight Balance
32
Pulley
33
Anemometer
34
Rocket Body
35
Force Transducer
36
Wind Tunnel
37
Pivot
38
