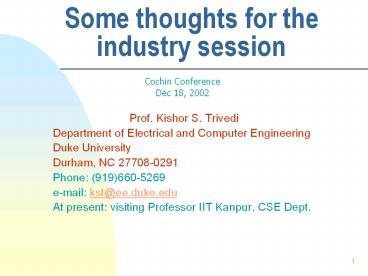

Some thoughts for the industry session

1
Some thoughts for the industry session
Cochin Conference Dec 18, 2002

• Prof. Kishor S. Trivedi
• Department of Electrical and Computer Engineering
• Duke University
• Durham, NC 27708-0291
• Phone [phone]
• e-mail kst_at_ee.duke.edu
• At present visiting Professor IIT Kanpur, CSE
  Dept.

2
What does industry want?

• Well trained students
• Short term research problems solved
• Short courses on timely topics

3
What do faculty want?

• Funding for their research
• Place their students in good company labs
• Hope to get their research results transferred to
  industry
• To get to know important and difficult problems
  that can drive their research

4
Some lessons learned

• Student placement should be guided by the advisor

• Start early with summer internship
• Patience is needed in listening to problems from
  industry
• Patience is needed in getting the IP problems
  resolved
• Expect to do at least 50 more work than the
  funding provided
• Tech transfer is a double edged sword
• Practical problems can give rise to respectable
  research papers
• Short courses are ideal entry points

5
Characteristics of the Systemsbeing Studied
Dependability (Reliability, Availability, Safety)

• Redundancy Hardware (Static,Dynamic),
  Information, Time
• Fault Types Permanent, Intermittent, Transient,
  Design
• Fault Detection, Automated Reconfiguration
• Imperfect Coverage
• Maintenance scheduled, unscheduled

6
Characteristics of the Systemsbeing Studied

• Performance
• Resource Contention, Concurrency and
  Synchronization
• Timeliness (Have to Meet Deadlines)
• Composite Performance and Dependability
• Degradable Levels of Performance
• Need Techniques and Tools that can Evaluate
• Systems with All the Characteristics Above
• Explicitly Address Complexity

7
MEASURES TO BE EVALUATED

• Dependability
• Reliability R(t), System MTTF
• Availability Steady-state, Transient, Interval
• Safety
• Does it work, and for how long?''
• Performance
• Throughput, Loss Probability, Response Time
• Given that it works, how well does it work?''

8
MEASURES TO BE EVALUATED

• Composite Performance and Dependability
• How much work will be done(lost) in a given
  interval including the effects of
  failure/repair/contention?''
• Need Techniques and Tools That Can Evaluate
• Performance, Dependability and Their Combinations

9
PURPOSE OF EVALUATION

• Understanding a System
• Observation
• Operational Environment
• Controlled Environment
• Reasoning
• A Model is a Convenient Abstraction

10
PURPOSE OF EVALUATION

• Predicting Behavior of a System
• Need a Model
• Accuracy Based on Degree of Extrapolation
• All Models are Wrong Some Models are Useful
• Prediction is fine as long as it is not about the
  future

11
Methods of Quantitative EVALUATION

• Measurement-Based
• Most believable, most expensive
• Not always possible or cost effective during
  system design

12
Methods of Quantitative Evaluation(Continued)

• Model-Based
• Less believable, Less expensive
• 1. Discrete-Event Simulation vs. Analytic
• 2. State-Space Methods vs. Non-State-Space
  Methods
• 3. Hybrid Simulation Analytic (SPNP)
• 4. State Space Non-State Space (SHARPE)

13
Why MODEL?

• Provides a framework for gathering, organizing,
  understanding and evaluating information about a
  system e.g. Zitel, USS,HP
• A cost-effective means to evaluate a system
• e.g. Boeing, USS, HP,IBM, Motorola,
• Cisco,SUN

14
Why MODEL? (continued)

• Provides a means of evaluating a set of
  alternatives in a structured and quantitative
  manner e.g. Zitel, DEC,HP
• Sometimes needed due to legal and contractual
  obligations e.g. FAA
• Sometimes needed for business reasons Motorola,
  SUN, Cisco

15
Compare two CLIENT-SERVER Architectures

• Architecture 2

Architecture 1
16
Compare Connection Reliabilities

• Connection reliability R(t) is the probability
  that throughout the interval 0,t) at least one
  path exists from the client to server on which
  all components are operational.
• From R(t), system mean time to failure can be
  computed

17
Compare Connection Reliabilities
18
Compare Connection Availabilities

• Connection (instantaneous, transient or point)
  availability A(t) is the probability that at time
  t at least one path exists from the client to
  server on which all components are operational.
• A(t)?R(t) and limiting or steady-state
  Availability

19
Compare Connection Availabilities
20
MODELING THROUGHOUT SYSTEM LIFECYCLE

• System Specification/Design Phase
• Answer What-if Questions''
• Compare design alternatives (Zitel,HP,Motorola)
• Performance-Dependability Trade-offs (DEC)
• Design Optimization (wireless handoff)

21
MODELING THROUGHOUT SYSTEM LIFECYCLE

• Design Verification Phase
• Use Measurements Models
• E.g. Fault/Injection Reliability Model
• Union Switch and Signals, Boeing, Draper
• Configuration Selection Phase DEC
• System Operational Phase Lucent

• It is fun!

22
CASE STUDY ZITEL

• Comparison of two different fault-tolerant
  RAMdisks.
• Stochastic Petri Net Package (SPNP) was used to
  model the two systems for their reliability.

23
CASE STUDY ZITEL

• Trivedi worked with the designers directly
• Model Validation was done using face validation
  and sanity checks.
• Parameterization was easy due to the experience
  of the designers.
• One difficult research problem originated from
  the study Subsequently solved and published in
  Microelectronics and Reliability journal.

24
CASE STUDY VAXCLUSTER

• Developed three models of Processor Subsystem
• Two-Level Decomposition (IEEE-TR, Apr 89)
  Inner Level
  9-state Markov
  Outer level n parallel diodes
• A Detailed SPN Model (PNPM 89)
• A Detailed SPN model for Heterogeneous Cluster
  (Averesky book)

25
CASE STUDY VAXCLUSTER

• Storage Subsystem Model A fixed-point iteration
  over a set of Markov submodels. (IEEE-TR, to
  appear)
• Observed that availability is maximized with 2
  processors (HCSS 90)
• Many interesting reliability, availability,
  performability measures computed

26
Case Study HP

• Cluster Availability Modeling
• Server Availability
• Mass Storage Arrays Availability Modeling
• Started with Markov chains via SHARPE
• Progressed toward Stochastic Petri Nets
• and Stochastic Reward nets via SPNP

27
CASE STUDY LUCENT

• A Validated Model of Hardware-Software
  Availability.
• Worked with V. Mendiratta of Naperville.
• Model is semi-Markov solved using SHARPE.
• Parameters collected form field data.
• Model results validated against actual
  measurements.

28
CASE STUDY LUCENT, IBM, Motorola, SUN

• Software Rejuvenation
• A technique to counter software aging and
  increase its availability to clients.
• Evaluated optimum rejuvenation interval which
  maximizes steady state availability (minimizes
  expected cost) for IBM cluster, Motorola CMTS
  cluster
• Collected data from real systems to show aging
  and to determine proactive fault management
  strategies. Worked in our lab, with SUN
  Microsystems

29
CASE STUDY MOTOROLA

• Availability Performability Modeling
• Modeled several configurations of Communication
  Enterprise Common Platform.
• Practical approaches for approximating steady
  state measures in large, repairable, and highly
  dependable system model decomposition, state
  space truncation, etc.
• Both SHARPE and SPNP used.

30
CASE STUDY MOTOROLA

• Recovery strategies in wireless handoff
• proposed and modeled several strategies
• a patent being filed by Motorola
• SPNP was used
• Hierarchy of two-level models used
• Fixed-point iteration was used

31
CASE STUDY BELLCORE

• Architecture-based software reliability
• proposed a methodology
• applied the methodology to SHARPE
• used Bellcores test coverage tool, ATAC, to
  parameterize the model
• Bellcore is currently enhancing ATAC to
  incorporate our methodology

32
CASE STUDY DRAPER LAB

• Overall aim was Verification of system with very
  high reliability/availability specifications.
  Prototype under consideration was FTPP cluster
  3.
• Hybrid approach proposed
• Fault injection based measurements.
• Statistical analysis of measured data to enable
  parameterization of analytical models.

33
CASE STUDY DRAPER LAB

• Reliability modeling of the prototype done
  Parameterization done with the aid of existing
  reliability databases.
• Analytical solution provided exact closed form
  expressions
• Markov model solved using SHARPE
• Petri net model solved using SPNP
• Reliability bottlenecks found

34
CASE STUDY AT T

• GSHARPE
• A Preprocessor to SHARPE developed at Bell Labs
  by a Duke Student.
• User can specify Weibull Failure times and
  lognormal and other repair time distributions.
• GSHARPE fits these to phase type distributions
  and produces a Markov model that is generated for
  processing by SHARPE

35
CASE STUDY BOEING

• An Integrated Reliability Environment
• A working prototype
• Developed a high-level modeling language (SDM)
• Designed and implemented an intelligent
  interpreter

36
CASE STUDY BOEING (Continued)

• Interpreter determines which solution method is
  applicable
• Five different modeling engines are integrated
• CAFTA, SETS, EHARP, SHARPE and SPNP.

37
QUANTITATIVE EVALUATION TAXONOMY
Closed-form solution
Numerical solution using a tool
38
MODELING TAXONOMY
39
STATE SPACE MODELING TAXONOMY
40
ANALYTIC MODELING TAXONOMY

• NON-STATE SPACE MODELING TECHNIQUES

Product form queuing models
SP reliability block diagrams
Non-SP reliability block diagrams
41
State Space Modeling Taxonomy
discrete-time Markov chains
Markovian modeling
continuous-time Markov chains
Markov reward models
State space methods
Semi-Markov models
non-Markovian modeling
Markov regenerative models
Non-Homogeneous Markov
42
State-Space Based Models

• Transition label
• Probability (homogeneous) discrete-time Markov
  chain (DTMC)
• Time-independent Rate homogeneous
  continuous-time Markov chain
• Time-dependent Rate non-homogeneous
  continuous-time Markov chain
• Distribution function semi Markov process
• Two Dist. Functions Markov Regenerative Process

43
IN ORDER TO FULFILL OUR GOALS OF

• Modeling Performance, Dependability and
  Performability
• Modeling Complex Systems
• We Need
• Automatic Generation and Solution of Large Markov
  Reward Models

44
IN ORDER TO FULFILL OUR GOALS OF

• Facility for State Truncation, Hierarchical
  composition of Non-State-Space and State-Space
  Models, Fixed-Point Iteration
• There are Two Tools that Potentially meet these
  Goals
• Stochastic Petri Net Package (SPNP)
• Symbolic Hierarchical Automated Rel. and Perf.
  Evaluator (SHARPE)

45
MODELING SOFTWARE PACKAGES

• HARP - Hybrid Automated Reliability Predictor
  (Duke Univ, funded by NASA
  Langley)
• SAVE - System Availability Estimator
  (Duke Univ. funded by IBM)
• SHARPE - Symbolic Hierarchical Automated
  Reliability and Performance Evaluator installed
  at nearly 280 locations (GUI available)
• SPNP - Stochastic Petri Net Package installed at
  nearly 120 locations (iSPN - GUI available)
• D_RAMP for Union Switch and Signals by Duke, UVA
  and CMU
• SDM - Boeing Integrated Reliability Modeling
  Environment (Jointly developed by Duke Univ.,
  Univ. of Wash. and Boeing)
• SDDS - Developed by Sohar with the help from K.
  Trivedi
• SREPT - Software Reliability Estimation and
  Prediction Tool

46
Challenges in Modeling
47
COMPLEXITIES OF MODELS

• Large State Space
• Model construction problem
• Model solution problem
• Model Stiffness.
• Fast and slow rates acting together
• Failure And Recovery/Repair
• Performance and failure

48
COMPLEXITIES OF MODELS

• Modeling Non-Exponential Distributions
• Combining performance and reliability
• Believability/Understandability/Usability
• Incorporation in the design process
• Connection between measurements models
• Parameterization
• Validation

49
LARGENESS TOLERANCE

• Automated Model Construction
• Stochastic Petri nets (GreatSPN, SPNP, SHARPE,
  DSPNexpress, ULTRASAN)
• High level languages (SAVE, QNAP, ASSIST, SDM)
• Fault-Tree Recovery Info (HARP)
• Object-Oriented Approaches (TANGRAM)
• Loops in the specification of CTMC (SHARPE)

50
LARGENESS TOLERANCE

• Efficient numerical solution techniques
• Sparse Storage
• Accurate and Efficient Solution Methods
• We have Generated and Solved Models
• with 1,000,000 states (has gone up
• considerably recently)
• Steady-State NEAR-Optimal SOR
• Transient Modified Jensen's method

51
MODEL SPECIFICATION LANGUAGES

• Different languages can be used to specify a
  single model type
• SAVE,QNAP,SPNP all appear very different
  underlying model type is Markov
• Same language can be used to specify different
  model typesRESQ input language used for PFQN or
  EQN

52
LARGENESS AVOIDANCE

• Non-State-Space methods
• Reliability block diagrams
• Fault-trees
• Product-Form Queuing Networks
• Approximate solutions
• State Truncation
• SAVE, SPNP, ASSIST (Kantz and Trivedi PNPM91)

53
LARGENESS AVOIDANCE

• Approximate solutions
• Hierarchical Decomposition (Chapter 11)
• and Fixed-Point Iteration among submodels
• Heidelberger and Trivedi IEEE-TC,1983
• (Queueing Models)
• Ciardo and Trivedi PNPM91 (SPN Models)
• Tomek and Trivedi (Availability Models)
• Singhal (IEEE-TPDS, 1992)
• Chapter 11 of Sahner et al.

54
LARGENESS AVOIDANCE

• Approximate solutions
• Time-Scale Decomposition
• Bobbio and Trivedi(IEEE-TC1986) Section 11.2
• Fluid Approximation
• Miltra Kulkarni Ciardo Nicol, and Trivedi
• FSPN
• Performability (Chapters 6 and 12)

55
Difficulties in Modeling Using MRMs

• Stiffness
• Causes numerical difficulties in solution
• Stiffness Tolerance
• Develop stiffness tolerant numerical
• solution methods
• Stiffness Avoidance
• Avoid generating stiff models through
• decomposition

56
STIFFNESS TOLERANCE

• Automatic Detection of Stiffness (HARP)
• Special Stable ODE Solver
• Reibman and Trivedi (TR-BDF2)
• Computers and Operations Research, 1988.
• Malhotra and Trivedi (Pade, Implicit RK)

57
STIFFNESS TOLERANCE

• Uniformization for Stiff Markov Chains
• Muppala and Trivedi
• We can solve models with rate ratios of 108 or
  higher
• Implemented in SHARPE SPNP

58
STIFFNESS AVOIDANCE

• Model-level decomposition
• Behavioral Decomposition (HARP, Bobbio Trivedi)
  Fault-Occurrence vs. Fault/Error Handling
• Hierarchical Composition (SHARPE) Composition of
  Submodel solutions without generating a single
  one-level overall model
• Fixed-Point Iteration (Ciardo and Trivedi SPNP)

59
Non-Exponential Behavior

• Non state space models Fault Trees, Reliability
  Graphs, RBDs no problem

60
Non-Exponential Behaviorin State Space Models
61
NON-EXPONENTIAL DISTRIBUTIONS

• Phase-Type Expansions
• Malhotra and Reibman (GSHARPE)
• See Figure 9.38 on p. 191(Red Book)
• Non-Homogeneous Markov Chains
• CARE III, HARP
• Soft Reliability model with imperfect repairs
• solved using SHARPE

62
NON-EXPONENTIAL DISTRIBUTIONS

• Semi-Markov Chains
• Ciardo et al, IEEE-TC Oct. 90
• Markov Regenerative Processes
• Choi, Logothetis, Kulkarni, Trivedi
• DSPN and MRSPN
• Choi, Kulkarni, Trivedi
• Discrete-Event Simulation
• Now in SPNP (FSPN an Non-Markovian SPN
• Simulation), RESQ, QNAP

63
BELIEVABILITYUNDERSTANDABILITY

• Integration of Measurements and Models
• Measurements Provide Parameters to Models
• Models Provide Guidelines For Measurements
• Models Validated Against Measurements
• Integration of Different Modeling Tools
• Boeing SDM project
• IDEAS project at Duke

64
BELIEVABILITY/UNDERSTANDABILITY

• Many Case-Studies of Validations Needed
• Vaxcluster Availability Model Wein Sathaye
• Hsueh, Iyer and Trivedi IEEE-TC, Apr. 1988
• AT T Validation of ESS
• Technology Transfer
• Seminars and Workshops
• Development and Dissemination of Tools
• Application of the Techniques and Tools

65
MODELING AND MEASUREMENTS INTERFACES

• Measurements supply Input Parameters to Models
• (Model Calibration or Parameterization)
• Confidence Intervals should be obtained
• Boeing, Draper, Union Switch projects
• Model Sensitivity Analysis can suggest which
  Parameters to Measure More Accurately Blake,
  Reibman and Trivedi SIGMETRICS 1988.

66
MODELING AND MEASUREMENTS INTERFACES

• Model Validation
• 1. Face Validation
• 2. Input-Output Validation
• 3. Validation of Model Assumptions
• (Hypothesis Testing)
• Rejection of a hypothesis regarding model
  assumption based on measurement data leads to an
  improved model

67
MODELING AND MEASUREMENTS INTERFACES

• Model Structure Based on Measurement Data Hsueh,
  Iyer and Trivedi IEEE TC, April 1988 Gokhale et
  al, IPDS 98
