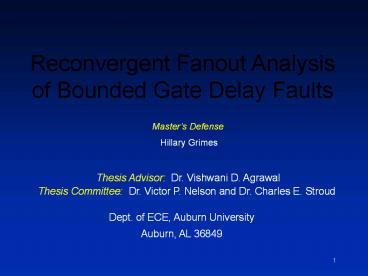

Reconvergent Fanout Analysis of Bounded Gate Delay Faults

1
Reconvergent Fanout Analysis of Bounded Gate
Delay Faults
Masters Defense
Hillary Grimes
Thesis Advisor Dr. Vishwani D. Agrawal
Thesis Committee Dr. Victor P. Nelson and Dr.
Charles E. Stroud
Dept. of ECE, Auburn University Auburn, AL 36849
2
Outline

• Background
• Problem Statement
• Ambiguity Lists
• Fault-Free Circuit Simulation
• Detection Threshold Evaluation
• Experimental Setup
• Results and Discussion
• Conclusions

3
Delay Testing

• Delay testing ensures a manufactured design meets
  its timing specifications
• Gate Delay Fault Model
• Assume that a delay fault is lumped at a faulty
  gate
• All other gates have their delays within the
  specified (min, max) range.

4
A Gate Delay Test

• A delay test consists of a vector pair
• First vector (V1) initializes the circuit
• Second vector (V2) produces the required
  transitions
• For a slow-to-rise gate delay fault
• V1 places a logic 0 at the fault site
• V2 stuck-at-0 test for the same fault site

5
Fault-Free Circuit Simulation

• IV initial value for V1-V2 transition stable
  logic value at gate after V1 is applied
• FV final value for V1-V2 transition stable
  logic value at gate after V2 is applied
• EA earliest arrival time for gate output after
  V2 is applied
• LS latest stabilization time for gate output
  after V2 is applied

6
Fault-Free Circuit Simulation
0
1 3
3 5
1,3
1,3
1,3
1,2
4 11
EA 0 LS 0
1,2
1,2
2 5
IV 1
1
1
3,4
FV 0
1,3
1,3
1,3
5 9
EA 8 LS -8
EA 5
LS 9
7
Faulty Waveforms

• Faulty Propagating Value - FPV
• Signals logic value in the presence of a
  stuck-at-IV fault at the fault site
• Propagates the faults logic effect through the
  circuit
• Used to determine whether or not a delay fault of
  any size (transition fault) is detected

8
Fault Propagating Values
0
1 3
3 5
1,3
1,3
1,3
1,2
4 11
Slow-To Fall
1,2
1,2
2 5
1
1
3,4
1,3
1,3
1,3
5 9
9
Fault Propagating Values
0
FPV 1
1 3
3 5
1,3
1,3
1,3
1,2
FPV 1
4 11
FPV 0
FPV 0
1,2
1,2
2 5
1
1
FPV 1
FPV ? FV
FPV 1
3,4
1,3
1,3
1,3
Assuming the delay fault size is large enough, it
is detected
5 9
10
Detection Threshold

• For gate delay faults, we also need to know the
  size (d) of faults detected
• Detection Threshold minimum size delay fault
  detectable by the test
• Requires timing information about faulty
  waveforms to be propagated along with FPVs
• RTa RTb signal is at FPV between the times
  RTa to RTbd

11
Detection Threshold Evaluation
Ts 12
RTa -8 RTb 3
0
FPV 1
1 3
1,3
1,3
1,3
3 5
1,2
FPV 1
RTa -8 RTb 1
4 11
2 5
FPV 0
1,2
1,2
RTa -8 RTb 4
FPV 0
RTa -8 RTb 2
RTa -8 RTb 5
1
1
FPV 1
3,4
FPV 1
1,3
1,3
1,3
RTa -8 RTb 8
Ts and RTb at the output determine detection
threshold
5 9
12
Detection Threshold Evaluation
FPV 0 RTa -8 RTb 4
Ts 12
4 11
Detection Threshold 8

• The output signal is at FPV between times RTa ?
  (RTbd) -8 ? (4d)
• Detection Threshold is Ts RTb (12-4)8
• Fault detected if its size is greater than 8
• d gt 8

13
Detection Gap

• Calculating the detection gap provides a way to
  relate the detection threshold of a detected gate
  delay fault to the slack at the fault site
• Detection gap is DT(G) slack(G)
• DT(G) ? detection threshold at fault site G
• slack(G) ? sum of all minimum gate delays along
  the longest delay path through G

14
Detection Gap

• The smaller the detection gaps are for a set of
  vectors, the better quality that set provides for
  detecting gate delay faults
• If a test detects a fault with gap 0
• The smallest possible gate delay fault has been
  detected
• If detection gap gt 0
• There is a possibility a better test exists to
  detect the fault with a smaller threshold

15
An Illustration of Detection Gap
p1 - longest delay path through gate
PI
Ts
PO
p1 delay
slack
Gate
gap
p2 delay
DT(p2)
p2

• A test that detects the fault through path p1
  would be better than a test that detects the
  fault through path p2

16
Problem Statement

• When signals produced by a common fanout point
  reconverge, the inputs to the reconvergent gate
  are correlated
• Conventional simulation ignores this correlation
  when bounded gate delays are used
• Produces pessimistic results in both bounded
  delay simulation and gate delay fault simulation

17
Reconvergent Fanout Analysis
Fall occurs at time x
Hazard cannot occur
0
1 x 3
3 5
1,3
1,3
1,3
1,2
4 6 11
1,2
1,2
x1 5
1
1
3,4
1,3
1,3
1,3
Output rises at least 1 unit after x
5 9
18
Correct Detection Threshold
Ts 12
FPV 0 RTa - 8 RTb 6
4 6 11
Detection Threshold 6

• The output signal is at FPV between times RTa to
  RTbd
• In an accurate analysis, RTb6, not 4
• Fault detected if its size is greater than 6
• d gt 6

19
Ambiguity Lists

• Ambiguity Lists generated at fanout points
  contain
• originating fanout name
• ambiguity interval min and max delays from
  fanout to gate
• Ambiguity lists at the inputs of a reconvergent
  gate help determine its output

20
Ambiguity Lists

• List propagation is similar to fault list
  propagation in concurrent fault simulation
• For accurate detection threshold evaluation,
  ambiguity lists are propagated during both
  fault-free and faulty waveform calculations

21
Ambiguity Lists Fault-Free Circuit

• Ambiguity lists propagated through all gates
  during fault-free circuit simulation
• If signal correlations are such that no hazard
  can occur, the hazard is suppressed (EA 8)
  (LS -8)
• Otherwise, the ambiguity lists are propagated to
  the gates output, and ambiguity intervals are
  updated

22
Fault-Free Circuit Simulation
EA 8 LS -8
0
1 3
1,3
1,3
1,3
3 5
1,2
EA 1 LS 3
EA 0 LS 0
4 6 11
2 5
1,2
1,2
EA 6 LS 11
EA 2 LS 5
EA 5 LS 9
1
1
3,4
1,3
1,3
1,3
EA 8 LS -8
EA 8 LS -8
5 9
23
Ambiguity Lists Detection Threshold Evaluation

• Ambiguity lists propagated through downcone of
  the fault site
• If signal correlations are such that no hazard
  can occur, the hazard is suppressed (RTa -8)
  (RTb 8)
• Otherwise, the hazard lists are propagated to the
  gates output, and ambiguity intervals are updated

24
Detection Threshold Evaluation
Tc 12
FPV 1 RTa -8 RTb 8
0
1 3
1,3
1,3
1,3
3 5
FPV 1 RTa -8 RTb 1
1,2
4 6 11
2 5
FPV 0 RTa - 8 RTb 6
1,2
1,2
FPV 0 RTa - 8 RTb 2
FPV 1 RTa - 8 RTb 5
1
1
3,4
1,3
1,3
1,3
FPV 1 RTa -8 RTb 8
Now, RTb at the output is correctly evaluated as 6
5 9
25
Experimental Setup

• C program implemented to perform gate delay fault
  simulation on combinational circuits
• Simple wireload model used for gate delays
• Bounded delays set to (3.5n 14), where n is
  the number of fanouts
• Program can accept any available gate delay data,
  which may be normally available from process
  technology characterization

26
Experimental Setup

• Program inputs
• Netlist in bench format
• Vector file
• Program outputs for vector set
• Average detection gap of detected gate delay
  faults
• Fault coverage of faults detected with gap 3.5

27
Experiment A

• Gate delay fault simulation ? 1,000 vectors
• Ambiguity lists propagated during faulty waveform
  calculations only
• Average detection gap and fault coverage of
  faults detected with gap 3.5 (nominal gate
  delay) recorded

28
Experiment A

• For fault coverage, faults are counted as
  detected if they are detected
• though the longest path through the gate
• through a path which is less than the longest
  path by only one gate delay

29
Results Experiment A
Without Reconvergent Fanout Analysis Without Reconvergent Fanout Analysis With Reconvergent Fanout Analysis With Reconvergent Fanout Analysis
Circuit Average Detection Gap Faults Detected with Gap 3.5 Average Detection Gap Faults Detected with Gap 3.5
c432 99.7 8.83 98.0 8.83
c499 36.5 5.69 35.4 5.69
c880 19.3 43.69 17.0 43.92
c1355 51.3 3.80 47.8 6.31
c1908 57.0 15.85 51.9 17.66
c2670 40.5 28.78 29.9 31.70
c3540 54.1 20.07 49.1 17.49
c5315 24.8 42.59 8.2 46.79
c7552 41.0 11.46 24.8 20.26
30
Experiment B

• Bounded delay simulation of the fault-free
  circuit ? 10,000 vectors
• Ambiguity lists propagated through every gate
• Largest EA and LS values at circuit outputs for
  all vectors recorded to illustrate difference
  seen at outputs when ambiguity lists are used

31
Results Experiment B
Without Reconvergent Fanout Analysis Without Reconvergent Fanout Analysis With Reconvergent Fanout Analysis With Reconvergent Fanout Analysis
Circuit Largest EA Largest LS Largest EA Largest LS
c3540 96.0 204.0 121.6 196.8
C5315 76.8 204.0 91.2 194.4
C6288 158.4 576.0 236.8 504.0
C7552 91.2 204.0 104.0 201.6

• Using reconvergent fanout analysis generally
  results in larger EA and smaller LS values at
  outputs
• More apparent for circuits that contain a large
  number of reconvergent fanouts, such as in
  multiplier circuit c6288

32
Experiment C

• Gate delay fault simulation ? 10,000 vectors
• Ambiguity lists propagated during both fault-free
  circuit simulation and detection threshold
  evaluation
• Average detection gap and fault coverage of
  faults detected with gap 3.5 recorded

33
Results Experiment C
Without Reconvergent Fanout Analysis Without Reconvergent Fanout Analysis With Reconvergent Fanout Analysis With Reconvergent Fanout Analysis
Circuit Average Detection Gap Faults Detected with Gap 3.5 Average Detection Gap Faults Detected with Gap 3.5
c432 110.4 7.35 108.9 7.08
c499 51.7 4.91 44.0 12.85
c880 16.4 48.41 12.9 48.86
c1355 50.8 4.80 42.2 13.62
c1908 55.2 21.70 47.1 25.10
c2670 41.8 31.25 36.0 36.54
c3540 50.4 32.60 44.0 33.19
c5315 21.7 55.72 6.1 57.31
c7552 39.4 13.43 22.5 22.83
34
Discussion

• When reconvergent fanout analysis is used, the
  average detection gap is smaller and more faults
  are detected with smaller gaps
• To accurately evaluate detection thresholds,
  signal correlations must be considered in both
  fault-free waveform and faulty waveform
  calculations

35
Conclusion

• Propagating ambiguity lists during simulation
  provides useful information about signal
  correlations due to reconvergent fanouts
• The use of this information during both
  fault-free and faulty waveform calculations
  produces more accurate results for gate delay
  fault simulation
• This min-max delay simulator has found
  application in hazard-free delay test generation

36
Future Work

• During simulation, ambiguity lists can grow quite
  large
• Efficiency in list propagation needs to be
  improved
• Can information provided by propagating ambiguity
  lists help reduce pessimism in static timing
  analysis?

37
Publications related to this work

• S. Bose, H. Grimes and V. D. Agrawal, Delay
  Fault Simulation with Bounded Gate Delay Model,
  in Proc. IEEE International Test Conference,
  paper 26.3, 2007.
• H. Grimes and V. D. Agrawal, Analyzing
  Reconvergent Fanouts in Gate Delay Fault
  Simulation, in Proc. 17th IEEE North Atlantic
  Test Workshop, May 2008.

38
Thank You
