High Performance Discovery from Time Series Streams

1

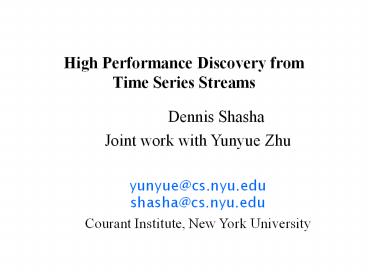

High Performance Discovery from Time Series
Streams
Dennis Shasha Joint work with Yunyue
Zhu yunyue_at_cs.nyu.edu shasha_at_cs.nyu.edu Cou
rant Institute, New York University
2
Overall Outline

• Data mining both classical and activist
• Algorithmic tools for time series
• Surprise.

3
Goal of this work

• Time series are important in so many applications
  biology, medicine, finance, music, physics,
• A few fundamental operations occur all the time
  burst detection, correlation, pattern matching.
• Do them fast to make data exploration faster,
  real time, and more fun.
• Extend functionality for music and science.

4
StatStream (VLDB,2002) Example

• Stock prices streams
• The New York Stock Exchange (NYSE)
• 50,000 securities (streams) 100,000 ticks (trade
  and quote)
• Pairs Trading, a.k.a. Correlation Trading
• Querywhich pairs of stocks were correlated with
  a value of over 0.9 for the last three hours?

XYZ and ABC have been correlated with a
correlation of 0.95 for the last three hours. Now
XYZ and ABC become less correlated as XYZ goes up
and ABC goes down. They should converge back
later. I will sell XYZ and buy ABC
5
Online Detection of High Correlation

• Given tens of thousands of high speed time series
  data streams, to detect high-value correlation,
  including synchronized and time-lagged, over
  sliding windows in real time.
• Real time
• high update frequency of the data stream
• fixed response time, online

6
Online Detection of High Correlation

• Given tens of thousands of high speed time series
  data streams, to detect high-value correlation,
  including synchronized and time-lagged, over
  sliding windows in real time.
• Real time
• high update frequency of the data stream
• fixed response time, online

7
Online Detection of High Correlation

• Given tens of thousands of high speed time series
  data streams, to detect high-value correlation,
  including synchronized and time-lagged, over
  sliding windows in real time.
• Real time
• high update frequency of the data stream
• fixed response time, online

8
StatStream Algorithm

• Naive algorithm
• N number of streams
• w size of sliding window
• space O(N) and time O(N2w) VS space O(N2) and
  time O(N2) .
• Suppose that the streams are updated every
  second.
• With a Pentium 4 PC, the exact computing method
  can only monitor 700 streams with a delay of 2
  minutes.
• Our Approach
• Use Discrete Fourier Transform to approximate
  correlation
• Use grid structure to filter out unlikely pairs
• Our approach can monitor 10,000 streams with a
  delay of 2 minutes.

9
StatStream Stream synoptic data structure

• Three level time interval hierarchy
• Time point, Basic window, Sliding window
• Basic window (the key to our technique)
• The computation for basic window i must finish by
  the end of the basic window i1
• The basic window time is the system response
  time.
• Digests

10
StatStream Stream synoptic data structure

• Three level time interval hierarchy
• Time point, Basic window, Sliding window
• Basic window (the key to our technique)
• The computation for basic window i must finish by
  the end of the basic window i1
• The basic window time is the system response
  time.
• Digests

Basic window digests sum DFT coefs
11
StatStream Stream synoptic data structure

• Three level time interval hierarchy
• Time point, Basic window, Sliding window
• Basic window (the key to our technique)
• The computation for basic window i must finish by
  the end of the basic window i1
• The basic window time is the system response
  time.
• Digests

Basic window digests sum DFT coefs
Sliding window digests sum DFT coefs
12
StatStream Stream synoptic data structure

• Three level time interval hierarchy
• Time point, Basic window, Sliding window
• Basic window (the key to our technique)
• The computation for basic window i must finish by
  the end of the basic window i1
• The basic window time is the system response
  time.
• Digests

Basic window digests sum DFT coefs
Sliding window digests sum DFT coefs
13
StatStream Stream synoptic data structure

• Three level time interval hierarchy
• Time point, Basic window, Sliding window
• Basic window (the key to our technique)
• The computation for basic window i must finish by
  the end of the basic window i1
• The basic window time is the system response
  time.
• Digests

Basic window digests sum DFT coefs
Basic window digests sum DFT coefs
Basic window digests sum DFT coefs
Time point
Basic window
14
Synchronized Correlation Uses Basic Windows

• Inner-product of aligned basic windows

Stream x
Stream y
Basic window
Sliding window

• Inner-product within a sliding window is the sum
  of the inner-products in all the basic windows in
  the sliding window.

15
Approximate Synchronized Correlation

• Approximate with an orthogonal function family
  (e.g. DFT)

x1 x2 x3 x4 x5
x6 x7 x8
16
Approximate Synchronized Correlation

• Approximate with an orthogonal function family
  (e.g. DFT)

x1 x2 x3 x4 x5
x6 x7 x8
17
Approximate Synchronized Correlation

• Approximate with an orthogonal function family
  (e.g. DFT)

x1 x2 x3 x4 x5
x6 x7 x8
18
Approximate Synchronized Correlation

• Approximate with an orthogonal function family
  (e.g. DFT)
• Inner product of the time series Inner
  product of the digests
• The time and space complexity is reduced from
  O(b) to O(n).
• b size of basic window
• n size of the digests (nltltb)
• e.g. 120 time points reduce to 4 digests

x1 x2 x3 x4 x5
x6 x7 x8
19
Approximate lagged Correlation

• Inner-product with unaligned windows

• The time complexity is reduced from O(b) to O(n2)
  , as opposed to O(n) for synchronized
  correlation. Reason terms for different
  frequencies are non-zero in the lagged case.

20
Grid Structure(to avoid checking all pairs)

• The DFT coefficients yields a vector.
• High correlation gt closeness in the vector space
• We can use a grid structure and look in the
  neighborhood, this will return a super set of
  highly correlated pairs.

21
Empirical Study Speed
Our algorithm is parallelizable.
22
Empirical Study Precision

• Approximation errors
• Larger size of digests, larger size of sliding
  window and smaller size of basic window give
  better approximation
• The approximation errors are small for the stock
  data.

23
Sketches Random Projection

• Correlation between time series of the returns of
  stock
• Since most stock price time series are close to
  random walks, their return time series are close
  to white noise
• DFT/DWT cant capture approximate white noise
  series because there is no clear trend (too many
  frequency components).
• Solution Sketches (a form of random landmark)
• Sketches pool matrix of random variables drawn
  from stable distribution
• Sketches The random projection of all time
  series to lower dimensions by multiplication with
  the same matrix
• The Euclidean distance (correlation) between time
  series is approximated by the distance between
  their sketches with a probabilistic guarantee.

24
Burst Detection
25
Burst Detection Applications

• Discovering intervals with unusually large
  numbers of events.
• In astrophysics, the sky is constantly observed
  for high-energy particles. When a particular
  astrophysical event happens, a shower of
  high-energy particles arrives in addition to the
  background noise. Might last milliseconds or
  days
• In telecommunications, if the number of packages
  lost within a certain time period exceeds some
  threshold, it might indicate some network
  anomaly. Exact duration is unknown.
• In finance, stocks with unusual high trading
  volumes should attract the notice of traders (or
  perhaps regulators).

26
Bursts across different window sizes in Gamma Rays

• Challenge to discover not only the time of the
  burst, but also the duration of the burst.

27
Elastic Burst Detection Problem Statement

• Problem Given a time series of positive numbers
  x1, x2,..., xn, and a threshold function f(w),
  w1,2,...,n, find the subsequences of any size
  such that their sums are above the thresholds
• all 0ltwltn, 0ltmltn-w, such that xm xm1 xmw-1
  f(w)
• Brute force search O(n2) time
• Our shifted wavelet tree (SWT) O(nk) time.
• k is the size of the output, i.e. the number of
  windows with bursts

28
Burst Detection Data Structure and Algorithm

• Define threshold for node for size 2k to be
  threshold for window of size 1 2k-1

29
Burst Detection Example
30
Burst Detection Example
True Alarm
False Alarm
31
False Alarms (requires work, but no errors)
32
Empirical Study Gamma Ray Burst
33
Extension to other aggregates

• SWT can be used for any aggregate that is
  monotonic
• SUM, COUNT and MAX are monotonically increasing
• the alarm threshold is aggregateltthreshold
• MIN is monotonically decreasing
• the alarm threshold is aggregateltthreshold
• Spread MAX-MIN
• Application in Finance
• Stock with burst of trading or quote(bid/ask)
  volume (Hammer!)
• Stock prices with high spread

34
Empirical Study Stock Price Spread Burst
35
Extension to high dimensions

36
Elastic Burst in two dimensions

• Population Distribution in the US

37
How to find the threshold for Elastic Burst?

• Suppose that the moving sum of a time series is a
  random variable from a normal distribution.
• Let the number of bursts in the time series
  within sliding window size w be So(w) and its
  expectation be Se(w).
• Se(w) can be computed from the historical data.
• Given a threshold probability p, we set the
  threshold of burst f(w) for window size w such
  that PrSo(w) f(w) p.

38
Find threshold for Elastic Bursts

• F(x) is the normal cdf, so symmetric around 0
• Therefore

F(x)
p
x
F-1(p)
39
Summary

• Able to detect bursts of many different durations
  in essentially linear time.
• Can be used both for time series and for spatial
  searching.
• Can specify thresholds either with absolute
  numbers or with probability of hit.
• Algorithm is simple to implement and has low
  constants (code is available).
• Ok, its embarrassingly simple.

40
With a Little Help From My Warped Correlation

• Karens humming Match
• Denniss humming Match
• What would you do if I sang out of tune?"
• Yunyues humming Match

41
Related Work in Query by Humming

• Traditional method String Matching
  Ghias et. al. 95, McNab
  et.al. 97,Uitdenbgerd and Zobel 99
• Music represented by string of pitch directions
  U, D, S (degenerated interval)
• Hum query is segmented to discrete notes, then
  string of pitch directions
• Edit Distance between hum query and music score
• Problem
• Very hard to segment the hum query
• Partial solution users are asked to hum
  articulately
• New Method matching directly from audio
  Mazzoni and Dannenberg 00
• Problem
• slowed down by DTW

42
Time Series Representation of Query
Segment this!

• An example hum query
• Note segmentation is hard!

43
How to deal with poor hum queries?

• No absolute pitch
• Solution the average pitch is subtracted
• Incorrect tempo
• Solution Uniform Time Warping
• Inaccurate pitch intervals
• Solution return the k-nearest neighbors
• Local timing variations
• Solution Dynamic Time Warping

44
Dynamic Time Warping

• Euclidean distance sum of point-by-point
  distance
• DTW distance allowing stretching or squeezing
  the time axis locally

45
Envelope Transform using Piecewise Aggregate
Approximation(PAA) Keogh VLDB 02
46
Envelope Transform using Piecewise Aggregate
Approximation(PAA)

• Advantage of tighter envelopes
• Still no false negatives, and fewer false
  positives

47
Container Invariant Envelope Transform

• Container-invariant A transformation T for
  envelope such that
• Theorem if a transformation is
  Container-invariant and Lower-bounding, then the
  distance between transformed times series x and
  transformed envelope of y lower bound their DTW
  distance.

48
The Vision

• Ability to match time series quickly may open up
  entire new application areas, e.g. fast reaction
  to external events, music by humming and so on.
• Main problems accuracy, excessive specification.
• Reference (advert) High Performance Discovery in
  Time Series (Springer 2004)
