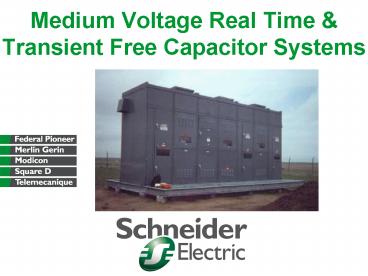

Medium Voltage Real Time

1
Medium Voltage Real Time Transient Free
Capacitor Systems
2
Outline

• Introduction
• Why RTRC or TFRC?
• Limitations of Conventional Solutions
• The RTRC and TFRC Solution
• Applications
• Benefits
• Product Characteristics

3
Capacitor Offering

• Schneider Electric is the worlds largest LV
  capacitor manufacturer by market share
• Power Quality Correction Group (PQc) located in
  Toronto, Canada has marketing, sales, application
  engineering, design and technical support
  responsibility for North America
• Low Voltage Equipment is manufactured at the
  Waterman facility
• Medium Voltage Equipment is assembled at Square
  D facility outside of Cincinnati

4
Capacitor Offering

• Fixed Capacitors
• Standard Automatic Capacitor Banks
• Anti-Resonant Automatic Capacitor Banks
• Filtered Automatic Capacitor Banks
• Real Time Reactive Compensation Systems
• Transient Free Reactive Compensation Systems
• MV Metal Enclosed Systems
• MV Real Time Transient Free Systems

5
Service Offering

• On-site measurement
• Computer Network Simulations
• Analysis of Problem
• Report
• Specifications
• Custom Engineered Equipment
• Commissioning
• Verification of Performance
• Training
• After Sale Servicing

6
Power Factor

• Ratio of Active (Real) Power to Total (Apparent)
  Power (kW/kVA)
• A measure of efficiency
• Depends on the phase angle between voltage and
  current waveforms

7
Power Factor Defined

• Reactive Power develops the magnetic field
  required by machines to perform useful work

8
Power Factor Fundamentals

• In this example, demand was reduced to 8 250 kVA
  from 10 000 kVA.
• The power factor was improved from 80 to 97

9
Increased System Capacity

• Any capacitor based system reduces apparent power
  (KVA) and load current
• Potential savings in capital investment
• Alternately, additional load can be added to the
  network without the risk of overload

10
Harmonics

• Current Limiting Reactors in multi-step MV
  standard systems limit capacitor inrush currents
• Air or Iron Core reactors in MV Anti-Resonant and
  Filtered systems detune the system to prevent
  resonance and remove up to 50 of the 5th harmonic

11
Harmonic Current Waveform(Typical 6 Pulse Drive)
12
Resonance

• The installation of standard capacitors can
  magnify harmonic currents on the network

13
Resonance
Resonant Point likely to amplify dominant
harmonic (typically 5th)
Magnification of Harmonic Current when Standard
Capacitors are Added to the Network
14
Detune to Avoid Resonance
Resonant Point where no Harmonic Content present
(3.7th typical)
5th Harmonic on Network is reduced
(4.4 Tuning)
Effect on Harmonic Current when Anti-Resonant
Capacitor Bank is Applied
15
The Real Time Challenge

• To compensate reactive power required by rapid
  and frequent load variations
• motivation
• increased productivity
• elimination of voltage flicker and sags
• increased system capacity and energy efficiency

16
Conventional Technology

• Compensates reactive energy of stable loads only
• Unable to cope with rapid and frequent load
  variations

• To reduce wear of vacuum switches
• To allow capacitors to discharge before
  reconnection
• Conventional Controller speed limitation

17
Conventional Switch Structure
L1
L2
L3
Vacuum (or SF6)contactors or breakers are used to
connect a capacitor group.
HRC Fuses
Vacuum Contactors
Optional De-tuned Inductor
18
Real TimeReactive Compensation

• One cycle (17 ms) or less response to load
  fluctuations
• Transient Free Connection of Capacitors
• Minimal wear of electronic switching elements

19
Transient Free Reactive Compensation

• 3-4 second response to load fluctuations
• Transient Free Connection of Capacitors
• Minimal wear of electronic switching elements

20
Electronic Switch Structure
L1
L2
L3
Fuses
SCR-Diode
De-tuned Inductor
21
Transient Free Switching

• Current inrush with vacuum switching can be 15 -
  20 times steady state current
• Resultant voltage transient can effect sensitive
  electronics
• RTRC and TFRC systems generate no network voltage
  transient

22
RT Acquisition Response
23
End Result

• Any variation in reactive power is compensated
  within one cycle (16.7 ms) using transient free
  switching of capacitor stages resulting in
• increased productivity
• elimination of voltage flicker sags
• increased system capacity energy efficiency

24
Real Time Applications

• Unstable Loads (rapid changes)
• Injection molding machines
• Elevators
• Presses
• Rock Crushers

• Wood Chippers
• Mining Conveyors
• Induction Heat Treating
• DC Hoisting

• Motor Starting
• compensation of inrush current for many motors
• allows normal starting torque
• Spot Welding (typically at low voltage)
• extremely fast changes - less than one second
  (typically at low voltage)
• Re-enforced Mesh for concrete
• Automotive industry

25
Results of RTRC Installation

• Gas Pumping Station in Colorado
• 25 KV Line to 2.5 MVA Transformer step down to
  2.4 KV
• Three FVNR Motors (500 HP, 700 HP, 700 HP)
• Motor start causing unacceptable voltage drop on
  25 KV line (16-18)

26
Results of RTRC Installation

• Solution was a 3.6 MVAR, 2.4 KV Real Time System
• Three equal steps of 1.2 MVAR each
• Utilized air cooled SCR/Diode modules
• Installed outdoors
• Goal to obtain less than 5 voltage drop on the
  25 KV line

27
Results of RTRC Installation
500 HP 700 HP Running Starting 2nd 700 HP Motor
28
Results of RTRC Installation

• Objective to limit voltage drop to less than 5
  on the 25 KV line has been met
• initial voltage drop is only 4.2 on the 2.4 KV
  line
• secondary voltage drop of 7.3 at 2.4 KV line (as
  stages turn off)
• modifications to the control will improve this
  further
• Motors previously took 4-6 seconds to come up to
  speed
• with RTRC, motors are up to speed in less than 2
  seconds

29
Transient Free Applications

• Sensitive Networks
• Hospitals
• Data Processing Centers
• Microelectronics Fab Facilities
• Pharmaceutical Facilities
• Airports
• Research laboratories
• Other Industrial and commercial facilities with
  high concentrations of sensitive electronic loads

30
Voltage Sag and Flicker Reduction
With

• Voltage sag is reduced as a result of reactive
  compensation during the load fluctuation.
• The voltage sag during is affected more by the
  power factor than by current amplitude reduction.

31
Energy Savings

• Energy saving due to reduction of losses and
  harmonics
• Losses in cables
• Copper losses - I2R.
• Skin effect losses due to reduction of harmonics.
• Losses in transformers
• Copper losses - I2R.
• Skin effect losses due to reduction of harmonics.
• Iron losses due to reduction of harmonics.

Total estimated saving 3 - 5
32
RTRC Advantages

• Flicker Reduction
• Compliance with flicker standards
• Network Stabilization and reduced equipment
  outages
• Voltage Regulation Improvement
• Reduced duty on tap changers
• Improved Network Utilization
• Reduced Transformer loading
• Current reduction on Bus Bars, Breakers and
  Cables
• Energy Saving, Power Factor Correction Harmonic
  Reduction

33
Process Productivity Improvements

• The RTRC will eliminate
• failed motor starts due to voltage sags
• undervoltage tripping of sensitive loads
• lighting flicker and HID lighting shutdown
• overloaded distribution equipment
• capacitor switching transients

34
RTRC Summary

• ADVANTAGES
• Increases network capacity
• Minimizes voltage sags
• Minimizes voltage flicker
• Reduces load current
• Avoids wear of vacuum contactors capacitors
• Transient free switching in sensitive networks
• Avoids use of reduced voltage starters
• Saves energy and improves Power Factor

• DISADVANTAGES
• Costly solution compared to standard capacitor
  systems (but often the only viable solution)
• Physical space requirements

35
MV RT TF Product Overview

• Metal Enclosed Systems up to 15 kV
• Three-Bushing, delta capacitor units available up
  to 5 kV. Two-bushing capacitors connected in
  Delta for higher voltages
• Type 1 indoor or Type 3R outdoor enclosure types.

36
Real Time Reactive Compensation Systems
Transient Free Reactive Compensation Systems

• MT6000 Series
• Power Factor Correction of networks with
  sensitive electronic loads

• MV9000 Series
• Power Factor Correction of highly cyclical loads

37
Standard, Detuned or Filtered?

• MT6000 MV9000 are typically Anti-resonant or
  filtered but may also be standard with current
  limiting reactors only
• Filtered used for Power Factor Correction of
  networks with more than 50 Non-Linear Loads
• Anti-resonant and filtered systems are
  manufactured with higher than nominal voltage
  capacitor elements to ensure long term system
  stability.

38
Controller
39
Protection

• Unbalance and Overload protection via phase
  current sensing standard for either wye or delta
  capacitor steps
• Optional unbalance protection by neutral current
  sensing on wye connected capacitor steps
• Optional Neutral to Ground Potential transformer
  for unbalance protection for wye connected banks

40
Capacitors

• Merlin Gerin PROPIVAR or Cooper (McGraw Edison)
• External Fusing Standard

41
Merlin Gerin Capacitors

• Available as Three Phase, Three-Bushing Delta
  Connected, up to 5 kV or Single Phase,
  Two-Bushing for voltages higher than 5 kV

42
Merlin Gerin Capacitors

• Environmentally safe biodegradable non PCB
  dielectric liquid
• Good Heat Dissipation and Low dielectric losses
  result in long element life

43
Merlin Gerin Capacitors

• High Overvoltage and Overcurrent withstand
• 10 Overvoltage for 12 hours a day
• 30 Continuous Overcurrent
• Highly resistant to transient overvoltages and
  partial discharge levels

44
Merlin Gerin Capacitors

• Suitable for harmonic filtering applications and
  networks with poor voltage regulation

45
Cooper Capacitors

• Single Phase, Two-Bushing for Wye or Delta
  connection
• 125 Continuous rms Overvoltage withstand and
  135 peak overvoltage capability
• Wide operating temperature range
• -40 to 131ºF (-40 to 55ºC)
• Environmentally acceptable dielectric fluid

46
Cooper Capacitors

• Standard unit power rating from 50 to 400 kVAR
  single phase from 2.4kV

47
Current Limiting Fuses

• To protect capacitors, fuses are rated as
  closely as possible to the capacitor steady state
  current
• Blown fuse indication directly on the fuse
  (pop-up indicators)
• Visible via viewing windows in enclosure

48
Conventional Switching Stage
49
Electronic Switching Modules

• Switching two phases with Delta connected
  capacitors
• Air or Liquid Cooled Stick Stacks of anti-polar
  SCR/Diodes with failsafe cooling systems
• temperature, air flow, pressure monitoring
• Multiple modules connected in series for higher
  voltages

Liquid Cooled Stick Stack
50
HVL Interrupter Switch

• Direct Drive Operator
• Fused for short circuit protection or Unfused
  available
• Load Break to max 2400 kVAR _at_ 5 kV or 15 kV

51
Iron Core Reactors

• Necessary to Detune network to prevent resonance
  when large harmonic producing loads are present
• Reactors Filter dominant harmonic (usually the
  5th)

52
Iron Core Reactors

• Single or Three phase laminated low hysteresis
  reactors with precision air gap
• All copper windings, mounted on insulated
  bushings up to 95 kV BIL
• Current Limiting Reactors in standard systems
  are Air or Iron Core

53
Enclosure

• Modular Style Design either indoor NEMA 1 or
  outdoor NEMA 3R (others available)
• All Silver-Flashed Copper Bus
• Better fault withstand ratings (50kA IC standard)

54
Enclosure

• Removable Panels over bolted steel frame
• Rigid construction while allowing ease of
  servicing
• Standard ASA49 Gray paint finish. Other finishes
  available upon request.

55
Enclosure

• Key interlocks standard
• Electrical interlocks standard
• Tamper resistant interlocked ground switch for
  each capacitor stage
• Viewing windows to ensure ground switch and main
  switch operation

56
Enclosure

• Control Cabinet mounted rear or side of main
  (remote mounting optional)
• Optional thermostatically controlled, ball
  bearing fans
• Welded lifting eyes
• Three point door latch

57
(No Transcript)
