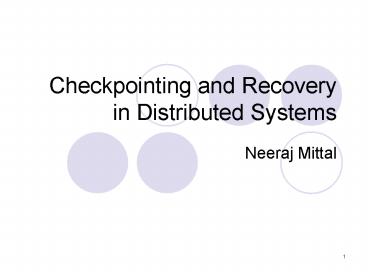

Checkpointing and Recovery in Distributed Systems

1
Checkpointing and Recovery in Distributed Systems

• Neeraj Mittal

2
The Main Idea

• Processes take checkpoints to store the work they
  have done so far.
• Checkpoint of a process contains all the data
  necessary to restart the process from that point.
• When a process fails and restarts, the system may
  enter an inconsistent state.
• Recovery involves restoring the system to a
  consistent state.
• May require other processes to restart their
  execution from earlier checkpoints.

3
Koo and Touegs Algorithm

• Assumptions
• All channels are FIFO.
• All channels are bidirectional.
• All channels are reliable.
• Communication topology need not be a complete
  graph.

4
Koo and Touegs Algorithm (Contd.)

• Ensures that the last checkpoints of any
  processes are concurrent.
• Consequently
• No process has to roll back beyond its last
  checkpoint.
• Checkpointing by one process may cause other
  processes to take a checkpoint as well.
• Recovery involves rolling back processes to their
  last checkpoints.

5
Koo and Touegs Algorithm (Contd.)

• At any given time, multiple instances of
  checkpointing and recovery algorithms may be in
  progress
• A process participates in at most instance
  (checkpointing or recovery) at any given time.
• It will refuse to participate in other instances,
  thereby causing them to abort.
• Aborted instances are restarted later by their
  initiators.

6
Koo and Touegs Checkpointing Algorithm

• Consists of two phases.
• First Phase
• Processes take tentative checkpoints if they can.
• A process after taking a tentative checkpoint
  cannot send any application messages until the
  second phase completes.
• Second Phase
• If all required processes are able to take
  checkpoints in the first phase, then tentative
  checkpoints are made permanent.
• Otherwise, tentative checkpoints are discarded.

7
Koo and Touegs Checkpointing Algorithm (Contd.)

• Minimizes the number of processes that take
  checkpoints.
• Each process assigns labels with monotonically
  increasing value to its messages.
• ? is a special label
• It is smaller than any other label value.
• Each process maintains two vectors with one entry
  for each of its neighbors
• last_label_rcvd
• first_label_sent

8
Koo and Touegs Checkpointing Algorithm Details

• Consider processes X and Y that are neighbors.
• Definition of last_label_rcvdXY
• Let m be the last message that X has received
  from Y since its last permanent/tentative
  checkpoint.
• If m exists, then last_label_rcvdXY is the
  label of m.
• Otherwise, last_label_rcvdXY is ?.

9
Koo and Touegs Checkpointing Algorithm Details
(Contd.)

• Definition of first_label_sentXY
• Let m be the first message that X has sent to Y
  since its last permanent/tentative checkpoint.
• If m exists, then first_label_sentXY is the
  label of m.
• Otherwise, first_label_sentXY is ?.

10
Koo and Touegs Checkpointing Algorithm Details
(Contd.)

• Assume that X has taken a (tentative) checkpoint
• Y does not need to take a checkpoint if
  last_label_rcvdXY ?.
• Otherwise, X requests Y to take a checkpoint and
  sends last_label_rcvdXY to Y.
• Y takes a (tentative) checkpoint if
• last_label_rcvdXY first_label_sentYX gt ?

11
Koo and Touegs Checkpointing Algorithm An
Illustration
W
X
Z
Y
Communication topology (used in all illustrations)
12
Koo and Touegs Checkpointing Algorithm An
Illustration
(
W
2
1
1
3
4
(
X
1
3
3
4
4
(
Y
2
2
1
Z
First vector last_label_rcvd
Second vector first_label_sent
13
Koo and Touegs Recovery Algorithm

• Only permanent checkpoints are used in recovery.
• Consists of two phases.
• First Phase
• Processes agree to roll back if they can.
• A process after agreeing to roll back stops its
  execution until the second phase completes.
• Second Phase
• If all required processes agree to roll back in
  the first phase, then they restart their
  execution from the last checkpoint.
• Otherwise, processes resume their execution from
  their current point.

14
Koo and Touegs Recovery Algorithm Details

• Consider processes X and Y that are neighbors.
• Definition of last_label_sentXY
• Let m be the last message that X sent to Y before
  its last permanent checkpoint.
• If m exists, then last_label_sentXY is the
  label of m.
• Otherwise, last_label_sentXY is ?.

15
Koo and Touegs Recovery Algorithm Details
(Contd.)

• Assume that X has agreed to roll back
• X requests Y to roll back sends
  last_label_sentXY to Y.
• Y agrees to roll back if
• last_label_rcvdYX gt last_label_sentXY

16
Koo and Touegs Recovery Algorithm An
Illustration
W
X
2
1
4
?
3
4
X
1
3
3
Y
?
?
2
1
Z
First vector last_label_rcvd
Second vector last_label_sent
17
Juang and Venkatesans Algorithm

• Assumptions
• All channels are FIFO.
• All channels are bidirectional.
• All channels are reliable.
• Communication topology need not be a complete
  graph.
• A process changes its state only on receiving a
  message (except initially).

18
Juang and Venkatesans Checkpointing Algorithm

• A process takes a checkpoint every time it
  executes an event.
• Checkpoints are taken in volatile storage.
• Periodically checkpoints in volatile storage are
  flushed to stable storage.
• Checkpoints in volatile storage are lost when
  failure occurs.
• A checkpoint consists of
• the local state just before message is received,
  and
• the message received.

19
Juang and Venkatesans Checkpointing Algorithm
(Contd.)

• A checkpoint consists of
• the local state just before message is received,
  and
• the message received.
• Checkpoint can be used to recover the state just
  after message is received.

20
Juang and Venkatesans Recovery Algorithm

• Each process maintains two vectors with one entry
  for every neighbor
• SENT stores the number of messages sent to each
  neighbor so far.
• RCVD stores the number of messages received from
  each neighbor so far.

21
Juang and Venkatesans Recovery Algorithm (Contd.)

• Consider a collection of checkpoints, one from
  each process P1, P2,,PN, given by
• ckpt1, ckpt2, , ckptN
• Checkpoints form a consistent global state if,
  for each pair of neighbors Pi and Pj, the
  following holds
• SENT(ckpti)j RCVD(ckptj)i
• Otherwise, Pjs state is inconsistent with that
  of Pi
• The inconsistency can be removed by rolling back
  Pj.

22
Juang and Venkatesans Recovery Algorithm (Contd.)

• All processes participate in recovery.
• Failed process, on restarting, rolls back to its
  last stable checkpoint and instructs all
  processes to start recovery using flooding.
• Recovery algorithm executes in iterations.
• In each iteration, every process sends to each of
  its neighbors the number of messages it has sent
  to it as per the current state.
• A process rolls back if its state is inconsistent
  with that of its neighbor. It rolls back to its
  latest checkpoint that removes the inconsistency.
• System is guaranteed to be in a consistent state
  after N-1 iterations (N is the number of
  processes).

23
Juang and Venkatesans Recovery Algorithm An
Illustration
Iteration 2
Iteration 3
Flooding
Iteration 1
(
(
W
cw0
0
1
cw2
cw1
1
2
0
(
X
X
0
0
cx0
cx1
0
0
Y
cy0
cy1
cy2
0
1
1
0
(
Z
cz0
cz1
cz2
