Map Comparison

1

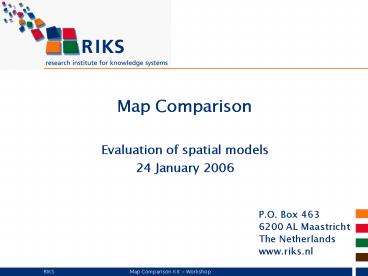

Map Comparison

• Evaluation of spatial models
• 24 January 2006

2
Map Comparison

• Methods
• Cell-by-cell based method
• Introducing tolerance by aggregation
• Fuzzy set approach
• Structure based comparison
• Interpretation
• Validity
• Significance
• Sensitivity

3
Many reasons for map comparison

• Understanding spatial changes
• Trends
• Outliers, Hot-spots, errors
• Calibration and validation of spatial models
• Intercomparison of model runs
• Investigating consistency of cartographic methods
• Unequal resolution
• Unequal legends
• And what the cat drags in
• Vande Walle et al. 2005 Comparison of mental
  maps of Brussels accorsing to French and Flemish
  speaking students.
• Bifurcation Seeker

4
Cell-by-cell

• All cells on the map are either equal or not

Percentage Correct 79
5
Separating location and quantity

• Also composition / configuration

Differences in location and in quantity 5
differences
Only differences in location 8 differences
6
Kappa statistic

• Resolve a bias considering uneven distributions
  more alike
• Controversial amongst remote sensers (Turk 2002,
  Stehman 2002)
• Variations define component of Kappa related to
  location and quantity (histogram). (Pontius
  2000, Hagen 2002)
• PA Percentage of agreement
• E(PA) Expected PA, subject to histograms
• Max Maximal PA, subject to histograms

7
Contingency table

• Also confusion table/matrix and transition
  table/matrix

8
Per category

• Temporarily reclassify map for Kappa statistics
  per category (Monserud Leemans)
• Most useful when prioritizing calibration efforts

Open
Park
River
City
9
The limits of cell-by-cell methods
10
Aggregation based methods

• Compare at coarser scales by means of aggregation
• Costanza 1987, Pontius 2004, Remmel et al 2005

11
Aggregation versus moving window
12
Fuzzy Set Map Comparison

• Tolerarance for confounding similar categories
• Fuzziness of category
• Tolerance for small spatial differences
• Fuzziness of location
• Overall map similarity
• Fuzzy Kappa

13
Fuzziness of categories
Original map
Categorical Fuzzy map
14
Fuzziness of location
Neighbour influence set by distance decay function
Original map
Categorical Fuzzy Map
Full Fuzzy Map
15
Two way comparison step 1
Original Map B
Fuzzified map A is compared to crisp (original)
map B. And vice versa Similarity(A, B)
Intersection (A, B)
Original Map A
Full Fuzzy Map A
Partial comparison
16
Two way comparison step 2
Originals
Comparison
Partial comparison
17
Complete process
Map A
Map B
Original
Full Fuzzy
Comparison
Categorical Fuzzy
Partial Comparison
18
Fuzzy Set Map Comparison applied
Fuzzy Kappa 0.49 Fraction Correct 0.91
19
Fuzzy Kappa per category
Open
Park
City
River
20
Impact of differences on structure

• Contiguous areas -gt Mean patch size
• Composition -gt Diversity

21
Balancing structure and overlap
22
Distance weighted moving window
Moving porthole with a fish-eye perspective
23
Smoothly from overlap to structure
Similarity
Landscape
Neighbourhood
Local
Halving distance
24
Mean patch size
Difference
Patch size
Map
Porthole
25
Shannon Diversity
Difference
Porthole
Diversity
Map
26
Validation

• Kappa and Fuzzy Kappa similarity relative to
  expected similarity
• Purpose to remove bias
• In practice expected similarity is as a benchmark
  model
• Better benchmarks can be thought of

27
Random Constraint Match
Open -32 City -15 River 18 Park 29
Before
After
RCM
28
Other neutral models

• Landscape ecology
• RULE and others
• Do not start from initial situation

Fractal
Source McGarical 2001
29
Sensitivity and multi-scale analysis

• Parameters in Fuzzy Kappa, Aggregation and Moving
  window approaches express scale of the analysis
• Sensivity analysis Multi-scale analysis
• Generally, as scale increases, so does similarity

30
Significance

• Apply reference model in Monte Carlo approach

31
That was all !
