Title: Map Building without Localization by Dimensionality Reduction Techniques

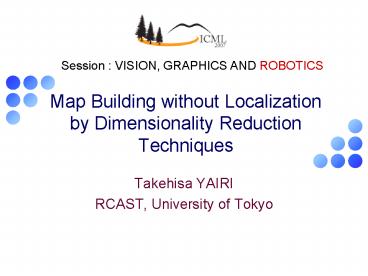

1
Map Building without Localization by
Dimensionality Reduction Techniques
Session VISION, GRAPHICS AND ROBOTICS
  • Takehisa YAIRI
  • RCAST, University of Tokyo

2
Outline
  • Background
  • Motivation, Purpose and Problem to consider
  • Related Works
  • SLAM, and Mapping with DR methods
  • Proposed Framework - LFMDR
  • Basic idea, Assumptions, Formalization
  • Experiment
  • Visibility-Only and Bearing-Only Mappings
  • Conclusion

3
Motivation
  • Map building
  • An essential capability for intelligent agents
  • SLAM (Simultaneous Localization and Mapping)
  • Has been mainstream for many years
  • Very successful both in theory and practice
  • I like SLAM too, but I feel somethings missing..
  • Are the mapping and localization really
    inseparable ?
  • Are the motion and measurement models necessary ?
  • How about the aspect of map building as an
    abstraction of the world ?
  • Is there another map building framework ?

4
Purpose
  • Reconsider the robot map building from the
    viewpoint of dimensionality reduction and
    propose an alternative framework
  • Localization-Free Mapping by Dimensionality
    Reduction (LFMDR)
  • No localization, no motion and measurement models
  • Heuristics Closely located objects tend to
    share similar histories of being observed by a
    robot

tN
t2
Reduce dimensionality, while preserving locality
t1
5
Map Building Problem to Consider
  • Feature-based map (i.e. Not topological, not
    occupancy-grid)
  • A map is represented by 2-D coordinates of
    objects
  • There EXIST motion and measurement models
  • But, they are not necessarily known in advance

m
Motion model (State transition model)
Positions of objects
Measurement model (Observation model)
Move
Observation
State
Exist, but may be unknown
6
Related Works SLAM Thrun 02
  • Problem Estimate m and x1t from y1t , given
    f and g
  • Solutions
  • Kalman Filter with extended state
  • Incremental maximum likelihood Thrun, et.al. 98
  • Rao-Blackwellized Particle Filter Montemerlo,
    et.al. 02
  • Motion and measurement models must be given
  • Estimations of map and robot position are coupled

Given
Output
Input
Measurement data
Motion model
Map
Measurement model
Robot trajectory
7
Related Works Dimensionality Reduction and
Mapping (1)
  • Idea of using DR for robot map building is not
    new itself ..
  • Brunskill Roy 05
  • PPCA to extract low-dimensional geometric
    features (line segments) from range measurements
  • Pierce Kuipers 97
  • PCA to obtain low-level mappings between robots
    actions and perceptions (sensorimotor mapping)

Point features(High dimensional)
DR
Line segments(Low dimensional)
8
Related Works Dimensionality Reduction and
Mapping (2)
Observation Space
  • Another existing idea is to estimate robots
    states (locations, poses) from a sequence of high
    dimensional observation data
  • Appearance manifolds Ham, et.al. 05
  • LLP Kalman filter
  • Action respecting embedding Bowling, et.al. 05
  • SDE
  • Wifi-SLAM Ferris, et.al. 07
  • GP-LVM

Dimensionality Reduction
x2
State Space
x1
q
9
Related Works Dimensionality Reduction and
Mapping (cont.)
Observation data (from time 1 to N)
Dimension of features
Time
DR
x2
State Space
  • Treat row vectors as data points
  • Estimate x1N and g, from y1N , given f

trajectory
x1
q
10
Proposed Framework LFMDR (1)Assumptions
  • All objects are uniquely identifiable
  • Measurement model can be decomposed to
    homogeneous submodels for individual objects
  • Locations of at least 3 objects are known in
    advance (Anchor objects)

Decomposable
An observation about an object is roughly
dependent only on its location, given the map and
robots position
The second assumption may look too restrictive,
but, ..
11
Proposed Framework LFMDR (2)Interpretation as
a DR Problem
  • Imagine a mapping between an object position and
    its history of observation

ObservationData Matrix
Mapping
Time
(2-dimensional)
XY coordinates
Observation History Space
(N-dimensional)
If two objects are closely located, their
histories of observation are similar
12
Proposed Framework LFMDR (3)Illustration
13
Proposed Framework LFMDR (4)Procedure
  1. Explore the environment and obtain observation
    history data Y1N
  2. Break Y1N into a set of column vectors
    y(j)1Nj1,,M
  3. Apply a DR method to the vectors and obtain a set
    of 2-D vectors
  4. Perform the optimal Affine transformation w.r.t
    anchor objects, and obtain final estimates

14
Features of LFMDR (1)(Comparison with SLAM)
  • Common
  • Based on state space model
  • Different
  • No assumption that motion and measurement models
    are known
  • Map is directly estimated without robot
    localization (localization-free mapping)
  • Off-line procedure
  • Larger amount of data required
  • Assumption of no missing data

Advantages
Disadvantages
15
Features of LFMDR (2)(Comparison with Other
DR-based Approaches)
  • Comparison with Brunskill Roy 05
  • Global vs. Local
  • Comparison with Ham,et.al. 05 Bowling,et.al.
    05 Ferris,et.al. 07
  • Column vectors vs. Row vectors(i.e., Object
    positions vs. Robot positions)

DR
DR
v.s.
DR
DR
v.s.
16
Experiment
  • Applied to 2 different situations
  • Case 1 Visibility-only mapping
  • Case 2 Bearing-only mapping
  • Common settings
  • 2.5mx2.5m square region
  • 50 objects (incl. 4 anchors)
  • Exploration with random direction change and
    obstacle avoidance
  • Evaluation
  • Mean Position Error (MPE)
  • Mean Orientation Error (MOE)
  • Averaged over 25 runs

WEBOTS simulator
Triangle Orientation
A
A
Difference
B
C
B
C
A-B-C
A-C-B
17
DR Methods
  • Linear PCA
  • SMACOF-MDS DeLeeuw 77
  • (a) Equal weights, (b) kNN-based weighting
  • Kernel PCA Scholkopf,et.al. 98
  • (a) Gaussian, (b) Polynomial
  • ISOMAP Tennenbaum,et.al. 00
  • LLE RoweisSaul 00
  • Laplacian Eigenmap BelkinNiyogi 02
  • Hessian LLE DonohoGrimes 03
  • SDE Weinberger, et.al. 05

Parameters(k, s2, d) were tuned manually
18
Case 1 Visibility-Only MappingDescription
  • Building a map using only visibility information
  • i.e., Whether each object is visible (1) or not
    (0)
  • An assumption in this simulation
  • An object is visible if its horizontal visual
    angle of non-occluded part is larger than 5 deg

19
Case 1 Visibility-Only MappingVisibility
Measurements
Observation history vector of an object
Visibility Observation Data
(Binary matrix)
Column
Normalization
Object ID
Euc. norm
Time
Compensate variety of the frequencies the objects
are observed
Observation HistorySpace
20
Case 1 Visibility-Only MappingMaps After 2000
Time Steps
LPCA
Isomap(k6)
SMACOF (k5)
KPCA(Gaussian, s20.5)
LLE (k8)
LEM (k6)
SDE (k7)
HLLE (k8)
21
Case 1 Visibility-Only MappingMean Position
Errors
22
Case 1 Visibility-Only MappingFinal Map Errors
23
Case 2 Bearing-Only MappingDescription
  • Building a map only with bearing measurements
  • Motivated by recent popularity of Bearing-Only
    SLAM
  • Assuming all objects are always visible (No
    missing observation)

(Relative direction angles to objects)
Bearingangles
24
Case 2 Bearing-Only MappingBearing Measurements
Original Bearing Data
Object ID
Use a unit directional vectorinstead of bearing
angle
1
2
j
M
q1,1 q2,1 qj,1 qM,1
q1,2 q2,2 qj,2 qM,2

q1,N q2,N qj,N qM,N
1
Time
2
p
-p
N
Discontinuity
Unit directional vectors
1
2
j
M
Observation History Space
cosq1,1 cosq2,1 cosqj,1 cosqM,1
sinq1,1 sinq2,1 sinqj,1 sinqM,1
cosq1,2 cosq2,2 cosqj,2 cosqM,2
sinq1,2 sinq2,2 sinqj,2 sinqM,2

cosq1,N cosq2,N cosqj,N cosqM,N
sinq1,N sinq2,N sinqj,N sinqM,N
1
Time
2N-dimensional
2
N
25
Case 2 Bearing-Only Mapping Maps After 2000
Time Steps
LPCA
SMACOF (k8)
Isomap (k9)
LLE (k8)
LEM (k7)
SDE (k7)
26
Case 2 Bearing-Only Mapping Mean Position
Errors
27
Case 2 Bearing-Only Mapping Final Map Errors
() It might imply the distribution approaches to
linear
28
Conclusion
  • Reconsidered robot map building from the
    viewpoint of dimensionality reduction
  • Proposed a new framework named LFMDR
  • Motion and measurement models are not required
  • Not need to estimate robots poses
    (localization-free)
  • However, larger amount of data is needed
  • Tested on two types of sensor measurements
  • Visibility information, and Bearing angles
  • Compared a variety of DR methods

29
Future Works
  • Relaxation of restrictions
  • Missing measurements
  • Data association problem
  • Scalability
  • Mapping of a larger number of objects
  • On-line algorithm
  • Tracking of moving objects
  • Multi-sensor fusion
  • e.g. mapping with bearing and range measurements
