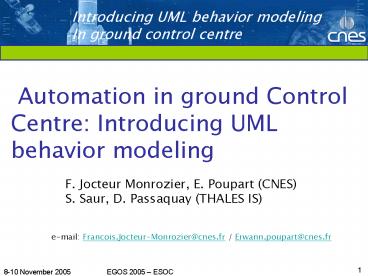

Automation in ground Control Centre Introducing
UML behavior modeling
F. Jocteur Monrozier, E. Poupart (CNES) S. Saur,
D. Passaquay (THALES IS)
e-mail Francois.Jocteur-Monrozier_at_cnes.fr /
Erwann.poupart_at_cnes.fr
2
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Spacecraft monitoring control models
• example of operational scenarios
• Effort metrics
• Conclusion

3
Objectives Cameleon RT Odisse Conclusion

• Evaluate CAMELEON platform in MC context
• Model-driven approach for Ground Control Centre
• Spacecraft MC
• In this study three ATV subsystems have
  been modelized
• Telecommands management (Elementary, Sequences,
  Grouped, Interlocks, Time-based) (HLR document)
• Integration of existing tools TM/TC kernel
  (OCTAVE)
• Validate with complex operational scenarios
• Assess this approach for future ground segments
  in a multi-satellites context.
• Effort 11 man/month, Period Oct. 04-April 05

4
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Odisse models
• example of operational scenarios
• Effort metrics
• Conclusion

5
Objectives Cameleon RT Odisse Conclusion

• Cameleon principles

• Target System modeling using a high level of
  abstraction
• information view (UML class diagrams) data
  generation
• dynamic view (UML state diagrams) code
  generation
• Integration Platform offering
• Integration mechanisms used to develop Software
  Components providing distributed services
• Functions extension development to provide
  specialized services within Application server
• Configurable MMI services

6
Objectives Cameleon RT Odisse Conclusion

• Model use Code and Data generation

model parser
Information models(classinstances)
Code generator
CAMELEON Application server
Statechart models
Readable Textual notation
7
Objectives Cameleon RT Odisse Conclusion

• CAMELEON Distributed Software components

Configurable/extensible MMI (Synowatch)
CAMELEON Application server
Integration software components
8
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Odisse models
• example of operational scenarios
• Effort metrics
• Conclusion

9
Objectives Cameleon RT Odisse Conclusion
MMI TC Building followUp
MMI Monitoring Spacecraft System
CAMELEON server
Satellite/subsystems objects Telecommands
objects
Function Commanding
Odisse Architecture Software components
Supervision commanding logic
TC Sending

• XML trace
• CCSDS TC generation

10
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Odisse models
• example of operational scenarios
• Effort metrics
• Conclusion

11
Objectives Cameleon RT Odisse Conclusion

• ODISSE Models

• Spacecraft MC Models (Classes/instances)
• PWS (electrical subsystem),
• SGS (solar pannels subsystem),
• TCC (thermal control system),

CAMELEON server
Satellite/subsystems objects Telecommands
objects
Supervision commanding logic
TC Sending
TM receiving or consulting

• Telecommand Management Execution
• Telecommand model
• Telecommand Template model describe the
  construction rules

• XML trace
• CCSDS TC generation

• TM/Prop.
• mapping

12
Objectives Cameleon RT Odisse Conclusion
Modeling example Extract of PWS model
information
ATV Power Management System (PWS) Architecture
13
Objectives Cameleon RT Odisse Conclusion
Modeling example PCDU behavior model
14
Telecommand model

• Telecommand types
• Elementary,
• Interlocks,
• Time-based,
• Sequence, Group
• Pre/Post condition
• Parameter validation

15
Objectives Cameleon RT Odisse Conclusion
Telecommand behavior model

• Elementary Telecommand state
• machine example

16
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Odisse models
• example of operational scenarios
• Effort metrics
• Conclusion

17

• Automation Scenario overview

• Spacecraft objectsstate machineexecution

18
Objectives Cameleon RT Odisse Conclusion

• Example of Automatic  Power Management
  scenario where automatons are synchronised with
  each other
• Each  SolarPanel  automaton depending on
  day/night cycles interacts with PCDU automaton.
• Each  PCDU  automaton computes power chain
  energetic potential state and interacts with its
  relative  Battery  automaton.
• Each  Battery  automaton depending on charge
  potential, total consumption of preceding orbit
  and some other telemetry data transits into the
  possible subgroup state.
• On some of the previous transitions,  Battery
  automaton starts TC_xxx telecommands towards ATV

19
Objectives Cameleon RT Odisse Conclusion

• Example of a  complex  Telecommand

INTERLOCKS_TCC_STBY_TO_FREEFLIGHT_MODE_1 GROUP_TC
C_AP_ONE_TCU_ONOFF_1 TCC_AP_ONE_TCU_ONOFF_1 TC
C_AP_ONE_TCU_ONOFF_2 TCC_AP_ONE_TCU_ONOFF_3 TC
C_AP_ONE_TCU_ONOFF_4 INTERLOCKS_TCC_AP_SWITCH_REG
_NREG_STEPX_1 TCC_AP_SWITCH_REG_NREG_STEP1_1 T
CC_AP_SWITCH_REG_NREG_STEP2_1 TCC_AP_SWITCH_REG_
NREG_STEP1_2 TCC_AP_SWITCH_REG_NREG_STEP2_2 TC
C_AP_SWITCH_REG_NREG_STEP1_3 TCC_AP_SWITCH_REG_N
REG_STEP2_3 TCC_AP_SWITCH_REG_NREG_STEP1_4 TCC
_AP_SWITCH_REG_NREG_STEP2_4 GROUP_TCC_EC_GRP_ONOF
F_1 TCC_EC_GRP_ONOFF_1 TCC_EC_GRP_ONOFF_2
TCC_EC_GRP_ONOFF_3 TCC_EC_GRP_ONOFF_4
TCC_EC_GRP_ONOFF_5 TCC_EC_GRP_ONOFF_6 INTER
LOCKS_TCC_UPDATE_CTL_SET_1 TCC_LLC_SELECT_SET_1
GROUP_TCC_CONFIG_AO1V1_1 TCC_LLC_CONFIG_AN_HE
ATER_A01V1_1 TCC_LLC_GRP_MAX_CURNT_1 GROUP_TCC
_LLC_THERM_ENADIS_1 TCC_LLC_THERM_ENADIS_
1 TCC_LLC_HEAT_CMD_RESU_1
. . .
20
Top Multi-satellites view
Synthetic view of subsystems
Prototype MMIs (no development, just
configuration of Synowatch MMI)
PWS electrical chain view
Thermal Control Chain view
21
Solar Arrays subsystem view
View of Telecommand Management
Chart view
22
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Odisse models
• example of operational scenarios
• Effort metrics
• Conclusion

23
Objectives Cameleon RT Odisse Conclusion
Information modeling metrics
Traduction in textual notations (mof/dmtf)
24
Objectives Cameleon RT Odisse Conclusion
Behavior / Code metrics
25
Objectives Cameleon RT Odisse Conclusion
Configuration (Integration components Synowatch
MMI)
To use the TM/TC integration components, only XML
configuration files are necessary
26
Contents

• Objectives / Context
• Cameleon platform overview
• Odisse study
• Architecture / Software components
• Spacecraft monitoring control models
• example of an operational scenario
• Effort metrics
• Conclusion

27
Objectives Cameleon RT Odisse Conclusion

• Results of RT Odisse are encouraging
• it shows a generic productive approach thanks
  to model use and supporting tools,
• a highly configurable, evolutive and extensible
  Core Advanced TM/TC functions has been
  implemented (and integrated),
• complex operational MC scenarios can be
  implemented,
• Automation is possible and can be useful to
  provide a help for operators.
• Improvments of CAMELEON platform has been also
  identified (API, Diagnostic, Generator, )

28
Thank you
29
Objectives Cameleon RT Odisse Conclusion
Telecommand Template models

• Tecommand construction rules characteristics
• telecommand type,
• parameters type
• valuation mode,
• pre/post conditions
• critical mode

30
Objectives Cameleon RT Odisse Conclusion
Example of ElementaryTelecommand with 2
post-conditions // Modèle PWS_LLC_KMIN2 instance
of CNES_ElementaryTelecommandTemplate AS
PWS_LLC_KMIN2 Name "PWS_LLC_KMIN2"
TcName "PWS_LLC_KMIN" FamillyName"BatterySup
ply" TcId "ATV01" TcRootName
"ATV_TC" Criticity false CevTimeOut
180000 PevTimeOut 180000 // Définition
des post-conditions // CEV 1 instance of
CNES_Condition AS STR1_EC_TEMP_VACUUM_CONDITION_1
Name "CONDITION_1" SystemName"STR1_EC_
TEMP_VACUUM" Condition "Atv1_STR1Temperat
ure lt 0" instance of CNES_CevConditionOfTeleco
mmandTemplate GroupComponent
STR1_EC_TEMP_VACUUM PartComponent
STR1_EC_TEMP_VACUUM_CONDITION_1 // CEV
2 instance of CNES_Condition AS
STR1_EC_TEMP_VACUUM_CONDITION_2 Name
"CONDITION_2" SystemName"STR1_EC_TEMP_VACUUM"
Condition "Atv1_STR1Temperature gt
-100" instance of CNES_CevConditionOfTelecomma
ndTemplate GroupComponent
STR1_EC_TEMP_VACUUM PartComponent
STR1_EC_TEMP_VACUUM_CONDITION_2
