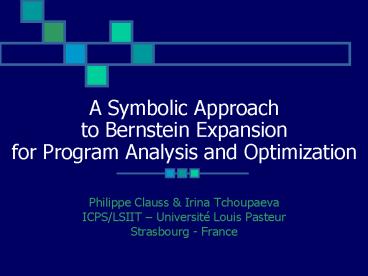

A Symbolic Approach to Bernstein Expansion for Program Analysis and Optimization

1
A Symbolic Approachto Bernstein Expansionfor
Program Analysis and Optimization

• Philippe Clauss Irina Tchoupaeva
• ICPS/LSIIT Université Louis Pasteur
• Strasbourg - France

2
ANALYSIS OPTIMIZATION
Programs
3
Static Analysis

• Gives the most accurate and general results
• But is not always possible
• Non-predictable behavior
• dynamic approach
• Complex models and expressions
• Adapted mathematical frameworks
• Usable in optimizing tools or compilers
• Giving the most accurate and error-free results
• Example the polytope model

4
The Polytope Model

• Geometric transformations translate to nested
  loops transformations
• Some characteristics translate to quantitative
  evaluations

5
Example live range of an array element axy

• Number of iterations where any axy was
  accessed and will be accessed again?
• Number of iterations between the first and last
  access to axy?

6

• For each reference aij, aj-1Ni-j,
  ai-1j-i
• Computation of the number of iterations occurring
  before the iteration that references axy

7

• Example for reference aij
• axy is referenced when ix and jy, i.e., at
  iteration (x,y)
• Number of iterations occurring before (x,y)

8

• and
• are parameterized polytopes
• Number of integer points of each polytope
• Ehrhart polynomial of each polytope
• Implemented in Polylib

9

• Computed Ehrhart polynomials

10
Linear to non-linear model

• How can such a non-linear expression be used?
• Maximum value maximum number of simultaneously
  alive elements
• Would be useful for array contraction
• Cannot be handled by the polytope model
• Limited to linear (in-)equalities
• Need of additionnal tools

11
Non-linear cases in program analysis

• Can this loop be
• parallelized?
• Does reference aq
• overlap reference
• aialpha1?

12
(No Transcript)
13

• Conventional value range analysis
• The value range of ialpha1 is entirely included
  in the range of -i210ialpha-25
• The loop cannot be parallelized
• Is this true?

14

• Better value range analysis using the Horner form
  of -i210ialpha-25 alpha-25(10-i)i
• More accurate bound
• Same conclusion
• Is this true?

NO! The exact value range is alpha-25,alpha
and the loop CAN be parallelized!
15
Bernstein Expansion

• Gives an enclosure of the range of a polynomial
  over a given interval
• Avoids function evaluation
• Gives more accurate results than classic interval
  methods
• Applies for any multi-variate polynomial without
  restriction
• Exact range can be obtained

16

• Implicit power form linear combination in the
  power basis
• Bernstein form linear combination in the
  Bernstein basis

17
Basis conversion

• Univariate case
• i-th Bernstein polynomial
• i-th Bernstein coefficient

18
Basis conversion

• Multivariate case notations

19
Basis conversion

• Multivariate polynomial
• I-th Bernstein polynomial
• I-th Bernstein coefficient

20
Important theorems

• THEOREM 1 the minimum and maximum Bernstein
  coefficients give an enclosure of the range of a
  polynomial over the interval 0,1
• THEOREM 2 - VERTEX CONDITION - if the minimum and
  maximum Bernstein coefficients occur at the
  vertices of the Bernstein coefficients array,
  then the enclosure is the exact range.

21
?
!
Minimum bernstein coefficient Maximum bernstein
coefficient
Exact range
22
From 0,1 to any interval

• Can any interval a,b be considered?
• Any interval can be mapped linearly onto 0,1
• The Bernstein coefficients of p(x) on a,b are
  equal to the Bernstein coefficients of the
  corresponding polynomial p(y) on 0,1
• The Bernstein coefficients of p(y) give an
  enclosure of the range of p(x) on a,b

23
From 0,1 to any interval

• Linear mapping

where
24
Symbolic Bernstein expansion

• To handle parameterized polynomials over
  intervals with bounds depending on variables and
  parameters
• quite more powerful for general program
  analysis
• Bernstein expansion allows it!

25
Symbolic Bernstein expansion

• By considering polynomial coefficients on
  parameters
• The same formulas apply!

26
Symbolic Bernstein expansion

• Mapping onto 0,1 can be done for parameterized
  boxes by evicting some values

must be ? 0
where
27
Example (with parameterized coefficients)
28
Example (with parameterized coefficients)
29
Example (with intervals depending on parameters
and variables)

• Not valid for N0 or i0
• (0,0) excluded
• New mapping
• ? Consider Ngt1

30
(No Transcript)
31
Example (contd.) array contraction

• Consider a as a temporary array
• Transform a into a smaller array

32

• Minimum memory amount needed
• maximum number of simultaneously
• alive array elements
• maximum live range for all array elements
• Live range of any array element axy

33

• Not valid for N5 and N3
• Let us consider N gt 5

34

• Bernstein coefficients
• Maximum coefficient

35

• Array a contracted from to
• elements

36
Related works

• Decomposition of polynomials into affine
  constraints and hyperbolic/elliptical equations
  (Maslov Pugh)
• Analysis of monotonic polynomials (Blume
  Eigenmann)
• Univariate and monotonic polynomials (Van Engelen)

37
Complexity

• Primitive algorithm
• O(nv), vnumber of variables
• Linear complexity algorithm proposed by Delgado
  Peña

38
Conclusion

• Many other application fields
• Many static analysis issues data reuse distance
  in loops, memory consumption,
• Symbolic cache behavior modeling
• Program trace analysis (polynomial interpolation)
• Partially implemented
• Parameterized intervals not yet considered

39
Conclusion

• Further developments
• Iterative Bernstein expansion when Bernstein
  coefficients are not linear
• Tighter bounds through degree elevation
• Parameterized polynomial inequations solving for
  the general case
• Symbolic number of solutions for systems of
  parameterized polynomial inequations

40
