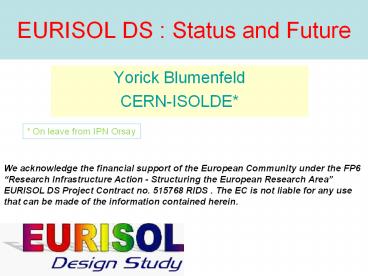

EURISOL DS Status and Future

• Yorick Blumenfeld
• CERN-ISOLDE

On leave from IPN Orsay
We acknowledge the financial support of the
European Community under the FP6 Research
Infrastructure Action - Structuring the European
Research Area EURISOL DS Project Contract no.
515768 RIDS . The EC is not liable for any use
that can be made of the information contained
herein.
2
EURISOL DS

• LatestTechnical Achievements
• Managerial achievements
• Proposals for the Future

3
1 GeV/q H-, H, 3He
UCx target
n-generator
H-
HWRs 176MHz
Elliptical ISCL 704 MHz
3-spoke ISCL 325 MHz
Elliptical ISCL 704 MHz
RFQ 176 MHz
4-MW target station
b 0.3
b 0.78
b 0.47
b 0.65
b 0.09, b 0.15
100 keV
1 ion source
1.5 MeV/u
60 MeV/q
140 MeV/q
H, D, 3He
gt200 MeV/q D, A/q2
Ion sources
A possible schematic layout for a EURISOL
facility
One of several 100-kW direct target stations
Low-resolution mass-selector
Secondary fragmentation target
QWR ISCL 88 MHz
3 QWRs ISCL 88 MHz
8 HWRs ISCL 176 MHz
Spoke ISCL 264 MHz
Charge selector
Bunching RFQ
RFQs
High-resolution mass-selector
Charge breeder
b 0.065
b 0.14
b 0.27
b 0.385
20-150 MeV/u (for 132Sn)
9.3- 62.5 MeV/u
2.1-19.9 MeV/u
To high-energy experimental areas
To low-energy areas
To medium-energy experimental areas
4
Spoke cavities development _at_ IPN Orsay

• 2 prototypes at ?0.15 and ?0.35 fabricated and
  successfully tested at 4.2 K.
• This technology is the basis for the 3-Spoke
  required by the Driver linac

Spoke cavity tuner
EURISOL Task 8 Sébastien Bousson IPN Orsay
5
Liquid Hg converters
Coaxial Guided Stream
Windowless Transverse Mercury Film
6
Off-line test in Hg loop at IPUL
7
Liquid mercury converter
8
New Target Concept
9
100kW Targets
10
CaO344 online Apr 2007Experimental data
Closed valve leak rate 0.3 Ratio
34Ar 95 (OO)/(OFFO) 35Ar 83 Symmetry
34Ar 94 (FO)/(OF) 35Ar 92 Ion source
efficiency (FO or OF) Ar 5.1 (OO)
Ar 4.9
O Open F Closed
35Ar
E. Bouquerel, L. Penescu, E. Barbero, D.
Carminati, R. Catherall, B. Crepieux, J. Lettry,
S. Marzari, E. Noah, T. Stora, R. Wilfinger
11
ISOL targets and ion sources
HfO2 felts

• Ion sources (gt5)
• Surface
• FEBIAD, ECR
• RILIS

• Target materials (30)
• Refractory oxides and carbides (Al2O3, SiC)
• Solid metals (Ta, Nb, Mo)
• Molten metals (Pb, La, Sn).

100 mm
nm/sub-mm SiC
High density UCx
Ta foils
L. Tecchio for Task 4
4 Targets 4 Ion-sources 1 Front-end
20 mm
ISOLDE UCxpressed pellets
12
100kW oxide target design

• Prototype test preparation at TRIUMF
• Proton E0.5 GeV, Pmax 50 kWwobbling envisaged

13
Liquid metal loop
Irradiation cell
Diffusion chamber
EM pump
Heat exchanger
To be tested at IPUL
14
MUST2 TIARA
Testing Instrumentation Concepts for EURISOL
Task 10 Physics and Instrumentation Robert Page
15

• EURISOL has a stable Design, validated by
  worldwide experts
• During the final year, the work is concentrated
  on prototype building and testing

16
Management Achievements

• EURISOL User Group Angela Bonaccorso, chair.
  First workshop Jan. 2008 Charter established
  election of executive committee 27candidates for
  8 seats, 354 voters.
• Site Investigation Panel A. Shotter, G.
  Cuttone, D. Geesaman, A. Mueller, S. Myers. 3
  meetings. Will report to steering committee in
  November
• Third annual report accepted for scientific part.
  Comments on financial part received last week.
• Review panels organized for MMW converter and
  post accelerator.
• Production of brochure for General Public
• Next Town Meeting March 30-April 1 2009 in Pisa.
• Defining strategy for the future of EURISOL

17
Proposal for the Future of EURISOL

• EURISOL has made use of EC instruments 5th
  framework RTD and 6th framework DS.
• Major advances have been achieved and a large
  community with varied technical expertise has
  developed and must continue to be nurtured
• Full engineering report necessary before
  Pre-construction phase No (evident) EC
  instrument for funding.
• We (the EURISOL DS MB) propose to form a EURISOL
  collaboration consisting of laboratories
  interested in participating in the continuing
  effort.

18
Role of the EURISOL Collaboration

• Follow the scientific and policy recommendations
  of NuPECC
• Promote and Coordinate the RD to further
  EURISOL, including work at intermediate
  generation facilities
• Solicit support of the funding agencies, in
  particular through the NuPNET Eranet, and explore
  other funding opportunities (EC,
  intercontinental)
• Interact with the EC gtgt entry on the ESFRI list.
• Goal Produce an engineering report for the
  facility
• Support the EURISOL User Group organize Town
  Meetings
• Has been endorsed by NuPECC, thank you!

19
Multi-Community Design Study on High Power
Targets Neutrinos, Neutrons and Ions

• Establish limits for Liquid metal and solid
  target technology
• Study common infrastructure and collect data for
  licensing work
• Computer studies of cavitation and bubble
  development, determination of shock fronts and
  studies of the beam/pressure pulse
• Off-line studies at liquid metal target
  laboratories such as IPUL in Latvia, SNS in Oak
  Ridge and J-Parc in Tokai
• Beam tests to study cavitation and mitigation at
  high instantaneous beam intensity facilities such
  as ISOLDE and AGS
• In-beam tests at a high power facility of new
  concepts

Under Discussion
20
(No Transcript)
21
Organization of the EURISOL Collaboration

• Collaboration board representing participants gtgt
  Elects collaboration chairperson and appoints
  project leader.
• Project office supported by a modest
  collaboration fee (5000 E/year/lab).
• Engineering work coordinated by project leader
  and funded by funding agencies ( other),
  preferably coordinated by NuPNET.
• Work divided into work packages

22
EURISOL Work Packages (3-5 years)

• Management (Project Office)
• RIB production Specific prototyping and tests
• Neutron converter in beam
• Fission target in n flux
• New target materials liquid metal direct target
• Novel beam splitter system
• Prototyping at intermediate facilities linked
  to EUR-ISOL Net in ENSAR
• Documentation and licensing
• Infrastructure
• Updating the science case coordinated by
  EURISOL User group

23
Requests

• Very approximate price tag 2M/year for 4 years.
• We would like the support of NuPECC to implement
  this plan (and welcome your suggestions).
• Collaboration launched by the EURISOL Steering
  Committee in Nov. 2008
• Startup should be in fall 2009
