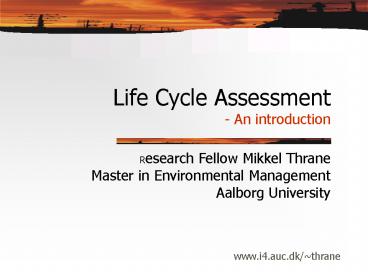

Life Cycle Assessment An introduction

1
Life Cycle Assessment- An introduction
Research Fellow Mikkel ThraneMaster in
Environmental ManagementAalborg University
www.i4.auc.dk/thrane
2
Content of the course

• Lesson 1 Life cycle thinking, LCA concept
• Lesson 2 LCA methodology
• Lesson 3 EcoDesign
• Lesson 4 Guest lecturer
• Lesson 5 Future perspectives of LCA

3

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

4
The 1960ies Out of sight out of mind
(Arne Remmen, Greening of Industry, AAU 2000)
5
(Arne Remmen, Greening of Industry, AAU 2000)
The 1970ies Output focus - Symptom treatment
6
The 1980ies Technology focus - Prevention
(Arne Remmen, Greening of Industry, AAU 2000)
7
The 1990ies Management focus - Dynamic
(Arne Remmen, Greening of Industry, AAU 2000)
8
(Arne Remmen, Greening of Industry, AAU 2000)
2000... Product focus - triple buttom line
9
Increased solution space
(Thrane and Remmen - not published)
Polution prevention Shift of paradigme
Symptom treatment
10
Gradually wider problem understanding
(Thrane and Remmen - not published)
11
actors and motivation
(Thrane and Remmen - not published)
12
The solution ladder
(Inspired of Inge Røpke, DTU 1991)

• 7. Life forms - promote cleaner life styles
• 6. Structures - promote cleaner infrastructures
• 5. Services - promote other modes of
  transportation
• 4. Products - develop fuel cell technology
• 3. Sub product - recyclable materials
• 2. Processes - cleaner production
• 1. E-O-P - wwt
• 0. Dilution - chimney

Each level may be subdivided
13
Subdivision of cleaner production
(Inspired of Inge Røpke, DTU 1991)
Level 2 Processes
Better housekeeping
Substitution
Process optimization
BAT Cleaner products
14
Where are the companies in Denmark?
Symptom treatment
Polution prevention
15
Companies dealing with Cleaner Products

• Coca-Cola, Unilever (food)
• Ford, GM, Scania, Volvo, Mercedes, BMW etc.
  (transport)
• Shell, Hydro (energy)
• Bosch, Phillips, Sony, Siemens, IBM, Nokia, ATT,
  Xerox(electronic)
• TetraPak, Hartmann (packaging)
• Danfoss, Gram, Grundfos, BO, KEW (electro
  mecanics)
• Novo Nordisk, ASTRA (bio-technology)
• ..

16
Environmental regulation
(Wenzel et al., EDIP project1996)
The old focus
The new focus
17
Danish IPP
(Danish Environmental Protection Agency, 1998)
Product perspective
- Green public procurement - Environmental
labelling - Promotion of LCA - Green taxes and
subsidies - Product standards - Take back
responsibility
Market perspective
Actor perspective
18

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

19
Life Cycle Assessment (definition)
(ISO 14040,1997)

• LCA is a compilation of the inputs and outputs
• and evaluation of potential environmental impacts

• of a product throughout its life cycle
• (ISO 14040, 1997)

20
Illustrated...
(Wenzel et al., EDIP project1996)

• Extraction of raw materials
• Processing of materials
• Production
• Use and maintenance
• Disposal

Potential impacts
Recycling
Reuse
21
Structure of LCA
(ISO 14040,1997)

• Goal and scope (purpose)
• Inventory (data collection - LCI)
• Impact assessment (evaluation)
• Interpretation (review - conclusion)

22
ISO standard on LCA
(www.ISO.ch, 2000)

• ISO 14040 Principles and framework (step 1-4)
• ISO 14041 Goal, scope inventory analysis (step
  1 and 2)
• ISO 14042 Impact assessment (step 3)
• ISO 14043 Life cycle interpretation (step 4)
• ISO 14047 Examples on impact assessment (2001)
• ISO 14048 Documentation format (2001?)
• ISO 14049 Examples Inventory (1999)

23
Related ISO standards
(www.ISO.ch, 2000)

• ISO 14001-4 EMS
• ISO 14020-25 Eco-labels
• ISO 14061 Eco-Design

24
History of LCA
(Allan Astrup Jensen et al., Life Cycle
Assessment, EEA 1997)

• 1970ies Beverage containers - energy
• Ian Bousted UK - materials
• 1985. New birth of LCA - science driven
• 1990ies SETAC A code of praxis Nordic
  Council Nordic Guidelines
• EDIP, SimaPro, CML, LCAit, GaBi, etc.
• ISO 14040 - series

Science driven
25
Future tendencies
(Allan Astrup Jensen et al., Life Cycle
Assessment, EEA 1997)

Simplification Easy to use tools
Refinement of methods and data quality
Science and research
Companies
26

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

27
LCA in Perspective
SEA
Politics
EIA
Projects
Environmental Assessment
LCA
Products
SFA
Substances
28
Application of LCA
(Pär Olsson, LCA netfood, SIK 2000)
29
Different approaches
(Allan Astrup Jensen et al., Life Cycle
Assessment, EEA 1997)
Qualitative LCA
Screening LCA
Fuld LCA
Single product or comparative
Start
End
External use
Internal use
30

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

31
The factor 4-10 debate
(Wenzel et al., EDIP project1996)
I Number of citizens x Consumption per person x
Impact per product
Factor 4 up
Factor 4 down?
32
Number of Citizens
(www.wri.org, 2000)
1950
2000
2050
Billion
33
Indicators of consumption (so far)
(www.wri.org, 2000)
1950
2000
34
Rise in emissions!
(Alting et al., EDIP project 2000)
ppm CO2
380
340
300
Time
2000
1850
1900
1950
35
Impact per product
36
Factor 4 products..

• Portable PC ?
• Phillips ecotone light bulbs ?
• VW LUPO ?
• Switch-mode power supply ?
• LCD technology ?
• Fuel cells ?

37

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

38
Some of the environmental impacts
(Wenzel et al., EDIP project1996)
Greenhouse gases CO2 etc.
Toxic substances
Non renewable resources
CFC-gases
Use of renewable resources
Deforestation
N, P and O
Clean water
Working Environment
Solid waste
39
Effects consequences
(Wenzel et al., EDIP project1996)
Extreme whether
Eutrofication
Acid rain
Melting of ice caps etc.

• Reduced bio- diversity
• Effects on immune systems
• Reduced fertility
• Cancer, allergy...

Desert formation
Global warming/ ultraviolet sun light
40
The problems and their importance
Inspired by (Wenzel et al., EDIP project1996)

• Media
• Politicians
• Researchers
• NGOs .

• Danger to human health
• Danger to animal health
• Danger to plants and ecosystems..

Actors
Risk

• Political system
• Social system
• Educational system
• Economy, welfare..

• Irreversibility
• Mobility
• Inherent hazard
• Quantity
• Accumulation potential
• Persistency...

Structures
Science

• Religion, belief
• Myths, fear
• Culture, tradition
• Ethics, moral, aesthetics...

Values
41

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises

42
Typical impact categories in LCA
Inspired by (Wenzel et al., EDIP project1996)
43
Global impact categories
(Olesen et al.,, EDIP project 2000)

• Source Use of copper, zinc, oil etc.
• Effect Reduction of possibilities for future
  generations
• Source Combustion (transport, energy etc.)
• Effect Increase in temperature, desert formation
  etc.
• Source CFC and HCFC from foam and coolants
• Effect UV radiation, skin cancer etc.

Resource depletion
Green house effect
Depletion of ozone layer
44
Regional impact categories
(Olesen et al.,, EDIP project 2000)

• Source Transport, energy, industry (Hydrocarbons
  etc.)
• Effect Ozone formation (Damage of lung tissue
  etc. )
• Source Transport, energy, agriculture
• Effect Damage to woodlands, lakes and buildings
  (SOx, NOx, NH3 )
• Source Fertilisers, waste water, transport and
  energy
• Effect Eutrophication (Damage to plants and
  fish)
• Source Waste water, incineration, industry,
  ships etc.
• Effect Accumulation Chronic damage to
  ecosystems and organisms

Ozone formation
Acidification
Eutrofication
Persistent toxicity
45
Local impact categories
(Olesen et al.,, EDIP project 2000)

• Source Chemicals, waste water, combustion,
  dumpsites
• Effect Acute and chronic health effects (asthma,
  cancer, fertility etc.)
• Source The same as persistent toxicity but not
  chronic, regional etc.
• Effect The same.but more local and acute
  effects.
• Source Industrial processes and household
• Effect leach of toxic substances, smell, land
  destruction etc.
• Source Industrial working processes
• Effect Allergy, cancer, damage to nerve system,
  hearing, fertility etc.

Human toxicity
Eco toxicity
Waste
Working Environment
46

• Historical background for product focus
• What is LCA ?
• What can it be use for ?
• Why is it important ?
• What are the environmental problems ?
• What is impact categories in LCA
• Exercises
