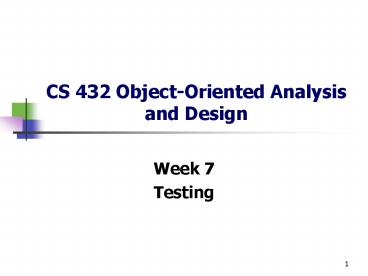

CS 432 Object-Oriented Analysis and Design

• Week 7
• Testing

2
Software Testing
Testing is the process of exercising a program
with the specific intent of finding errors prior
to delivery to the end user.
You cant test in quality. If its not there
before you begin testing, it wont be there when
youre finished testing.
3
Testing

• Testing is a process of identifying defects
• Develop test cases and test data
• A test case is a formal description of
• A starting state
• One or more events to which the software must
  respond
• The expected response or ending state
• Test data is a set of starting states and events
  used to test a module, group of modules, or
  entire system

4
Testing discipline activities
5
Testing is Use Case Driven

• Terms associated with testing
• Verification are we building the system right?
• Validation are we building the right product?
• Testing the Use Case Model is a validation task
  that determines whether the customers needs are
  being met by the application.
• Testing of remaining models is a verification
  task that determines whether the application
  correctly satisfies the requirements specified in
  the Use Case Model

6
(No Transcript)
7
Testing Workflow

• Defines the primary activities required to
  develop the Test Model
• Develop Test Plan
• Outline the testing strategies to be used
  including model tests,
• Estimating the resources required to complete the
  testing activities,
• Scheduling the testing as part of the overall
  project plan.

8
Testing Workflow

• Design Model Tests
• Determine strategies for testing a models
  correctness,
• Determine strategies for testing a models
  completeness,
• Determine strategies for testing a models
  consistency,
• Design Test
• Identify and describe test cases for each build
• Identify and structure test procedures specifying
  how to perform or carry out the test cases that
  test the executable application components and
  their integration,

9
Testing Workflow

• Implement Test automate test procedures by
  creating test components that define executable
  components that automate all or part of the test
  procedures, if possible
• Perform Tests execute the tests cases as part
  of an iteration release or implementation build
  including
• Unit testing is the white-box technique in which
  programmers verify that the software they
  implemented satisfies its design requirements
  (see Section 6.3)
• Regression testing verifies that changes to one
  part of an application do not break other
  previous working parts/components of the
  application,

10
Testing Workflow

• Integration testing verifies the communication
  and cooperation among major system components
  that have been previously unit tested,
• User acceptance testing tests whether the users
  can actually use the system and the difficulties
  they encounter when doing so (often a Cognitive
  Psychology issue),
• Stress testing ensures the system can handle
  significant loads, e.g., 5,000 simultaneous
  users.
• Performance testing ensures the system meets
  performance objectives, e.g., response within 3
  seconds.
• Evaluate Test evaluate the results of the tests
  and the testing strategy.

11
Testing Categories

• black-box testing techniques use only functional
  knowledge of an entity being tested. E.g. only
  knowledge on use cases, or interfaces
• white-box testing techniques utilize knowledge of
  the internal control structure logic of the
  entity being tested.
• Behavioral diagrams capture some aspect of the
  internal behavior of how an entity realizes the
  functionality associated with a use case.

12
Models How to Test

• In general, develop use cases that address these
  issues
• correctness tests both the syntactic and
  semantic accuracy of a model.
• From a syntactic perspective, the model must be
  tested to verify that the various UML elements
  used within the model are used correctly.
• From a semantic perspective, the elements within
  the model must accurately correspond to the
  reality being represented by the model.

13
Models How to Test

• completeness tests whether a model is complete
  by verifying whether any required elements are
  missing from the model. This is typically
  accomplished by determining whether the model can
  appropriately handle scenarios developed for this
  purpose.
• consistency tests whether the elements in a
  model are used in a conflicting way. It also
  verifies that the elements of a model dont
  contradict with the elements of other models on
  which it depends.

14
Use Case Model

• The testing of the Use-Case Model must consider
  the following issues
• Correctness does each use case accurately
  represent a requirement?
• Completeness do the use cases represent all of
  the functionality needed for a satisfactory
  product
• Consistency generally this requires examining
  extension and included use cases to ensure that
  their relation to other use cases is consistent.
  Naturally, its possible to declare two use cases
  that contradict each other, but this is rare in
  practice.

15
Analysis Model Testing

• Testing the analysis model amounts to determining
  whether the application being modeled correctly
  interprets the application domain
• Correctness the description of the domain
  concepts are accurate the algorithms will
  produce the expected results. The concepts and
  algorithms cover the use cases
• Completeness the concepts are sufficient to
  cover the scope of the content specified.
  Sufficient detail is given to describe concepts
  to the required depth. Experts agree with the
  attributes and behaviors assigned to each class.
• Consistency Model elements should be consistent
  with the businesss definitions and meanings.
  Where there are multiple ways to represent a
  concept of action, those ways should be modeled
  equivalently.

16
Design Model Testing

• Testing the design model is conceptually similar
  to testing the analysis model, but also requires
  addressing the following issues
• Correctness Each class accurately implements
  the semantics of an interface. Classes
  corresponding to interfaces must implement the
  interface
• Completeness classes are defined for each
  interface in the architecture. Preconditions for
  method use are appropriate specified.
  Post-conditions and error conditions are
  specified.
• Consistency The behaviors in the interface of
  each class provides either a single way to
  accomplish a task or, of there are multiple ways,
  they provide the same behavior, but with
  different preconditions

17
Design Model Testing

• Testing an object-oriented design presents some
  additional challenges not typically found in the
  testing of procedure programming designs
• Interfaces Classes implement interfaces and its
  necessary to ensure that the class correctly
  implements the functionality required by its
  interface.
• Inheritance The use of inheritance also
  introduces coupling problems in which a change to
  one class results in a change to all of its
  subclasses. This requires ensuring that the
  change that is now being inherited is appropriate
  for all of the subclasses. Delegation can often
  alleviate many of the issues associated with
  inheritance.
• Delegation The delegation of tasks to other
  objects, though similar to the use of modules in
  procedure programming languages, also presents
  its own set of issues. In a class, the delegation
  is encapsulated behind a public interface, hence
  its necessary to ensure that the implementation
  of the interface is still correct when the class
  to which the functionality has been delegated is
  changed.

18
Implementation Model Testing

• Testing the implementation model focuses on
  verifying that the implemented code satisfies the
  design in the design model (and the requirements
  of the use-case model).
• Correctness The executable components of the
  system correctly build (e.g., compile and deploy)
  and adhere to the design model.
• Completeness the executable components provide
  all of the functionality specified in the design
  model.
• Consistency The executable components of the
  system are appropriately integrated in a way that
  provides the functionality specified by the
  use-case requirements

19
Testing Framework

• The object-oriented concepts you have learned in
  this class can easily be used to develop a simple
  testing framework for any application you are
  building.
• The execution of such tests will be automatically
  performed every night as part of the most recent
  build process.

20
Example Test Method
With Method
21
Example Test Handler

• Create new class that handles the common testing
• behaviors
• This can be done with Java, C but not C
• Specifies that the execution of the given
  message should
• result in a returned value equal to the given
  object

22
verifyTest() - AccountCatalog

• public verifyTest()
• // Get a newly created unique account id
• int id nextId()
• // Create a new account object with this id.
• Account account new Account(id)
• // Save the newly created account object
• save(account)
• //
• Object parameters new Object1
• parameters0 new Integer(id)
• // Assert that the execution of the find
  method
• // on the current AccountCatalog object
  (this)
• // with the single id parameter, should
  return
• // a value equal to the account object. If
  not,
• // assert will log an appropriate error
  message
• // to the log file.

23
General Testing Methodologies
24
Figure 13-3 Test types and detected defects
25
Unit Testing

• The process of testing individual methods,
  classes, or components before they are integrated
  with other software
• Two methods for isolated testing of units
• Driver
• Simulates the behavior of a method that sends a
  message to the method being tested
• Stub
• Simulates the behavior of a method that has not
  yet been written

26
Unit Testing
module to be tested
results
software engineer
test cases
27
Unit Testing
module to be tested


interface
local data structures

boundary conditions
independent paths

error handling paths
test cases
28
Unit Test Environment
driver

interface
local data structures

Module
boundary conditions
independent paths

error handling paths
stub
stub
test cases
RESULTS
29
Test Cases

• Test cases should uncover errors such as
• Comparison of different data types
• Incorrect logical operators or precedence
• Expectation of equality when precision error
  makes equality unlikely
• Incorrect comparison of variables
• Improper or nonexistent loop termination
• Failure to exit when divergent iteration is
  encountered
• Improperly modified loop variables

30
Integration Testing

• Evaluates the behavior of a group of methods or
  classes
• Identifies interface compatibility, unexpected
  parameter values or state interaction, and
  run-time exceptions
• System test
• Integration test of the behavior of an entire
  system or independent subsystem
• Build and smoke test
• System test performed daily or several times a
  week

31
Integration Testing Strategies
Options the big bang approach an
incremental construction strategy
32
Top Down Integration
A
top module is tested with
stubs
B
F
G
stubs are replaced one at
a time, "depth first"
C
as new modules are integrated,
some subset of tests is re-run
D
E
Main disadvantage -gt is the need for stubs and
attendant testing difficulties that can be
associated with them. Should test major control
functions early to help with this.
33
Bottom-Up Integration
A
B
F
G
drivers are replaced one at a
time, "depth first"
C
worker modules are grouped into
builds and integrated
D
E
cluster
Major disadvantage -gt the program as an entity
does not exist until the last module is added.
34
Usability Testing

• Determines whether a method, class, subsystem, or
  system meets user requirements
• Performance test
• Determines whether a system or subsystem can meet
  time-based performance criteria
• Response time specifies the desired or maximum
  allowable time limit for software responses to
  queries and updates
• Throughput specifies the desired or minimum
  number of queries and transactions that must be
  processed per minute or hour

35
User Acceptance Testing

• Determines whether the system fulfills user
  requirements
• Involves the end users
• Acceptance testing is a very formal activity in
  most development projects

36
Object-Oriented Testing

• begins by evaluating the correctness and
  consistency of the OOA and OOD models
• testing strategy changes
• the concept of the unit broadens due to
  encapsulation
• integration focuses on classes and their
  execution across a thread or in the context of
  a usage scenario
• validation uses conventional black box methods
• test case design draws on conventional methods,
  but also encompasses special features

37
Who Tests Software?

• Programmers
• Unit testing
• Testing buddies can test others programmers
  code
• Users
• Usability and acceptance testing
• Volunteers are frequently used to test beta
  versions
• Quality assurance personnel
• All testing types except unit and acceptance
• Develop test plans and identify needed changes

38
Debugging A Diagnostic Process
39
The Debugging Process
test cases
results
new test cases
regression tests
suspected causes
Debugging
corrections
identified causes
40
Debugging Effort
time required to diagnose the symptom
and determine the cause
time required to correct the error and
conduct regression tests
41
Symptoms Causes
symptom and cause may be
geographically separated

symptom may disappear when
another problem is fixed

cause may be due to a
combination of non-errors

cause may be due to a system
or compiler error

cause may be due to
symptom
assumptions that everyone
cause
believes

symptom may be intermittent
42
Consequences of Bugs
infectious
damage
catastrophic
extreme
serious
disturbing
annoying
mild
Bug Type
Bug Categories
function-related bugs,
system-related bugs, data bugs, coding bugs,
design bugs, documentation bugs, standards
violations, etc.
43
Debugging Techniques
brute force / testing -- run-time traces,output
statements


backtracking -- start where error is found and
work backwards

induction -- cause elimination, binary
partitioning
deduction
44
Debugging Final Thoughts
1.
Don't run off half-cocked,
think
about the

symptom you're seeing.


2.
Use tools
(e.g., dynamic debugger) to gain

more insight.


3.
get help
from someone else.
If at an impasse,


4.
Be absolutely sure to
conduct regression tests

when you do "fix" the bug.
45
Configuration and Change Management

• Controls the complexity associated with testing
  and supporting a system through multiple
  development and operational versions
• Integrally related to project management,
  implementation, testing, and deployment
  activities
• Change control procedures are typically developed
  in the first iteration before development
• Need for formal procedures depends on size and
  cohesiveness of project

46
Figure 13-7 Configuration and change management
discipline activities
47
Versioning

• Alpha version
• Test version that is incomplete but ready for
  some level of rigorous integration or usability
  testing
• Beta
• Test version that is stable enough to be tested
  by end users for an extended period of time
• Production version
• System version that is formally distributed to
  users or made operational for long-term use
• Maintenance release
• System update that provides bug fixes and small
  changes to existing features

48
Submitting Change Requests and Error Reports

• Typical change control procedures include
• Standard change request forms
• Completed by a user or system owner
• Review of requests by a change control committee
• Assess impact on system, security, and budget
• Extensive planning for design and implementation
• Bugs reports are often reported separately
  because of the need for an immediate fix

49
Figure 13-11 A sample change request form
50
Figure 13-12 A sample change review form
51
Planning and Managing Testing

• Testing activities must be distributed throughout
  the project
• Unit and integration testing occur whenever
  software is developed, acquired, or combined with
  other software
• Usability testing occurs whenever requirements or
  design decisions need to be evaluated
• User acceptance tests are conducted as a final
  validation of the requirements, design, and
  implementation activities

52
Development Order

• Input, process, output (IPO) development
• Implements input modules first, process modules
  next, and output modules last
• Important user interfaces are developed early
• Top-down
• Implements top-level modules first
• There is always a working version of the program
• Bottom-up
• Implements low-level detailed modules first
• Programmers can be put to work immediately

53
Framework Development

• Foundation classes
• Object framework that covers most or all of the
  domain and data access layer classes
• Reused in many parts of the systems and across
  applications
• Whenever possible, developers choose use cases
  for early iterations that rely on many foundation
  classes
• Testing early finds bugs before dependent code is
  developed

54
Direct Deployment

• Installs a new system, quickly makes it
  operational, and immediately turns off any
  overlapping systems
• Advantages
• Simplicity
• Disadvantages
• Risk of system unavailability
• Used when a new system is not replacing an old
  system and/or downtime can be tolerated

55
Direct Deployment and Cutover

56
Parallel Deployment

• Operates both old and new systems for an extended
  time period
• Advantages
• Relatively low risk of system failure
• Disadvantage
• Cost to operate both systems
• Used for mission-critical applications
• Partial parallel deployment can be implemented
  with increased risk of undetected errors

57
Figure 13-24 Parallel deployment
and operation
58
Phased Deployment

• Installs a new system and makes it operational in
  a series of steps or phases
• Advantages
• Reduced risk
• Disadvantages
• Increased complexity
• Useful when a system is large, complex, and
  composed of relatively independent subsystems

59
Figure 13-25 Phased deployment with direct
cutover and parallel operation
60
Personnel Issues

• New system deployment places significant demands
  on personnel
• Temporary and contract personnel may be hired to
  increase manpower, especially during a parallel
  deployment
• System operators
• Personnel with experience in hardware or software
  deployment and configuration
• Employee productivity decreases temporarily with
  a new system due to the learning curve
