Concepts of Object Oriented Programming

1

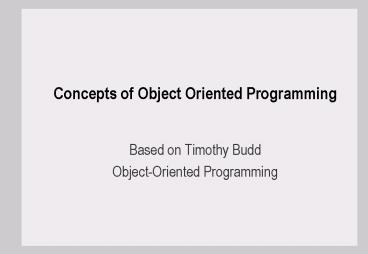

Concepts of Object Oriented Programming

• Based on Timothy Budd
• Object-Oriented Programming

2
Objects as Abstract Data Types

• Objects combine state (data fields / instance
  variables/ data members / slots) and behavior
  (operations / methods / function member /
  functions)
• From the outside clients can only see the
  behavior of objects, from the inside the methods
  provide the behavior through modification of
  state as well as by interacting with other objects

top
pop
top pop push
push
3
Interface and Implementation

• Parnas Principle 1972 for modules
• One must provide the intended user with all the
  information needed to use the module correctly
  and nothing more
• One must provide the implementor with all the
  information needed to complete the module and
  nothing more
• Parnas Principle for objects
• A class definition must provide the intended user
  with all the information necessary to manipulate
  an instance of the class correctly and nothing
  more
• A method must be provided with all the
  information necessary to carry out its given
  responsibilities and nothing more

4
Learning a OO Programming Language (1)

• Class Definition is like a type definition it
  specifies the data and the behavior (methods) to
  be associated with this data, it does not create
  a value (object) default values for data can be
  specified visibility of data and behavior can be
  specified
• Object Instantiation is the creation of a new
  instance of a class, i.e. a value (object)
  initial values for the data fields can be passed
  Confusion arises in some strongly typed
  languages where object instantiation takes
  syntactically the form of a declaration
• Messages have a receiver (the object the message
  is sent to), a message selector (some text
  indicating the message being sent), and arguments

5
Learning a OO Programming Language (2)

• Class hierarchies are defined when in a class
  definition one or more parent classes can be
  specified (single ltgt multiple inheritance)
• Inheritance is the property that instances of a
  child class or subclass can access both data and
  behavior (methods) associated with a parent class
  or superclass
• Method binding or method lookup is a mechanism
  for determining the method to be used in response
  to the message being sent

6
The Card Example
1

• A card belongs to a suit, has a rank and a color
• A card can be face up or face down on the table
  (screen) and
• can be flipped from one position to the other
• A card can be displayed upon and erased from the
  screen
• A magic card is a special kind of card, its rank
  can be changed

7
Class Definition
define class ltnamegt ltdata definitionsgt ltmethod
declaration definitionsgt

Card Suit diamond, club, heart, spade Rank
integer FaceUp boolean Color red,
black Flip() ltsome codegt Draw(WwindowX,Yposit
ion) ltsome codegt Erase() ltsome codegt
define class Card ... ...
8
Class Definition visibility, scope, protection

define class ltnamegt ltdata definitionsgt ltmethod
declaration definitions
Card Suit diamond, club, heart,
spade Rank integer
FaceUp boolean NrOfCardsInGame
integer Flip() ltsome codegt
Draw(WwindowX,Yposition) ... Erase()
ltsome codegt Shuffle()
Priv
Priv
Priv
Class
Pub
Pub
Pub
Pub
Class
Pub
9
Issues in class definitions

• Visibility modifiers to control visibility thus
  manipulation of data fields and methods
• Getter and setter methods (or accessors and
  mutators) to control how data is accessed and
  modified
• Constant or immutable data fields to guarantee no
  changes will occur
• Class data fields that are shared in common
  amongst all instances
• Order of methods in a class declaration
• Separating definition and implementation
• Interfaces
• Nested classes versus inner classes

10
Classes and Methods in C (1)

• C distinguishes interface files (.h extension)
  and implementation files
• The (conditional) include preprocessor directive
  can be used to "import" interface descriptions in
  implementation files
• Class descriptions are much like structure
  definitions but both data members (data values)
  and function members (methods) are allowed
• Since methods are treated simply as special types
  of fields, a method and a data field can not
  share a common name
• Methods with the same name as the class are
  special they are constructors used when creating
  instances of the class

11
Classes and Methods in C (2)

• The keyword private precedes those portions of
  the code that can be accessed only by the methods
  of the class itself
• The keyword public precedes those portions of the
  code that can be accessed by clients of the class
• Since users of the class are mainly interested in
  the public parts, these should come first
• Descriptions of private members are given for
  the benefit of the compiler only, the clients of
  the class should not see them -gt violation of
  Parnas' first principle

12
Classes and Methods in C (3)

• An implementation file for a class must provide
  definitions for the methods described in the
  interface file (unless it is a pure virtual
  method)
• Inline functions are provided to encourage
  programmers to use the principles of abstraction
  and encapsulation while at the same time avoiding
  the overhead of procedure call
• Inline definitions also occur when the body of a
  method is defined directly in the class
  definition it makes class definitions harder to
  read and some compilers require the private data
  members to be listed before the public interface

13
C Card Interface File

• class card
• public enum suits diamond, club, heart,
  spade
• enum colors red, black
• card(suits,int) //constructor
• colors color() //access attributes
• bool faceUp?()
• int rank()
• suits suit()
• void flip() //actions
• void draw(window , int, int)
• void erase(window , int, int)
• private bool faceUp
• int rankValue
• suits suitValue

14
C Card Implementation File

• include "card.h"
• card card(suits sv ,int rv)
• suitValue sv
• rankValue rv
• faceUp true
• inline int cardrank()
• return rankValue
• colors cardcolor()
• if (suit()heart suit()diamond)
• return red
• else return black
• void cardflip()
• faceUp ! faceUp

15
C Card Interface File bis

• class card
• private bool faceUp
• const int rankValue
• const suits suitValue
• public enum suits diamond, club, heart,
  spade
• enum colors red, black
• card(suits sv , int rv) suitValue(sv),
  rankValue (rv) //constructor
• colors color() //access attributes
• bool faceUp?() return faceUp
• int rank() return rankValue
• suits suit() return suitValue
• ...

16
Java

• Java is NOT a dialect of C, there are
  superficial surface similarities but the
  underlying differences are substancial.
• Java does not have pointer, reference, structure,
  and union types, goto statement, function
  definition or operator overloading
• Java uses garbage collection for memory
  management, introduces the concept of interfaces,
  introduces packages and package visibility,
  supports multithreading and exception handling
• Java is a very portable language due tot he use
  of a virtual machine

17
Classes and Methods in Java

• There is no preprocessor, global variables or
  enumerated data types. Symbolic values are
  created by declaring and initialising a data
  field with the keywords final and static
• The keyword static used on data fields indicates
  that only one copy of the data field exists which
  is shared by all instances. The keyword static on
  a method indicates that this method exists even
  when no instance of the class exist. A Java
  program needs one class with a main static
  method.
• Method implementations must be provided directly
  in the class definition
• The public and private keywords are applied
  individually to every instance variable and
  method definition

JAVA 1.5 !
18
Java Card Class (1)

• class Card
• final static public int red 0 // static
  values
• final static public int black 1
• final static public int spade 0
• final static public int heart 1
• final static public int diamond 2
• final static public int club 3
• private boolean faceUp // data fields
• private int rankValue
• private int suitValue

19
Java Card Class (2)

• Card (int sv, int rv) // constructor
• suitValue sv rankValue rv faceUp
  true
• public boolean faceUp?() return faceUp
  // access attributes
• public int rank() return rankValue
• public int suit() return suitValue
• public int color() if (suit() heart
  suit() diamond) //actions
• return red
• return black
• public void flip() faceUp ! faceUp
• public void draw( Graphics g, intx, int y)
• //class Card

20
CLOS

• Common Lisp Object System is an object oriented
  extension of the LISP language (Scheme is a LISP
  dialect)
• CLOS uses the generic function approach as
  opposed to message passing to invoke
  class-specific operations
• CLOS supports automatic updating of instances
  when class definitions are altered and allows
  instances to become instances of a different
  class again supporting appropriate updating for
  the instances

21
CLOS Generic Functions

• Assume that types or classes rational and complex
  exist and following definitions
• (defgeneric plus (x y))
• (defmethod plus (x y) ( x y))
• (defmethod plus ((x rational) (y rational))
  (ltsome bodygt))
• (defmethod plus ((x complex) (y complex)) (ltsome
  bodygt))
• The method executed when calling (plus A B) will
  depend on the types of A and B, the method is
  chosen by a process that selects, sorts and
  combines the applicable methods

22
Classes and Methods in CLOS

• The defclass macro defines a named class and
  returns the new class object
• A CLOS class defines the slots contained in the
  instances of that class
• A slot has a name and can contain a single value
  a slot without a value is an unbound slot
• Both slot-specifiers and class-options are used
  to determine the characteristics of the slots and
  to create ways to manipulate the slot
• Documentation can be added to both slots and the
  class object a a whole

23
Classes and Methods in CLOS

• The allocation slot-specifier allows to
  distinguish between local and shared slots. A
  slot is local when its value is unique to an
  individual instance. A slot is shared when its
  value is common to all instances of that class
• The type slot-specifier allows to specify a type
  for the slot
• The documentation slot-specifier allows to add
  some documentation to a slot

24
Classes and Methods in CLOS

• The reader, writer and accessor
  slot-specifiers create special methods that allow
  reading, writing or both of values for that slot
• The initarg slot-specifier introduces a keyword
  that can be used while instantiating a class to
  initialise a slot
• The initform slot-specifier allows to specify a
  default value for a slot
• The documentation class-option allows to add
  some documentation to a class
• The default-args class-option allows to specify
  default values for slots of the class using the
  initarg keywords

25
Classes and Methods in CLOS

• The defmethod macro defines a method and returns
  a method object
• The class the method is defined on is explicitly
  mentioned in the lambda list as a specialised
  parameter
• Methods can be qualified as before, after or
  around
• When no generic function with the same name
  exists yet it is automatically created with a
  compatible lambda list
• When a generic function with the same name exists

• the lambda list must be compatible otherwise an
  error is signalled
• when it does not contain a method object with the
  same parameter specialisers and qualifiers a new
  method object is added
• when it does contain a method object with the
  same parameter specialisers and qualifiers the
  old method object is replaced

26
CLOS Class Card (1)

• (defclass card ()
• ((faceup initarg faceup accessor faceup?
  allocation instance initform 'true)
• (suit initarg suit reader suit
• allocation instance)
• (rank initarg rank reader rank
• allocation instance)
• (owner allocation class reader owner
• initform 'vivi))
• (documentation "an example class"))

27
CLOS Class Card (2)

• (defclass card ()
• ((faceup initarg faceup accessor faceup?
  allocation instance initform 'true)
• (suit initarg suit reader suit
• allocation instance)
• (rank initarg rank reader rank
• allocation instance))
• (default-initargs suit 'spade rank 1))
• (defmethod flip ((c card))
• (setf (faceup? c) (not (faceup? c))))
• (defmethod color ((c card))
• (if (or (eq (suit c) 'heart) (eq (suit c)
  'diamond))
• 'red 'black))

28
Instantiation and initialisation

make-instance ltclassgt ltinitial valuesgt
(a Card) Suit diamond Rank 9 FaceUp
false Color red
make instance Card diamond, 9, false
make instance Card spade, 4, true
(a Card) Suit spade Rank 4 FaceUp
true Color black
29
Messages Passing
send message ltobjectgt ltmessage selectorgt lt
argumentsgt

(a Card) Suit diamond Rank 9 FaceUp false
Flip()
true
Shuffle()
Card
30
Issues in Creation and Initialisation

• Stack versus Heap allocation - Automatic versus
  Dynamic variables - Implicit versus Explicit
  creation
• Manual Memory Recovery Memory leaks - Dangling
  Pointers versus Automatic Garbage collection
  expensive
• Explicit versus Implicit Pointers
• Immutable Creation or Single Assignment instance
  variables or slots
• Initialisation and defaults Constructors
• Memory Recovery Destructors

31
Issues in Message passing

• Message passing is the dynamic process of asking
  an object to perform an action
• Messages have a receiver (the object the message
  is sent to), a message selector (some text
  indicating the message being sent), and arguments
• Accessing the receiver from within a method
• Method lookup is a mechanism for determining the
  method to be used in response to the message
  being sent
• The difference between statically and dynamically
  typed languages is important with regard to
  message passing

32
Creation and Initialisation in C

• Both automatic and dynamic variables exist
• An automatic variable is assigned space when the
  block containing its declaration is entered the
  declaration need not to be in the beginning of
  the block. The instance that becomes the value of
  the variable is implicitly created and the space
  is allocated on the stack. Space is freed when
  control exits from the block.
• A dynamic variable implies the use of an explicit
  pointer and explicit instance creation through
  the new operator. Space is allocated on the heap
  and must be freed explicitly through the delete
  operator

33
Creation and Initialisation in C

• Initialisation in C is facilitated through the
  use of constructors these are methods that are
  invoked implicitly each time an object of the
  class is created either implicitly or explicitly
• The operator overloading mechanisms of C
  supports the use of multiple constructors on one
  class to allow for multiple initialisation styles
• There is syntactical support for the use of
  constructors in the declaration of automatic
  variables and in the new operator
• Constructors can pass arguments to constructors
  of encapsulated objects

34
Creation and Initialisation in C

• When the body of a constructor is a set of simple
  assignments to instance variables it can be
  replaced by initialiser clauses in the function
  heading
• Values can be declared as immutable through the
  use of the const keyword instance variables that
  are declared as constant must be initialised with
  an initialisation clause because they can not be
  the target of an assignment statement
• Memory clean up in C is facilitated through the
  use of destructors these are methods that are
  invoked implicitly each time an object of the
  class is deleted either implicitly or explicitly

35
Message Passing in C

• A method in C is named a member function
  passing a message to an object is referred to as
  invoking a member function
• Syntax is similar to accessing data members with
  arguments in parenthesized list use parentheses
  even if no arguments
• The pseudo-variable this is associated with a
  pointer to the receiver of a message it can be
  used to send subsequent messages to the receiver
  or to pass the receiver as an argument to a
  subsequent message

36
C Card Example

• card thecard(hearts, 9)
• card mycard
• mycard new card(hearts, 9)
• thecard.draw(win1,10,10)
• if(thecard.faceUp?())
• mycard-gtdraw(win1,10,10)
• if(mycard-gtfaceUp?())
• colors cardcolor()
• if (this-gtsuit()heart this-gtsuit()diamond
  )
• return red
• else return black
• void carddosomething (int i)
• dootherthing(this,i)

37
Creation and Initialisation in Java

• Java uses automatic garbage collection, the
  programmer does not have to deal with memory
  management
• All variables of some object type are initially
  assigned the value null
• Object values are created with the operator new
  space is allocated on the heap, the pointers are
  always implicit
• The syntax of the new operator requires the use
  of parentheses even if arguments are not
  necessary
• Constructors in Java do not support initialiser
  clauses
• Constructors in Java can call other constructors
  on the same class by using the keyword this it
  allows to factor out common behavior

38
Creation and Initialisation in Java

• The destructor in Java is represented by a
  finalize function. This function is invoked
  whenever the memory has been recovered through
  garbage collection thus never rely on it and use
  for optimisation only
• The new operator in Java can take a string as
  argument. This allows to determine at run-time
  the type of the object to be allocated since the
  string can be built up through an expression
• Instance variables that cannot be reassigned can
  be created through the keyword final

39
Message Passing in Java

• The only notable difference with C lies in the
  fact that variables declared as class types have
  objects as values (the pointer is implicit) this
  is also the case for the pseudo-variable this
• card mycard new card(hearts, 9)
• mycard.draw(win1,10,10)
• if(mycard.faceUp?())
• colors cardcolor()
• if (this.suit()heart this.suit()diamond)

• return red
• else return black

40
Creation and Initialisation in CLOS

• CLOS uses automatic garbage collection, the
  programmer does not have to deal with memory
  management
• The generic function make-instance is used to
  create and initialise new instances of a class
• The first argument to make-instance is a class
  object or a class name, the rest of the arguments
  form the initialisation argument list
• The initialisation arguments that are supplied
  are combined with the default initialisations
  for the slots that are not
• Storage for the instance is allocated on the
  heap, the slots are filled with the values and an
  anonymous instance object is returned

41
Creation and Initialisation in CLOS

• Initialisation is CLOS is very sophisticated
• The same initarg name can occur in multiple slots
• One slot can have multiple initarg names
• Two initarg names that are synonymous can occur
  in the lambda list of an initialisation method
• Methods can be written to control initialisation
  explicitly
• Initargs can be used to supply arguments to
  methods
• .
• Initialisation in CLOS occurs not only when
  making a new instance but also
• When reinitialising an instance
• When updating an instance when its class is
  updated
• When updating an instance to change its class to
  another class

42
Message Passing in CLOS

• Methods are defined relative to a specific class.
  For each set of methods with a given name there
  is a generic function. Which method will be
  called upon calling a generic function will
  depend on the class arguments passed to the
  generic function
• Syntactically a message send is a function call,
  the receiver of the message is the first argument
  of the function call and can be used naturally
  to send subsequent messages to the receiver or to
  pass the receiver as an argument to a subsequent
  message

43
CLOS Card Example (1)

• ? (setf test (make-instance 'card suit 'spade
  rank 9))
• ltCARD x22F0A0Egt
• ? (rank test)
• 9
• ? (suit test)
• SPADE
• ? (owner test)
• VIVI
• ?(faceup? test)
• T
• ?(setf (rank test) 10)
• gt Error Undefined function SETFCOMMON-LISP-USE
  RRANK called with arguments (10 ltCARD
  x550B06Egt) .

44
CLOS Card Example (2)

• ?(slot-value test 'rank)
• 9
• ? (setf (slot-value test 'rank) 10)
• 10
• ? (rank test)
• 10
• ? (faceup? test)
• T
• ? (flip test)
• NIL
• ? (faceup? test)
• NIL
• ? (color test)
• BLACK

45
CLOS Card Example (3)

• ? (setf other (make-instance 'card suit 'spade
  rank 2 faceup 'false))
• ltCARD x22F289Egt
• ? (rank other)
• 2
• ? (faceup? other)
• FALSE
• ? (owner other)
• VIVI

46
Class Hierarchy
Card Suit diamond, club, heart, spade Rank
integer Flip() ltsome codegt

define class ltnamegt ltsuperclassesgt ltdata
definitionsgt ltmethod definition declarationsgt
define class Magic Card Card ... ...
Magic Card Change-Rank(R integer) ltsome codegt
47
Inheritance

• Inheritance is the property that instances of a
  child class or subclass can access both data and
  behavior (methods) associated with a parent class
  or superclass
• Inheritance has an extension flavor the behavior
  and data associated with the child class is a
  larger set that the behavior and data associated
  with the parent class
• Inheritance has a contraction flavor the child
  class is a more specialized or restricted form of
  the parent class
• Inheritance is transitive
• Subclasses can override behavior of superclasses

48
Inheritance Message Lookup

(a Magic Card) Suit diamond Rank 9 FaceUp
false
Change-rank(1)
1
(a Card) Suit diamond Rank 9 FaceUp false
Change-rank(1)
49
Subclass, Subtype and Substitutability

• Subclassing and subtyping is not exactly the
  same thing
• The substitutability principle says that given
  two classes A and B, where B is a subclass of A,
  it should be possible to substitute any instance
  of class B for instances of class A in any
  situation with no observable effect
• The term subtyping is often used to refer to a
  subclass relation in which the principle of
  substitutability is maintained, to distinguish it
  from a more general subclass relationship that
  does not necessarily satisfy this principle
• Statically typed languages place much more
  emphasis on the principle of substitutability
  than do dynamically typed languages

50
Forms of Inheritance

• Inheritance is used in a surprisingly variety of
  ways. Some general abstract categories are
• Subclassing for specialisation
• Subclassing for specification
• Subclassing for construction
• Subclassing for generalisation
• Subclassing for extension
• Subclassing for limitation
• Subclassing for variance
• Subclassing for combination

51
Subclassing for Specialisation (subtyping)

• The child class is a specialised form of the
  parent class but satisfies the specifications of
  the parent class completely
• The principle of substituta-bility is explicitly
  upheld
• Is an ideal form of inheritance, good designs
  should strive for it

Window Move Resize
TextWindow Edit
52
Subclassing for Specification
Abstract

• The child class implements behavior described but
  not implemented in the parent
• Is a special case of sub-classing for
  specialisation
• The parent class is an abstract class it is not
  permitted to create instances of it
• Is used to guarantee that classes maintain a
  common interface, i.e. implement the same methods

Graphical Object Move //no impl Draw //no impl
Ball Move Draw
Card Move Draw
53
Subclassing for Construction

• The child class gets most of its desired
  functionality from the parent class only changing
  names of methods or modifying arguments
• Breaks the principle of substitutability
  intentionally
• Opens a fast and easy route to new data
  abstractions

List Cons
Set Insert
Stack Push
54
Subclassing for Generalisation

• The child class modifies or extends the parent
  class to obtain a more general kind of object
• Used when building upon a base of existing
  classes that are difficult to modify
• Indicates an emphasis on data rather than
  behavior in the design of the class hierarchy
• Should be avoided in favor of inverting the class
  hierarchy and using subclassing for specialisation

Window Display
Colored-Window Color Display //override
55
Subclassing for Extension

• Adds totally new abilities to the subclass new
  methods are added to those of the parent with a
  functionality that is not strongly tied with the
  existing methods
• As the functionality of the parent class remains
  untouched it obeys the principle of
  substitutability

Set Insert Is-element-of?
String-Set Search-Prefix
56
Subclassing for Limitation

• The subclass modifies or overrides methods of the
  parent class to eliminate functionality leaving a
  a subclass with smaller or more restrictive
  behavior
• In an explicit contravention of the principle of
  substitutability
• Also used when an existing base of classes is
  hard to modify

Deque PushFront PushBack
Stack PushBack //error
57
Subclassing for Variance

• Is employed when two classes have similar
  implementations but no conceptual hierarchical
  relation
• One of the two classes is arbitrarily selected to
  be parent the common code in inherited, the
  specific code is overridden
• Usually a better alternative is to factor out the
  common code and have the two classes inherit from
  a common superclass

Mouse Mark-Position Select
GraphicsTablet Mark-Position
58
Subclassing for Combination

• Used to give the subclass a combination of
  features from two or more parent classes
• Also known as multiple inheritance
• Becomes a problem when clashes occur, so subtle
  and complex that a complete discussion follows

Student AccessPriv GetGrade
Teacher AccessPriv GiveGrade
Teaching-Assistant
59
Inheritance in C (1)

• Inheritance is indicated in the class header by
  enumerating the parent classes multiple
  inheritance is supported
• The keywords public and private in the class
  header modulate visibility of inherited members
  private is used for inheritance for construction
• class TablePile public CardPile ...
• class Set private List ...
• Constructors of child classes can explicitly
  invoke the constructor of the parent class with
  an initialisation clause
• TablePile TablePile(int x, int y, int c)
• CardPile (x, y) //initialise parent
• ... //initialise child

60
Inheritance in C (2)

• Protected is an extra keyword that can be used
  with classes formed by inheritance. Protected
  members in a class definition are accessible in
  subclasses but not in client classes
• The keyword virtual indicates that a member
  function is likely to be overridden by a subclass
  or is in fact overriding a method from the
  superclass (the keyword is optional in the
  subclass)
• The semantics of overriding in C are subtle but
  important much depends on how the receiver has
  been declared and on the use of the keyword
  virtual. The discussion follows.

61
Inheritance in Java (1)

• Subclasses are declared using the keyword extends
• class TablePile extends CardPile ...
• All classes are derived from a single root class
  Object if no superclass is mentioned, Object is
  assumed
• class CardPile extends Object ...
• class CardPile ...
• Interfaces are a new concept in Java, they define
  a protocol but no implementation
• public interface Storing
• void WriteFrom (Stream s)
• void ReadFrom (Stream s)

62
Inheritance in Java (2)

• A class can indicate that it implements an
  interface instances of such a class can be
  values of a variables declared as the interface
  type
• public class BitImage implements Storing
• void WriteOut (Stream s) ...
• void ReadOut(Stream s) ...
• Only single inheritance is supported but a class
  can implement many interfaces interfaces on the
  other hand can extend multiple interfaces
• The keyword protected has the same meaning as in
  C

63
Inheritance in Java (3)

• The idea of subclassing for specification is
  supported in Java with the modifier abstract. It
  is not permitted to create instances of an
  abstract class, only subclasses. Defining a class
  abstract ensured that it will be used only as a
  specification, not an implementation.
• A method also can be declared to be abstract and
  if so it does not need an implementation it must
  be overridden in subclasses
• The modifier final used with a class indicates
  that the class cannot be subclassed the modifier
  final used with a method indicates that the
  method can not be modified by a refinement

64
Inheritance in Java (4)

• The constructor of a child class will always
  invoke the constructor for the parent class this
  invocation always takes place before the code of
  the constructor is executed
• If the constructor for the parent class needs
  arguments, the pseudovariable super is used as if
  it were a function if no call on super is made
  explicitly, the default constructor (the one with
  no arguments) is used
• Class DeckPile extends CardPile
• DeckPile (int x, int y, int c)
• super(x,y) //initialise parent
• ... //initialise child

65
Inheritance in CLOS

• Inheritance is indicated in the defclass macro by
  enumerating the parent classes after the class
  name multiple inheritance is supported
• (defclass TablePile (CardPile) ...)
• Both shared and local slots are inherited and can
  be shadowed all slots specifiers are inherited
  and combined
• Class options including default initialisation
  arguments are inherited and combined
• A Class Precedence List is computed to control
  combination
• Methods are inherited too

66
Benefits of Inheritance

• Software Reusability Code sharing when
  behavior is inherited from another class the code
  does not have to be rewritten this saves time,
  reduces size and increases reliability
• Consistency of Interface when many classes
  inherit from the same superclass it is easier to
  guarantee that interfaces to similar objects are
  indeed similar
• Components
• Rapid prototyping
• Frameworks

67
Cost of Inheritance

• Execution Speed inherited methods, which must
  deal with arbitrary subclasses, can be slower
  than specialised code
• Program Size the use of software components from
  a library imposes a size penalty over code
  written for a specific project
• Message Passing Overhead message passing is more
  costly than simple procedure call
• Program Complexity overuse of inheritance may
  obscure the control flow of a program, cfr. the
  yo-yo problem

68
Mechanisms for Software Reuse

• The two most common mechanisms for software reuse
  are composition and inheritance
• The "has-as" relationship between two concepts
  holds when the one is a component of the other
  but the two are not in any sense the same thing
• The "is-a" relationship between two concepts
  holds when the one is a specialised instance of
  the other
• Common sense helps most of the time
• a car has an engine a dog is a mammal
• a car is an engine a dog has a mammal
• an engine is a car a mammal has a dog

69
Composition and Inheritance the gray area
List Cons Car Length Member
List Cons Car Length Member
Set Elements List Add Size Member
Set Add Size
70
Composition

• To reuse an existing data abstraction a portion
  of the state of the new data type is to be an
  instance of the existing structure
• Operations on the new data type are implemented
  using the operations of the existing data type
• There are absolutely no claims on
  substitutability the two data types are entirely
  distinct
• Composition can exist in both object oriented and
  non-object oriented languages the only
  significant difference between languages is in
  how the encapsulated data abstraction is created
  and initialised

71
Inheritance

• To reuse an existing data abstraction the new
  data type is declared to be a subclass of the
  existing class
• Operations on the existing data type are
  inherited by the new data type the new class can
  add data values and add or override operations
• Inheritance carries the implicit assumption that
  subclasses are in fact subtypes the instances of
  the new abstraction react similarly as the
  instances of the existing abstraction
• Proper creation and initialisation of the parent
  abstraction is language dependent
• Private inheritance in C is appropriate here
  but breaks the substitutability principle

72
Composition and Inheritance Contrasted (1)

• Composition is simpler what operations are
  supported by the data type is clear from the
  declaration only
• Through inheritance the operations of the new
  data type are a superset of the operations on the
  original data type two or more declarations must
  be inspected to know the complete set (the yo-yo
  again)
• Data abstractions constructed through inheritance
  are briefer, the implementations are shorter
• Inheritance does not prevent users from
  manipulating the new data type with old
  operations breaching the information hiding
  principle leaving the values unprotected

73
Composition and Inheritance Contrasted (2)

• In composition the existing data type becomes a
  storage mechanism for the new data type and thus
  just an implementation detail. It is easier to
  reimplement the data type with another technique
  with minimal impact on the users of the data type
• Understandability and maintainability are
  difficult to judge. Inheritance has the advantage
  of brevity of code but the programmer must
  understand both classes. Composition code,
  although longer, is the only code the programmer
  must understand
• Data structures implemented through inheritance
  have a very small advantage in execution time
  since one function call is avoided (use inline
  functions in C)

74
Subclasses and Subtypes

• The concept of subclasssing is a way of
  constructing new software components using
  existing components.
• The concept of subtyping is more abstract and has
  to do with behavior, not structure. What matters
  is substitutability
• The concepts of subtype and subclass are not
  necessarily related. Two classes can respond to
  the same set of messages without any common
  implementation or common ancestor. If their
  response to the messages is sufficiently similar
  they can substitute for each other
• Statically typed languages blur the distinction
  they assume that all subclasses are subtypes
  while this is not necessarily true when
  subclasses override the behavior of the parent

75
Variables and Values
define variable My-Card Card
define variable My-Card Card

define variable ltnamegt lttypegt
assign My-Card
make instance Magic Card spade, 4, true
assign ltvariablegt ltvaluegt
make instance Magic Card Spade, 4, true
76
Polymorphic Variables

• In statically typed programming languages, the
  static type of a variable is fixed in the
  declaration statement while the dynamic type
  refers to the type of the value held by the
  variable
• One of the more important features of statically
  typed object oriented languages is that the
  static and dynamic type of a variable must not
  match exactly a variable of type/class A can
  hold instances of any subtype/subclass of A.
  These variables are called polymorphic variables
• In dynamically typed languages, all variables are
  in a sense polymorphic

77
Method Binding Static ltgt Dynamic

• Should a message be bound to a method based on
  the static or dynamic type of the variable that
  is the receiver of the message?

Change-rank(1)
78
Method Binding

• The difference is important when a method is
  overridden in the subclass
• Most of the time binding the message to the
  dynamic type is what we expect but the opposite
  is sometimes useful

Window MouseDown(int,int)
TextEditWindow MouseDown(int,int)
Window W TextEditWindow T() W
T W.MousedDown(3,5)
79
Reverse Polymorphism

• Can a instance of a subclass that is assigned to
  a variable with static type a superclass be
  assigned back to a variable with as static type
  the subclass?
• The are two questions (1) can we tell whether
  the value is an instance of the subclass and (2)
  what mechanisms are necessary to assign the value
• Is an important question when collections are
  considered

List
Set
Stack
List X Set Y Stack Z Set A() Stack B() X
A Y X X B Z X
80
Method Lookup in C (1)

• A primary objective of C is space and time
  efficiency. Therefor most features are statically
  rather than dynamically bound
• Variables can be polymorphic only when pointers
  or references are used
• For "normal" variables method binding is static
• For pointers or references dynamic method binding
  is used when the keyword virtual is used in the
  method declaration
• Even in the latter case, the compiler will check
  the legality of the message send expression using
  the static class of the receiver

81
Method Lookup in C (2)

• class Mammal
• public void speak () printf ("can't speak")
• virtual void bark () printf ("can't
  bark")
• class Dog public Mammal
• public void speak () printf("woef")
• void bark () printf("woef also")

82
Method Lookup in C (3)

• Mammal fred
• Dog lassie()
• fred lassie
• fred.speak() cant speak
• fred.bark() cant bark
• Mammal fido
• Dog fifi new Dog()
• fido fifi
• fido-gtspeak() "can't speak"
• fido-gtbark() "woef also"

83
Reverse Polymorphism in C

• A dynamic_cast can cast from a polymorphic
  base class to a derived class or a sibling class
  the operand must be polymorphic because run-time
  type information is needed which is not available
  for "normal" variables
• fido2 dynamic_cast ltDog2 gt (fido1)
• The typeid operator is used do discover the exact
  type of an object it returns a reference to a
  predefined type type-info typeid(fido1)
• For diagnostic output, the name of a class can be
  recovered as a string form this type-info
  structure
• typeid(fido1).name()

84
Method Lookup in Java

• Messages are always bound to methods based on the
  dynamic type of the receiver
• Data fields can also be overridden in Java but in
  this case binding of an access is based on the
  static type
• Interfaces define a hierarchical organisation
  similar but independent from the class hierarchy.
  Interfaces can be used as types in variable
  declarations. Instances of classes that implement
  that interface can be assigned to these
  variables. The static type is then an interface
  type while the dynamic type is a class type.
  Method binding uses the dynamic type

85
Reverse Polymorphism in Java

• In Java all variables know their dynamic type it
  is possible to test the type with the instanceOf
  operator
• List L
• if (L instanceOf Stack) ...
• Reverse polymorphism is permitted with an
  explicit cast. When the cast is invalid an
  exception is thrown
• Stack S
• S (Stack) L

86
Method Lookup in CLOS

• When a generic function is called the set of
  methods associated with the generic function is
  sorted to find/create an effective method. Three
  steps are taken
• Select applicable methods the parameter
  specialiser is a class and the argument must be
  an instance of that class or one of its
  subclasses
• Sort applicable methods every class has a class
  precedence list that orders the class and its
  superclasses, the class precedence list of the
  argument is used to order the applicable methods
  found
• Apply method combination to the applicable
  methods

87
Class Precedence List
food beverage fruit sauce alcohol tomato
worchester bloody-mary

• A class precedence list is calculated using the
  following guidelines
• A class precedes its direct superclasses
• The order in the defclass definition is
  maintained in case of multiple parents
• Each superclass appears only once
• If the hierarchy contains a cycle an error is
  returned

(bloody-mary tomato fruit worchester sauce food
alcohol beverage standard-object t)
88
Method Combination (1)

• Standard method combination distinguishes primary
  methods and three kinds of auxiliary methods that
  modify the main action indicated by the
  qualifiers before after around
• When all applicable methods are primary methods
• the most specific primary method is called first
• when other primary methods are available they can
  be called explicitly using the function
  call-next-method which will in each step invoke
  the next most specific primary method
• the next-method-p predicate checks whether the
  next most specific method exists
• the value returned by the most specific primary
  method is the value returned by the generic
  function

89
Method Combination (2)

• When both primary and auxiliary methods are
  involved
• the most specific around method is called and
  call-next-method can be used to invoke the next
  most specific around method
• when there are no more around methods call-next
  method will call every applicable before method
  in order
• after the last before method the most specific
  primary method is called which in turn can use
  call-next-method to invoke other applicable
  primary methods
• when the effective primary method exits all the
  after methods are called in order
• before and after methods are used for
  side-effect, the value they return is ignored

90
Method Combination Overview
R1 R1 R2 R2 B1 B2 B3 P1 P3 A2 A1
P2 P2 P3
call to call-next-method Ri around return
from call-next-method Ai after methods called
in sequence Bi before Pi primary
91
Method Combination Example (1/1)

• (defclass person ()
• ((name initarg name reader name)))
• (defclass phd-holder (person) ())
• (defclass professor (phd-holder) ())
• (defmethod printname ((p person))
• (format t (name p)))
• (defmethod printname ((p phd-holder))
• (format t "Dr. ")
• (call-next-method))
• (defmethod printname ((p professor))
• (format t "Prof. ")
• (call-next-method))

92
Method Combination Example (2/1)

• ? (setf bob (make-instance 'person
• name "Bob Brown"))
• ltPERSON x202A6D6gt
• ? (setf viv (make-instance 'professor
• name "Viviane Jonckers"))
• ltPROFESSOR x202A876gt
• ? (printname bob)
• Bob Brown
• NIL
• ? (printname viv)
• Prof. Dr. Viviane Jonckers
• NIL

93
Method Combination Example (1/2)

• (defclass employe ()
• ((name initarg name reader name)
• (salary initarg salary accessor salary)
• (department initarg department
• accessor department)))
• (defclass department ()
• ((name initarg name reader name)
• (expenses initarg expenses
• accessor expenses initform 0)
• (manager initarg manager
• accessor manager)))

94
Method Combination Example (2/2)

• (defmethod give-raise ((e employe) amount)
• (setf (salary e) ( (salary e) amount)))
• (defmethod give-raise around ((e employe)
  amount)
• (if (gt ( (salary e) amount) (salary (manager
  (department e))))
• (format t "cannot give raise")
• (call-next-method)))
• (defmethod give-raise before ((e employe)
  amount)
• (setf (expenses (department e)) ( (expenses
  (department e)) amount)))
• (defmethod give-raise after ((e employe) amount)
• (format t "raise is given"))

95
Method Combination Example (3/2)

• ? (setf sales (make-instance 'department name
  'sales))
• ltDEPARTMENT x202D476gt
• ? (setf bill (make-instance 'employe name "bill
  gates" salary 40000 department sales))
• ltEMPLOYE x202D66Egt
• ? (setf bob (make-instance 'employe name "bob
  brown" salary 30000 department sales))
• ltEMPLOYE x202D866gt
• ? (setf (manager sales) bill)
• ltEMPLOYE x202D66Egt

96
Method Combination Example (4/2)

• ? (give-raise bob '5000)
• raise is given
• 35000
• ? (salary bob)
• 35000
• ? (expenses sales)
• 5000
• ? (give-raise bob '10000)
• cannot give raise
• NIL

97
Replacement and Refinement

• When a subclass simply adds data or methods to a
  super-class the data and methods of parent and
  child are distinct
• When a subclass overrides data or methods of a
  parent class both replacing and refining
  semantics are possible
• Method replacement implies that code from the
  parent is never executed when manipulating
  instances of the child
• With method refinement the method inherited from
  the parent is executed as a part of the execution
  of the child's method
• Refinement of data can mean different things
  have both or combine defaults and other options

98
Replacement and Substitutability

• Replacement semantics do not fit with the
  substitutability principle when subclasses are
  free to override existing methods with methods
  that can perform arbitrary actions there is no
  guarantee that the behavior of the child class
  will be anything like the behavior of the parent
  class
• Most languages ignore the problem and leave it to
  the programmer to do the right thing
• In Eiffel a programmer can attach assertions
  (conditions on the object's state) to a method.
  Assertions are inherited and enforced even if the
  actual method is overwritten

99
Refinement

• Refinement semantics solve the conflict between
  overriding and substitutability rather than
  replacing the code of the parent class, the
  actions described in the child class are combined
  with the actions described in the parent class
  ensuring a minimum level of functionality
• The desirability of refinement semantics is most
  apparent in the creation of new objects the
  initialisations of both the parent class and the
  child class must take place
• Most languages support refinement semantics
  through a mechanism that allows an overridden
  method to invoke the same method in the parent
  class

100
Replacement in C

• Overriding in C is complicated by the
  intertwining with overloading and the virtual/non
  virtual declaration of methods
• Simple replacement occurs only when the arguments
  in a child class method match type and number of
  the arguments in the parent class exactly and
  when the method is declared virtual
• Without the first condition overloading takes
  over there are two distinct methods
• Without the second condition method binding is
  static, so it is the parent class method that is
  executed anyhow

101
Refinement in C

• In C a method invocation can be qualified to
  precisely specify the class from which the method
  is to be derived. The qualification is written as
  classnamemethodname
• Qualification can be used to simulate the
  mechanics of refinement in overriding an
  overridden method can explicitly invoke the
  method of the parent class ensuring that both
  will be executed
• Constructors always use refinement rather than
  replacement the constructor of the parent class
  can be invoked explicitly though an
  initialisation clause in the constructor of the
  child class, if not the default constructor of
  the parent is invoked

102
Replacement and Refinement in JAVA

• Replacement occurs when a method has the same
  signature as a method in the parent class
  otherwise overloading takes over
• Data fields can be replaced or shadowed but the
  replacements are not dynamic, the data field
  selected will be determined by the static type
  (class) of a variable, not by its dynamic type
• The keyword final can explicitly disallow
  overriding
• The pseudo-variable super provides the mechanism
  for simulating refinement

103
Replacement and Refinement in CLOS

• The method combination mechanism explained before
  can simulate refinement semantics through the use
  of call-next-method. Without a call to
  call-next-method, replacement semantics occur
  since in the standard method combination
  mechanism the most specific method will be the
  effective method
• Both local and shared slots can be overwritten or
  shadowed. Slot-options and class-options are
  appropriately combined when instances are created

104
Multiple Inheritance

• Many non overlapping classification for a single
  entity are possible being European, female,
  teacher, parent, etc
• Multiple inheritance is appropriate when the
  "is-a" relation-ship holds a portrait-painter is
  a painter and is an artist
• Single inheritance has often a specialisation
  flavor, multiple inheritance has a combination
  flavor
• Multiple inheritance is a powerful and useful
  feature in a languages but creates many and
  subtle problems for the language implementor

105
Name Ambiguity (1)

• Two meanings of draw clash draw a card from a
  pile of cards and draw a graphical object on a
  screen
• The problem is with the child class, not with the
  parent classes
• A combination of renaming and redefinition is the
  standard solution in this case

GraphicalObject Draw
CardDeck Draw
GraphicalDeck
106
Name Ambiguity (2)

• A single conceptual meaning for AccessPriv and
  PrintTitle but a different value or method in
  each parent class
• Renaming is probably not the preferred solution
  a mechanism is needed to let the child class
  decide on precedence or combination style

Student AccessPriv PrintTitle
Teacher AccessPriv PrintTitle
TeachingAssistant
107
Inheritance from Common Ancestors
Person Name PrintTitle

• When only behavior is inherited from the common
  parent the usual resolution techniques can be
  used
• When data fields are involved, it must be decided
  whether a data field is inherited once or twice
  and whether constructors and initialisations must
  be invoked once or twice

Teacher PrintTitle
Student PrintTitle
Teaching-Assistant
108
Multiple Inheritance in C

• Both renaming and combination of methods can be
  achieved through qualification
• class GraphicalDeck public GraphicalObject,
  public CardDeck
• public void Draw() GraphicalObjectDraw()
• Card ChooseCard() CardDeckDraw()
• ...
• class TeachingAssistant public Teacher, public
  Student
• public PrintTitle() TeacherPrintTitle()
• Print(" ")
• StudentPrintTitle()
• ...

109
Multiple Inheritance and Parametric Overloading
in C

• In C methods with the same name but different
  signatures are distinct. The compiler picks the
  right one based on the actual arguments in the
  call.
• When two parent classes define a method with the
  same name but a different type of parameter one
  would expect the child class to inherit both
  (distinct) methods
• But the compiler cannot decide between the method
  that fits the argument type best and the method
  that is found first in the method search
  procedure and is applicable with implicit
  parameter conversion therefor an error will be
  thrown

110
Multiple Inheritance in Java

• Java does not support multiple inheritance as
  such, but
• a class can implement multiple interfaces
• an interface can extend multiple interfaces
• a class can extend another class and implement an
  interface
• When a class implements multiple interfaces, name
  clashes do no harm since the implementation of
  the method is provided in the class definition
  anyhow

111
Multiple Inheritance in CLOS

• The method combination mechanism explained before
  implements precisely a standard form of method
  combination
• When the standard method combination mechanism
  does not produce the intended results, new types
  of method combination can be specified though the
  use of the (very sophisticated but also very
  complicated) define-method-combination macro

112
Memory Layout and Inheritance

• How much space must be allocated for a variable
  of type Window ?
• Three possible answers
• Minimal static space allocation
• Maximal static space allocation
• Dynamic memory allocation (use one pointer)

Window int height int width
TextWindow char contents int cursorlocation
113
Minimal - Maximal Static Space Allocation

• Allocate space for the base class data fields
  only
• Used in C for non-pointer and non-reference
  variables that are allocated on the stack
• When assigning an instance of the (larger)
  subclass to a variable with the base class as
  static type some data is lost
• This loss is never problematic since method
  binding is static on these variables

• Allocate space for the largest of any values the
